DE On Sale - 24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox

24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox - F2B15-24GN-30S/2GN50K | StepperOnline UK
F2B15-24GN-30S/2GN50K-SALE
Output Shaft TypeD
Rated Voltage(V)24
Rated Current(A)1.10
Frame Size(mm)60 x 60
Question

Downloads

F2B15-24GN-30S_2GNXXK_Manual.pdfPDF · 1.27MBF2B15-24GN-30S_2GN50K_Full_Datasheet.pdfPDF · 46.02KB
Same series
ModelOutput Shaft TypeRated Voltage(V)Rated Current(A)Frame Size(mm)PriceStock
57BLR70-24-02-HG100Keyway2410.40Nema 23 (57 x 57)£51.71In stock
57BLR90-24-01-HG100Keyway2414.00Nema 23 (57 x 57)£55.40In stock
57BYA74-24-01-PG100Keyway245.7057 Round£54.94In stock
57BYA74-24-01-PG27Keyway245.7057 Round£51.01In stock
F2B15-24GN-30S/2GN100KD241.1060 x 60£22.24In stock
F2B15-24GN-30S/2GN10KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN15KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN200KD241.1060 x 60£22.24In stock
F2B15-24GN-30S/2GN20KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN30KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN3KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN3K-SALED241.1060 x 60£19.92In stock
F2B15-24GN-30S/2GN50KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN50K-SALED241.1060 x 60£20.98In stock
F2B15-24GN-30S/2GN5KD241.1060 x 60£20.11In stock
F2B15-48GN-30S/2GN100KD480.6060 x 60£22.24In stock
F2B15-48GN-30S/2GN10KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN15KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN200KD480.6060 x 60£22.24In stock
F2B15-48GN-30S/2GN20KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN30KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN3KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN50KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN5KD480.6060 x 60£20.11In stock
F2B40-24GL-30S/2GL150RCHollow242.5060 x 60£32.90In stock
F2B40-24GL-30S/2GL30RCHollow242.5060 x 60£32.90In stock
F3B40-24GN-30S/3GN100KKeyway242.5070 x 70£26.65In stock
F3B40-24GN-30S/3GN10KKeyway242.5070 x 70£24.22In stock
F3B40-24GN-30S/3GN15KKeyway242.5070 x 70£24.22In stock
F3B40-24GN-30S/3GN200KKeyway242.5070 x 70£26.65In stock
View all in category
DE On Sale - 24V 15W 60RPM Geared Brushless DC Motor 1.74Nm(246.40oz.in) 50:1 Spur Gearbox
This is a 24V 15W brushless DC gear Motor with a flange of 60x60mm. The built-in 50:1 spur gearbox b... Read More
0 reviews • Write a review
from Save -18%
£20.98
£25.47

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

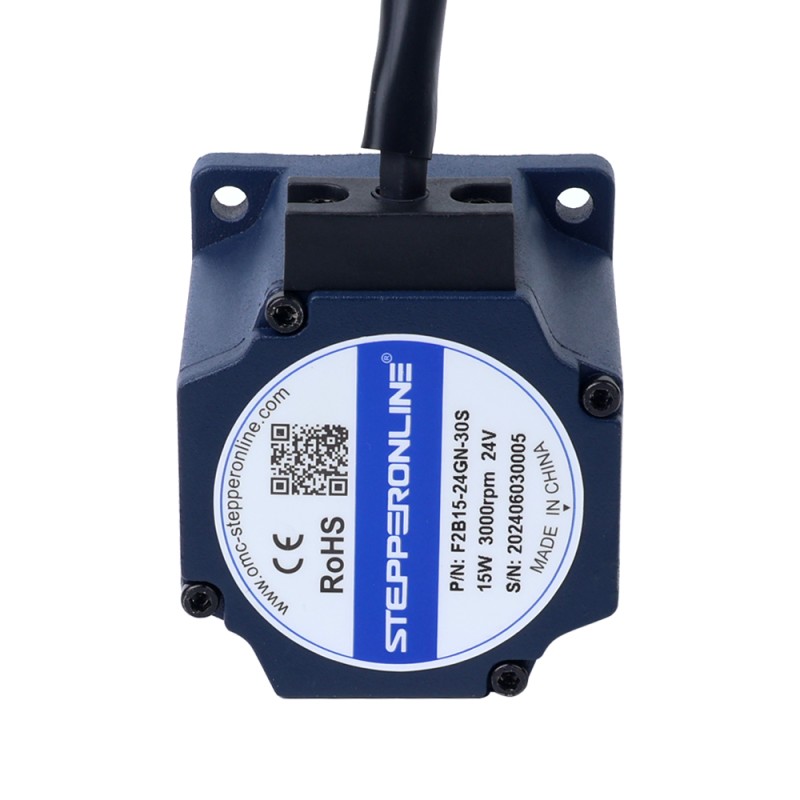

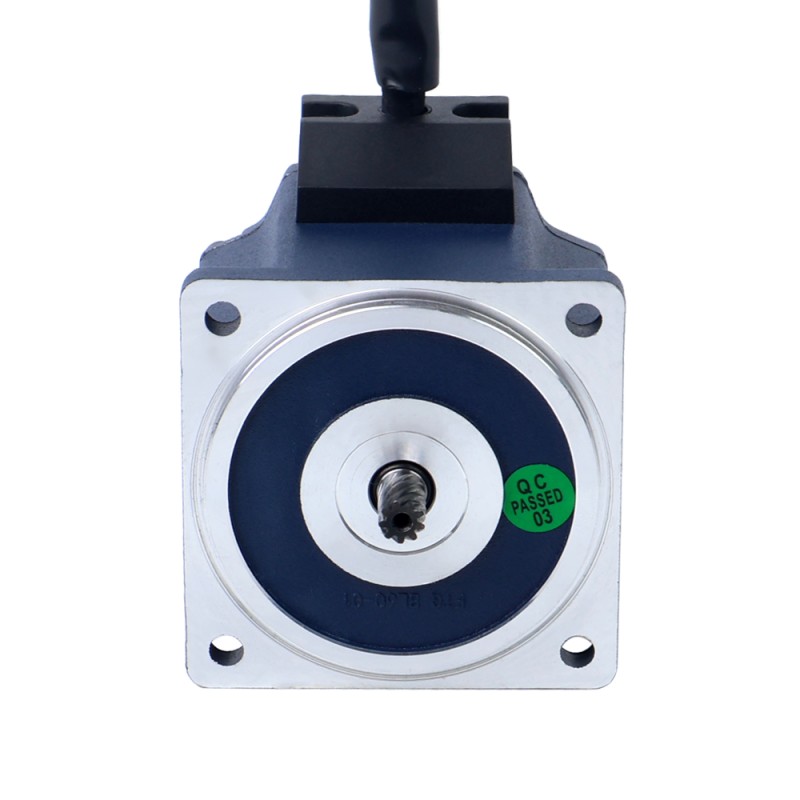

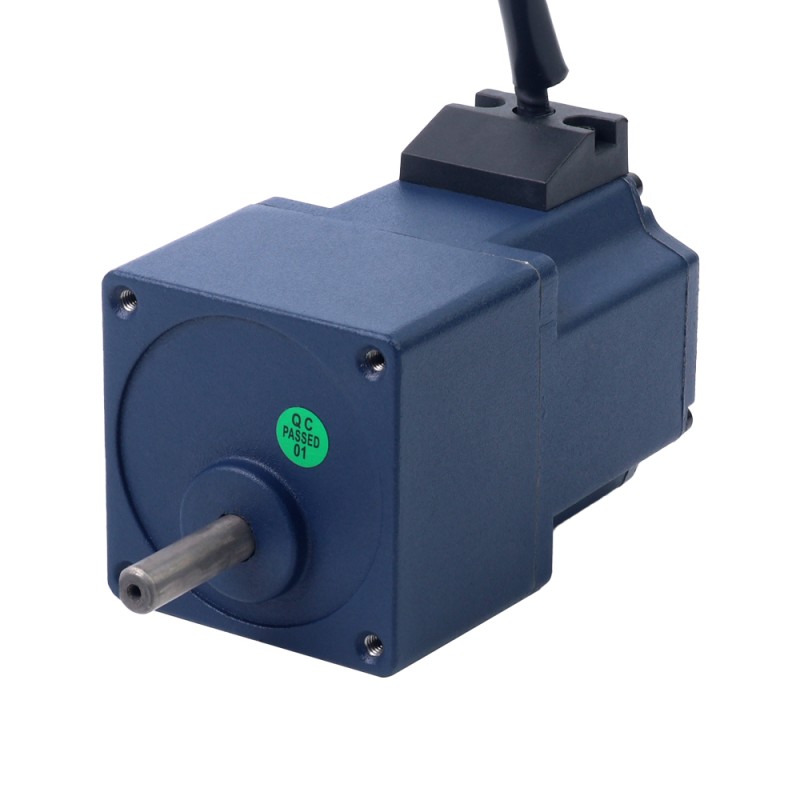

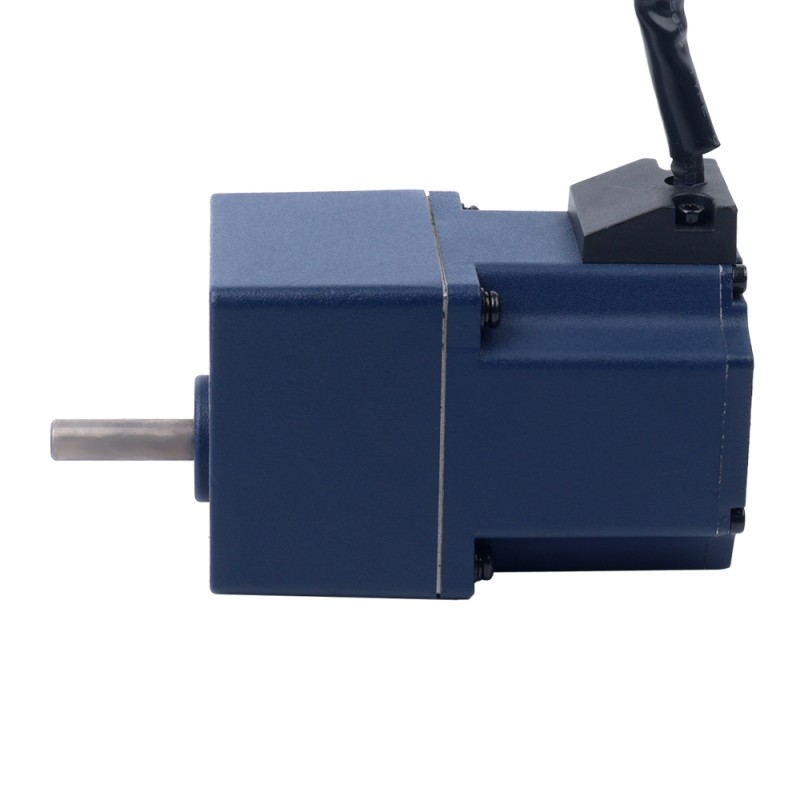

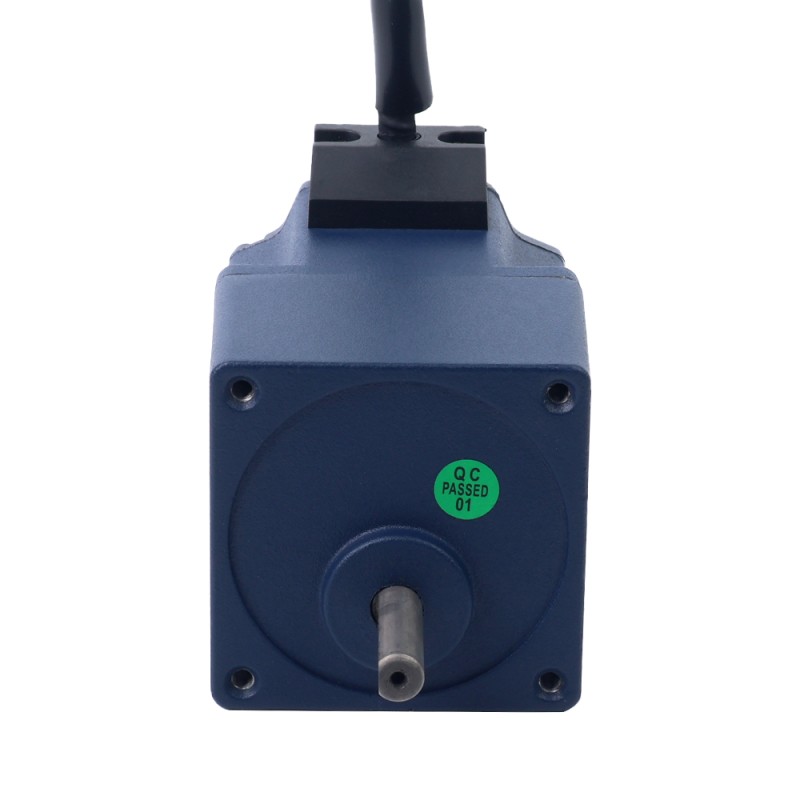

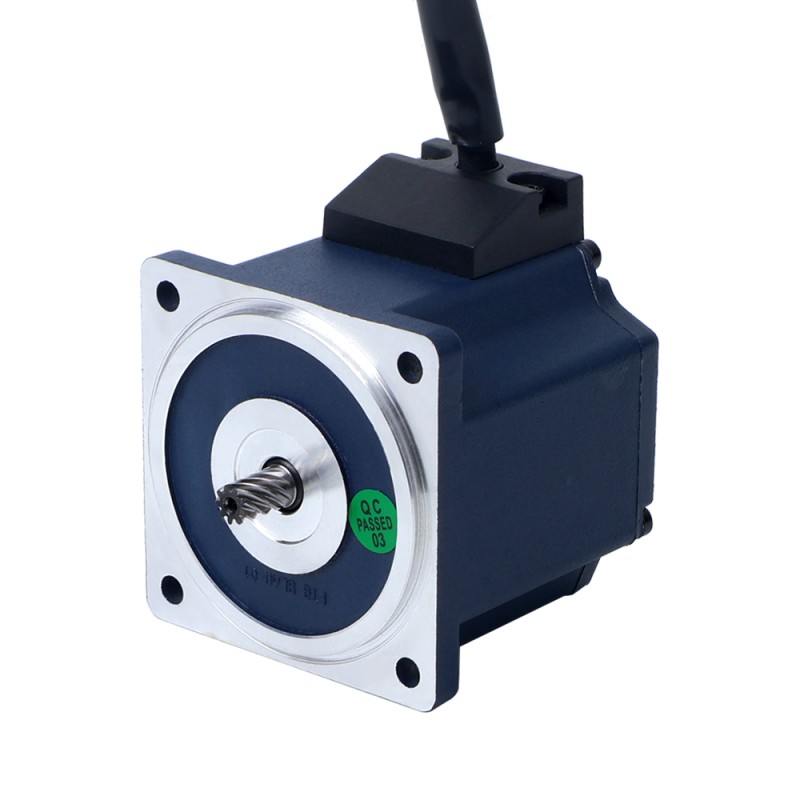

This is a 24V 15W brushless DC gear Motor with a flange of 60x60mm. The built-in 50:1 spur gearbox brings speed and torque to 60rpm and 1.74Nm(246.40oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-305S.

Electrical Specifications

  • P/N: F2B15-24GN-30S/2GN50K
  • Phase: 3
  • Poles: 10
  • Rated Current: 1.10A
  • Rated Voltage: 24V
  • Rated Speed: 60rpm
  • Rated Torque: 1.74Nm(246.40oz.in)
  • No-load Current: 0.60A
  • Rated Power: 15W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 60 x 60mm
  • Body Length: 97mm

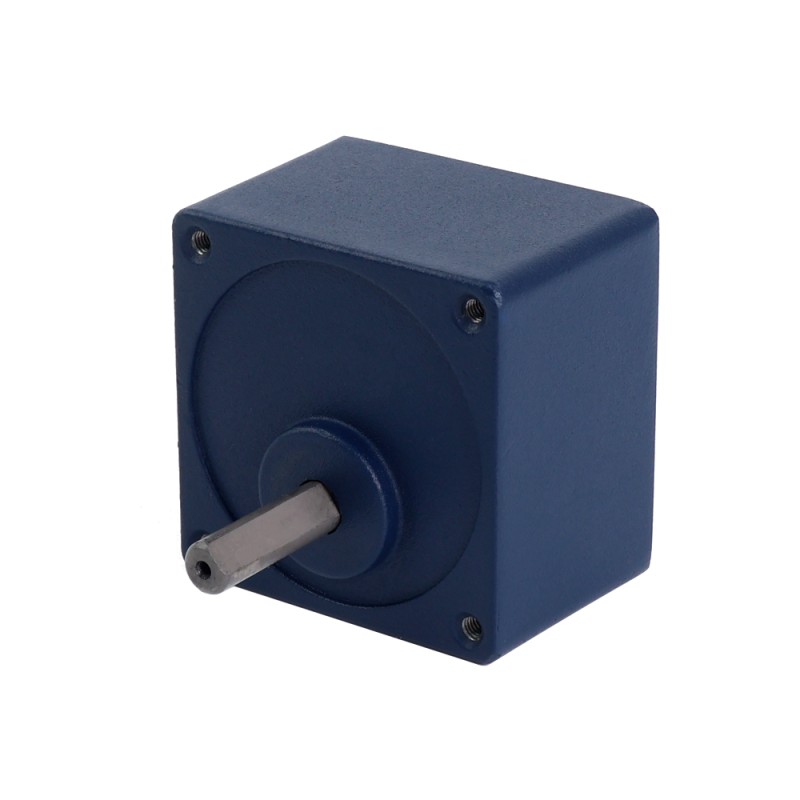

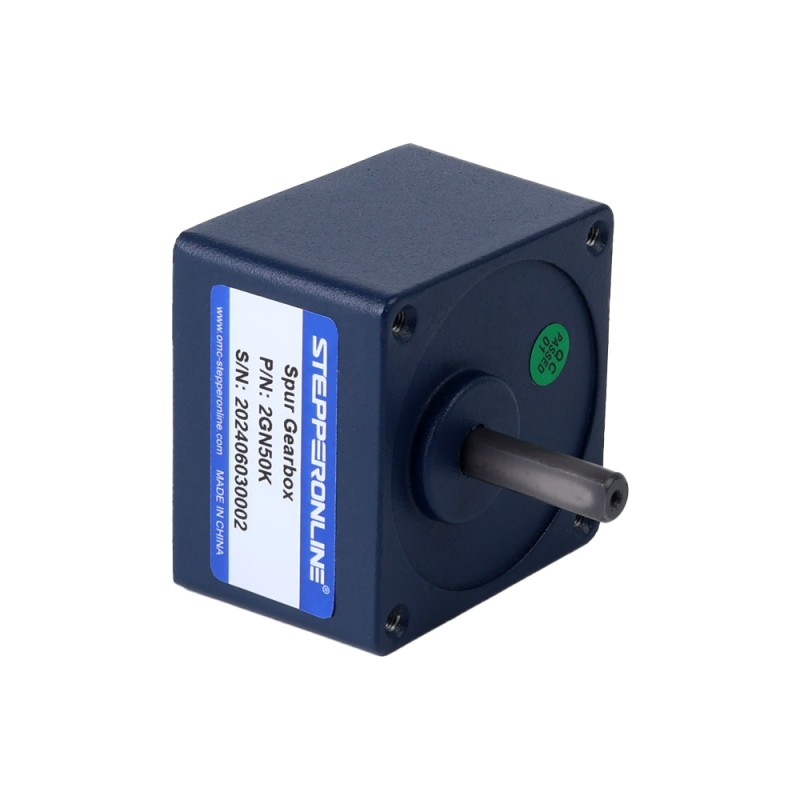

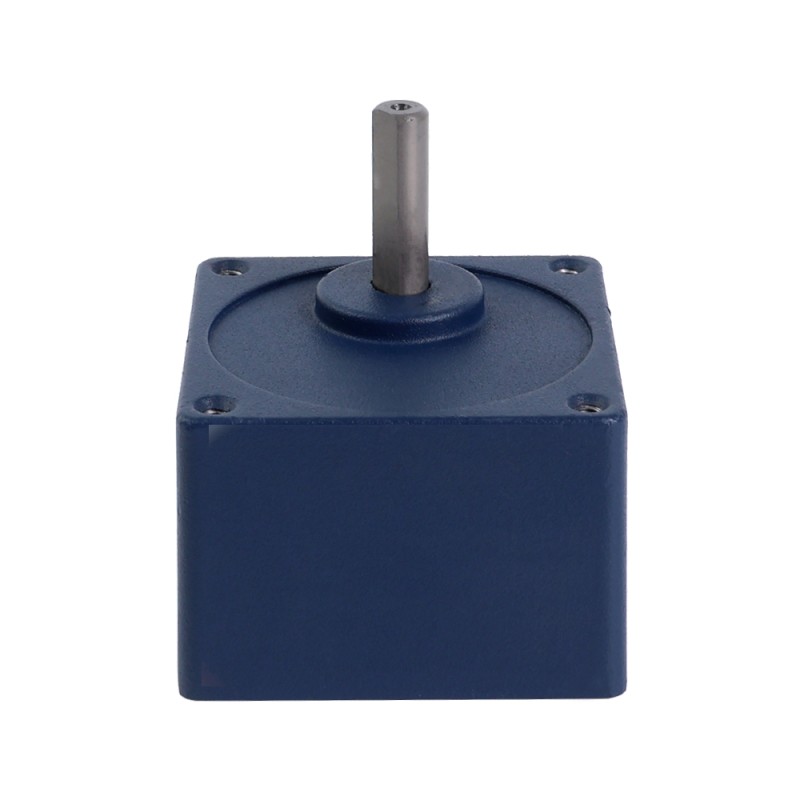

  • Gearbox Type: Spur Gearbox
  • Gearbox Ratio: 50:1
  • Shaft Type: D-cut
  • Shaft Diameter: Φ8mm
  • Shaft Length: 30mm
  • Bearing: Deep Groove Ball
  • Weight: 1.06kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product TypeGeared BLDC Motor
Electrical Specification
No-load Current(A)0.6
No. of Phase3
Rated Current(A)1.10
Rated Power(W)15
Rated Speed(rpm)60
Rated Torque(Nm)1.74
Rated Voltage(V)24
Physical Specification
Body Length(mm)97
Frame Size(mm)60 x 60
Gear Ratio(xx:1)50
Gearbox TypeSquare Spur Gearbox
Output Shaft TypeD
Shaft Diameter(mm)8
Shaft Length(mm)30
With GearboxYes

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

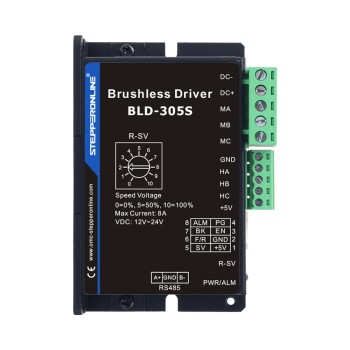

Digital Brushless DC Motor Driver 12-24VDC Max 8.0A 120W
Digital Brushless DC Motor Driver 12-24VDC Max 8.0A 120W
This is a brushless motor driver with an input voltage of 12-24VDC and maximun power of 120W. Compared with BLD-405S, BLD-305S is more cost-effective ..
from
£12.56
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Brushless DC Motor Driver 24V-48VDC Max 15.0A 400W
Digital Brushless DC Motor Driver 24V-48VDC Max 15.0A 400W
This 12V-48VDC 400W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial autom..
from
£15.69
Add to Cart
Add to Wish List Compare this Product
Quickview

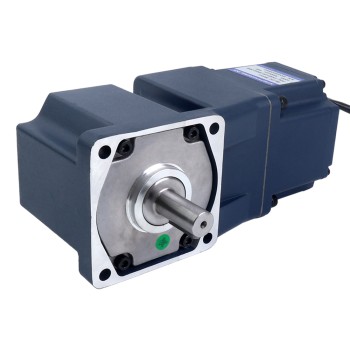

24V 120W 100RPM Geared BLDC Motor 8.01Nm(1134.31oz.in) 30:1 Right Angle Gearbox
24V 120W 100RPM Geared BLDC Motor 8.01Nm(1134.31oz.in) 30:1 Right Angle Gearbox
This is a 24V 120W brushless DC gear motor with a flange of 90x90mm. The built-in 30:1 keyway shaft right angle gearbox brings speed and torque to 100..
from
£57.28
Add to Cart
Add to Wish List Compare this Product
Quickview

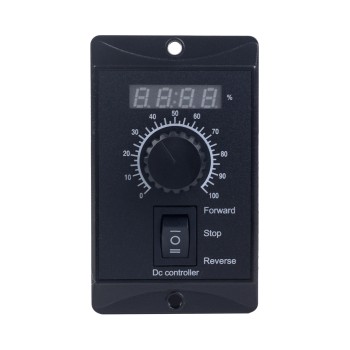

250W 12-48VDC 15A Motor Speed Controller for Variable Speed Motor
250W 12-48VDC 15A Motor Speed Controller for Variable Speed Motor
This motor speed controller comes with a voltage of 12-48VDC and is suitable for 250W variable speed motors. It also can achieve two-way speed regulat..
from
£12.13
Add to Cart
Add to Wish List Compare this Product
Quickview

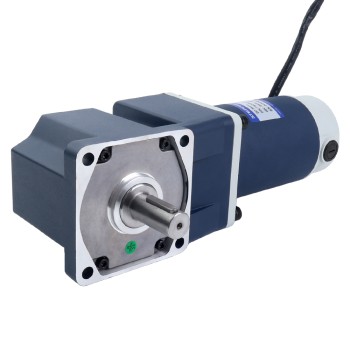

DE On Sale - Brushed 24V 250W 19.69Nm(2788.34oz.in) 90RPM w/ 20:1 Right Angle Gearbox DC Gear Motor
DE On Sale - Brushed 24V 250W 19.69Nm(2788.34oz.in) 90RPM w/ 20:1 Right Angle Gearbox DC Gear Motor
This is a 24V 250W DC gear motor with a flange of 104x104mm. The built-in 20:1 keyway shaft right angle Gearbox brings speed and torque to 90rpm and..
from Save -14%
£72.81 £84.18
Add to Cart
Add to Wish List Compare this Product
Quickview

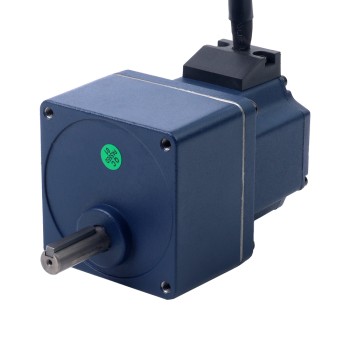

DE On Sale - 24V 40W 150RPM Geared Brushless DC Motor 1.86Nm(263.40oz.in) 20:1 Spur Gearbox
