Y2SD1R5-PLUS-F01 Discontinued

This product has been discontinued and is no longer available for purchase. Please contact us for a replacement.

Question

Downloads

Y2SD1R5-PLUS-F01.pdfPDF · 388.98KB
Same series
ModelPriceStock
1-CL57Y-S12 Discontinued—————
1-CL57Y-S20 Discontinued—————
1-CL57Y-S30A Discontinued—————
1-CLYS20 Discontinued—————
1-CLYS30 Discontinued—————
1-CLYS30-1M5 Discontinued—————
1-CLYS30S-V20 Discontinued—————
1-CLYS40 Discontinued—————
1-DM542T-24HS34 Discontinued—————
1-DM542T-24HS39 Discontinued—————
1-DM556S-24HS39 Discontinued—————
11C13S0754ED3-013RS Discontinued—————
11E13S0754ED2-100RS Discontinued—————
11E18S0754ED2-101RS Discontinued—————
11E18S0754FD3-250RS Discontinued—————
11E18S0754GD3-250RS Discontinued—————
11E20S0674AA2-100RS Discontinued—————
11E20S0674ED2-100RS Discontinued—————
11HS12-0674D2-PG27 Discontinued—26.85Economy Planetary——
11HS12-0674S-PG100 Discontinued—99.548Economy Planetary——
11HS20-0674D-PG14-AR3 Discontinued—13.73Economy Planetary——
11HS20-0714S-PG100 Discontinued—99.05Economy Planetary——
11N13S0754AA2-100RS Discontinued—————
11N13S0754QE2-150RS Discontinued—————
11N18S0754ED3-250RS Discontinued—————
11N20S0674AA2-100RS Discontinued—————
14E13S0574JE3-150RS Discontinued—————
14E13S0574QE3-150RS Discontinued—————
14E17S0914JE3-250RS Discontinued—————
14E17S0914QE3-250RS Discontinued—————
View all in category
DC Pulse Stepper Motor Driver 0.4-3.0A 12-48VDC Alarm Function & I/O Control for Nema 11, 14, 17, 23 Stepper Motor
Y2SD1R5-PLUS-F01 is a DC pulse stepper motor driver, supports pulse & direction mode and CW/CCW mode... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

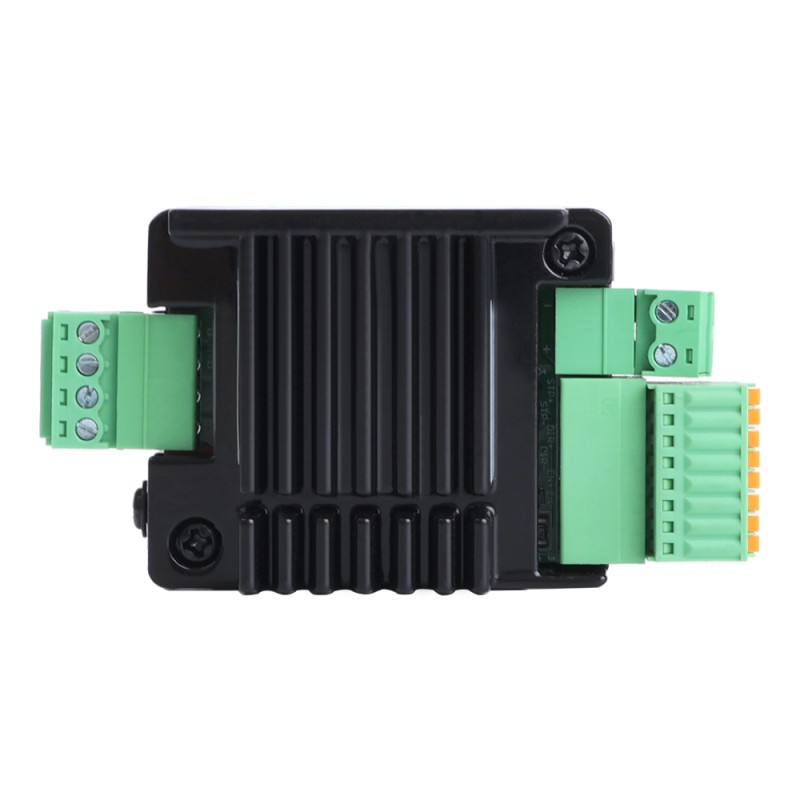

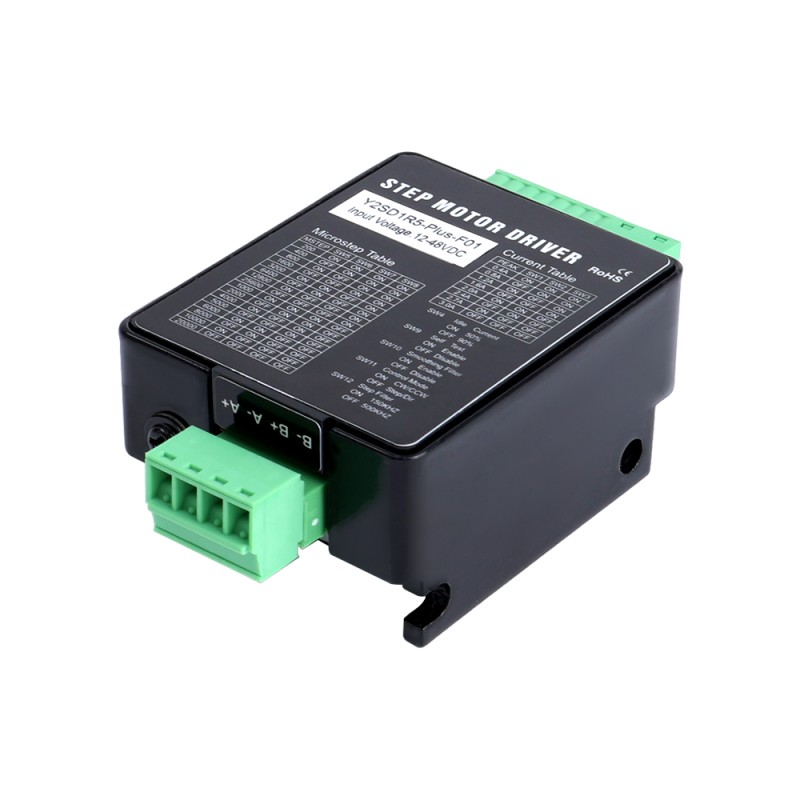

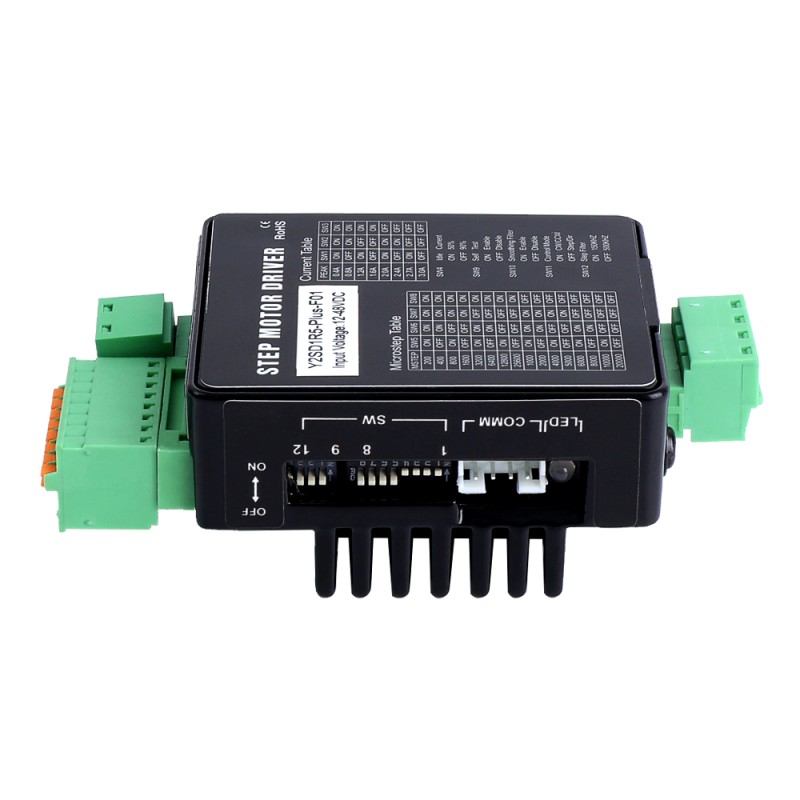

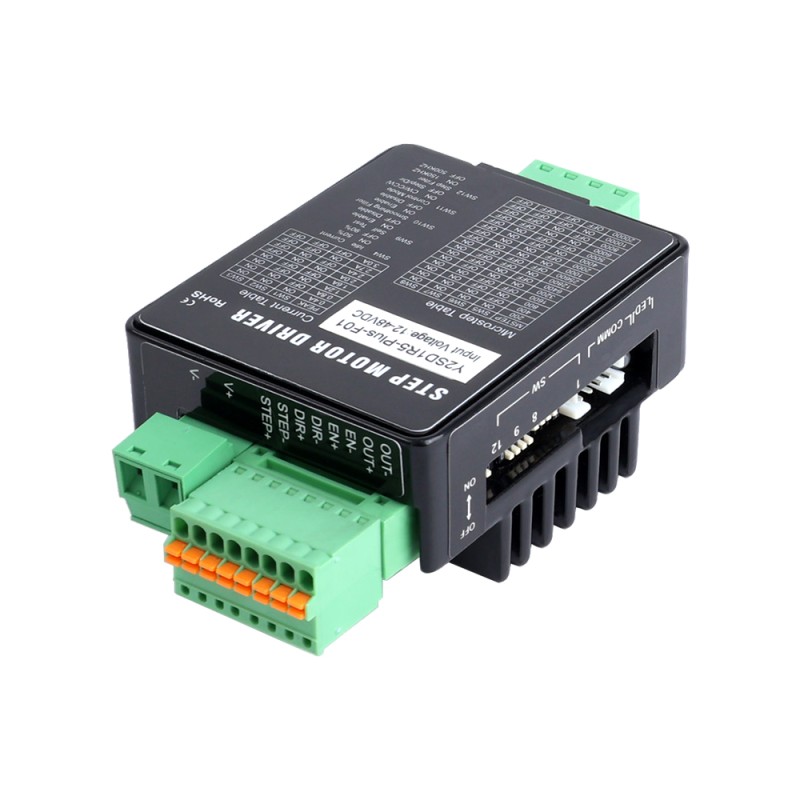

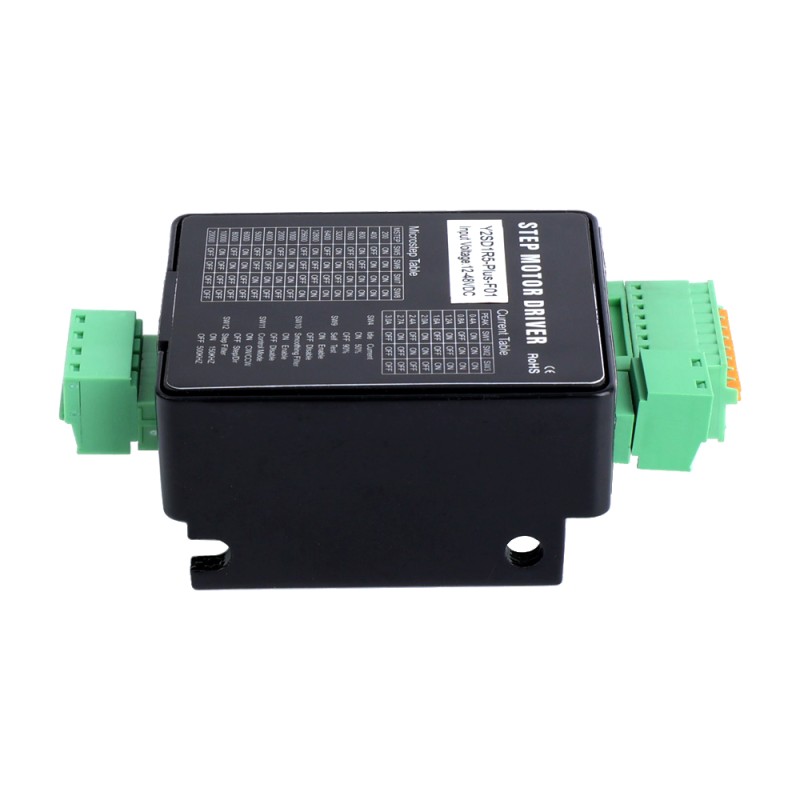

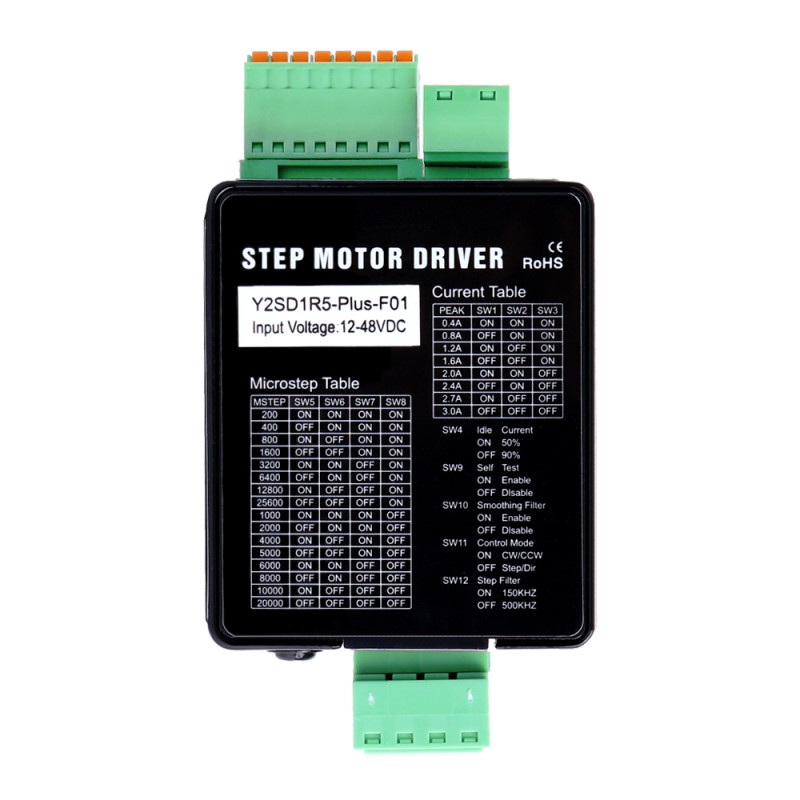

Y2SD1R5-PLUS-F01 is a DC pulse stepper motor driver, supports pulse & direction mode and CW/CCW mode, the input voltage range is 12-48VDC, the maximum optional microstep subdivision is 25600step/revolution. It has the features of reducing the current in idle, anti-resonance in low-speed range, input signal filtering, microstep subdivision of dial code, self-test error reporting, output alarm and I/O control.

Key Features

  • I/O Control
  • Anti-resonance
  • Low speed torque is smooth
  • Self-check and automatically setup
  • Input information is smoothed to subdivide the gap, and the optional subdivide can reach 25600
  • DC input 2 phase stepper motor driver
  • Over voltage protection, under voltage protection, voltage error protection; Over current protection, over temperature protection, overload protection; Motor line open detection, communication line open detection, etc.
  • Suitable for Nema 11, 14, 17, 23 stepper motors

Electrical Specifications

  • Control Mode: Pulse + direction/positive and negative pulse
  • Input Voltage: 12 - 48VDC
  • Output Current: 0.4 - 3.0A
  • Control Signal: 5 - 24V Compatible
  • Encoder Feedback: No
  • Alarm Output: Yes
Product Type
Product Type Driver Only
Electrical Specification
Alarm Output Yes
Analog Input No
Brake Output No
Control Modes Pulse Mode
Encoder Feedback No
Input Voltage Reference(V) 12 - 48DC
Input Voltage(V) 12 - 48DC
Max. Output Current RMS(A) 3.0
Max. Pulse Input(kHZ) 500
Microstep(Steps/rev.) 200 - 25600
No. of Phase 2
Output Current(A) 0.4 - 3.0
Physical Specification
Installation Type Split

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

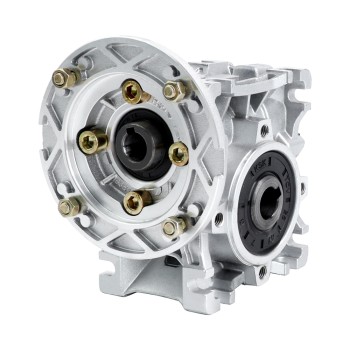

MRVR030 Worm Drive Gearbox 40:1 Ratio Φ9mm Input Shaft with 56B5 Motor Input Flange
