Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor

Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU100RC | StepperOnline UK
F6D250-48GU-30S/6GU100RC
Output Shaft TypeHollow
Rated Voltage(V)48
Gear Ratio(xx:1)100
Rated Speed(rpm)30
Question
Same series
ModelOutput Shaft TypeRated Voltage(V)Gear Ratio(xx:1)Rated Speed(rpm)PriceStock
F4D60-12GN-18S/4GN100RCHollow1210018£42.17In stock
F4D60-12GN-18S/4GN100RTKeyway1210018£42.17In stock
F4D60-12GN-18S/4GN10RCHollow1210180£41.02In stock
F4D60-12GN-18S/4GN10RTKeyway1210180£41.02In stock
F4D60-12GN-18S/4GN15RCHollow1215120£41.02In stock
F4D60-12GN-18S/4GN15RTKeyway1215120£41.02In stock
F4D60-12GN-18S/4GN180RCHollow1218010£42.17In stock
F4D60-12GN-18S/4GN180RTKeyway1218010£42.17In stock
F4D60-12GN-18S/4GN20RCHollow122090£41.02In stock
F4D60-12GN-18S/4GN20RTKeyway122090£41.02In stock
F4D60-12GN-18S/4GN30RCHollow123060£41.02In stock
F4D60-12GN-18S/4GN30RTKeyway123060£41.02In stock
F4D60-12GN-18S/4GN50RCHollow125036£41.02In stock
F4D60-12GN-18S/4GN50RTKeyway125036£41.02In stock
F4D60-12GN-30S/4GN100RCHollow1210030£42.17In stock
F4D60-12GN-30S/4GN100RTKeyway1210030£42.17In stock
F4D60-12GN-30S/4GN10RCHollow1210300£41.02In stock
F4D60-12GN-30S/4GN10RTKeyway1210300£41.02In stock
F4D60-12GN-30S/4GN10RT-SALEKeyway1210300£41.67In stock
F4D60-12GN-30S/4GN15RCHollow1215200£41.02In stock
F4D60-12GN-30S/4GN15RTKeyway1215200£41.02In stock
F4D60-12GN-30S/4GN180RCHollow1218016.67£42.17In stock
F4D60-12GN-30S/4GN180RTKeyway1218016.67£42.17In stock
F4D60-12GN-30S/4GN20RCHollow1220150£41.02In stock
F4D60-12GN-30S/4GN20RTKeyway1220150£41.02In stock
F4D60-12GN-30S/4GN30RCHollow1230100£41.02In stock
F4D60-12GN-30S/4GN30RTKeyway1230100£41.02In stock
F4D60-12GN-30S/4GN50RCHollow125060£41.02In stock
F4D60-12GN-30S/4GN50RTKeyway125060£41.02In stock
F4D60-24GN-18S/4GN100RCHollow2410018£42.17In stock
View all in category
Brushed 48V 250W 33.73Nm(4776.57oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor
This is a 48V 250W DC gear motor with a flange of 104x104mm. The built-in 100:1 hollow shaft right... Read More
0 reviews • Write a review
from
£73.26
5 + £71.29
10 + £69.43
50 + £67.66
100 + £65.98

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

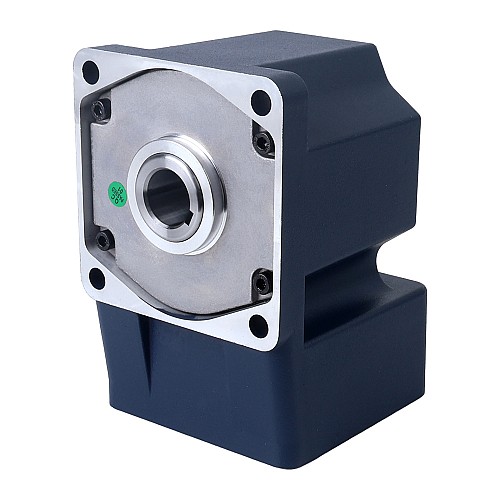

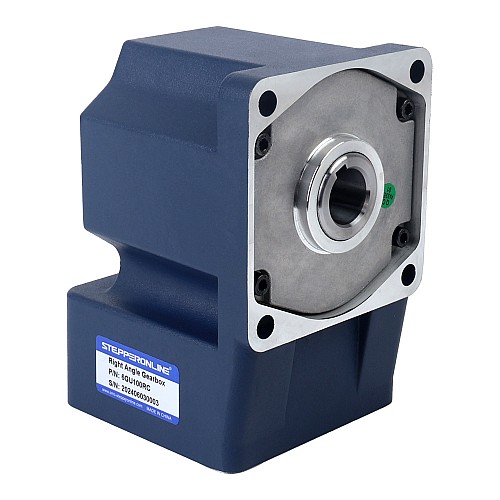

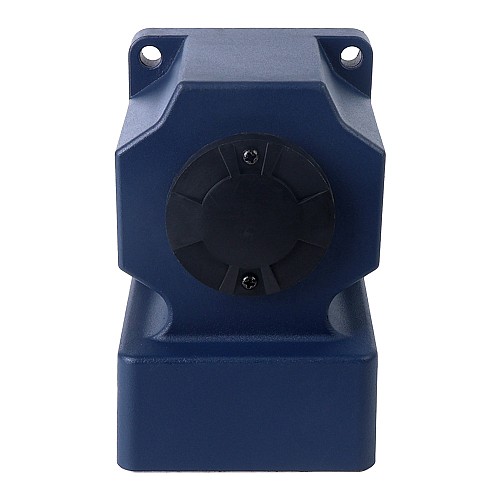

This is a 48V 250W DC gear motor with a flange of 104x104mm. The built-in 100:1 hollow shaft right angle Gearbox brings speed and torque to 30rpm and 33.73Nm(4776.57oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction make this motor widely used in household appliances, automotive designs, consumer appliances and other fields.

Electrical Specifications

  • P/N: F6D250-48GU-30S/6GU100RC
  • Output Power: 250W
  • Voltage: 48V
  • Rated Speed: 30rpm
  • Rated Torque: 33.73Nm(4776.57oz.in)
  • Brush Service Life: 2000h

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length Includes Gearbox: 324mm
  • Gearbox Type: Right Angle Gearbox
  • Gear Ratio: 100:1
  • Shaft Type: Hollow
  • Bore Diameter: Φ22mm
Electrical Specification
Motor Type Brushed DC Motor
Rated Speed(rpm) 30
Rated Torque(Nm) 33.73
Rated Torque(oz.in) 4776.57
Rated Voltage(V) 48
Physical Specification
Gear Ratio(xx:1) 100
Gearbox Shape Square
Gearbox Type Right Angle Gearbox
Output Shaft Type Hollow
