F4D60-24GN-30S/4GN100RT
Output Shaft TypeKeyway
Rated Voltage(V)24
Gear Ratio(xx:1)100
Rated Speed(rpm)30
Question
Same series
ModelOutput Shaft TypeRated Voltage(V)Gear Ratio(xx:1)Rated Speed(rpm)PriceStock
F4D60-12GN-18S/4GN100RCHollow1210018£42.17In stock
F4D60-12GN-18S/4GN100RTKeyway1210018£42.17In stock
F4D60-12GN-18S/4GN10RCHollow1210180£41.02In stock
F4D60-12GN-18S/4GN10RTKeyway1210180£41.02In stock
F4D60-12GN-18S/4GN15RCHollow1215120£41.02In stock
F4D60-12GN-18S/4GN15RTKeyway1215120£41.02In stock
F4D60-12GN-18S/4GN180RCHollow1218010£42.17In stock
F4D60-12GN-18S/4GN180RTKeyway1218010£42.17In stock
F4D60-12GN-18S/4GN20RCHollow122090£41.02In stock
F4D60-12GN-18S/4GN20RTKeyway122090£41.02In stock
F4D60-12GN-18S/4GN30RCHollow123060£41.02In stock
F4D60-12GN-18S/4GN30RTKeyway123060£41.02In stock
F4D60-12GN-18S/4GN50RCHollow125036£41.02In stock
F4D60-12GN-18S/4GN50RTKeyway125036£41.02In stock
F4D60-12GN-30S/4GN100RCHollow1210030£42.17In stock
F4D60-12GN-30S/4GN100RTKeyway1210030£42.17In stock
F4D60-12GN-30S/4GN10RCHollow1210300£41.02In stock
F4D60-12GN-30S/4GN10RTKeyway1210300£41.02In stock
F4D60-12GN-30S/4GN10RT-SALEKeyway1210300£41.67In stock
F4D60-12GN-30S/4GN15RCHollow1215200£41.02In stock
F4D60-12GN-30S/4GN15RTKeyway1215200£41.02In stock
F4D60-12GN-30S/4GN180RCHollow1218016.67£42.17In stock
F4D60-12GN-30S/4GN180RTKeyway1218016.67£42.17In stock
F4D60-12GN-30S/4GN20RCHollow1220150£41.02In stock
F4D60-12GN-30S/4GN20RTKeyway1220150£41.02In stock
F4D60-12GN-30S/4GN30RCHollow1230100£41.02In stock
F4D60-12GN-30S/4GN30RTKeyway1230100£41.02In stock
F4D60-12GN-30S/4GN50RCHollow125060£41.02In stock
F4D60-12GN-30S/4GN50RTKeyway125060£41.02In stock
F4D60-24GN-18S/4GN100RCHollow2410018£42.17In stock
View all in category
Brushed 24V 60W 8.00Nm(1132.90oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor
This is a 24V 60W DC gear motor with a flange of 80x80mm. The built-in 100:1 keyway shaft right an... Read More
0 reviews • Write a review
from
£42.17
5 + £41.04
10 + £39.97
50 + £38.95
100 + £37.98

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This is a 24V 60W DC gear motor with a flange of 80x80mm. The built-in 100:1 keyway shaft right angle Gearbox brings speed and torque to 30rpm and 8.00Nm(1132.90oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction make this motor widely used in household appliances, automotive designs, consumer appliances and other fields.

Electrical Specifications

  • P/N: F4D60-24GN-30S/4GN100RT
  • Output Power: 60W
  • Voltage: 24V
  • Rated Speed: 30rpm
  • Rated Torque: 8.00Nm(1132.90oz.in)
  • Brush Service Life: 2000h

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length Includes Gearbox: 235mm
  • Gearbox Type: Right Angle Gearbox
  • Gear Ratio: 100:1
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
Electrical Specification
Motor Type Brushed DC Motor
Rated Speed(rpm) 30
Rated Torque(Nm) 8.00
Rated Torque(oz.in) 1132.9
Rated Voltage(V) 24
Physical Specification
Gear Ratio(xx:1) 100
Gearbox Shape Square
Gearbox Type Right Angle Gearbox
Output Shaft Type Keyway
Shaft Diameter(mm) 12
Shaft Length(mm) 32

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Shaft Sleeve Adaptor 11mm to 8mm for NMRV30 Worm Gearbox
Shaft Sleeve Adaptor 11mm to 8mm for NMRV30 Worm Gearbox
This shaft sleeve is designed for NMRV30 worm gearbox. The original input shaft inner diameter is 11mm, this shaft sleeve convert 11mm to 8mm...
from
£2.73
Add to Cart
Add to Wish List Compare this Product
Quickview
TS Series 3.0Nm(424.83oz.in) 1 Axis Closed Loop Stepper CNC Kit Nema 23 Motor & Driver
TS Series 3.0Nm(424.83oz.in) 1 Axis Closed Loop Stepper CNC Kit Nema 23 Motor & Driver
Items in Kit 1 x 23HS45-4204D-E1000: 3.0Nm Closed loop stepper motor 1 x CL57T-V41: Nema 23/Nema 24 Closed loop stepper motor driver V4.1 1 x..
from
£50.83
Add to Cart
Add to Wish List Compare this Product
Quickview
iCL Series NEMA 24 Integrated Closed Loop Stepper Motor 3.5Nm(495.64oz.in) 20-50VDC w/ 14-bit Encoder
iCL Series NEMA 24 Integrated Closed Loop Stepper Motor 3.5Nm(495.64oz.in) 20-50VDC w/ 14-bit Encoder
This is a Nema 24 integrated closed loop stepper motor with a holding torque of 3.5Nm(495.64oz.in) with 14-bit encoder. iCL series is stepper motor in..
from
£75.16
Add to Cart
Add to Wish List Compare this Product
Quickview
50:1 Worm Gearbox NMRVS30 Worm Gear Speed Reducer 11mm Input Shaft Diameter
50:1 Worm Gearbox NMRVS30 Worm Gear Speed Reducer 11mm Input Shaft Diameter
The size of this gearbox is 57mmx57mm and the input shaft diameter is 11mm. This worm gearbox is designed for Nema 23 Stepper Motor or other 57mmx57..
from
£26.88
Add to Cart
Add to Wish List Compare this Product
Quickview
Brushed 12V 60W 8.00Nm(1132.90oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor
Brushed 12V 60W 8.00Nm(1132.90oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor
This is a 12V 60W DC gear motor with a flange of 80x80mm. The built-in 100:1 keyway shaft right angle Gearbox brings speed and torque to 30rpm and 8..
from
£42.17
Add to Cart
Add to Wish List Compare this Product
Quickview

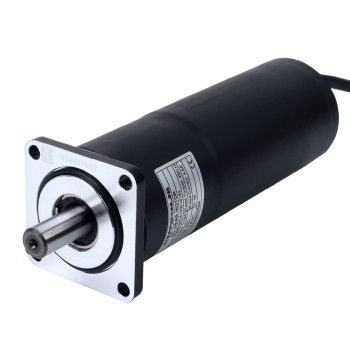

Brushed 24V DC Gear Motor 45Nm(6372.52oz.in) 9.8RPM w/ 184:1 Planetary Gearbox IP66 155°C[311°F]
Brushed 24V DC Gear Motor 45Nm(6372.52oz.in) 9.8RPM w/ 184:1 Planetary Gearbox IP66 155°C[311°F]
This is a 24V gear motor that generates a rated torque of 45Nm(6372.52oz.in) at speed of 9.8rpm. Coming with a 184:1 planetary Gearbox this motor is c..
from
£69.57
Add to Cart
Add to Wish List Compare this Product
Quickview

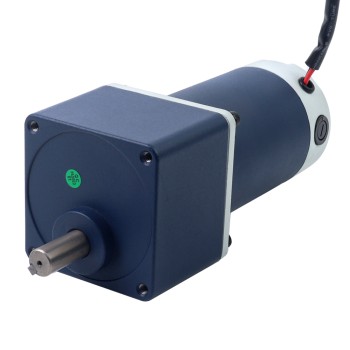

Brushed 12V 90W 20.00Nm(2832.23oz.in) 9RPM w/ 200:1 Spur Gearbox DC Gear Motor
