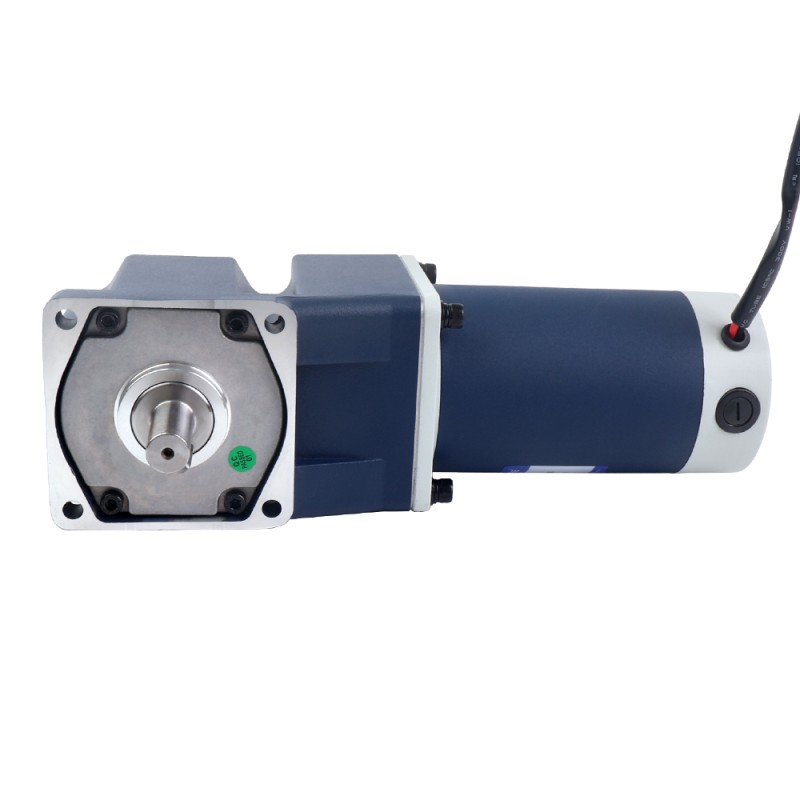

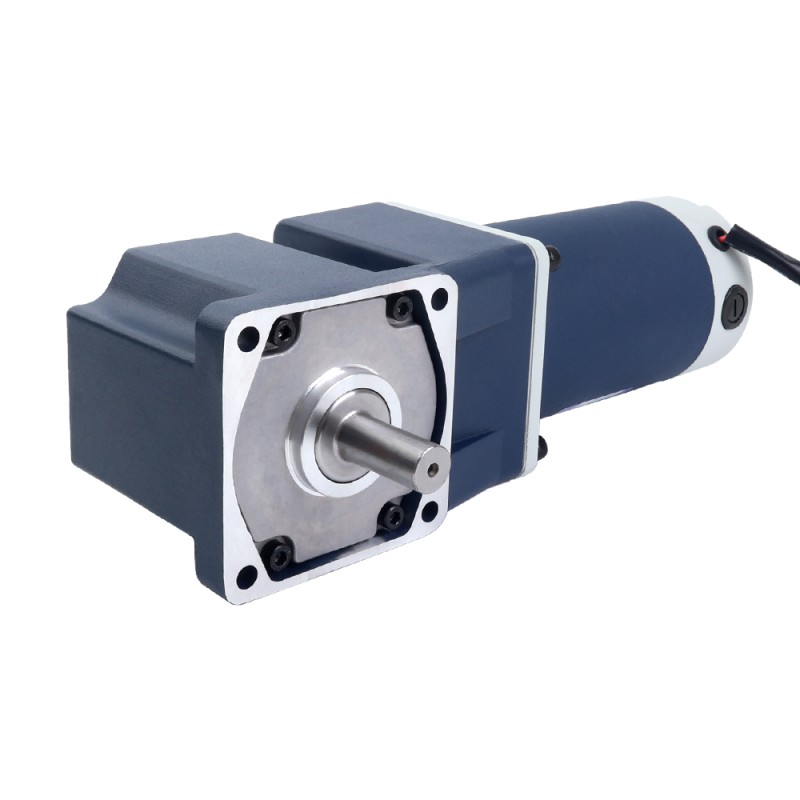

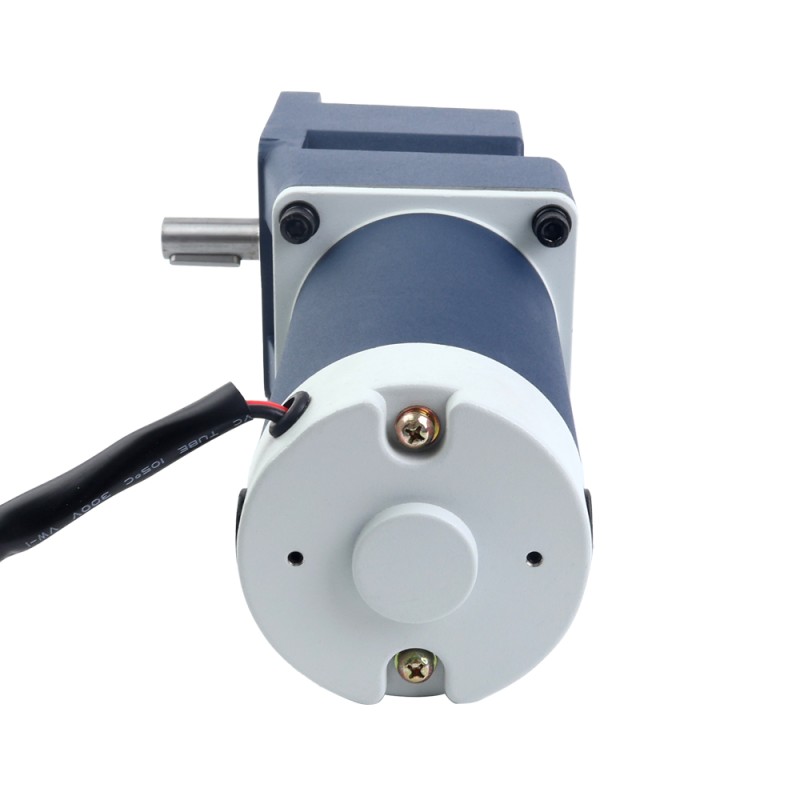

Brushed 24V 150W 16.77Nm(2374.83oz.in) 60RPM w/ 30:1 Right Angle Gearbox DC Gear Motor

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This is a 24V 150W DC gear motor with a flange of 90x90mm. The built-in 30:1 keyway shaft right angle Gearbox brings speed and torque to 60rpm and 16.77Nm(2374.83oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction make this motor widely used in household appliances, automotive designs, consumer appliances and other fields.

Electrical Specifications

P/N: F5D150-24GU-18S/5GU30RT
Output Power: 150W
Voltage: 24V
Rated Speed: 60rpm
Rated Torque: 16.77Nm(2374.83oz.in)
Brush Service Life: 2000h

Physical Specifications

Frame Size: 90x90mm
Body Length Includes Gearbox: 288mm

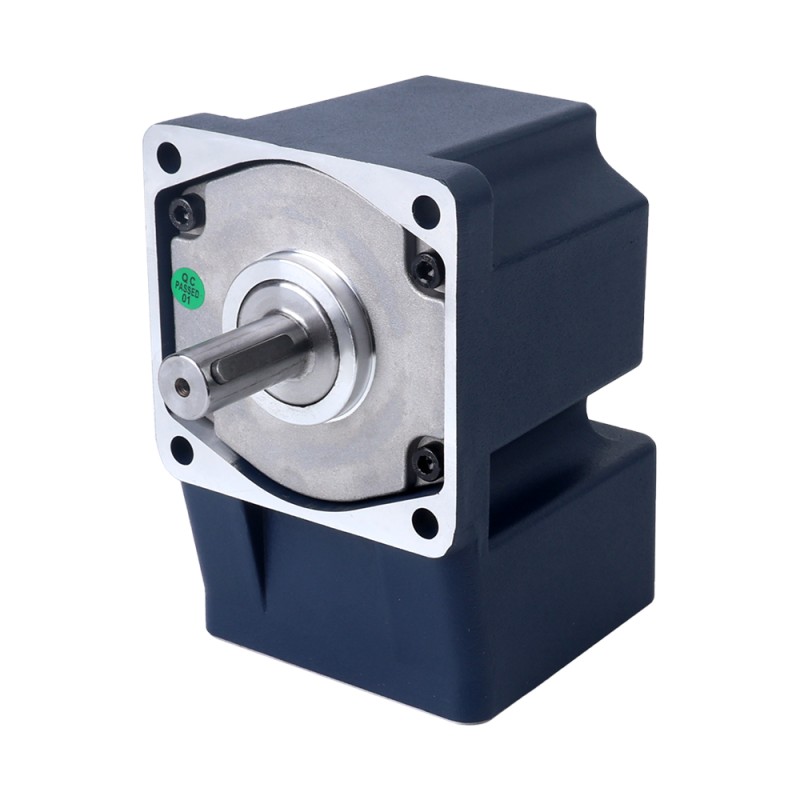

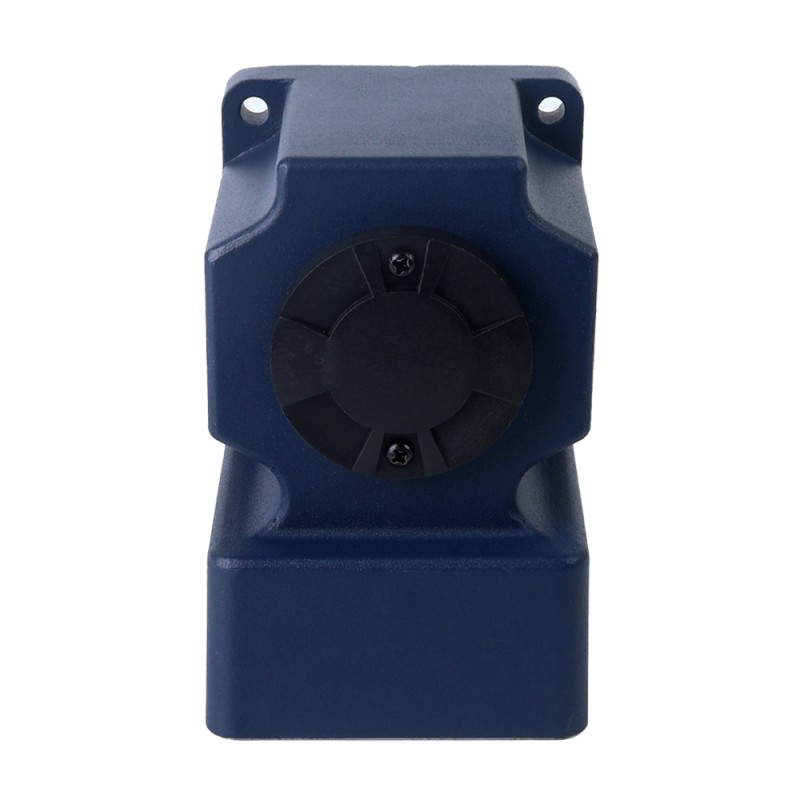

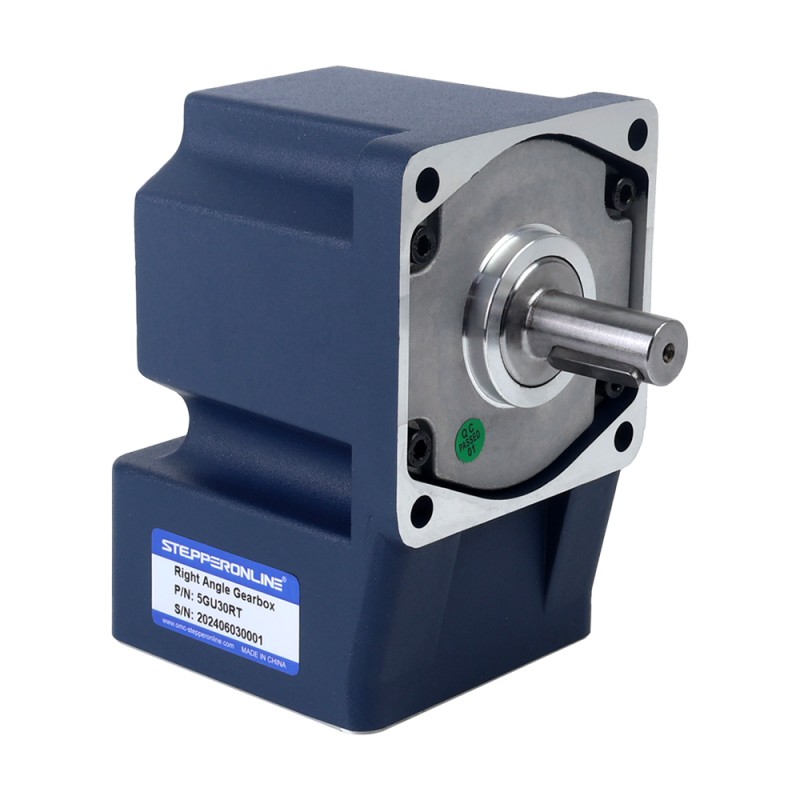

Gearbox Type: Right Angle Gearbox
Gear Ratio: 30:1
Shaft Type: Keyway
Shaft Diameter: Φ15mm
Shaft Length: 38mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Speed(rpm)	60
Rated Torque(Nm)	16.77
Rated Torque(oz.in)	2374.83
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	30
Gearbox Shape	Square
Gearbox Type	Right Angle Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	38

Also Bought

24V 200W 42RPM Geared Brushless DC Motor 33.00Nm(4673.18oz.in) 71.5:1 Planetary Gearbox

This is a 24V 200W brushless DC motor with a Φ82mm flange diameter, a rated torque of 33.00Nm(4673.18oz.in) and a rated speed of 42rpm. It is equipped..

from

£55.70

Digital Brushless DC Motor Driver 24V-48VDC Max 15.0A 400W

This 12V-48VDC 400W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial autom..

from

£15.69

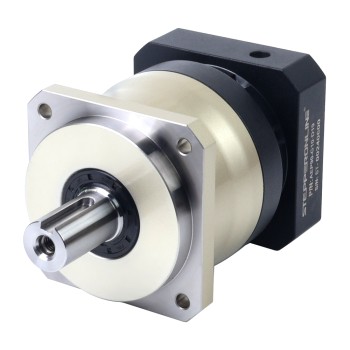

AEP Series 90mm 10:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65

The size of this gearbox is 90 x 90mm and the input shaft diameter is 19mm. This AEP series helical planetary gearbox offers a gear ratio of 10:1 with..

from

£77.42

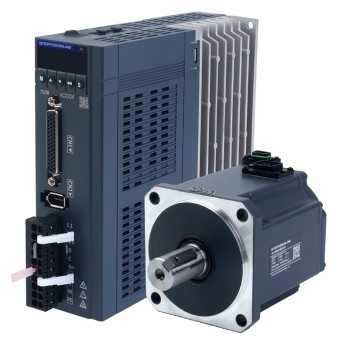

A6 Series 750W RS485 AC Servo Motor Kit 3000rpm 2.39Nm 17-Bit Absolute Encoder IP67

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 750W motor and a single-phase 220V 750W servo driver that supports Pulse/RS4..

from

£91.94

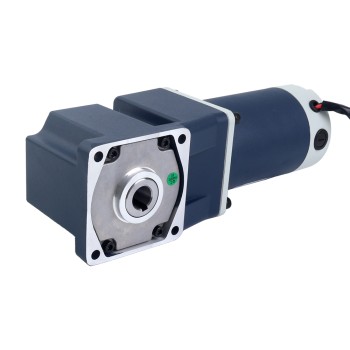

Brushed 24V 150W 20.00Nm(2832.24oz.in) 30RPM w/ 100:1 Right Angle Gearbox DC Gear Motor

This is a 24V 150W DC gear motor with a flange of 90x90mm. The built-in 100:1 hollow shaft right angle Gearbox brings speed and torque to 30rpm and ..

from

£53.68

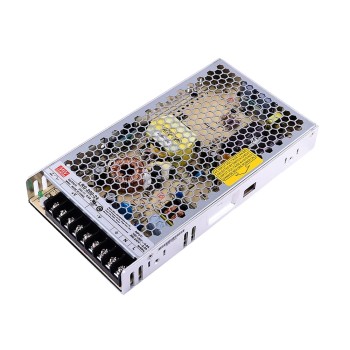

LRS-200-24 MEANWELL 200W 24VDC 8.8A 115/230VAC Enclosed Switching Power Supply

This is a 200W 24VDC 8.8A power supply. MEANWELL LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Ad..

from

£12.26

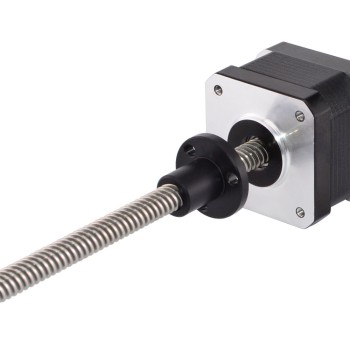

US On Sale - Nema 17 External 34mm Stack 0.4A Lead 8mm(0.31496") Length 200mm

This is economy linear stepper motor which is named Nema 17 external linear actuator with a holding torque of 26Ncm(36.82oz.in), the motor part is 34m..

from Save -25%

£21.84 £29.23

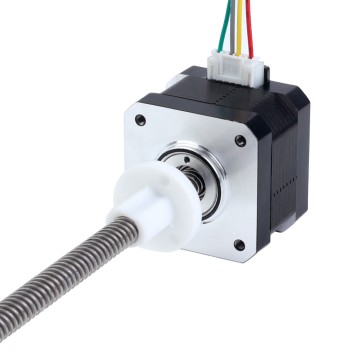

Nema 17 External 34mm Stack 0.4A Lead 8mm(0.31496") Length 150mm
