Name: Brushed 12V 60W 10.00Nm(1416.12oz.in) 9RPM w/ 200:1 Spur Gearbox DC Gear Motor
Brand: STEPPERONLINE
SKU: F5D60-12GN-18S/5GN200K
Price: 31.38 GBP
Availability: InStock

Brushed 12V 60W 10.00Nm(1416.12oz.in) 9RPM w/ 200:1 Spur Gearbox DC Gear Motor - F5D60-12GN-18S/5GN200K | StepperOnline UK

F5D60-12GN-18S/5GN200K

Output Shaft TypeKeyway

Shaft Diameter(mm)12

Shaft Length(mm)32

Rated Voltage(V)12

Question

Downloads

F5D60-12GN-XXS_5GNXXK_Manual.pdfPDF · 1.09MB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Rated Voltage(V)	Price	Stock
F2D10-12GN-18S/2GN100K	D	8	30	12	£16.84	In stock
F2D10-12GN-18S/2GN10K	D	8	30	12	£14.82	In stock
F2D10-12GN-18S/2GN15K	D	8	30	12	£14.82	In stock
F2D10-12GN-18S/2GN200K	D	8	30	12	£16.84	In stock
F2D10-12GN-18S/2GN20K	D	8	30	12	£15.83	In stock
F2D10-12GN-18S/2GN30K	D	8	30	12	£15.83	In stock
F2D10-12GN-18S/2GN3K	D	8	30	12	£14.82	In stock
F2D10-12GN-18S/2GN50K	D	8	30	12	£15.83	In stock
F2D10-12GN-18S/2GN5K	D	8	30	12	£14.82	In stock
F2D10-12GN-30S/2GN100K	D	8	30	12	£16.84	In stock
F2D10-12GN-30S/2GN10K	D	8	30	12	£14.82	In stock
F2D10-12GN-30S/2GN15K	D	8	30	12	£14.82	In stock
F2D10-12GN-30S/2GN200K	D	8	30	12	£16.84	In stock
F2D10-12GN-30S/2GN20K	D	8	30	12	£15.83	In stock
F2D10-12GN-30S/2GN30K	D	8	30	12	£15.83	In stock
F2D10-12GN-30S/2GN3K	D	8	30	12	£14.82	In stock
F2D10-12GN-30S/2GN50K	D	8	30	12	£15.83	In stock
F2D10-12GN-30S/2GN5K	D	8	30	12	£14.82	In stock
F2D10-24GN-18S/2GN100K	D	8	30	24	£16.84	In stock
F2D10-24GN-18S/2GN100K-SALE	D	8	30	24	£17.10	In stock
F2D10-24GN-18S/2GN10K	D	8	30	24	£14.82	In stock
F2D10-24GN-18S/2GN15K	D	8	30	24	£14.82	In stock
F2D10-24GN-18S/2GN200K	D	8	30	24	£16.84	In stock
F2D10-24GN-18S/2GN20K	D	8	30	24	£15.83	In stock
F2D10-24GN-18S/2GN30K	D	8	30	24	£15.83	In stock
F2D10-24GN-18S/2GN3K	D	8	30	24	£14.82	In stock
F2D10-24GN-18S/2GN50K	D	8	30	24	£15.83	In stock
F2D10-24GN-18S/2GN5K	D	8	30	24	£14.82	In stock
F2D10-24GN-30S/2GN100K	D	8	30	24	£16.84	In stock
F2D10-24GN-30S/2GN10K	D	8	30	24	£14.82	In stock

View all in category

Brushed 12V 60W 10.00Nm(1416.12oz.in) 9RPM w/ 200:1 Spur Gearbox DC Gear Motor

This is a 12V 60W DC gear motor with a flange of 90x90mm. The built-in 200:1 spur Gearbox brings spe... Read More

0 reviews • Write a review

from

£31.38

5 + £30.53

10 + £29.74

50 + £28.98

100 + £28.26

Click country for live stock

Dispatches from

China

Germany (+£6.26)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

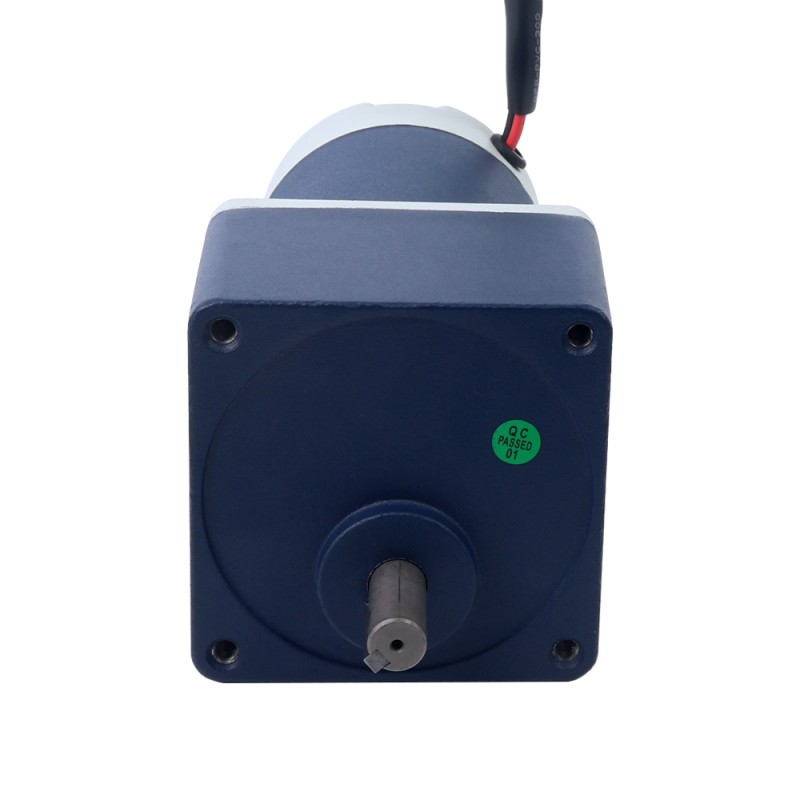

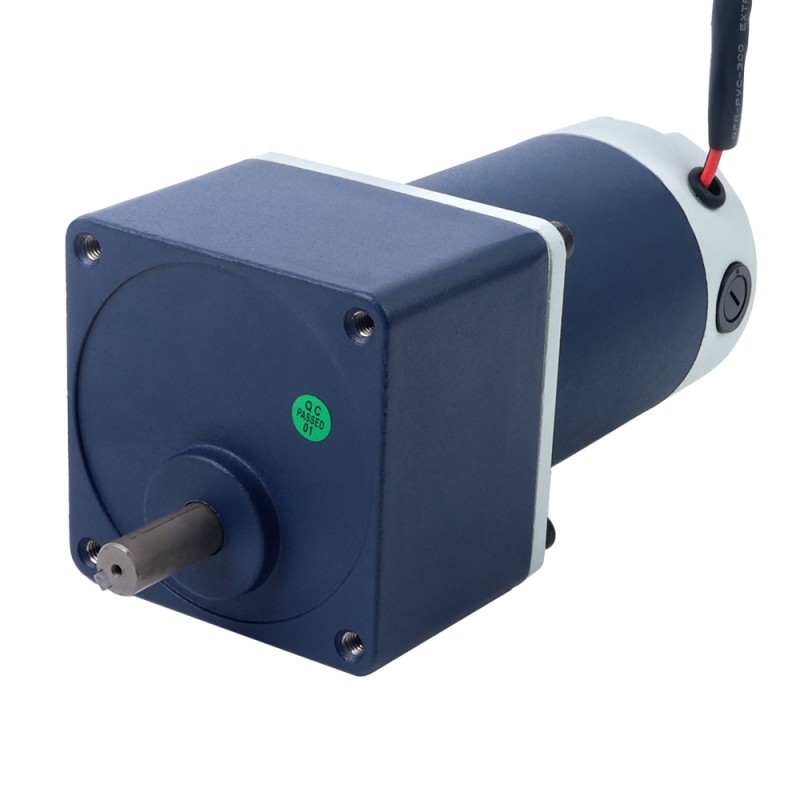

This is a 12V 60W DC gear motor with a flange of 90x90mm. The built-in 200:1 spur Gearbox brings speed and torque to 9rpm and 10.00Nm(1416.12oz.in). Due to its simple structure, low maintenance cost, and smooth operation, brushed DC gear motors are widely used in industrial production automation, logistics packaging equipment, medical equipment, photography equipment and other fields.

Electrical Specifications

P/N: F5D60-12GN-18S/5GN200K
Gearbox Type: Spur Gearbox
Output Power: 60W
Voltage: 12V
No-load Current: 1.00A
Gear Ratio: 200:1
Rated Speed: 9rpm
Rated Speed without Gearbox: 1800rpm
Rated Torque: 10.00Nm(1416.12oz.in)
Brush Service Life: 2000h

Physical Specifications

Frame Size: 90x90mm
Body Length: 184mm
Shaft Type: Keyway
Shaft Diameter: Φ12mm
Shaft Length: 32mm
Weight: 3.5kg

Electrical Specification
Motor Type	Brushed DC Motor
No-load Current(A)	1
Rated Speed(rpm)	9
Rated Torque(Nm)	10
Rated Torque(oz.in)	1416.12
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	200
Gearbox Shape	Square
Gearbox Type	Spur Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	12
Shaft Length(mm)	32
