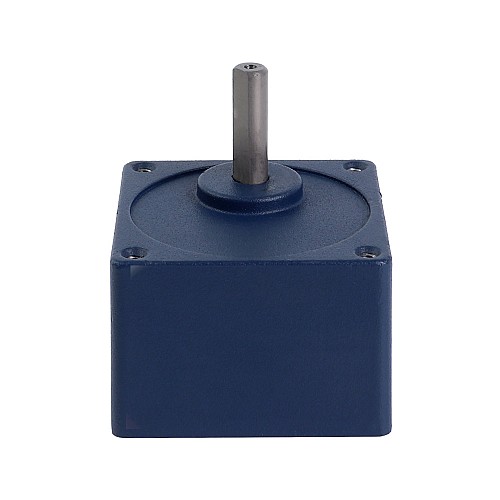

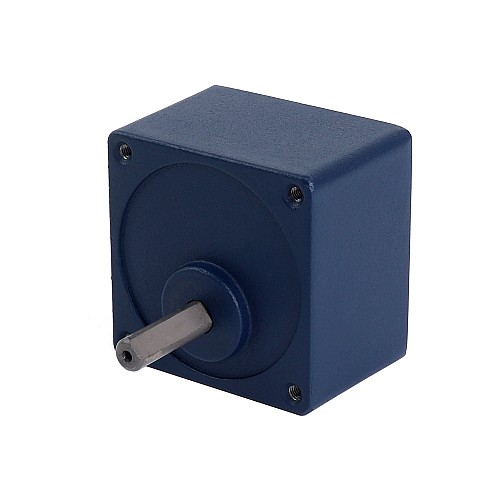

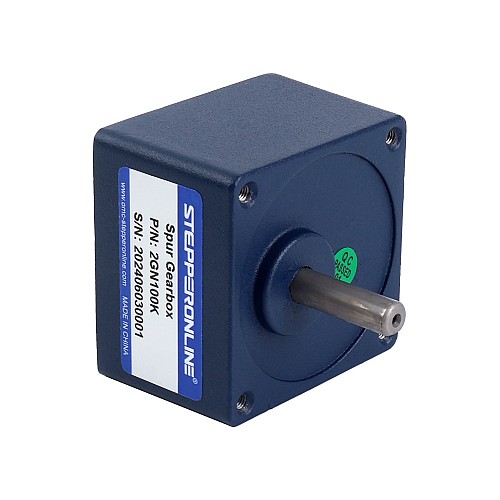

Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor

Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor - F2D10-12GN-30S/2GN100K | StepperOnline UK
F2D10-12GN-30S/2GN100K
Output Shaft TypeD
Shaft Diameter(mm)8
Shaft Length(mm)30
Rated Voltage(V)12
Question

Downloads

F2D10-12GN-30S_2GNXXK_manual.pdfPDF · 1.01MB
Same series
ModelOutput Shaft TypeShaft Diameter(mm)Shaft Length(mm)Rated Voltage(V)PriceStock
F2D10-12GN-18S/2GN100KD83012£16.84In stock
F2D10-12GN-18S/2GN10KD83012£14.82In stock
F2D10-12GN-18S/2GN15KD83012£14.82In stock
F2D10-12GN-18S/2GN200KD83012£16.84In stock
F2D10-12GN-18S/2GN20KD83012£15.83In stock
F2D10-12GN-18S/2GN30KD83012£15.83In stock
F2D10-12GN-18S/2GN3KD83012£14.82In stock
F2D10-12GN-18S/2GN50KD83012£15.83In stock
F2D10-12GN-18S/2GN5KD83012£14.82In stock
F2D10-12GN-30S/2GN100KD83012£16.84In stock
F2D10-12GN-30S/2GN10KD83012£14.82In stock
F2D10-12GN-30S/2GN15KD83012£14.82In stock
F2D10-12GN-30S/2GN200KD83012£16.84In stock
F2D10-12GN-30S/2GN20KD83012£15.83In stock
F2D10-12GN-30S/2GN30KD83012£15.83In stock
F2D10-12GN-30S/2GN3KD83012£14.82In stock
F2D10-12GN-30S/2GN50KD83012£15.83In stock
F2D10-12GN-30S/2GN5KD83012£14.82In stock
F2D10-24GN-18S/2GN100KD83024£16.84In stock
F2D10-24GN-18S/2GN100K-SALED83024£17.10In stock
F2D10-24GN-18S/2GN10KD83024£14.82In stock
F2D10-24GN-18S/2GN15KD83024£14.82In stock
F2D10-24GN-18S/2GN200KD83024£16.84In stock
F2D10-24GN-18S/2GN20KD83024£15.83In stock
F2D10-24GN-18S/2GN30KD83024£15.83In stock
F2D10-24GN-18S/2GN3KD83024£14.82In stock
F2D10-24GN-18S/2GN50KD83024£15.83In stock
F2D10-24GN-18S/2GN5KD83024£14.82In stock
F2D10-24GN-30S/2GN100KD83024£16.84In stock
F2D10-24GN-30S/2GN10KD83024£14.82In stock
View all in category
Brushed 12V 10W 2.09Nm(295.97oz.in) 30RPM w/ 100:1 Spur Gearbox DC Gear Motor
This is a 12V 10W DC gear motor with a flange of 60x60mm. The built-in 100:1 spur Gearbox brings spe... Read More
0 reviews • Write a review
from
£16.84
5 + £16.38
10 + £15.96
50 + £15.56
100 + £15.17

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This is a 12V 10W DC gear motor with a flange of 60x60mm. The built-in 100:1 spur Gearbox brings speed and torque to 30rpm and 2.09Nm(295.97oz.in). Due to its simple structure, low maintenance cost, and smooth operation, brushed DC gear motors are widely used in industrial production automation, logistics packaging equipment, medical equipment, photography equipment and other fields.

Electrical Specifications

  • P/N: F2D10-12GN-30S/2GN100K
  • Gearbox Type: Spur Gearbox
  • Output Power: 10W
  • Voltage: 12V
  • No-load Current: 0.7A
  • Gear Ratio: 100:1
  • Rated Speed: 30rpm
  • Rated Speed without Gearbox: 3000rpm
  • Rated Torque: 2.09Nm(295.97oz.in)
  • Brush Service Life: 2000h

Physical Specifications

  • Frame Size: 60x60mm
  • Body Length: 117mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ8mm
  • Shaft Length: 30mm
  • Weight: 1.1kg
Electrical Specification
Motor Type Brushed DC Motor
No-load Current(A) 0.7
Rated Speed(rpm) 30
Rated Torque(Nm) 2.09
Rated Torque(oz.in) 295.97
Rated Voltage(V) 12
Physical Specification
Gear Ratio(xx:1) 100
Gearbox Shape Square
Gearbox Type Spur Gearbox
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 30
