Name: BD600 Series VFD 2HP 1.5KW 7.0A Single/Three Phase 220V Variable Frequency Drive
Brand: STEPPERONLINE
SKU: BD600-1R5G-2

BD600 Series VFD 2HP 1.5KW 7.0A Single/Three Phase 220V Variable Frequency Drive - BD600-1R5G-2 | StepperOnline UK

BD600-1R5G-2 Discontinued

This product has been discontinued and is no longer available for purchase. Please contact us for a replacement.

Question

Downloads

BD600_Series_Inverter_User_Manual.pdfPDF · 3.5MB

Same series

Model					Stock
1-CL57Y-S12 Discontinued	—	—	—	—	—
1-CL57Y-S20 Discontinued	—	—	—	—	—
1-CL57Y-S30A Discontinued	—	—	—	—	—
1-CLYS20 Discontinued	—	—	—	—	—
1-CLYS30 Discontinued	—	—	—	—	—
1-CLYS30-1M5 Discontinued	—	—	—	—	—
1-CLYS30S-V20 Discontinued	—	—	—	—	—
1-CLYS40 Discontinued	—	—	—	—	—
1-DM542T-24HS34 Discontinued	—	—	—	—	—
1-DM542T-24HS39 Discontinued	—	—	—	—	—
1-DM556S-24HS39 Discontinued	—	—	—	—	—
11C13S0754ED3-013RS Discontinued	—	—	—	—	—
11E13S0754ED2-100RS Discontinued	—	—	—	—	—
11E18S0754ED2-101RS Discontinued	—	—	—	—	—
11E18S0754FD3-250RS Discontinued	—	—	—	—	—
11E18S0754GD3-250RS Discontinued	—	—	—	—	—
11E20S0674AA2-100RS Discontinued	—	—	—	—	—
11E20S0674ED2-100RS Discontinued	—	—	—	—	—
11HS12-0674D2-PG27 Discontinued	—	26.85	Economy Planetary	—	—
11HS12-0674S-PG100 Discontinued	—	99.548	Economy Planetary	—	—
11HS20-0674D-PG14-AR3 Discontinued	—	13.73	Economy Planetary	—	—
11HS20-0714S-PG100 Discontinued	—	99.05	Economy Planetary	—	—
11N13S0754AA2-100RS Discontinued	—	—	—	—	—
11N13S0754QE2-150RS Discontinued	—	—	—	—	—
11N18S0754ED3-250RS Discontinued	—	—	—	—	—
11N20S0674AA2-100RS Discontinued	—	—	—	—	—
14E13S0574JE3-150RS Discontinued	—	—	—	—	—
14E13S0574QE3-150RS Discontinued	—	—	—	—	—
14E17S0914JE3-250RS Discontinued	—	—	—	—	—
14E17S0914QE3-250RS Discontinued	—	—	—	—	—

View all in category

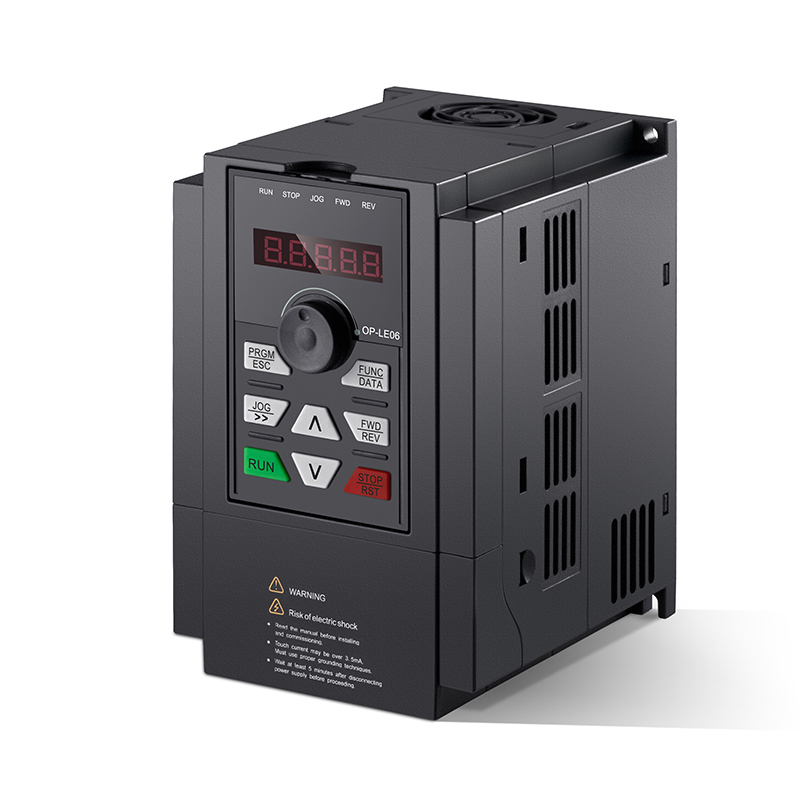

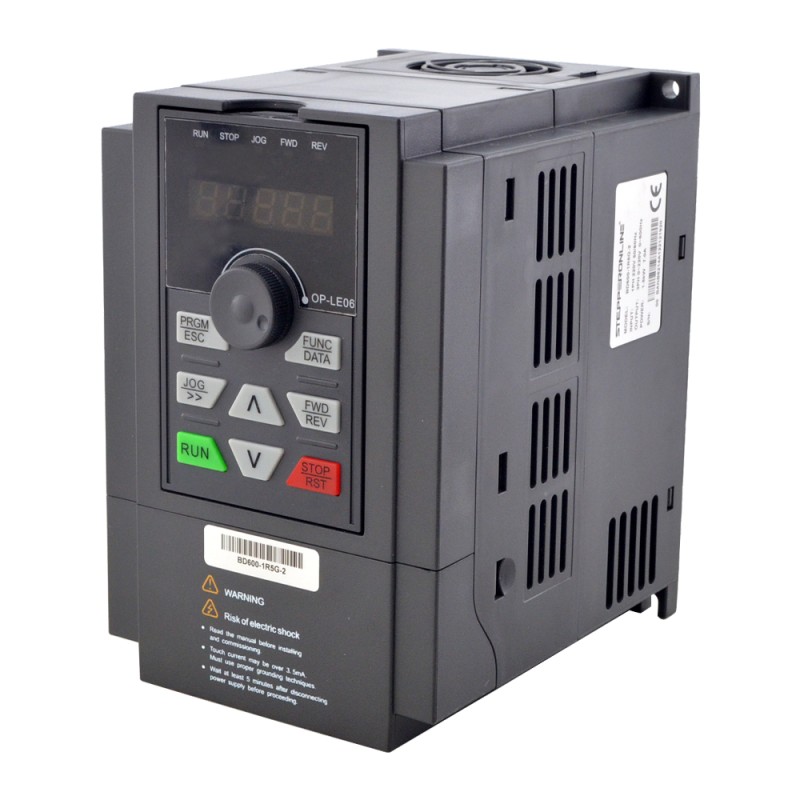

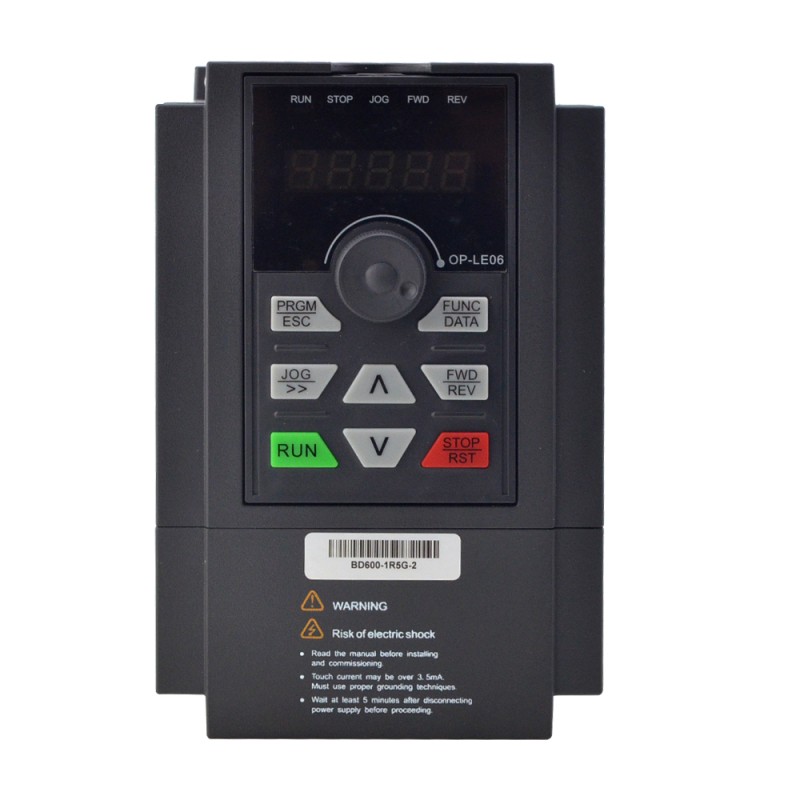

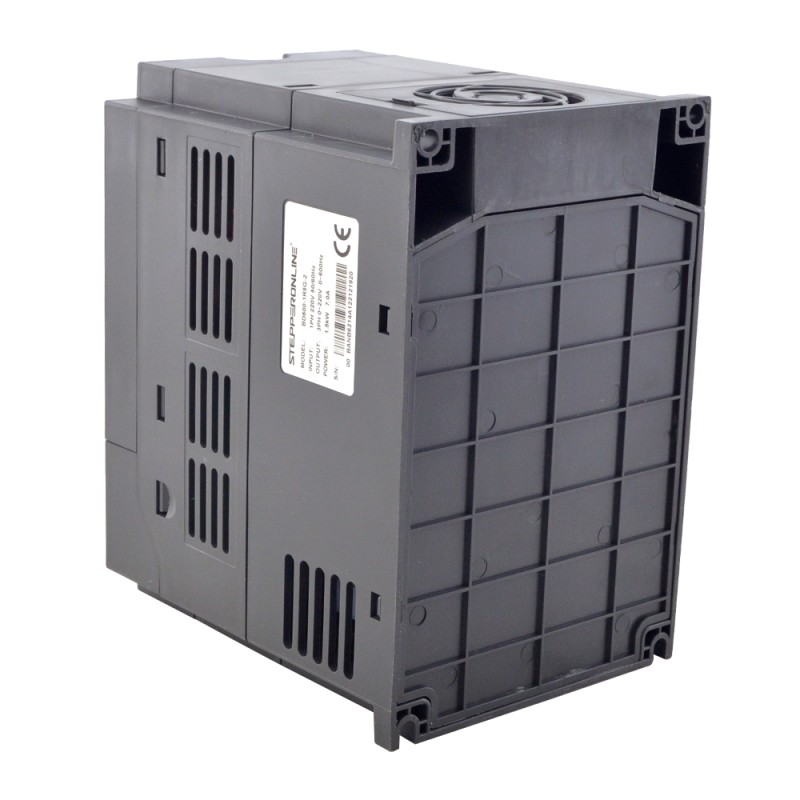

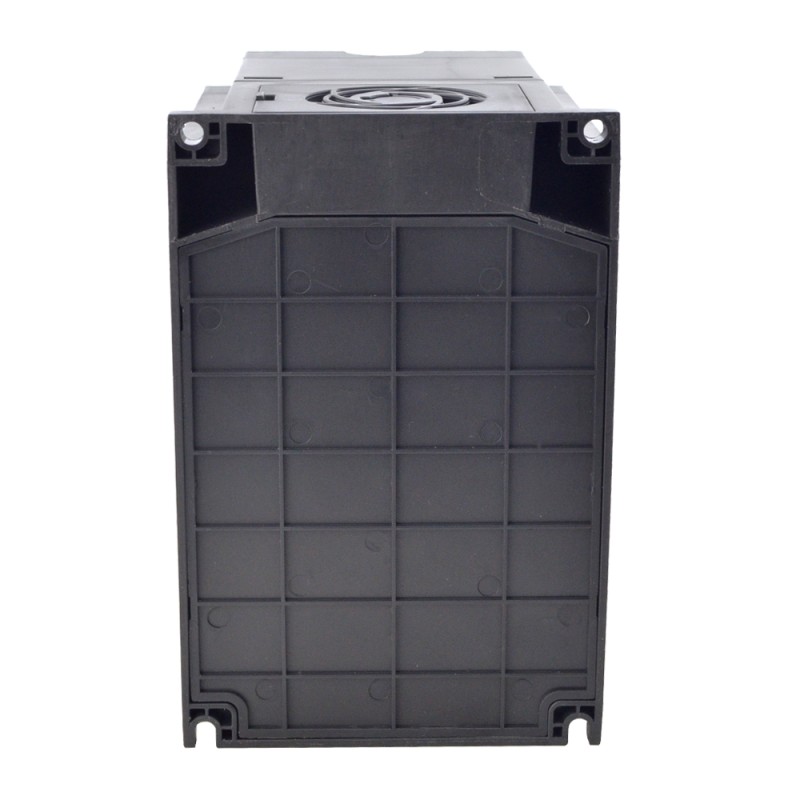

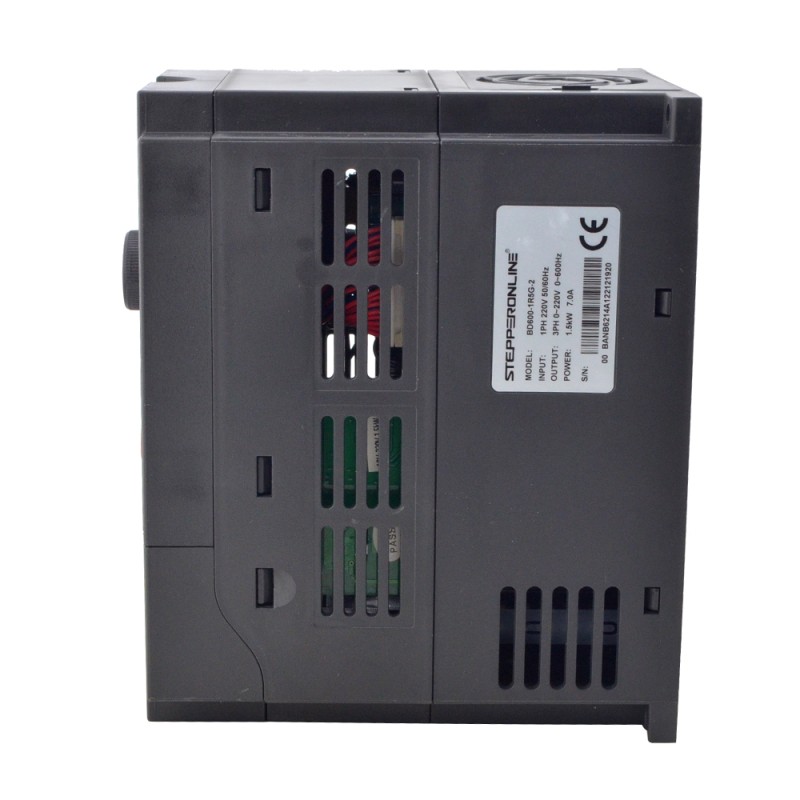

BD600 Series VFD 2HP 1.5KW 7.0A Single/Three Phase 220V Variable Frequency Drive
