A6H Series 2900W RS485 AC Servo Motor Kit 1500rpm 18.60Nm w/ Brake 17-Bit Absolute Encoder IP67
This is an A6H series AC servo motor and driver kit consisting of a 380VAC 2900W motor with the buil... Read More
0 reviews • Write a review
from
£461.32
5 + £447.85
10 + £435.14
50 + £423.14
100 + £411.78

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

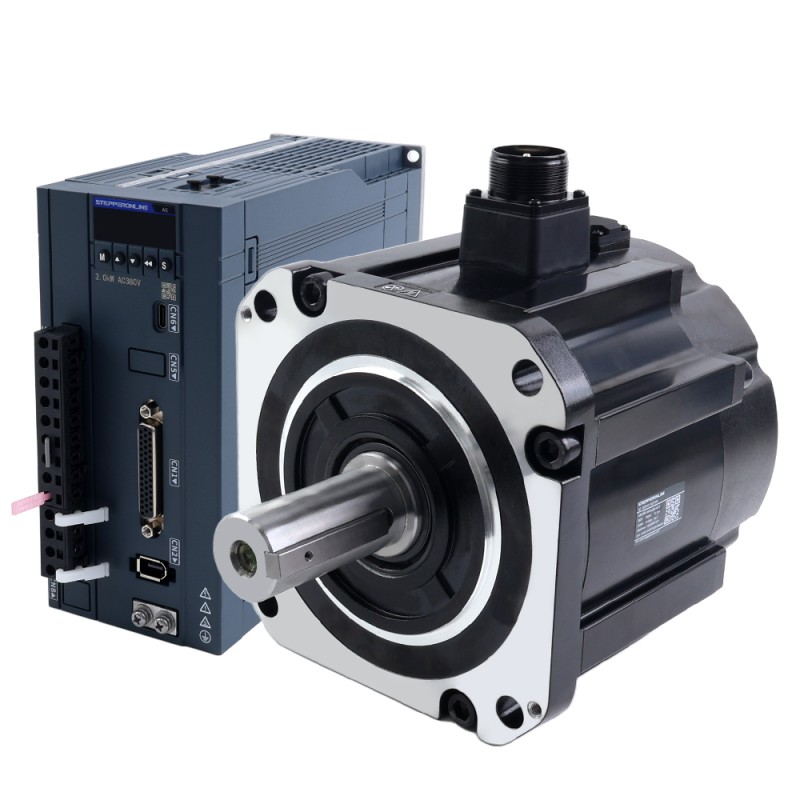

This is an A6H series AC servo motor and driver kit consisting of a 380VAC 2900W motor with the built-in 17-bit multiturn absolute encoder and a 24V 23W brake, and a three-phase 380V 3000W servo driver that supports Pulse/RS485/Analog communication. The motor provides excellent servo control performance.

This motor is a high-inertia type, suitable for applications that require high load capacity, such as traditional machine tool industry, rack and pinion transmission mechanisms, etc.
The A6-RS series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

Items in Kit

  • 1 x A6-3000RS: 3000W AC Servo Motor Driver

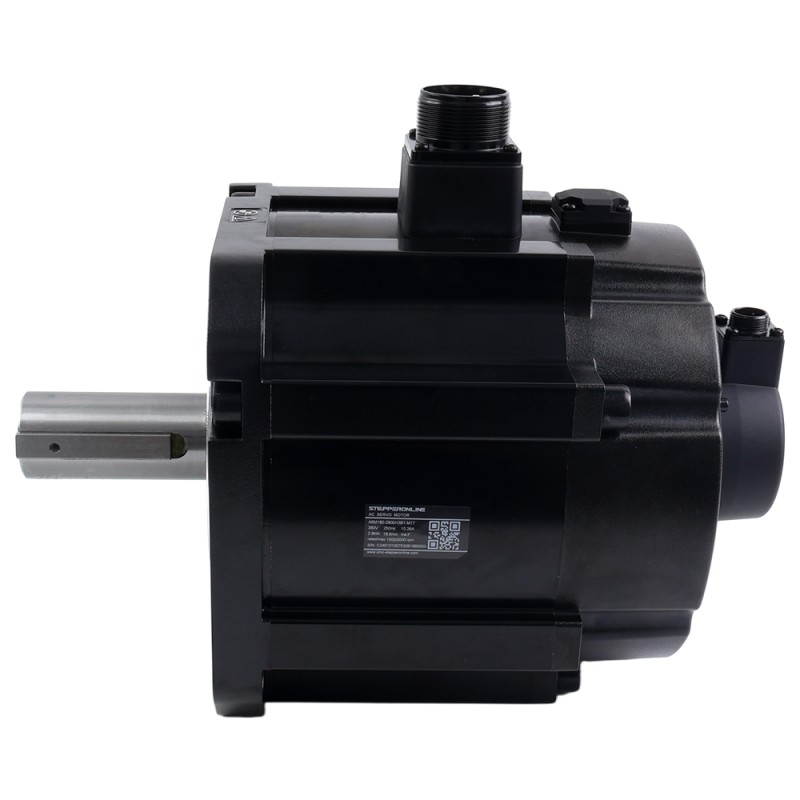

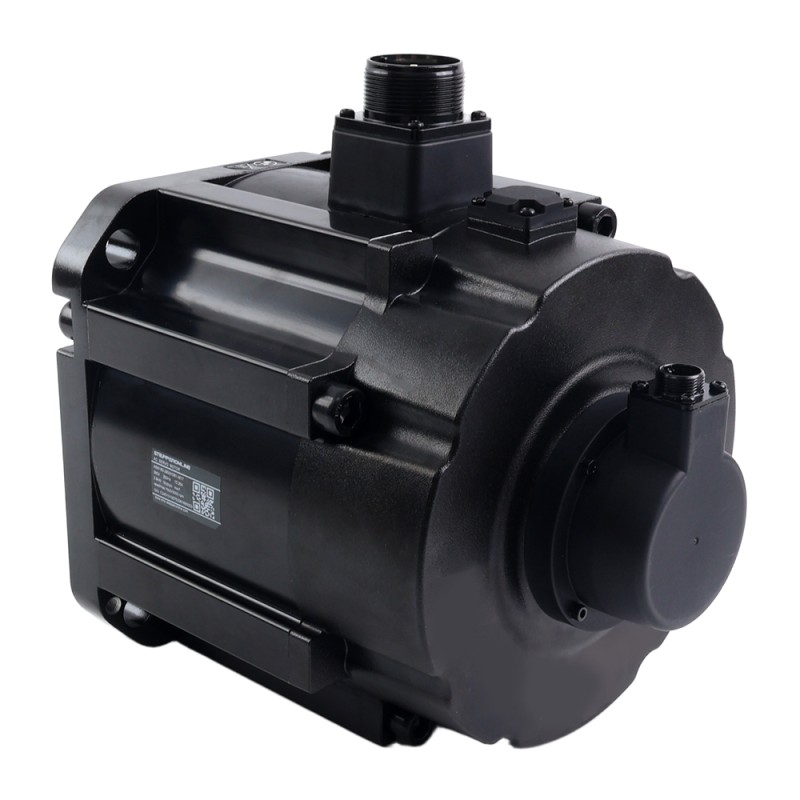

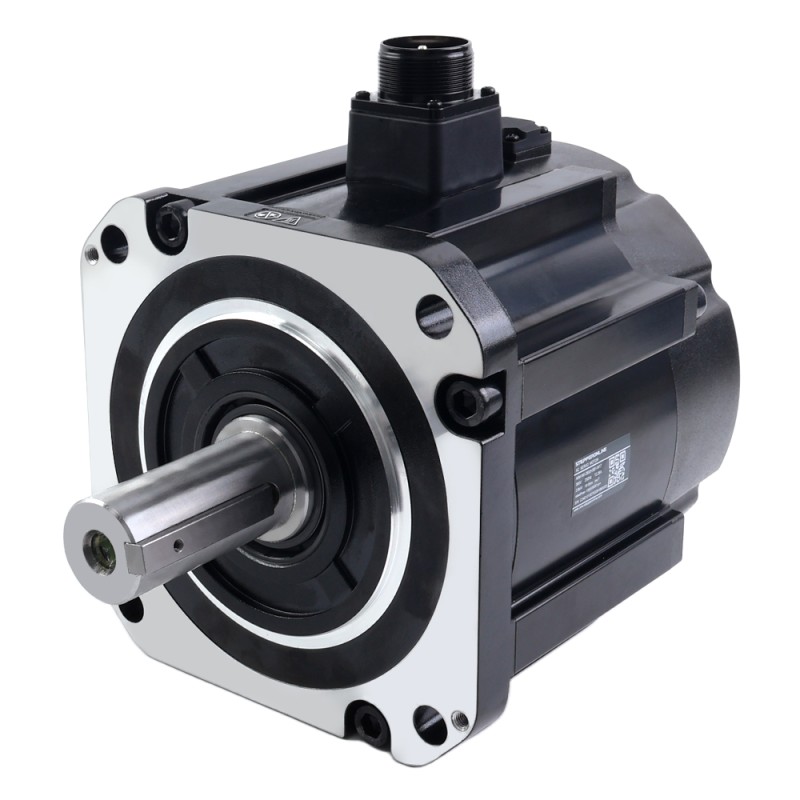

  • 1 x A6M180-2900H3B1-M17: 2900W AC Servo Motor 1500rpm 18.60Nm with Brake 17-Bit Absolute Encoder IP67

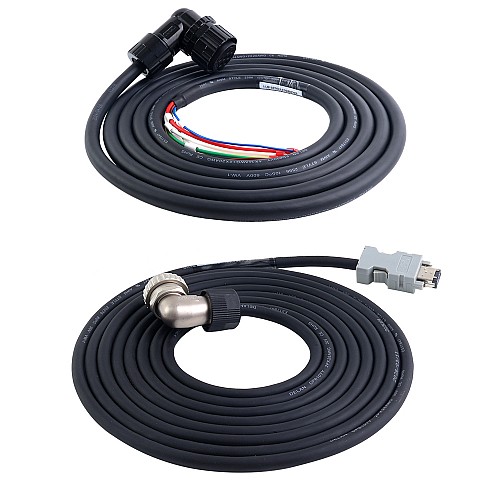

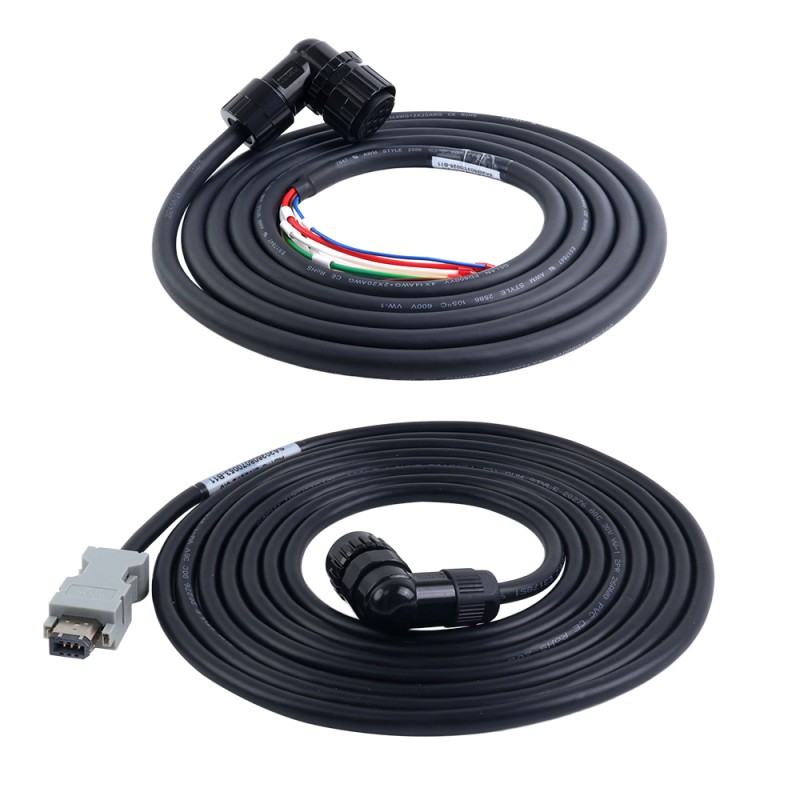

  • 1 x AS7-C-PWB053-3.0: 3.0m Motor Cable
  • 1 x AS7-C-ENC072-3.0: 3.0m Encoder Cable

Servo Driver Specification

  • Part Number: A6-3000RS
  • Pulse/RS485/Analog communication
  • 2KHz speed loop bandwith
  • 17-bit absolute encoder
  • Rated voltage three-phase 380VAC
  • Rated power 3000W
  • Dimension: 182*170*80mm

Servo Motor Specification

  • Part Number: A6M180-2900H3B1-M17
  • Rated Voltage: 380VAC
  • Rated Power: 2900W
  • Rated Torque: 18.60Nm
  • Peak Torque: 46.50Nm
  • Rated Speed: 1500rpm
  • Peak Speed: 3000rpm
  • Rated Current: 10.26A
  • Peak Current: 25.81A
  • Back EMF Const: 118.69V/krpm
  • Resistance: 0.601ohms
  • Inertia: 46.19kg*m2*10-4
  • Poles: 10
  • Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
  • IP Rating: IP67
  • Shaft Diameter: 35mm
  • Brake Voltage: 24V DC
  • Brake Power: 23W
  • Brake Holding Torque: 50.0Nm
  • Axial Load: Max.490N
  • Radial Load @ Shaft Length 79mm: Max.1470N
Electrical Specification
Control Modes Pulse/RS485/Analog
Encoder Resolution 17bit
Encoder Type Magnetic Absolute
Input Voltage(V) 380VAC
Integrated STO or not? No
Peak Speed(rpm) 3000
Peak Torque(Nm) 46.5
Rated Power(W) 2900
Rated Speed(rpm) 1500
Rated Torque(Nm) 18.6
With Brake Yes
Physical Specification
Aviation Plug or Not No
Frame Size(mm) 180 x 180
Integrated or Not No
IP Rating 67
Shaft Diameter(mm) 35
