Name: A6H Series 1800W EtherCAT AC Servo Motor Kit 1500rpm 11.50Nm 17-Bit Absolute Encoder IP67
Brand: STEPPERONLINE
SKU: A6H-EC1800H3A1-M17
Price: 280.40 GBP
Availability: InStock

A6H Series 1800W EtherCAT AC Servo Motor Kit 1500rpm 11.50Nm 17-Bit Absolute Encoder IP67 - A6H-EC1800H3A1-M17 | StepperOnline UK

A6H-EC1800H3A1-M17

Rated Power(W)1800

Rated Speed(rpm)1500

Rated Torque(Nm)11.5

Frame Size(mm)130 x 130

Question

Downloads

A6M130-1800H3A1-M17_Full_Datasheet.pdfPDF · 237.79KB A6-2000EC.STEPSTEP · 19.77MBLog in to download STEPPERONLINE_A6_Servo_V0.02.xmlXML · 315.49KB A6M130-1800H3A1-M17.STEPSTEP · 9.69MBLog in to download A6-EC_series_servo_drive_manual.pdfPDF · 16.87MB

Same series

Model	Rated Power(W)	Rated Speed(rpm)	Rated Torque(Nm)	Frame Size(mm)	Price	Stock
A6-EC1000H2A1-M17	1000	3000	3.18	80 x 80	£130.72	In stock
A6-EC1000H2A1-M17-STO	1000	3000	3.18	80 x 80	£169.58	In stock
A6-EC1000H2B1-M17	1000	3000	3.81	80 x 80	£152.53	In stock
A6-EC1000H2B1-M17-STO	1000	3000	3.81	80 x 80	£195.46	In stock
A6-EC100L2A1-M17	100	3000	0.32	40 x 40	£97.40	In stock
A6-EC100L2B1-M17	100	3000	0.32	40 x 40	£117.46	In stock
A6-EC1500H2A1-M17	1500	3000	4.78	100 x 100	£223.91	In stock
A6-EC1500H2B1-M17	1500	3000	4.78	100 x 100	£266.28	In stock

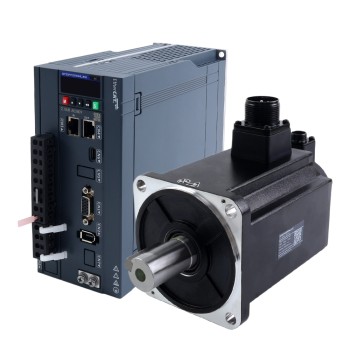

A6-EC2000H3A1-M17	2000	3000	6.37	100 x 100	£277.26	In stock
A6-EC2000H3B1-M17	2000	3000	6.37	100 x 100	£322.76	In stock
A6-EC2500H3A1-M17	2500	3000	7.96	100 x 100	£299.23	In stock
A6-EC2500H3B1-M17	2500	3000	7.96	100 x 100	£347.87	In stock
A6-EC400H2A1-M17	400	3000	1.27	60 x 60	£88.52	In stock
A6-EC400H2A1-M17-STO	400	3000	1.27	60 x 60	£102.38	In stock
A6-EC400H2B1-M17	400	3000	1.27	60 x 60	£108.35	In stock
A6-EC400H2B1-M17-STO	400	3000	1.27	60 x 60	£124.75	In stock
A6-EC400H2B1-M17-USED	400	3000	1.27	60 x 60	£117.04	In stock
A6-EC750H2A1-M17	750	3000	2.39	80 x 80	£103.91	In stock
A6-EC750H2A1-M17-STO	750	3000	2.39	80 x 80	£119.74	In stock
A6-EC750H2B1-M17	750	3000	2.39	80 x 80	£123.50	In stock
A6-EC750H2B1-M17-STO	750	3000	2.39	80 x 80	£141.84	In stock
A6-PN1000H2A1-M17	1000	3000	3.18	80 x 80	£204.82	In stock
A6-PN1000H2A1-M17-STO	1000	3000	3.18	80 x 80	£231.49	In stock
A6-PN1000H2B1-M17	1000	3000	3.81	80 x 80	£231.10	In stock
A6-PN1000H2B1-M17-SALE	1000	3000	3.81	80 x 80	£213.88	In stock
A6-PN1000H2B1-M17-STO	1000	3000	3.81	80 x 80	£260.12	In stock
A6-PN400H2A1-M17	400	3000	1.27	60 x 60	£149.48	In stock
A6-PN400H2A1-M17-STO	400	3000	1.27	60 x 60	£157.57	In stock
A6-PN400H2B1-M17	400	3000	1.27	60 x 60	£173.37	In stock
A6-PN400H2B1-M17-STO	400	3000	1.27	60 x 60	£182.31	In stock

View all in category

A6H Series 1800W EtherCAT AC Servo Motor Kit 1500rpm 11.50Nm 17-Bit Absolute Encoder IP67

This is an A6H series AC servo motor and driver kit consisting of a 380VAC 1800W motor and a three-p... Read More

0 reviews • Write a review

from

£280.40

5 + £272.21

10 + £264.49

50 + £257.19

100 + £250.29

Click country for live stock

Dispatches from

China

Germany (+£41.99)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

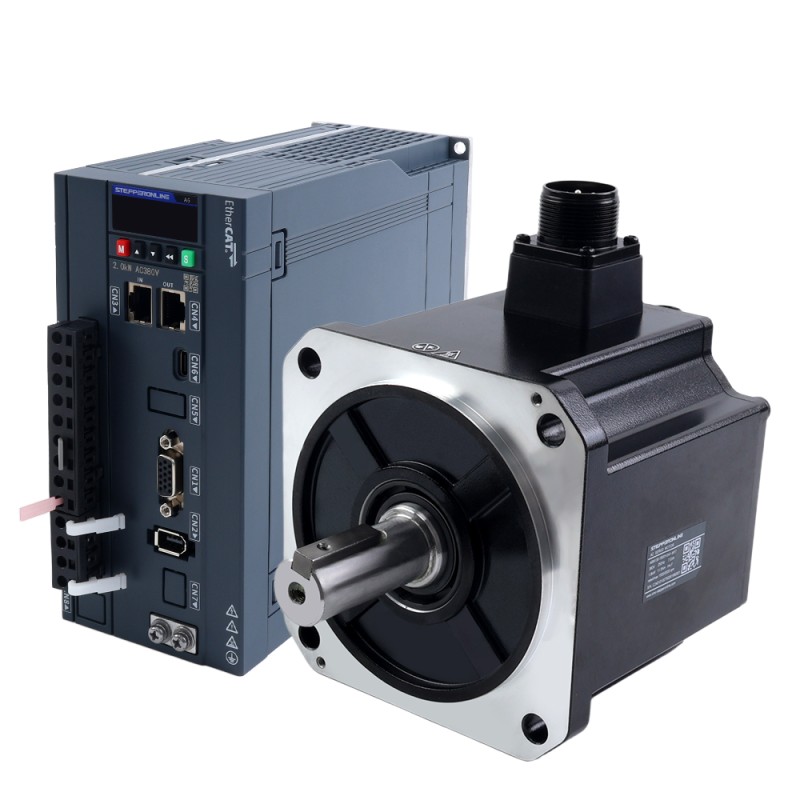

This is an A6H series AC servo motor and driver kit consisting of a 380VAC 1800W motor and a three-phase 380V 2000W servo driver that supports EtherCAT communication. With the built-in 17-bit multiturn absolute encoder, the motor provides excellent servo control performance.
This motor is a high-inertia type, suitable for applications that require high load capacity, such as traditional machine tool industry, rack and pinion transmission mechanisms, etc.
The A6-EC series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

Items in Kit

1 x A6-2000EC: 2000W AC Servo Motor Driver
1 x A6M130-1800H3A1-M17: 1800W AC Servo Motor 1500rpm 11.50Nm 17-Bit Absolute Encoder IP67
1 x AS7-C-PWR062-3.0: 3.0m Motor Cable
1 x AS7-C-ENC072-3.0: 3.0m Encoder Cable

Servo Driver Specification

Part Number: A6-2000EC
EtherCAT communication
2KHz speed loop bandwith
17-bit absolute encoder
Rated voltage three-phase 380VAC
Rated power 2000W
Dimension: 182*170*80mm

Servo Motor Specification

Part Number: A6M130-1800H3A1-M17
Rated Voltage: 380VAC
Rated Power: 1800W
Rated Torque: 11.50Nm
Peak Torque: 28.75Nm
Rated Speed: 1500rpm
Peak Speed: 3000rpm
Rated Current: 7.03A
Peak Current: 19.03A
Back EMF Const: 106.06V/krpm
Poles: 10
Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
IP Rating: IP67
Shaft Diameter: 22mm
Axial Load: Max.196N
Radial Load @ Shaft Length 55mm: Max.686N

Electrical Specification
Control Modes	EtherCAT
Encoder Resolution	17bit
Encoder Type	Magnetic Absolute
Input Voltage(V)	380VAC
Integrated STO or not?	No
Peak Speed(rpm)	3000
Peak Torque(Nm)	28.75
Rated Power(W)	1800
Rated Speed(rpm)	1500
Rated Torque(Nm)	11.5
With Brake	No
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	130 x 130
Integrated or Not	No
IP Rating	67
Shaft Diameter(mm)	22
