A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67

A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC1000H2B1-M17-STO | StepperOnline UK
A6-EC1000H2B1-M17-STO
Encoder Resolution17bit
Encoder TypeMagnetic Absolute
Rated Torque(Nm)3.81
Peak Torque(Nm)11.13
Question

Downloads

A6-1000EC-STO.stpSTP · 24.07MBLog in to downloadAS7-C-ENC076-3.0_Full_Datasheet.pdfPDF · 108.54KBSTEPPERONLINE_A6_Servo_V0.02.xmlXML · 315.49KBA6-EC-STO_manual.pdfPDF · 1.02MBA6M80-1000H2B1-M17_Full_Datasheet.pdfPDF · 166.19KBAS7-C-PWB075-3.0.pdfPDF · 110.26KBA6M80-1000H2B1-M17.STEPSTEP · 8.43MBLog in to downloadA6-EC_series_servo_drive_manual.pdfPDF · 16.88MB
Same series
ModelEncoder ResolutionEncoder TypeRated Torque(Nm)Peak Torque(Nm)PriceStock
A6-EC1000H2A1-M1717bitMagnetic Absolute3.1811.13£130.72In stock
A6-EC1000H2A1-M17-STO17bitMagnetic Absolute3.1811.13£169.58In stock
A6-EC1000H2B1-M1717bitMagnetic Absolute3.8111.13£152.53In stock
A6-EC1000H2B1-M17-STO17bitMagnetic Absolute3.8111.13£195.46In stock
A6-PN1000H2A1-M1717bitMagnetic Absolute3.1811.13£204.82In stock
A6-PN1000H2A1-M17-STO17bitMagnetic Absolute3.1811.13£231.49In stock
A6-PN1000H2B1-M1717bitMagnetic Absolute3.8111.13£231.10In stock
A6-PN1000H2B1-M17-SALE17bitMagnetic Absolute3.8111.13£213.88In stock
A6-PN1000H2B1-M17-STO17bitMagnetic Absolute3.8111.13£260.12In stock
A6-RS1000H2A1-M1717bitMagnetic Absolute3.1811.13£116.25In stock
A6-RS1000H2B1-M1717bitMagnetic Absolute3.8111.13£136.35In stock
T6-RS1000H2A1-M2323bitMagnetic Absolute, Magnetic Incremental3.189.54£228.16Backorder
T6-RS1000H2A3-M17S17bitMagnetic Incremental3.199.56£210.78Backorder
T6-RS1000H2B1-M2323bitMagnetic Absolute, Magnetic Incremental3.189.54£282.38Backorder
T6-RS1000H2B3-M17S17bitMagnetic Incremental3.199.56£260.87Backorder
A6 Series 1000W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor with the built... Read More
0 reviews • Write a review
from
£195.46
5 + £189.40
10 + £183.71
50 + £178.34
100 + £173.28

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

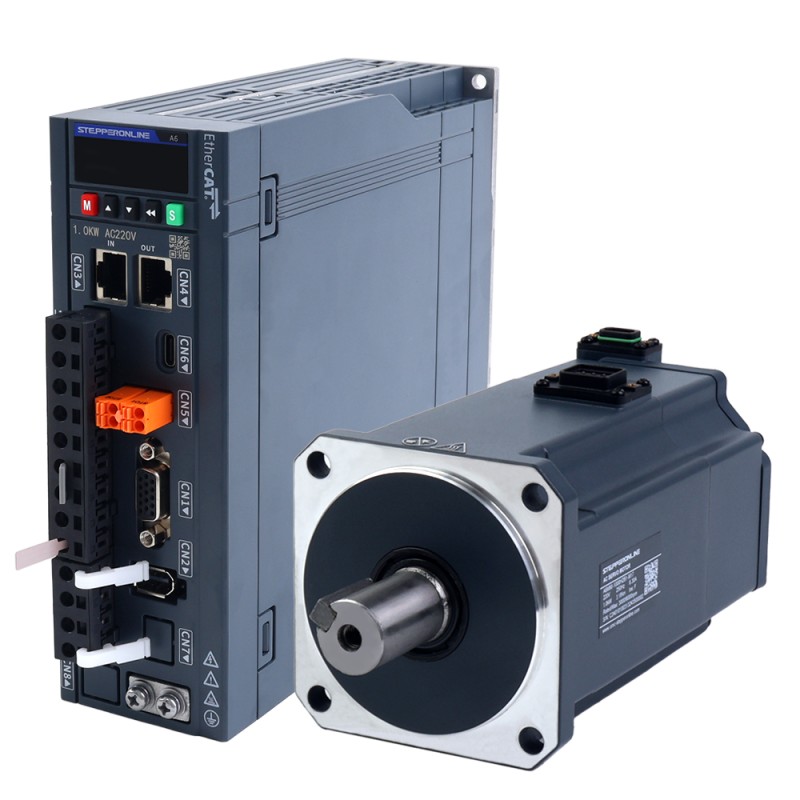

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor with the built-in a 17-bit multiturn absolute encoder and a 24V 8.5W brake, and a single/three-phase 220V 1000W servo driver that supports EtherCAT communication. The motor provides excellent servo control performance.
This servo features an integrated Safe Torque Off (STO) function to prevent unexpected motor start-ups and improve safety during installation, maintenance, and emergency stops.
With excellent cost-effectiveness and compatibility with PLC platforms such as Beckhoff and Omron, the A6-EC series provides reliable motion control solutions for various industrial applications.

Items in Kit

  • 1 x A6-1000EC-STO: 1000W EtherCAT AC Servo Motor Driver
  • 1 x A6M80-1000H2B1-M17: 1000W AC Servo Motor 3000rpm 3.18Nm with Brake 17-Bit Encoder IP67
  • 1 x AS7-C-PWB075-3.0: 3.0m Motor Cable
  • 1 x AS7-C-ENC076-3.0: 3.0m Encoder Cable

Servo Driver Specification

  • Part Number: A6-1000EC-STO
  • Integrated with STO Safe Torque Off emergency stop function
  • EtherCAT communication
  • 2KHz speed loop bandwith
  • 17-bit absolute encoder
  • 250μs synchronization period
  • 300 nodes at 120m distance, 15 ns synchronization error, ±20 ns synchronization jitter
  • Rated voltage single/three-phase 220VAC
  • Rated power 1000W
  • Automatic motor identification
  • Dimension: 170*174*55mm
  • Built-in dynamic brake function

Servo Motor Specification

  • Part Number: A6M80-1000H2B1-M17
  • Rated Voltage: 220VAC
  • Rated Power: 1000W
  • Rated Torque: 3.18Nm
  • Peak Torque: 11.13Nm
  • Rated Speed: 3000rpm
  • Peak Speed: 6000rpm
  • Rated Current: 6.30A
  • Peak Current: 20.90A
  • Torque Const: 0.50N.m/A
  • Back EMF Const: 33.90V/krpm
  • Resistance: 0.35ohms
  • Inductance: 2.04mH
  • Inertia: 2.28kg*m2*10-4
  • Poles: 10
  • Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
  • IP Rating: IP67
  • Shaft diameter: 19mm
  • Brake Voltage: 24V DC
  • Brake Power: 8.5W
  • Brake Holding Torque: 3.20Nm
  • Axial Load: Max.147N
  • Radial Load @ Shaft Length 35mm: Max.392N
Electrical Specification
Control Modes EtherCAT
Encoder Resolution 17bit
Encoder Type Magnetic Absolute
Input Voltage(V) 220VAC
Integrated STO or not? Yes
Peak Speed(rpm) 6000
Peak Torque(Nm) 11.13
Rated Power(W) 1000
Rated Speed(rpm) 3000
Rated Torque(Nm) 3.81
With Brake Yes
Physical Specification
Aviation Plug or Not No
Frame Size(mm) 80 x 80
Integrated or Not No
IP Rating 67
Shaft Diameter(mm) 19

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
A6 Series 400W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
A6 Series 400W STO Safe Torque Off EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 400W motor with the built-in 17-bit multiturn absolute encoder and a 24V 7.3..
from
£124.75
Add to Cart
Add to Wish List Compare this Product
Quickview

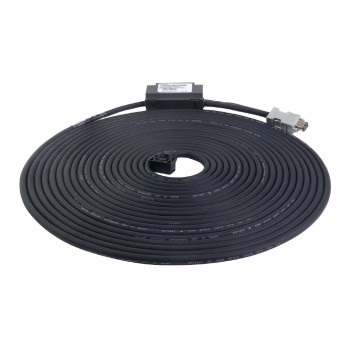

10m(393.7") Encoder Cable with Battery Box for A6 Series 17-bit Servo Motor
10m(393.7") Encoder Cable with Battery Box for A6 Series 17-bit Servo Motor
10m Encoder Connection Cable for A6 Series 17-bit AC Servo Motor. 10-meter(393.7-inch) cable for servo motor(There are also 3m and 5m cables t..
from
£14.25
Add to Cart
Add to Wish List Compare this Product
Quickview
10m(393.7") Motor Cable with Connector for A6 Series 17-bit Servo Motor with Brake
10m(393.7") Motor Cable with Connector for A6 Series 17-bit Servo Motor with Brake
10m 4-pin Motor Cable with Connector for A6 Series 17-bit AC Servo Motor with Brake . 10-meter(393.7") cable with 4 pins Available for A6 series 1..
from
£12.79
Add to Cart
Add to Wish List Compare this Product
Quickview

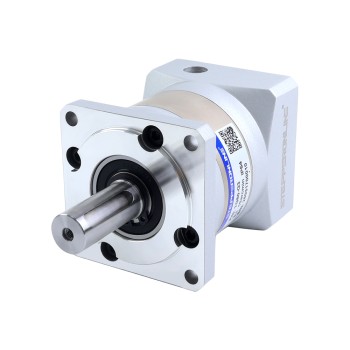

TG Series 60mm 3:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
TG Series 60mm 3:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
This high-precision 60mm planetary gearbox is belong to TG series gearbox, with a gear ratio 3:1 and a maximum 10arc-min backlash. It's an excellent c..
from
£30.30
Add to Cart
Add to Wish List Compare this Product
Quickview

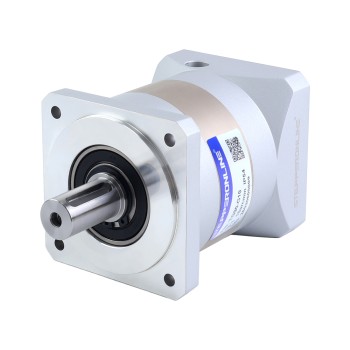

TG Series 90mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
TG Series 90mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
This high-precision 90mm planetary gearbox is belong to TG series gearbox, with a gear ratio 10:1 and a maximum 10arc-min backlash. It's an excellent ..
from
£47.12
Add to Cart
Add to Wish List Compare this Product
Quickview
10m(393.7") Motor and Encoder Cable with Connectors Kit for A6 Series 17-bit Servo Motor with Brake
10m(393.7") Motor and Encoder Cable with Connectors Kit for A6 Series 17-bit Servo Motor with Brake
This is a 10m(393.7") motor and encoder cable kit with connectors for A6 series 17-bit servo motor with brake. This cable kit includes: 1 x AS7-C-..
from
£21.65
Add to Cart
Add to Wish List Compare this Product
Quickview

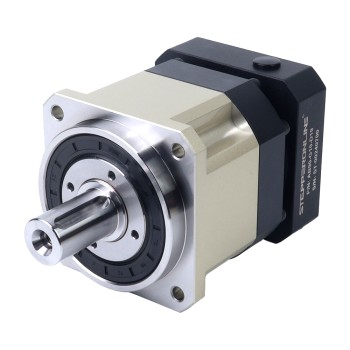

AB Series 90mm 10:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
AB Series 90mm 10:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
The size of this gearbox is 90 x 90mm and the input shaft diameter is 19mm. This AB series helical planetary gearbox offers a gear ratio of 10:1 with ..
from
£100.98
Add to Cart
Add to Wish List Compare this Product
Quickview

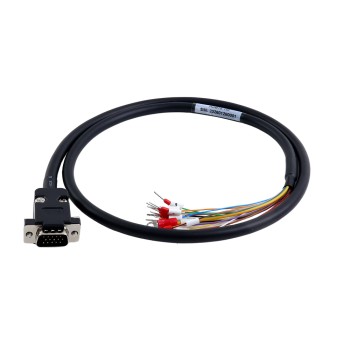

1m(39.37") HDB15 Male to Bare High Flex Shielded Cable D-SUB 15-Pin Connector to Single End Cable with Terminal
