A6-PN1000H2B1-M17
Encoder Resolution17bit
Encoder TypeMagnetic Absolute
Rated Torque(Nm)3.81
Peak Torque(Nm)11.13
Question

Downloads

A6M80-1000H2B1-M17_Full_Datasheet.pdfPDF · 166.19KBAS7-C-PWB075-3.0.pdfPDF · 110.26KBA6-1000PN.stpSTP · 15.21MBLog in to downloadAS7-C-ENC076-3.0_Full_Datasheet.pdfPDF · 108.54KBA6M80-1000H2B1-M17.STEPSTEP · 8.43MBLog in to downloadGSD_File.7z7Z · 12.19KBA6-PN_series_servo_drive_user_manual.pdfPDF · 26.26MB
Same series
ModelEncoder ResolutionEncoder TypeRated Torque(Nm)Peak Torque(Nm)PriceStock
A6-EC1000H2A1-M1717bitMagnetic Absolute3.1811.13£130.72In stock
A6-EC1000H2A1-M17-STO17bitMagnetic Absolute3.1811.13£169.58In stock
A6-EC1000H2B1-M1717bitMagnetic Absolute3.8111.13£152.53In stock
A6-EC1000H2B1-M17-STO17bitMagnetic Absolute3.8111.13£195.46In stock
A6-PN1000H2A1-M1717bitMagnetic Absolute3.1811.13£204.82In stock
A6-PN1000H2A1-M17-STO17bitMagnetic Absolute3.1811.13£231.49In stock
A6-PN1000H2B1-M1717bitMagnetic Absolute3.8111.13£231.10In stock
A6-PN1000H2B1-M17-SALE17bitMagnetic Absolute3.8111.13£213.88In stock
A6-PN1000H2B1-M17-STO17bitMagnetic Absolute3.8111.13£260.12In stock
A6-RS1000H2A1-M1717bitMagnetic Absolute3.1811.13£116.25In stock
A6-RS1000H2B1-M1717bitMagnetic Absolute3.8111.13£136.35In stock
T6-RS1000H2A1-M2323bitMagnetic Absolute, Magnetic Incremental3.189.54£228.16Backorder
T6-RS1000H2A3-M17S17bitMagnetic Incremental3.199.56£210.78Backorder
T6-RS1000H2B1-M2323bitMagnetic Absolute, Magnetic Incremental3.189.54£282.38Backorder
T6-RS1000H2B3-M17S17bitMagnetic Incremental3.199.56£260.87Backorder
A6 Series 1000W PROFINET AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor with the built... Read More
0 reviews • Write a review
from
£231.10
5 + £223.46
10 + £216.31
50 + £209.60
100 + £203.30

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor with the built-in a 17-bit multiturn absolute encoder and a 24V 8.5W brake, and a single/three-phase 220V 1000W servo driver that supports PROFINET communication. The motor provides excellent servo control performance.

This series of servo products is easy to operate, economical and efficient. It has the characteristics of high response, high precision, high speed, high synchronization, etc., supporting one-button self-tuning and automatic inertia detectionetc.
The A6-PN series servo products feature in high cost-efficiency and are compatible with popular PLCs from brands such as Beckhoff and Omron, providing efficient and convenient motion control solutions for various industries.

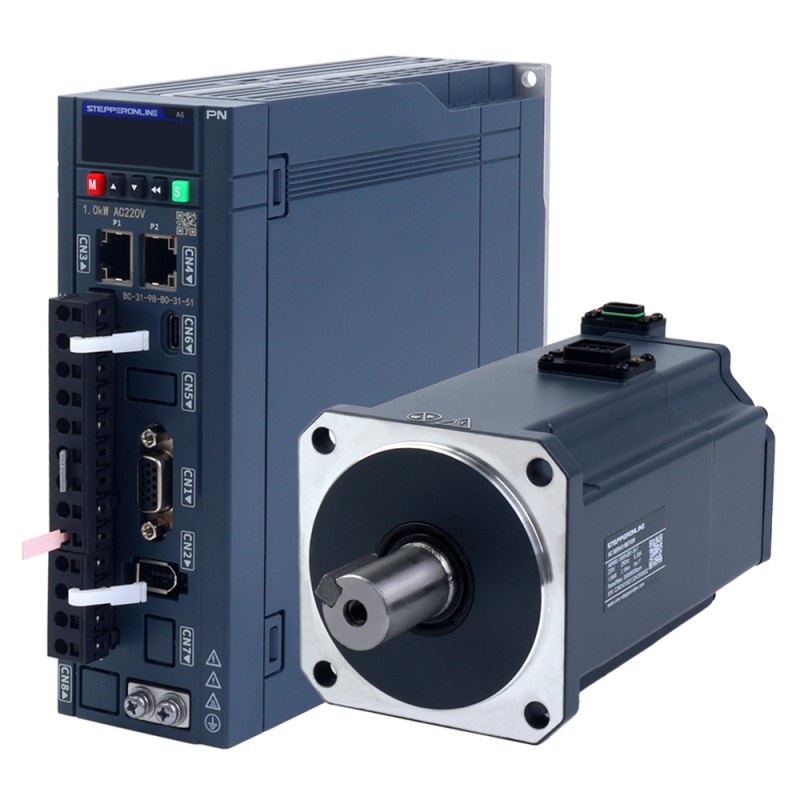

Items in Kit

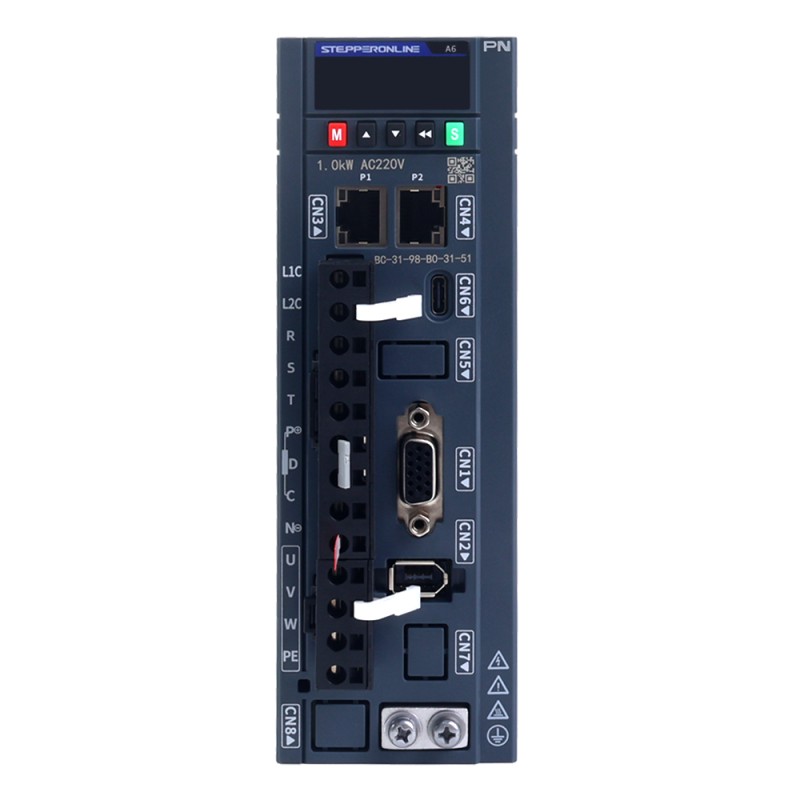

  • 1 x A6-1000PN: 1000W PROFINET AC Servo Motor Driver
  • 1 x A6M80-1000H2B1-M17: 1000W AC Servo Motor 3000rpm 3.18Nm with Brake 17-Bit Encoder IP67

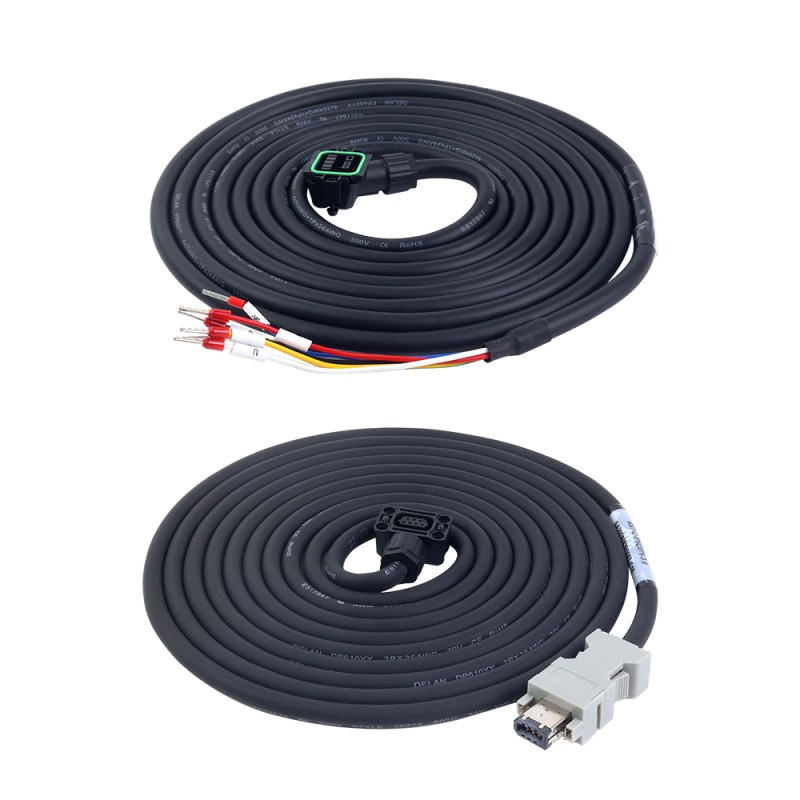

  • 1 x AS7-C-PWB075-3.0: 3.0m Motor Cable
  • 1 x AS7-C-ENC076-3.0: 3.0m Encoder Cable

Servo Driver Specification

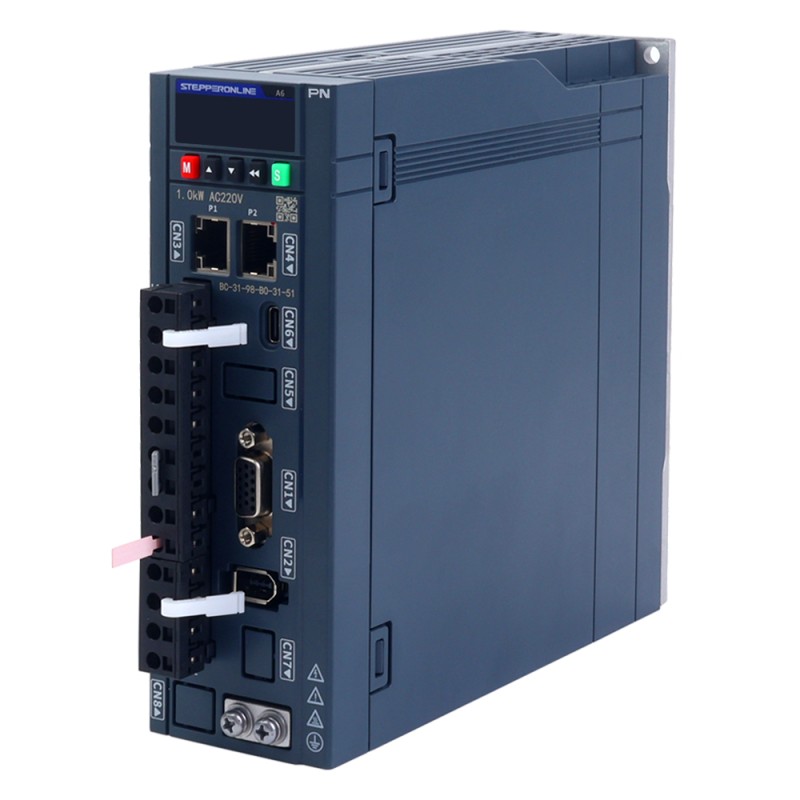

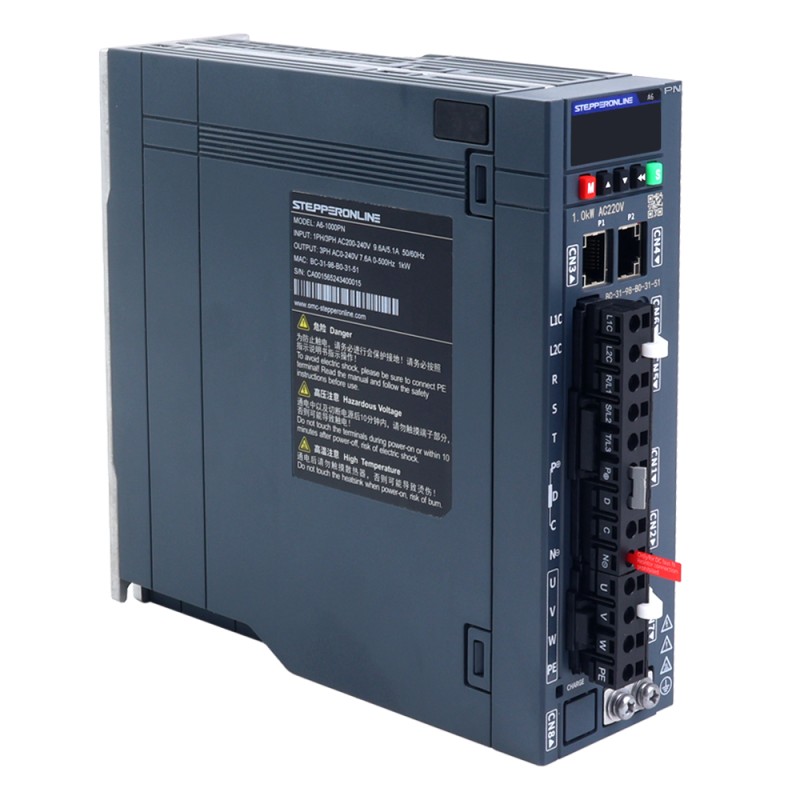

  • Part Number: A6-1000PN
  • 2KHz speed loop bandwith
  • 17-bit absolute encoder
  • Rated voltage single/three-phase 220VAC
  • Rated power 1000W
  • Automatic motor identification
  • Dimension: 170*174*55mm
  • Standard PROFIDRIVE protocol, mainstream PROFINET communication PLCs
  • Built-in dynamic brake function

Servo Motor Specification

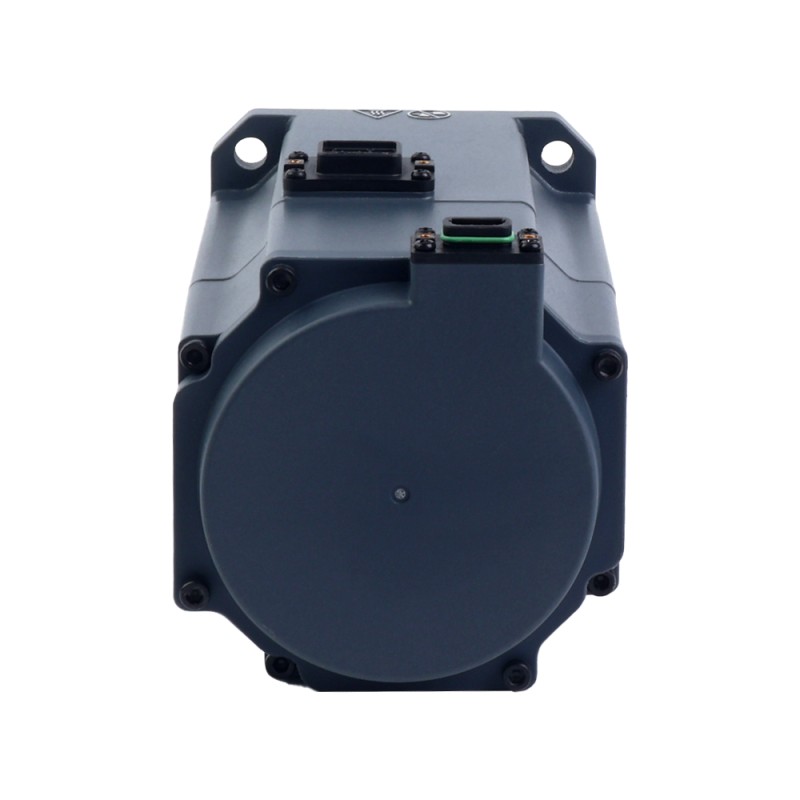

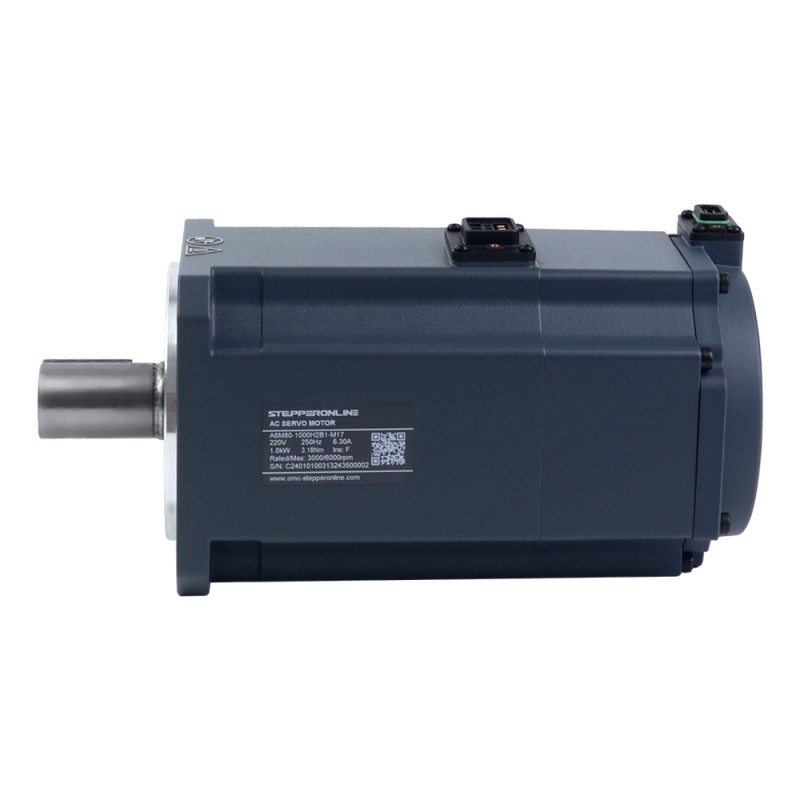

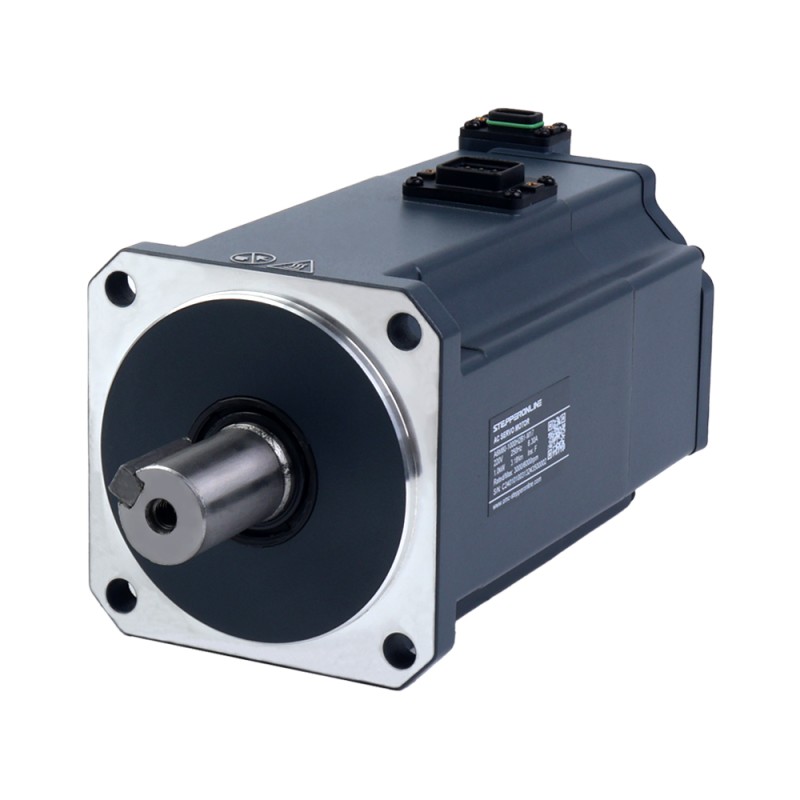

  • Part Number: A6M80-1000H2B1-M17
  • Rated Voltage: 220VAC
  • Rated Power: 1000W
  • Rated Torque: 3.18Nm
  • Peak Torque: 11.13Nm
  • Rated Speed: 3000rpm
  • Peak Speed: 6000rpm
  • Rated Current: 6.30A
  • Peak Current: 20.90A
  • Torque Const: 0.50N.m/A
  • Back EMF Const: 33.90V/krpm
  • Resistance: 0.35ohms
  • Inductance: 2.04mH
  • Inertia: 2.28kg*m2*10-4
  • Poles: 10
  • Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
  • IP Rating: IP67
  • Shaft diameter: 19mm
  • Brake Voltage: 24V DC
  • Brake Power: 8.5W
  • Brake Holding Torque: 3.20Nm
  • Axial Load: Max.147N
  • Radial Load @ Shaft Length 35mm: Max.392N
Electrical Specification
Control Modes PROFINET
Encoder Resolution 17bit
Encoder Type Magnetic Absolute
Input Voltage(V) 220VAC
Integrated STO or not? No
Peak Speed(rpm) 6000
Peak Torque(Nm) 11.13
Rated Power(W) 1000
Rated Speed(rpm) 3000
Rated Torque(Nm) 3.81
With Brake Yes
Physical Specification
Aviation Plug or Not No
Frame Size(mm) 80 x 80
Integrated or Not No
IP Rating 67
Shaft Diameter(mm) 19

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
TG Series 90mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
TG Series 90mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
This high-precision 90mm planetary gearbox is belong to TG series gearbox, with a gear ratio 10:1 and a maximum 10arc-min backlash. It's an excellent ..
from
£47.12
Add to Cart
Add to Wish List Compare this Product
Quickview
TG Series 90mm 20:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
TG Series 90mm 20:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
This high-precision 90mm planetary gearbox is belong to TG series gearbox, with a gear ratio 20:1 and a maximum 15arc-min backlash. It's an excellent ..
from
£67.32
Add to Cart
Add to Wish List Compare this Product
Quickview
AD Series 90mm 20:1 Helical Planetary Gearbox Backlash 7arcmin for Servo Motors IP65
AD Series 90mm 20:1 Helical Planetary Gearbox Backlash 7arcmin for Servo Motors IP65
This helical planetary gearbox offers a gear ratio of 20:1 with a backlash of 7arcmin. It is designed for servo motors with a size of 90mm and an inpu..
from
£0.00
Add to Cart
Add to Wish List Compare this Product
Quickview
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 2Nm(283.22oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 2Nm(283.22oz.in) with Encoder 1000PPR(4000CPR)
This P series closed loop nema 23 stepper motor with IP65 waterproof ratings and 2Nm(283.28oz.in), that meaning this IP65 stepper motor can ..
from
£50.25
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 23 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket
🔥 Bestseller
Nema 23 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket
Manufacturer P/N: ST-M2 The new designed NEMA 23 Stepper Motor Alloy Steel Mounting Bracket can match standard Nema 23 stepper motor, and also includ..
from
£1.78
Add to Cart
Add to Wish List Compare this Product
Quickview

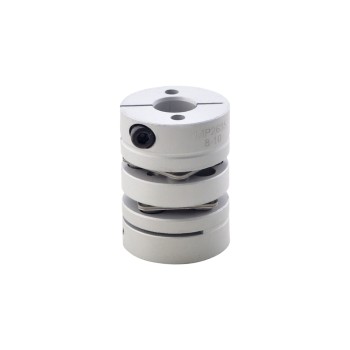

8mm - 10mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler
