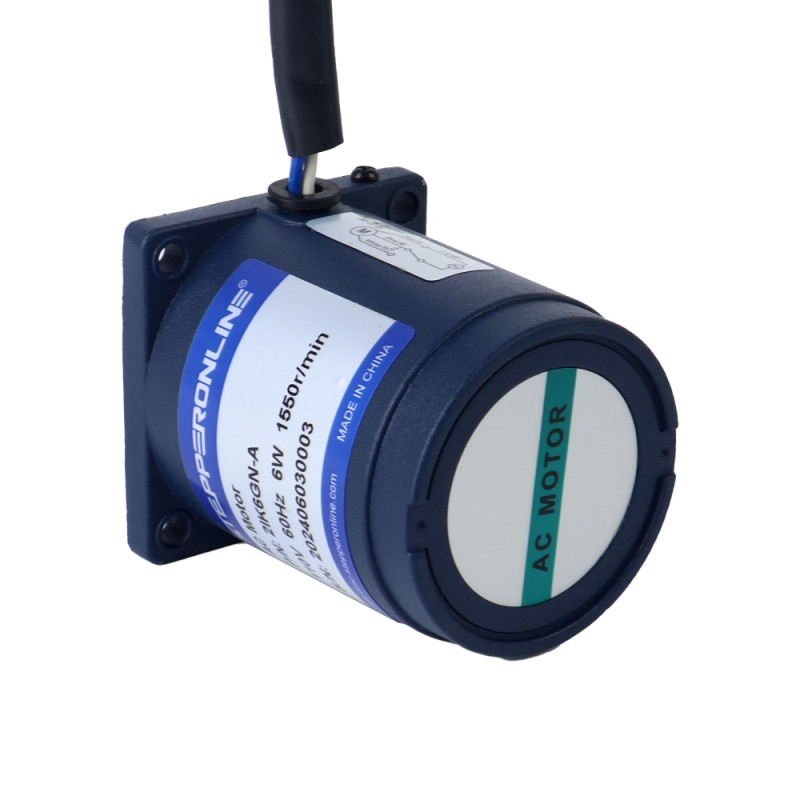

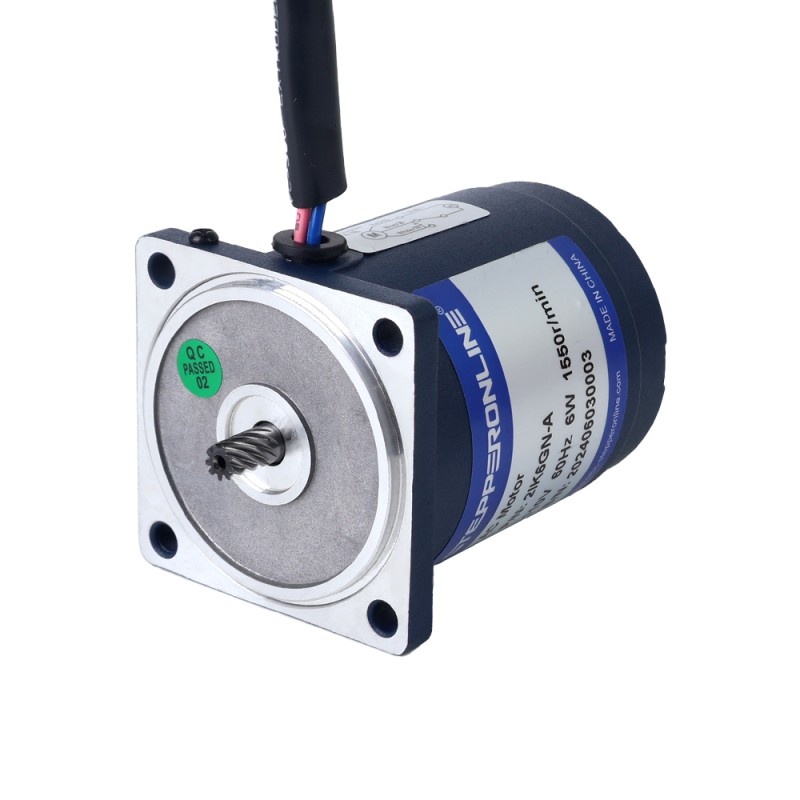

6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor

6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor - 2IK6GN-A/2GN5K | StepperOnline UK
2IK6GN-A/2GN5K
Output Shaft TypeD
Input Voltage(V)1PH 110VAC
Frame Size(mm)60 x 60
Current(A)0.21
Question

Downloads

2IK6GN-A_2GNXXK_manual.pdfPDF · 1.97MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
2IK6GN-A/2GN100KD1PH 110VAC60 x 600.21£18.14In stock
2IK6GN-A/2GN10KD1PH 110VAC60 x 600.21£16.12In stock
2IK6GN-A/2GN15KD1PH 110VAC60 x 600.21£16.12In stock
2IK6GN-A/2GN200KD1PH 110VAC60 x 600.21£18.14In stock
2IK6GN-A/2GN20KD1PH 110VAC60 x 600.21£17.13In stock
2IK6GN-A/2GN30KD1PH 110VAC60 x 600.21£17.13In stock
2IK6GN-A/2GN3KD1PH 110VAC60 x 600.21£16.12In stock
2IK6GN-A/2GN50KD1PH 110VAC60 x 600.21£17.13In stock
2IK6GN-A/2GN5KD1PH 110VAC60 x 600.21£16.12In stock
2IK6GN-C/2GN100KD1PH 220VAC60 x 600.13£18.14In stock
2IK6GN-C/2GN10KD1PH 220VAC60 x 600.13£16.12In stock
2IK6GN-C/2GN15KD1PH 220VAC60 x 600.13£16.12In stock
2IK6GN-C/2GN200KD1PH 220VAC60 x 600.13£18.14In stock
2IK6GN-C/2GN20KD1PH 220VAC60 x 600.13£17.13In stock
2IK6GN-C/2GN30KD1PH 220VAC60 x 600.13£17.13In stock
2IK6GN-C/2GN3KD1PH 220VAC60 x 600.13£16.12In stock
2IK6GN-C/2GN50KD1PH 220VAC60 x 600.13£17.13In stock
2IK6GN-C/2GN5KD1PH 220VAC60 x 600.13£16.12In stock

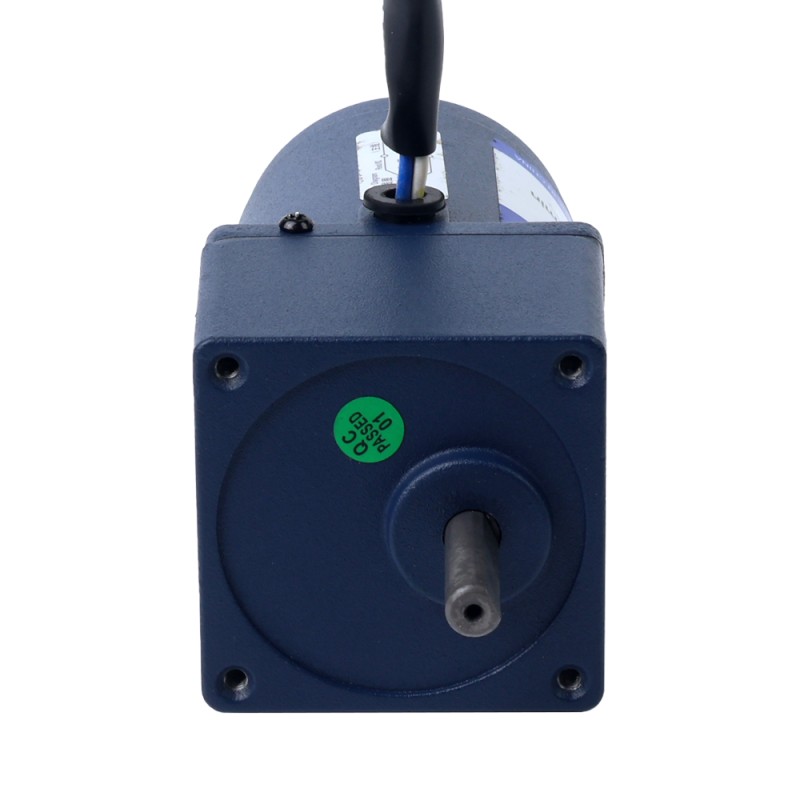

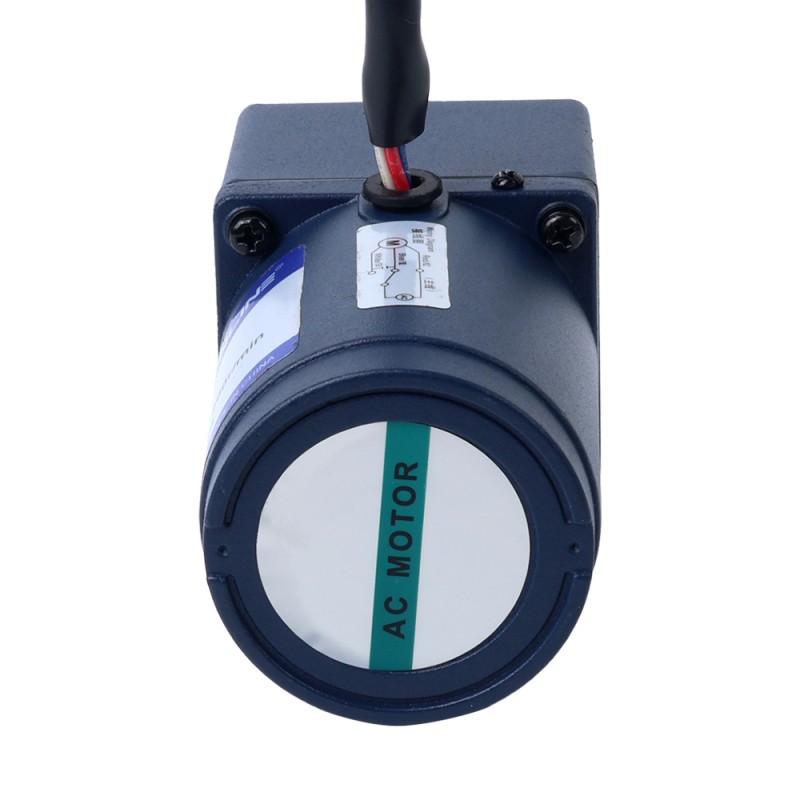

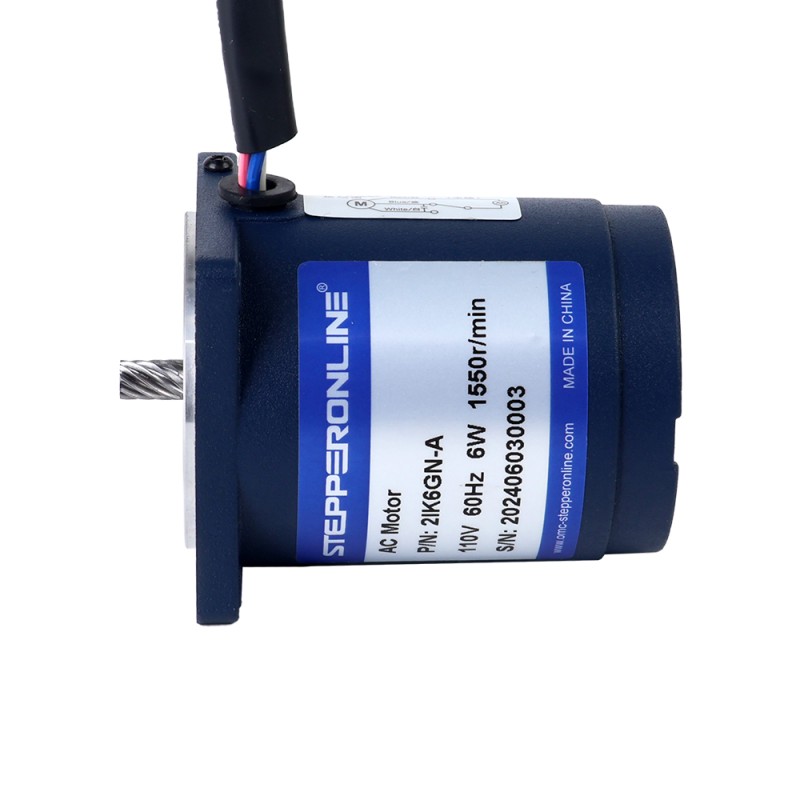

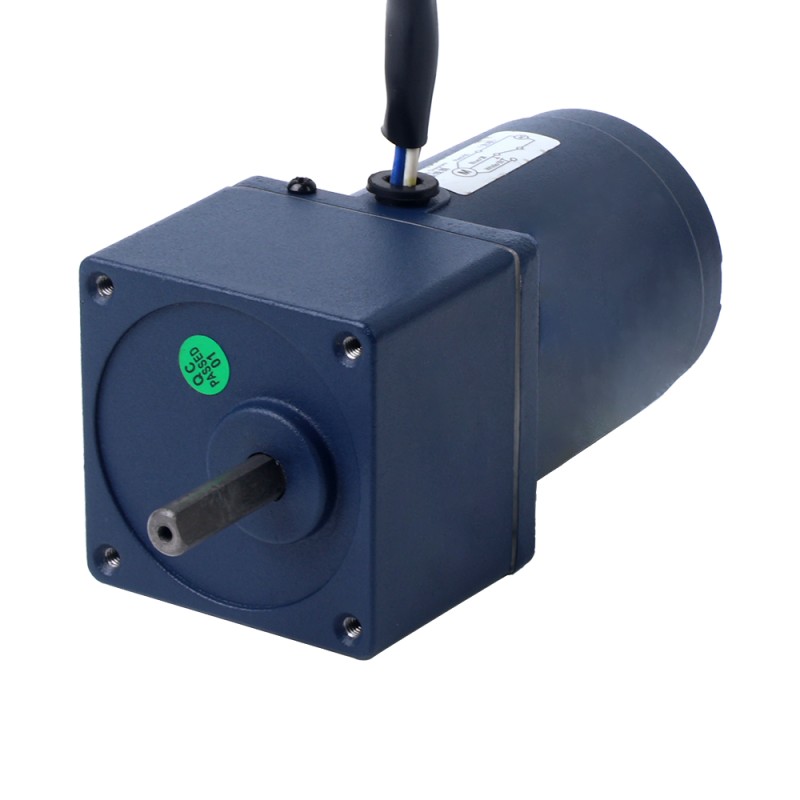

6W 110VAC 60Hz 310RPM 0.15Nm(21.24oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor
This 60x60mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 5 a t... Read More
0 reviews • Write a review
from
£16.12
5 + £15.69
10 + £15.28
50 + £14.88
100 + £14.52

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This 60x60mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 5 a torque of 0.15Nm(21.24oz.in) and a speed of 310rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 2IK6GN-A/2GN5K
  • Gearbox Type: Spur Gearbox
  • Output Power: 6W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.21A
  • Gear Ratio: 5:1
  • Speed: 310rpm
  • Torque: 0.15Nm(21.24oz.in)

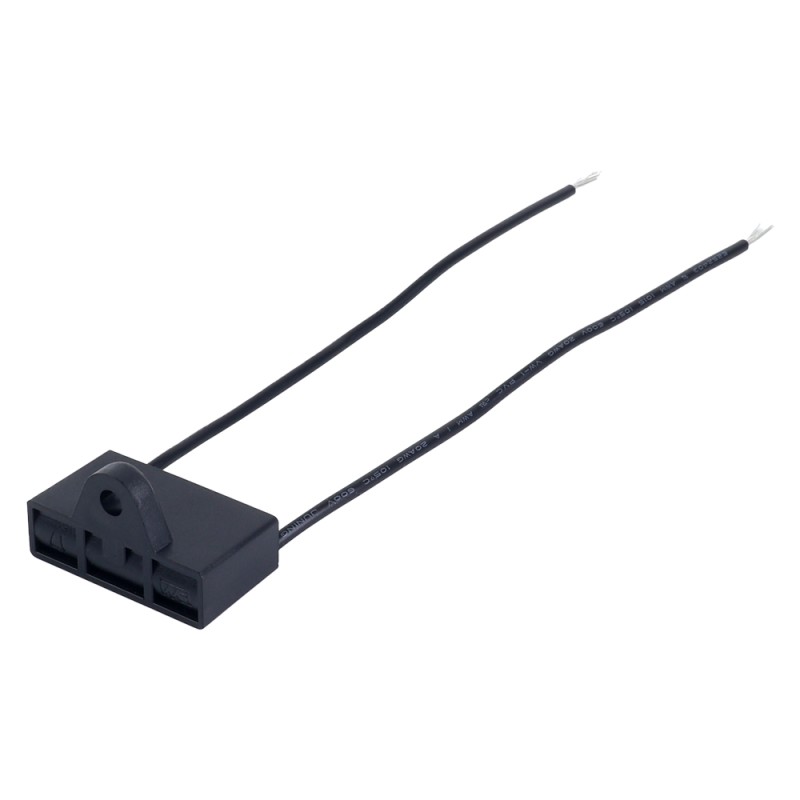

  • Capacitor: 3.0μF/250VAC

Physical Specifications

  • Frame Size: 60x60mm
  • Body Length: 118mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ8mm
  • Shaft Length: 30mm
  • Weight: 1.15kg

Wiring

Electrical Specification
Current(A) 0.21
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 6
Speed(rpm) 310
Torque(Nm) 0.15
Physical Specification
Frame Size(mm) 60 x 60
Gear Ratio(xx:1) 5
Gearbox Type Spur Gearbox
Output Shaft Type D

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Nema 11 Bipolar 1.8deg 10Ncm(14.16oz.in) 0.67A 28x28x45mm 4 Wires
Nema 11 Bipolar 1.8deg 10Ncm(14.16oz.in) 0.67A 28x28x45mm 4 Wires
This bipolar nema 11 stepper motor with step angle 1.8deg and size 28x28x45mm. It has 4 wires, each phase draws 0.67A, with holding torque 10Ncm(14.16..
from
£8.25
Add to Cart
Add to Wish List Compare this Product
Quickview

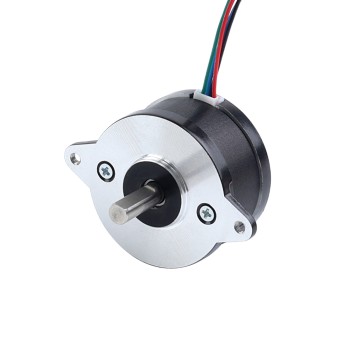

Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 0.65A Φ36x21mm 4 Wires
Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 0.65A Φ36x21mm 4 Wires
This round hybrid bipolar Nema 14 stepper motor with step angle 0.9deg and size Φ36x21mm. It has 4 wires, each phase draws 0.65A, with holding torque ..
from
£11.38
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 23 Bipolar 1.8deg 0.6Nm(84.97oz.in) 0.88A 57x57x42mm 4 Wires
Nema 23 Bipolar 1.8deg 0.6Nm(84.97oz.in) 0.88A 57x57x42mm 4 Wires
This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x41mm. It has 4 wires, each phase draws 0.88A, with holding torque 0.6Nm(84.97..
from
£12.07
Add to Cart
Add to Wish List Compare this Product
Quickview

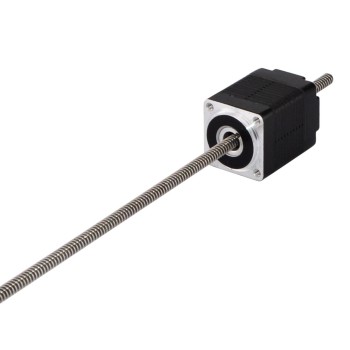

Nema 8 Non-captive 30mm Stack 0.24A Lead 2mm(0.07874") Length 150mm
Pre-order
Nema 8 Non-captive 30mm Stack 0.24A Lead 2mm(0.07874") Length 150mm
The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it works with a 3.56mm(0.140157") diameter 150mm(5.9055") length lead screw, t..
from
£76.33
Add to Cart
Add to Wish List Compare this Product
Quickview
6W 220VAC 50Hz 270RPM 0.18Nm(25.49oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor
6W 220VAC 50Hz 270RPM 0.18Nm(25.49oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor
This 60x60mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 5, a torque of 0.18Nm(25.49oz.in) and a speed of 270rpm..
from
£16.12
Add to Cart
Add to Wish List Compare this Product
Quickview

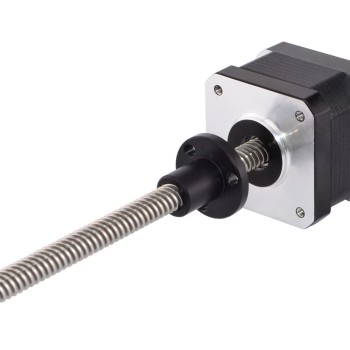

Nema 17 External 34mm Stack 0.4A Lead 8mm(0.31496") Length 300mm
Nema 17 External 34mm Stack 0.4A Lead 8mm(0.31496") Length 300mm
This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 34mm 1.8 degree 0.4A Nema 17 stepper motor...
from
£0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

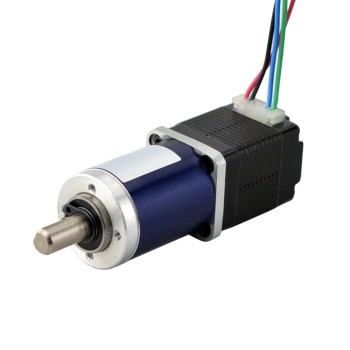

Nema 8 Stepper Motor Bipolar L=28mm w/ Gear Ratio 90:1 Planetary Gearbox
