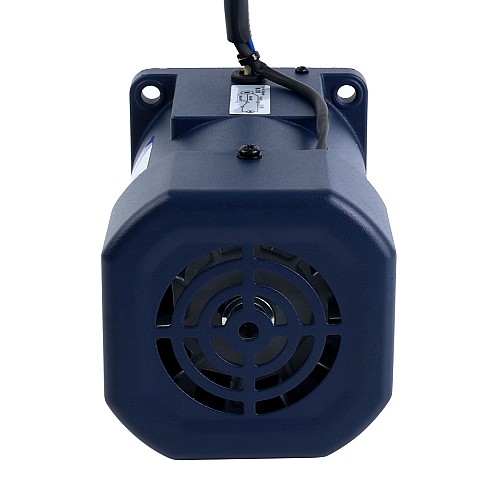

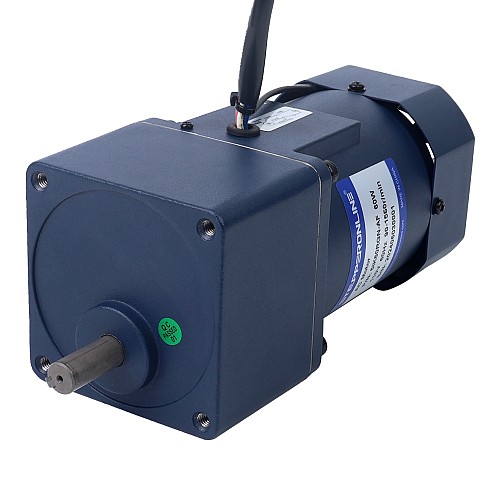

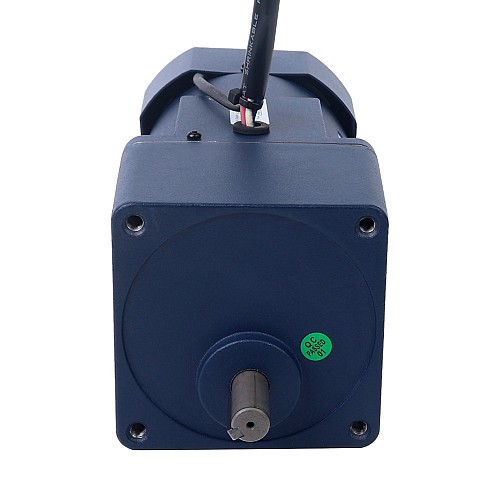

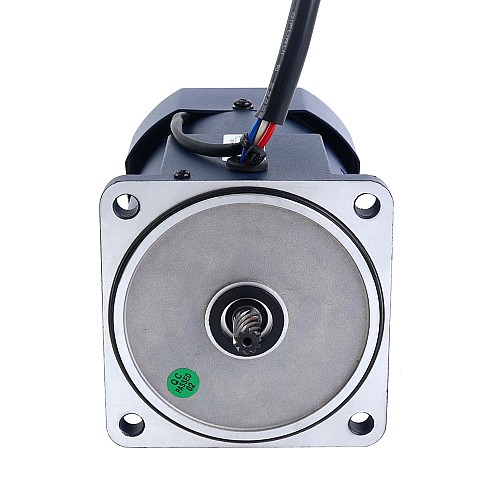

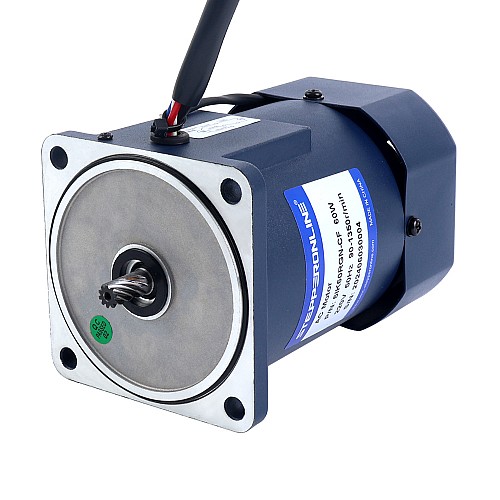

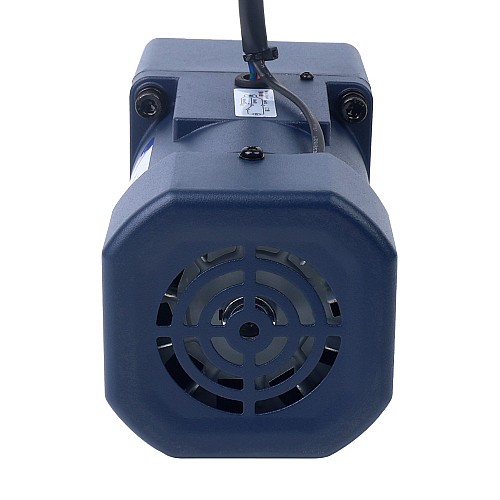

60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor

60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor - 5IK60RGN-CF/5GN200K | StepperOnline UK
5IK60RGN-CF/5GN200K
Output Shaft TypeKeyway
Input Voltage(V)1PH 220VAC
Frame Size(mm)90 x 90
Current(A)0.5
Question

Downloads

5IK60RGN-XF_5GNXXK_manual.pdfPDF · 1.22MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK60RGN-AF/5GN15KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60RGN-AF/5GN200KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60RGN-AF/5GN20KKeyway1PH 110VAC90 x 901.01£36.27In stock
5IK60RGN-AF/5GN30KKeyway1PH 110VAC90 x 901.01£36.27In stock
5IK60RGN-AF/5GN3KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60RGN-AF/5GN50KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60RGN-AF/5GN5KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60RGN-CF/5GN100KKeyway1PH 220VAC90 x 900.5£37.71In stock
5IK60RGN-CF/5GN10KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK60RGN-CF/5GN15KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK60RGN-CF/5GN200KKeyway1PH 220VAC90 x 900.5£37.71In stock
5IK60RGN-CF/5GN200K-SALEKeyway1PH 220VAC90 x 900.5£38.31In stock
5IK60RGN-CF/5GN20KKeyway1PH 220VAC90 x 900.5£36.27In stock
5IK60RGN-CF/5GN30KKeyway1PH 220VAC90 x 900.5£36.27In stock
5IK60RGN-CF/5GN3KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK60RGN-CF/5GN50KKeyway1PH 220VAC90 x 900.5£37.71In stock
5IK60RGN-CF/5GN5KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK90RA-AFD1PH 110VAC90 x 901.4£25.33In stock
5IK90RA-CFD1PH 220VAC90 x 900.64£25.33In stock
5IK90RGU-AF/5GU100KBKeyway1PH 110VAC90 x 901.4£45.34In stock
5IK90RGU-AF/5GU100RCHollow1PH 110VAC90 x 901.4£60.16In stock
5IK90RGU-AF/5GU100RTKeyway1PH 110VAC90 x 901.4£60.16In stock
5IK90RGU-AF/5GU10KBKeyway1PH 110VAC90 x 901.4£41.59In stock
5IK90RGU-AF/5GU10RCHollow1PH 110VAC90 x 901.4£58.58In stock
5IK90RGU-AF/5GU10RTKeyway1PH 110VAC90 x 901.4£58.58In stock
5IK90RGU-AF/5GU15KBKeyway1PH 110VAC90 x 901.4£41.59In stock
5IK90RGU-AF/5GU15RCHollow1PH 110VAC90 x 901.4£58.58In stock
5IK90RGU-AF/5GU15RTKeyway1PH 110VAC90 x 901.4£58.58In stock
5IK90RGU-AF/5GU180RCHollow1PH 110VAC90 x 901.4£60.16In stock
5IK90RGU-AF/5GU180RTKeyway1PH 110VAC90 x 901.4£60.16In stock
View all in category
60W 220VAC 50Hz 0.45-6.75RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor
This 60W 90x90mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has... Read More
0 reviews • Write a review
from
£37.71
5 + £36.70
10 + £35.74
50 + £34.82
100 + £33.96

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.
This 60W 90x90mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has a speed range of 0.45-6.75rpm and a gearbox with a gear ratio of 200. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK60RGN-CF/5GN200K

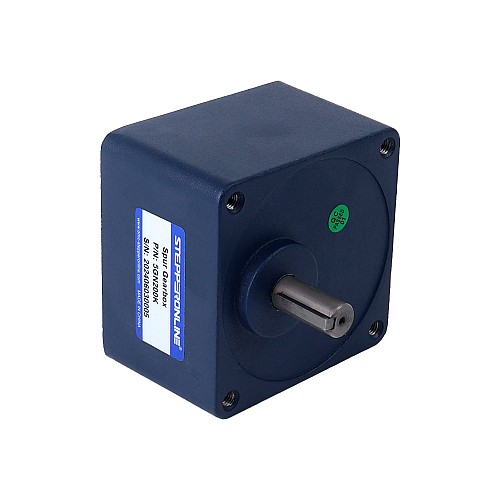

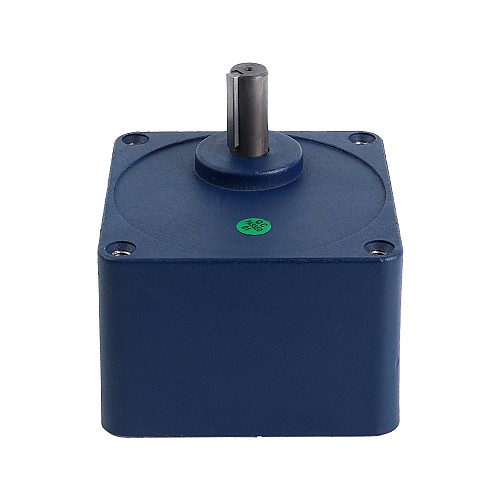

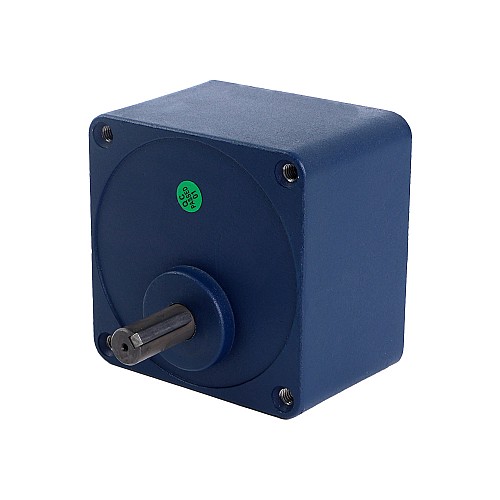

  • Gearbox Type: Spur Gearbox
  • Output Power: 60W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.50A
  • Gear Ratio: 200:1
  • Speed Range: 0.45-6.75rpm
  • Maximum Torque: 10.00Nm(1416.12oz.in)
  • Capacitor: 4.0μF/450VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 196mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.9kg

Wiring

Electrical Specification
Current(A) 0.5
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Max. Torque(Nm) 10.00
Output Power(W) 60
Speed Range(rpm) 0.45-6.75
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 200
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

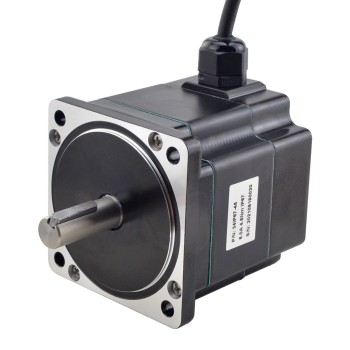

P Series IP67 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP67 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
This P series Nema 34 stepper motor with IP67 waterproof ratings and 4.5Nm(637.38oz.in), that meaning this IP67 stepper motor can be totally protected..
from
£86.59
Add to Cart
Add to Wish List Compare this Product
Quickview
P Series IP67 Waterproof Nema 23 Stepper Motor 5.0A 2.0Nm(283.22oz.in)
P Series IP67 Waterproof Nema 23 Stepper Motor 5.0A 2.0Nm(283.22oz.in)
This P series Nema 23 stepper motor with IP67 waterproof ratings and 2.0Nm(283.22oz.in), that meaning this IP67 stepper motor can be totally protected..
from
£59.30
Add to Cart
Add to Wish List Compare this Product
Quickview

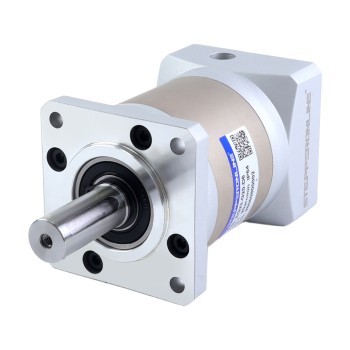

EG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20arc-min for 6.35mm Shaft Nema 23 Stepper Motor
