5IK60RGN-AF/5GN10K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)1.01
Question

Downloads

5IK60RGN-XF_5GNXXK_manual.pdfPDF · 1.22MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK40RGN-C/5GN15KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40RGN-C/5GN200KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40RGN-C/5GN20KKeyway1PH 220VAC90 x 900.35£34.69In stock
5IK40RGN-C/5GN30KKeyway1PH 220VAC90 x 900.35£34.69In stock
5IK40RGN-C/5GN3KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40RGN-C/5GN50KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40RGN-C/5GN5KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK60RA-AFD1PH 110VAC90 x 901.01£22.17In stock
5IK60RA-CFD1PH 220VAC90 x 900.5£22.17In stock
5IK60RGN-AF/5GN100KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60RGN-AF/5GN10KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60RGN-AF/5GN15KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60RGN-AF/5GN200KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60RGN-AF/5GN20KKeyway1PH 110VAC90 x 901.01£36.27In stock
5IK60RGN-AF/5GN30KKeyway1PH 110VAC90 x 901.01£36.27In stock
5IK60RGN-AF/5GN3KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60RGN-AF/5GN50KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60RGN-AF/5GN5KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60RGN-CF/5GN100KKeyway1PH 220VAC90 x 900.5£37.71In stock
5IK60RGN-CF/5GN10KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK60RGN-CF/5GN15KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK60RGN-CF/5GN200KKeyway1PH 220VAC90 x 900.5£37.71In stock
5IK60RGN-CF/5GN200K-SALEKeyway1PH 220VAC90 x 900.5£38.31In stock
5IK60RGN-CF/5GN20KKeyway1PH 220VAC90 x 900.5£36.27In stock
5IK60RGN-CF/5GN30KKeyway1PH 220VAC90 x 900.5£36.27In stock
5IK60RGN-CF/5GN3KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK60RGN-CF/5GN50KKeyway1PH 220VAC90 x 900.5£37.71In stock
5IK60RGN-CF/5GN5KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK90RA-AFD1PH 110VAC90 x 901.4£25.33In stock
5IK90RA-CFD1PH 220VAC90 x 900.64£25.33In stock
View all in category
60W 110VAC 60Hz 9-155RPM 2.86Nm(405.01oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor
This 60W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has... Read More
0 reviews • Write a review
from
£34.97
5 + £34.03
10 + £33.15
50 + £32.30
100 + £31.50

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

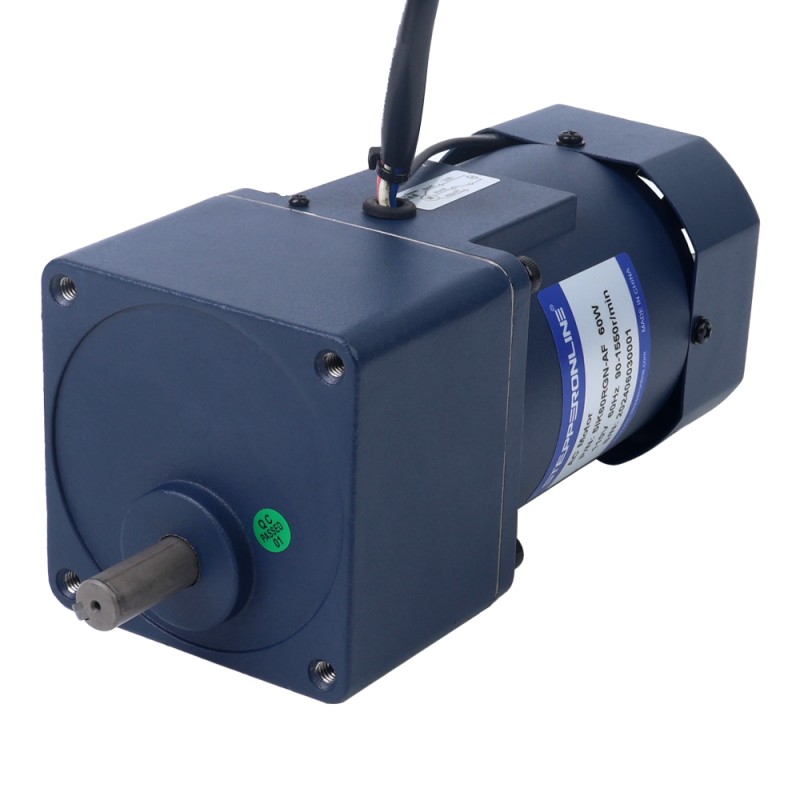

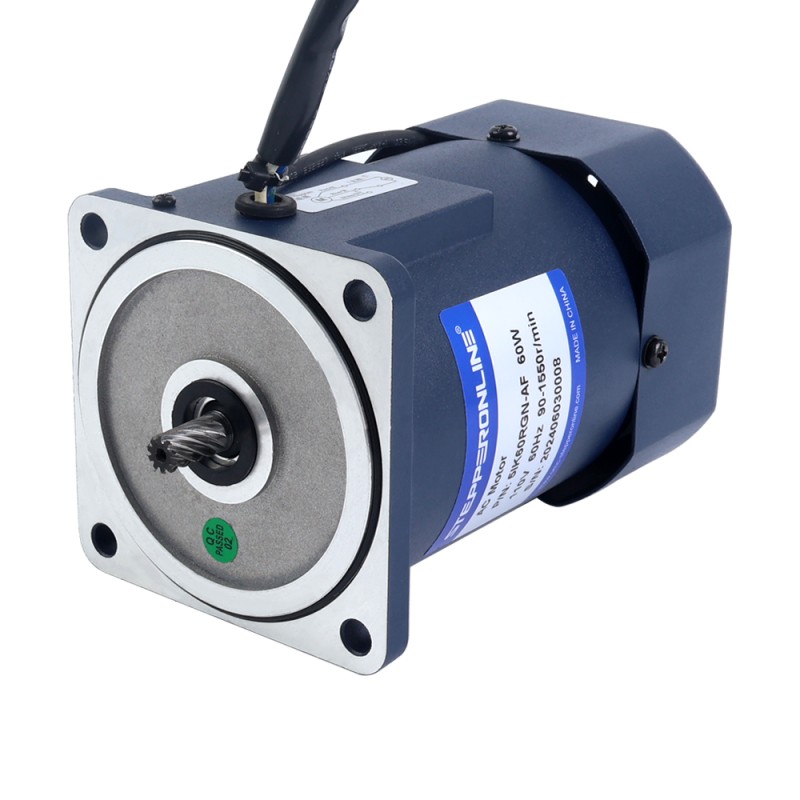

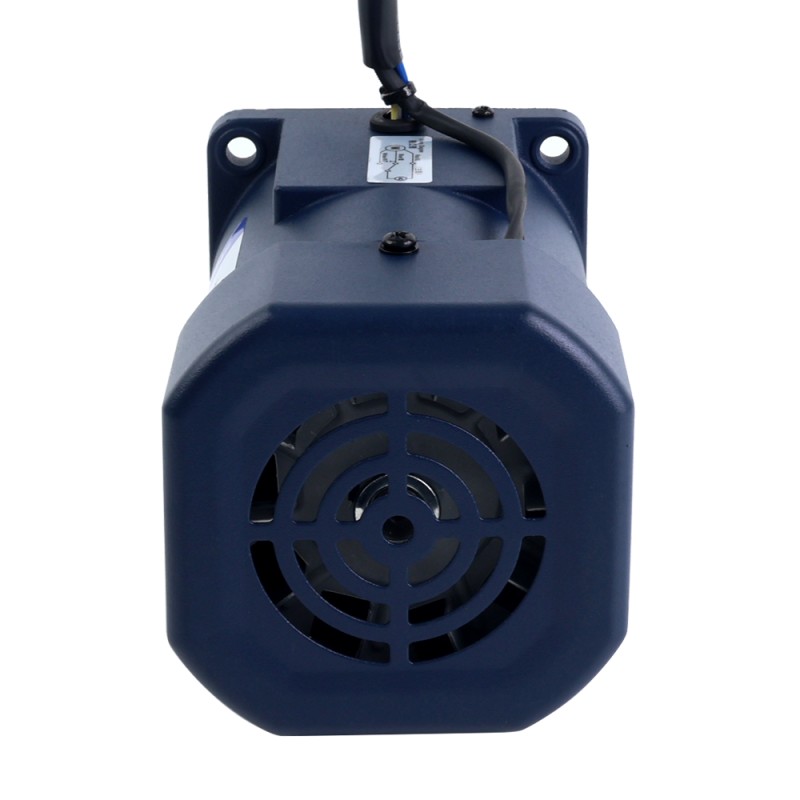

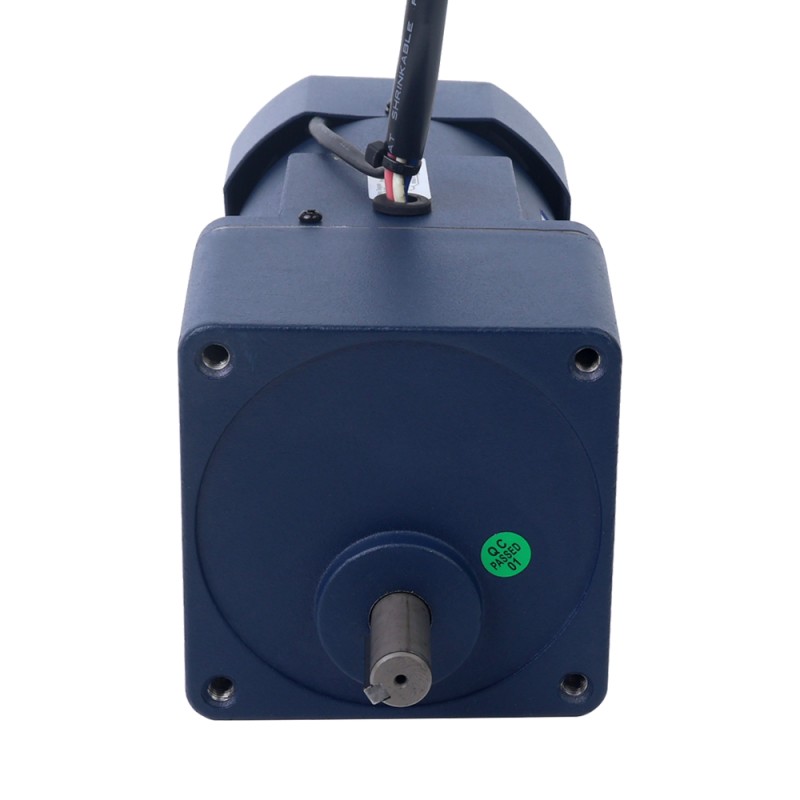

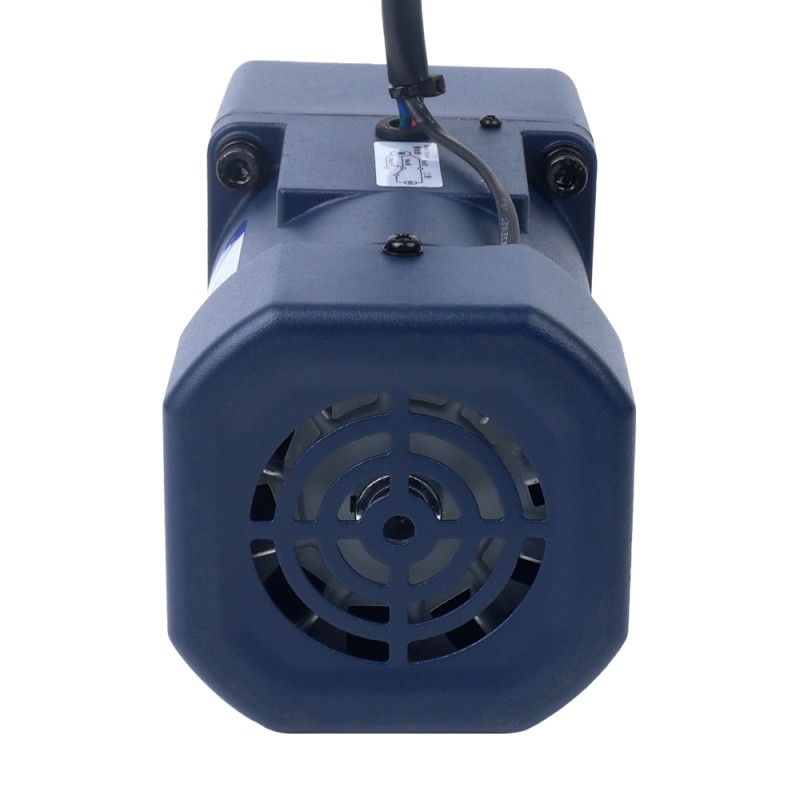

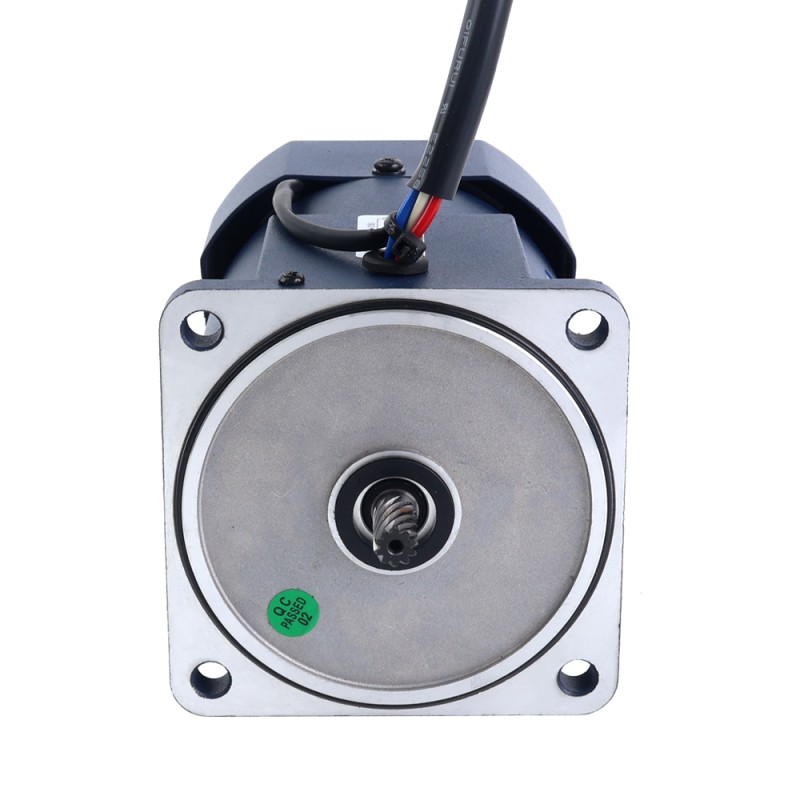

This 60W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 9-155rpm and a gearbox with a gear ratio of 10. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK60RGN-AF/5GN10K
  • Gearbox Type: Spur Gearbox
  • Output Power: 60W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 1.01A
  • Gear Ratio: 10:1
  • Speed Range: 9-155rpm
  • Maximum Torque: 2.86Nm(405.01oz.in)
  • Capacitor: 15.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 196mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.9kg

Wiring

Electrical Specification
Current(A) 1.01
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 2.86
Output Power(W) 60
Speed Range(rpm) 9-155
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 10
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

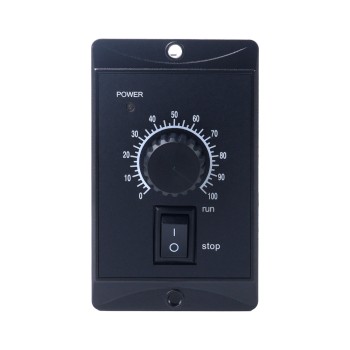

60W Single Phase 110VAC Motor Speed Controller for Variable Speed Motor
