This is a 48V 60W brushless DC gear Motor with a flange of 90x90mm. The built-in 200:1 spur gearbox brings speed and torque to 15rpm and 10.00Nm(1416.12oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

  • P/N: F5B60-48GN-30S/5GN200K
  • Phase: 3
  • Poles: 10
  • Rated Current: 1.80A
  • Rated Voltage: 48V
  • Rated Speed: 15rpm
  • Rated Torque: 10.00Nm(1416.12oz.in)
  • No-load Current: 0.40A
  • Rated Power: 60W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 118mm
  • Gearbox Type: Spur Gearbox
  • Gearbox Ratio: 200:1
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Keyway Length: 25mm
  • Bearing: Deep Groove Ball
  • Weight: 2.5kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No-load Current(A) 0.4
No. of Phase 3
Rated Current(A) 1.80
Rated Power(W) 60
Rated Speed(rpm) 15
Rated Torque(Nm) 10.00
Rated Voltage(V) 48
Physical Specification
Body Length(mm) 118
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 200
Gearbox Type Square Spur Gearbox
Output Shaft Type Keyway
Shaft Diameter(mm) 12
Shaft Length(mm) 32
With Gearbox Yes

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview
Single Output Shaft for NMRV30 Worm Gear Speed Reducer
Single Output Shaft for NMRV30 Worm Gear Speed Reducer
This is single output shaft for NMRV30 Worm Gear Speed Reducer, the output shaft diameter is 14mm with 5mm keyway and M6 screw holes on the end. ..
from
£2.38
Add to Cart
Add to Wish List Compare this Product
Quickview
Double Output Shaft for NMRV30 Worm Gear Speed Reducer
Double Output Shaft for NMRV30 Worm Gear Speed Reducer
This is double output shaft for NMRV30 Worm Gear Speed Reducer, the output shaft diameter is 14mm with 5mm keyway and M6 screw holes on both ends. ..
from
£2.85
Add to Cart
Add to Wish List Compare this Product
Quickview

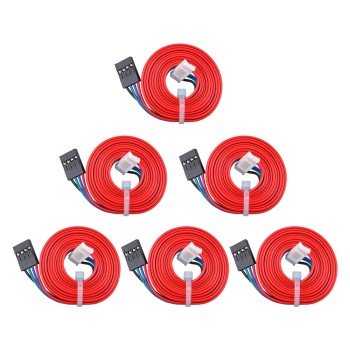

6pcs Stepper Motor 4 wires 1m cable with pitch connector
