F6B250-48GU-30S/6GU20RC
Output Shaft TypeHollow
Rated Voltage(V)48
Rated Current(A)6.40
Frame Size(mm)104 x 104
Question

Downloads

F6B250-48GU-30S_6GU20RC_Full_Datasheet.pdfPDF · 64.95KB
Same series
ModelOutput Shaft TypeRated Voltage(V)Rated Current(A)Frame Size(mm)PriceStock
57BLR50-24-01-HG10Keyway245.00Nema 23 (57 x 57)£0.00In stock
57BLR70-24-02-HG100Keyway2410.40Nema 23 (57 x 57)£51.71In stock
57BLR90-24-01-HG100Keyway2414.00Nema 23 (57 x 57)£55.40In stock
57BYA74-24-01-PG100Keyway245.70⌀57£54.94In stock
57BYA74-24-01-PG27Keyway245.70⌀57£51.01In stock
F2B15-24GN-30S/2GN100KD241.1060 x 60£22.24In stock
F2B15-24GN-30S/2GN10KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN15KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN200KD241.1060 x 60£22.24In stock
F2B15-24GN-30S/2GN20KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN30KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN3KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN3K-SALED241.1060 x 60£19.92In stock
F2B15-24GN-30S/2GN50KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN50K-SALED241.1060 x 60£20.98In stock
F2B15-24GN-30S/2GN5KD241.1060 x 60£20.11In stock
F2B15-48GN-30S/2GN100KD480.6060 x 60£22.24In stock
F2B15-48GN-30S/2GN10KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN15KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN200KD480.6060 x 60£22.24In stock
F2B15-48GN-30S/2GN20KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN30KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN3KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN50KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN5KD480.6060 x 60£20.11In stock
F2B40-24GL-30S/2GL150RCHollow242.5060 x 60£32.90In stock
F2B40-24GL-30S/2GL30RCHollow242.5060 x 60£32.90In stock
F3B40-24GN-30S/3GN100KKeyway242.5070 x 70£26.65In stock
F3B40-24GN-30S/3GN10KKeyway242.5070 x 70£24.22In stock
F3B40-24GN-30S/3GN15KKeyway242.5070 x 70£24.22In stock
View all in category
48V 250W 150RPM Geared BLDC Motor 11.81Nm(1672.00oz.in) 20:1 Right Angle Gearbox
This is a 48V 250W brushless DC gear motor with a flange of 104x104mm. The built-in 20:1 hollow shaf... Read More
0 reviews • Write a review
from
£82.87
5 + £80.52
10 + £78.30
50 + £76.20
100 + £74.20

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

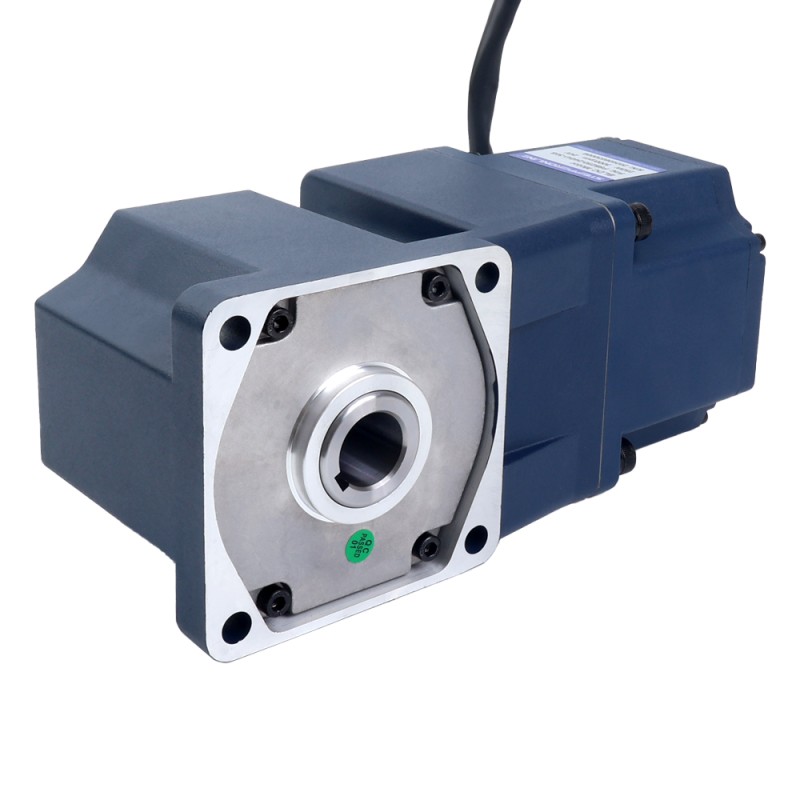

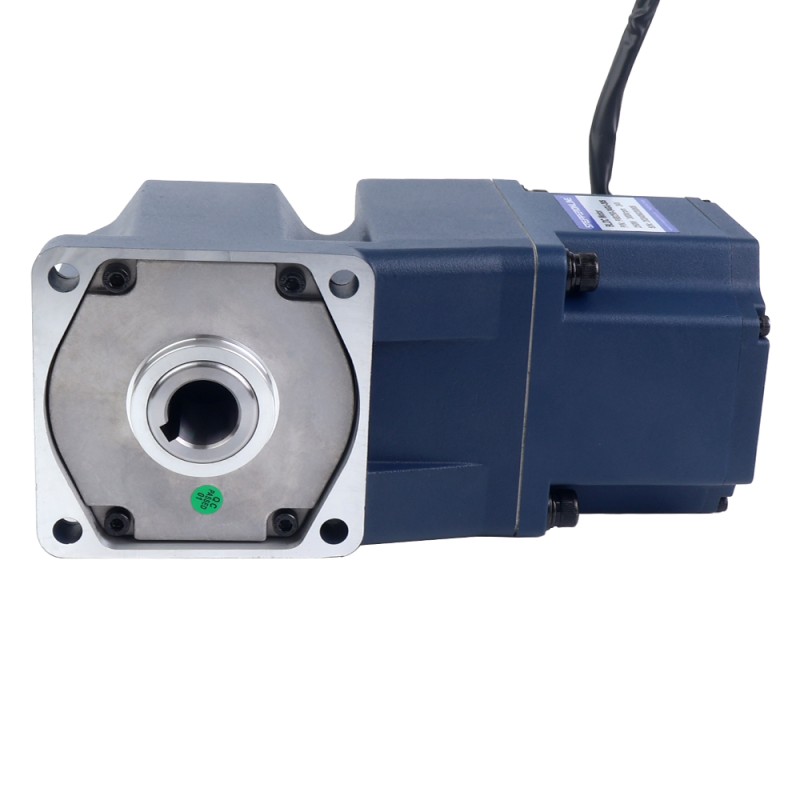

This is a 48V 250W brushless DC gear motor with a flange of 104x104mm. The built-in 20:1 hollow shaft right angle gearbox brings speed and torque to 150rpm and 11.81Nm(1672oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction and long life make this motor widely used in industrial production automation, logistics packaging equipment, medical equipment, mechanical equipment, photography equipment and other fields.

The recommended BLDC driver to match this motor is BLD-515C.

Electrical Specifications

  • P/N: F6B250-48GU-30S/6GU20RC
  • Phase: 3
  • Poles: 10
  • Rated Current: 6.40A
  • Rated Voltage: 48V
  • Rated Speed: 150rpm
  • Rated Torque: 11.81Nm(1672.00oz.in)
  • Rated Power: 250W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length: 250mm
  • Gearbox Type: Right Angle Gearbox
  • Gearbox Ratio: 20:1
  • Shaft Type: Hollow
  • Bore Diameter: Φ22mm
  • Bearing: Deep Groove Ball

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 6.40
Rated Power(W) 250
Rated Speed(rpm) 150
Rated Torque(Nm) 11.81
Rated Voltage(V) 48
Physical Specification
Body Length(mm) 250
Frame Size(mm) 104 x 104
Gear Ratio(xx:1) 20
Gearbox Type Right Angle Gearbox
Output Shaft Type Hollow
With Gearbox Yes

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Digital Brushless DC Motor Driver 24-48VDC Max 15.0A 400W
Digital Brushless DC Motor Driver 24-48VDC Max 15.0A 400W
This 24-48VDC 400W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial automa..
from
£44.33
Add to Cart
Add to Wish List Compare this Product
Quickview

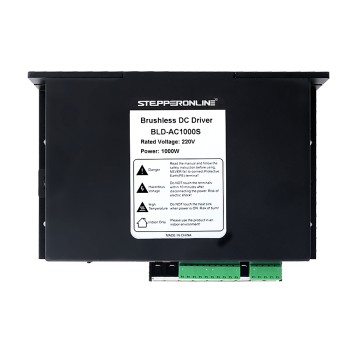

Digital Brushless DC Motor Driver 110/220VAC Max 10.0A 1000W
Pre-order
Digital Brushless DC Motor Driver 110/220VAC Max 10.0A 1000W
This 110/220VAC 1000W BLDC driver is a driver independently developed by STEPPERONLINE to cooperate with the field of modern industrial automatic cont..
from
£100.98
Add to Cart
Add to Wish List Compare this Product
Quickview

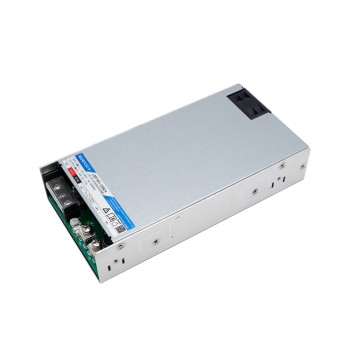

500W 48V 10.4A 80-264VAC/110-370VDC Switching Power Supply with PFC Function
500W 48V 10.4A 80-264VAC/110-370VDC Switching Power Supply with PFC Function
Specifications Part No.: LMF500-20B48 Power(W): 499.2 Vin(VAC): 80 - 264 Vin(VDC): 110 - 370 Vout(VDC): 48 Iout: 10.4A Efficiency(%): 93 Isola..
from
£46.68
Add to Cart
Add to Wish List Compare this Product
Quickview

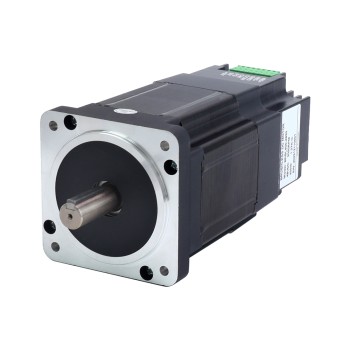

Nema 34 86x86x152mm Integrated Brushless DC Motor 400W 48V 3000RPM 1.27Nm 8.33A w/ Driver
Pre-order
Nema 34 86x86x152mm Integrated Brushless DC Motor 400W 48V 3000RPM 1.27Nm 8.33A w/ Driver
This is Nema 34 86x86x152mm integrated brushless DC Motor 400W 48V 3000RPM 1.27Nm 8.33A with driver. The 86IBL series of integrated brushless mot..
from
£110.81
Add to Cart
Add to Wish List Compare this Product
Quickview

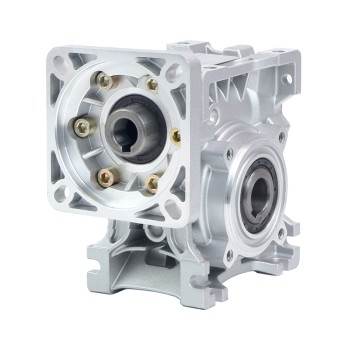

15:1 Worm Gearbox NMRVS40 Worm Gear Speed Reducer 14mm Input Shaft Diameter
15:1 Worm Gearbox NMRVS40 Worm Gear Speed Reducer 14mm Input Shaft Diameter
The size of this gearbox is 86mmx86mm and the input shaft diameter is 14mm. This worm gearbox is designed for Nema 34 Stepper Motor or other 86mmx86..
from
£33.06
Add to Cart
Add to Wish List Compare this Product
Quickview
SDR-240-24 MEANWELL 240W 24VDC 10A 115/230VAC With PFC Function DIN Rail Power Supply
SDR-240-24 MEANWELL 240W 24VDC 10A 115/230VAC With PFC Function DIN Rail Power Supply
Features Brand MEANWELL 24V DC 10A output AC input voltage range: 88 ~ 264VAC Rated power: 240W High efficiency 94% and low power dissipation ..
from
£55.70
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Brushless DC Motor Driver 110/220VAC Max 6.0A 750W
Pre-order
Digital Brushless DC Motor Driver 110/220VAC Max 6.0A 750W
This 110/220VAC 750W BLDC driver is a driver independently developed by STEPPERONLINE to cooperate with the field of modern industrial automatic ..
from
£78.54
Add to Cart
Add to Wish List Compare this Product
Quickview

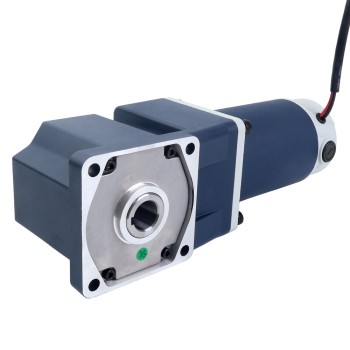

Brushed 24V 250W 11.81Nm(1672.44oz.in) 150RPM w/ 20:1 Right Angle Gearbox DC Gear Motor
