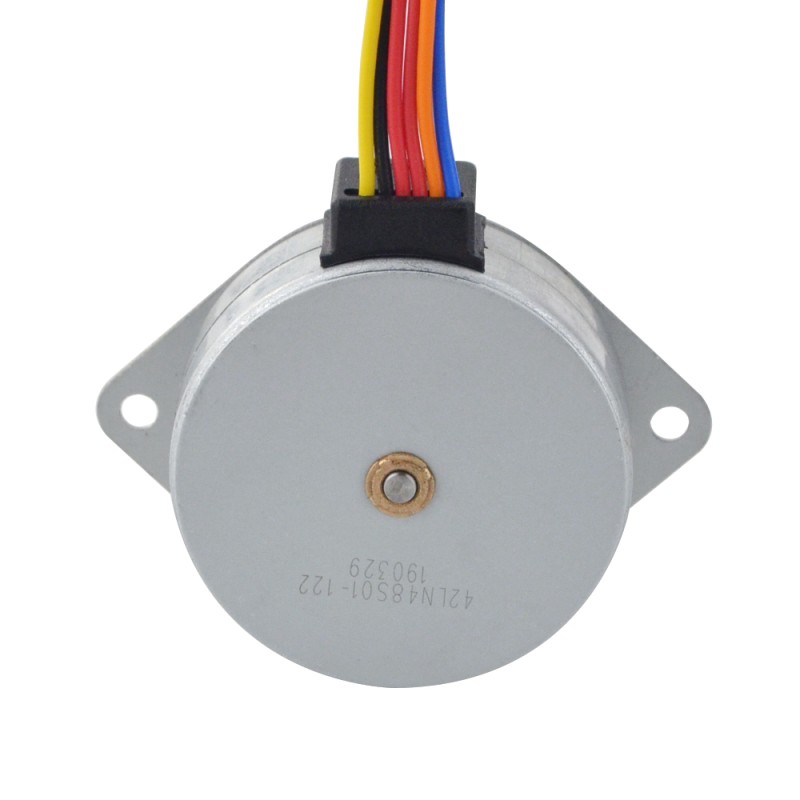

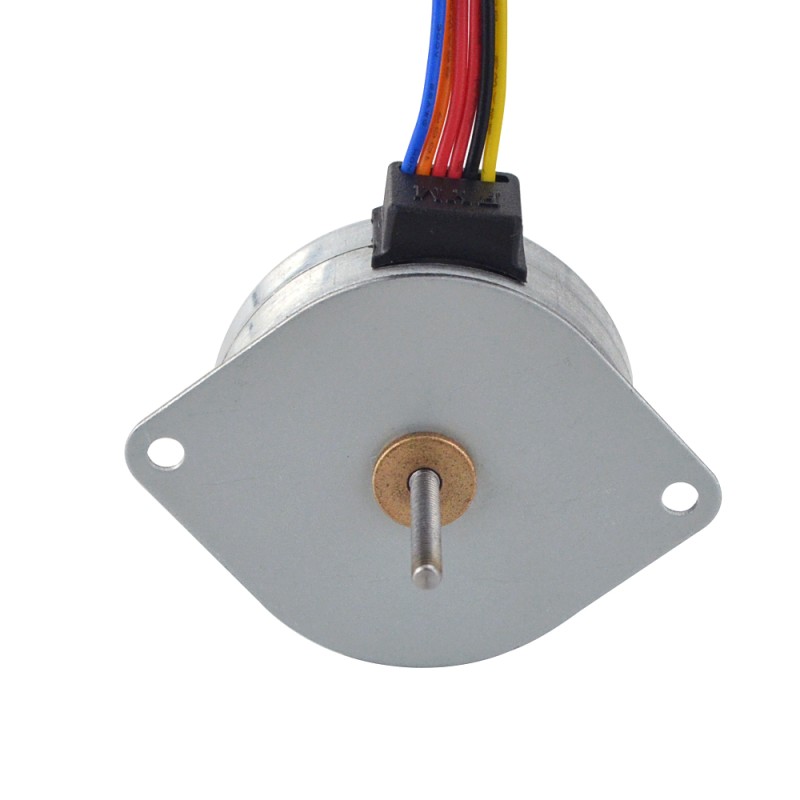

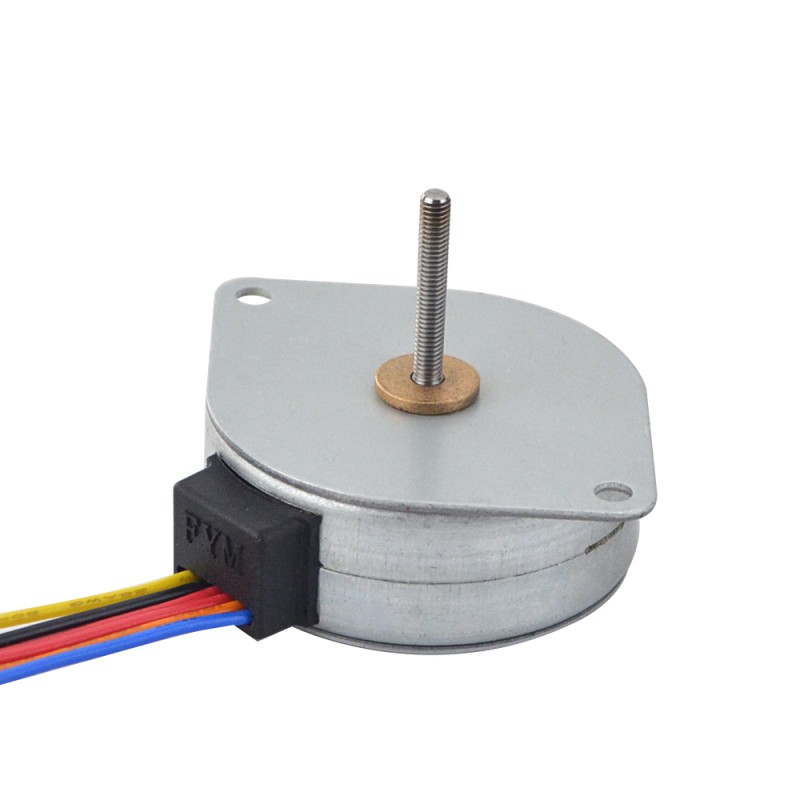

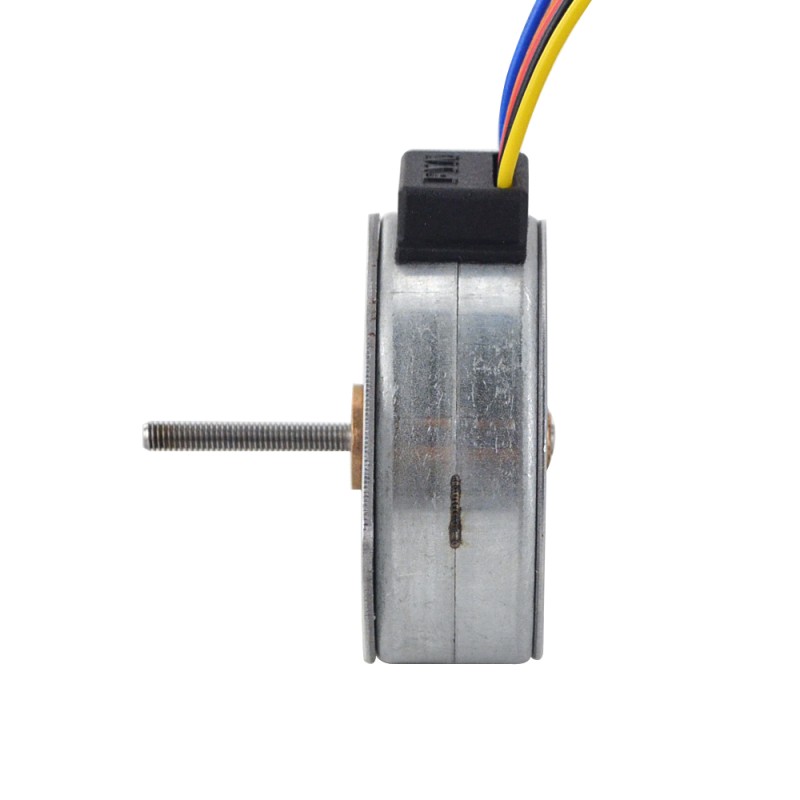

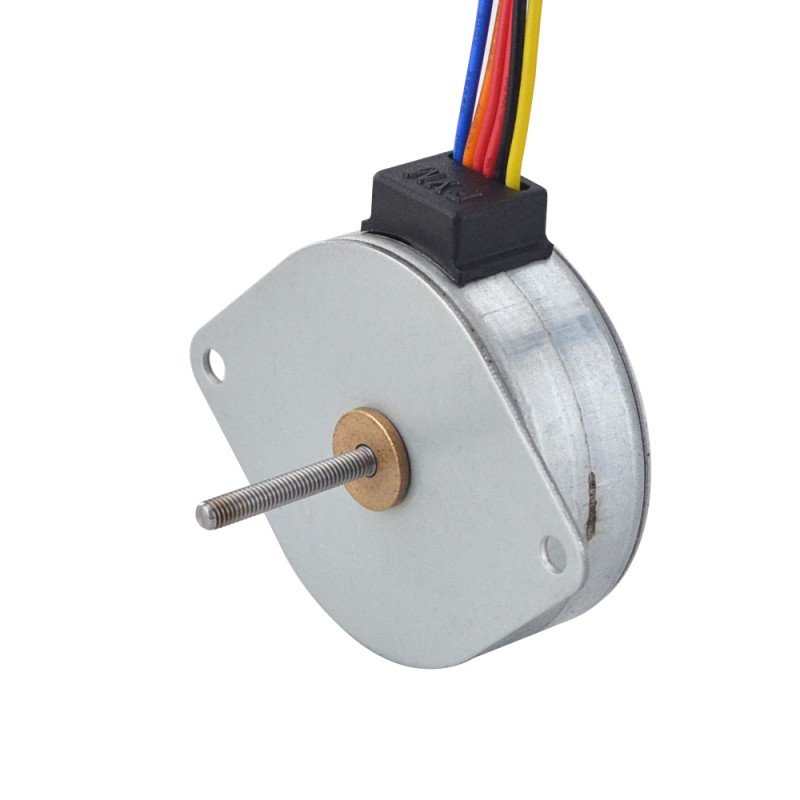

Name: CN On Sale - Φ42x16.5mm PM External Linear Stepper Motor 0.4A Lead 0.5mm/0.0197" Length 21mm
Brand: STEPPERONLINE
SKU: 42LN48S01-122-SALE
Price: 4.88 GBP
Availability: InStock

Φ42x16.5mm PM External Linear Stepper Motor 0.4A Lead 0.5mm/0.0197 Length 21mm - 42LN48S01-122 | StepperOnline UK

42LN48S01-122-SALE

Rated Current(A)0.4

Step Angle(deg.)7.5

Lead Travel/Revolution(mm)0.5

Lead Travel/Step(mm)0.0104

Question

Downloads

42LN48S01-122.pdfPDF · 146.72KB

Same series

Model	Rated Current(A)	Step Angle(deg.)	Lead Travel/Revolution(mm)	Lead Travel/Step(mm)	Price	Stock
42LN48S01-122-SALE	0.4	7.5	0.5	0.0104	£4.88	In stock

CN On Sale - Φ42x16.5mm PM External Linear Stepper Motor 0.4A Lead 0.5mm/0.0197" Length 21mm

Electrical Specification Manufacturer Part Number: 42LN48S01-122 Motor Type: PM External Linear ... Read More

0 reviews • Write a review

from Save -33%

£4.88

£7.28

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

Electrical Specification

Manufacturer Part Number: 42LN48S01-122
Motor Type: PM External Linear Stepper
Phase: 4
Step Angle: 7.5deg
Rated Current/phase: 0.4A
Holding Torque: 53.9mN.m(7.634oz.in)
Phase Resistance: 40±7%ohms(20℃)
Inductance: 20mH±20%
Life: 3000h

Physical Specification

Frame Size: Φ42mm
Body Length: 16.5mm
Lead Screw Length: 21mm(0.827")
Lead Screw Diameter: Φ3mm(0.118")
Lead/Revolution: 0.5mm(0.0197")
Lead/Step: 0.0104mm(0.0004")

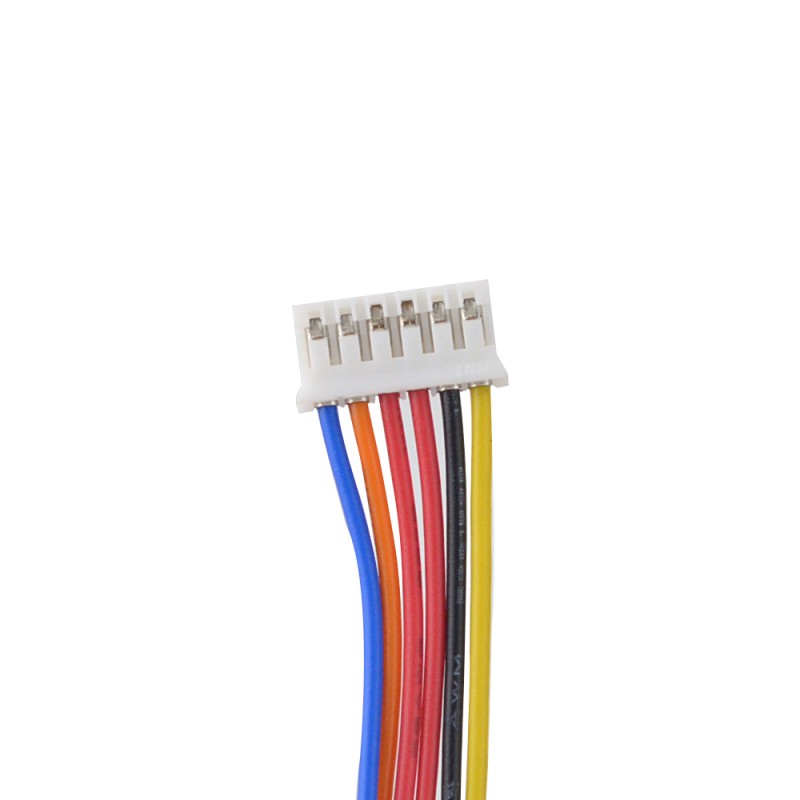

Number of Leads: 6 with connector PH-6Y
Lead Length: 240mm
Weight: 100g

Connection

A+	O+	A-	B+	O-	B-
Yellow	Red	Orange	Black	Red	Blue

Electrical Specification
Holding Torque(mN.m)	53.9
Holding Torque(oz.in)	7.634
Inductance(mH)	20
No. of Phase	4
Phase Resistance(ohms)	40
Rated Current(A)	0.4
Step Angle(deg.)	7.5
Physical Specification
Body Length(mm)	16.5
Frame Size(mm)	Φ42
Lead Screw Diameter(mm)	3
Lead Screw Length(mm)	21
Lead Travel/Revolution(mm)	0.5
Lead Travel/Step(mm)	0.0104
Linear Motor Type	PM External
No. of Lead	6
