40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor

40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor - 5IK40GN-CT/5GN15K | StepperOnline UK
5IK40GN-CT/5GN15K
Output Shaft TypeKeyway
Input Voltage(V)1PH 220VAC
Frame Size(mm)90 x 90
Current(A)0.35
Question

Downloads

5IK40GN-XXT_5GNXXK_manual.pdfPDF · 2.22MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK40GN-AT/5GN10KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40GN-AT/5GN15KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40GN-AT/5GN200KKeyway1PH 110VAC90 x 900.66£36.13In stock
5IK40GN-AT/5GN20KKeyway1PH 110VAC90 x 900.66£34.69In stock
5IK40GN-AT/5GN30KKeyway1PH 110VAC90 x 900.66£34.69In stock
5IK40GN-AT/5GN3KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40GN-AT/5GN50KKeyway1PH 110VAC90 x 900.66£36.13In stock
5IK40GN-AT/5GN5KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40GN-CT/5GN100KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40GN-CT/5GN10KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40GN-CT/5GN15KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40GN-CT/5GN200KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40GN-CT/5GN20KKeyway1PH 220VAC90 x 900.35£34.69In stock
5IK40GN-CT/5GN30KKeyway1PH 220VAC90 x 900.35£34.69In stock
5IK40GN-CT/5GN3KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40GN-CT/5GN50KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40GN-CT/5GN5KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40GN-S/S3T/5GN100KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£36.13In stock
5IK40GN-S/S3T/5GN10KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.39In stock
5IK40GN-S/S3T/5GN10K-SALEKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.92In stock
5IK40GN-S/S3T/5GN15KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.39In stock
5IK40GN-S/S3T/5GN200KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£36.13In stock
5IK40GN-S/S3T/5GN20KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£34.69In stock
5IK40GN-S/S3T/5GN30KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£34.69In stock
5IK40GN-S/S3T/5GN3KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.39In stock
5IK40GN-S/S3T/5GN50KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£36.13In stock
5IK40GN-S/S3T/5GN5KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.39In stock
5IK60GN-AFT/5GN100KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60GN-AFT/5GN10KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60GN-AFT/5GN15KKeyway1PH 110VAC90 x 901.01£34.97In stock
View all in category
40W 220VAC 50Hz 90RPM 3.57Nm(505.55oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
This 90x90mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 15, a... Read More
0 reviews • Write a review
from
£33.39
5 + £32.49
10 + £31.65
50 + £30.84
100 + £30.08

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This 90x90mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 15, a torque of 3.57Nm(505.55oz.in) and a speed of 90rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK40GN-CT/5GN15K
  • Gearbox Type: Spur Gearbox
  • Output Power: 40W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.35A
  • Gear Ratio: 15:1
  • Speed: 90rpm
  • Torque: 3.57Nm(505.55oz.in)
  • Capacitor: 2.5μF/450VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 165mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.53kg

Wiring

Electrical Specification
Current(A) 0.35
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Output Power(W) 40
Speed(rpm) 90
Torque(Nm) 3.57
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 15
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Stepper Motor Controller 2 Channels 1.0-5.6A 20-40VDC Speed Adjustable
Stepper Motor Controller 2 Channels 1.0-5.6A 20-40VDC Speed Adjustable
The DM456AI has built with a pulser already, you can control two Max current 2.8A stepper motors by PLC or potentiometer at same time, even you can ru..
from
£42.42
Add to Cart
Add to Wish List Compare this Product
Quickview
Integrated Stepper Motor Controller 3-8A 12-40VDC for NEMA 23 Stepper Motor

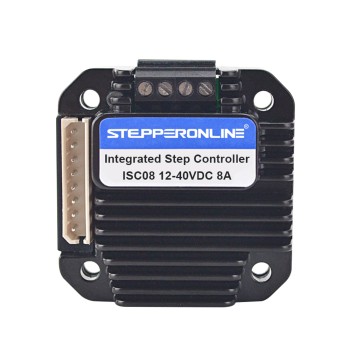

Integrated Stepper Motor Controller 3-8A 12-40VDC for NEMA 23 Stepper Motor
The ISC08 is a microprocessor embedded, voltage control, miniature stepper motor controller. It is integrally designed to fit onto stepper motors, an..
from
£52.07
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Driver 1.8-5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 1.8-5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
The DM556T is a digital stepper driver with simple design and easy setup. By implementing advanced stepper control technology, this stepper driver is ..
from
£18.11
Add to Cart
Add to Wish List Compare this Product
Quickview
40W 110VAC 60Hz 103RPM 2.82Nm(399.34oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
40W 110VAC 60Hz 103RPM 2.82Nm(399.34oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
This 90x90mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 15, a torque of 2.82Nm(399.34oz.in) and a speed of 103r..
from
£33.39
Add to Cart
Add to Wish List Compare this Product
Quickview
1m(39.37") DB44 Male to Bare High Flex Shielded Cable D-SUB 44-Pin Connector to Single End Cable with Terminal
1m(39.37") DB44 Male to Bare High Flex Shielded Cable D-SUB 44-Pin Connector to Single End Cable with Terminal
This 1-meter male to bare highly flexible and shielded signal cable is used for devices with DB44 control port. It can be used for the StepperOnline A..
from
£8.97
Add to Cart
Add to Wish List Compare this Product
Quickview
MDR-100-24 MEANWELL 100W 24VDC 4A 115/230VAC DIN Rail Power Supply

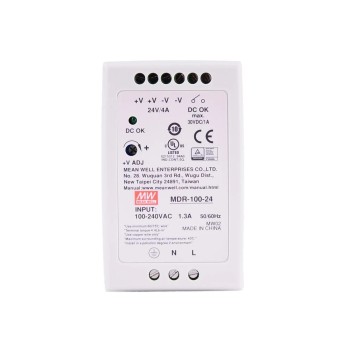

MDR-100-24 MEANWELL 100W 24VDC 4A 115/230VAC DIN Rail Power Supply
