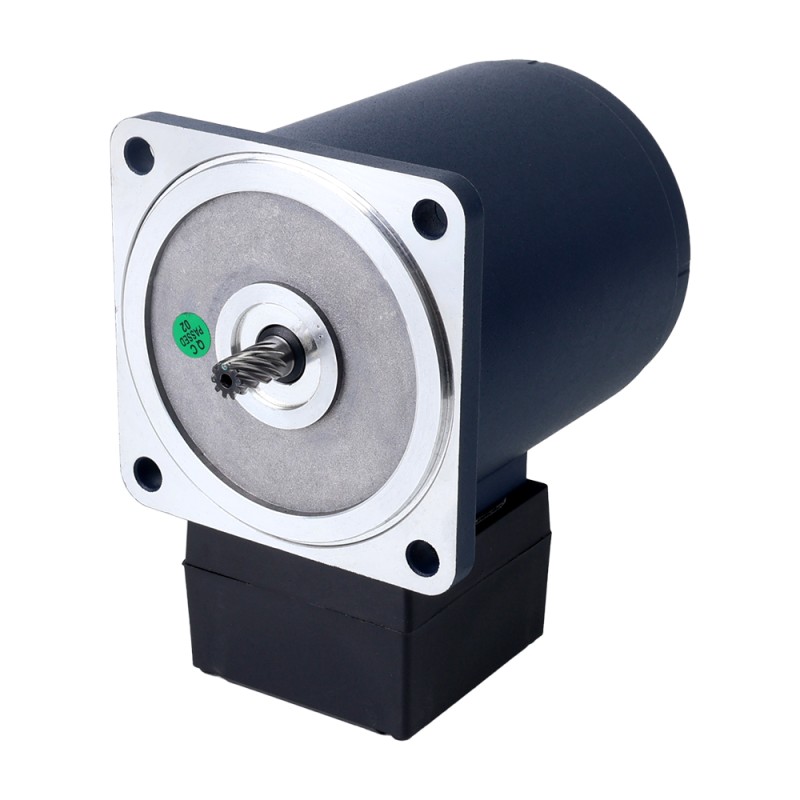

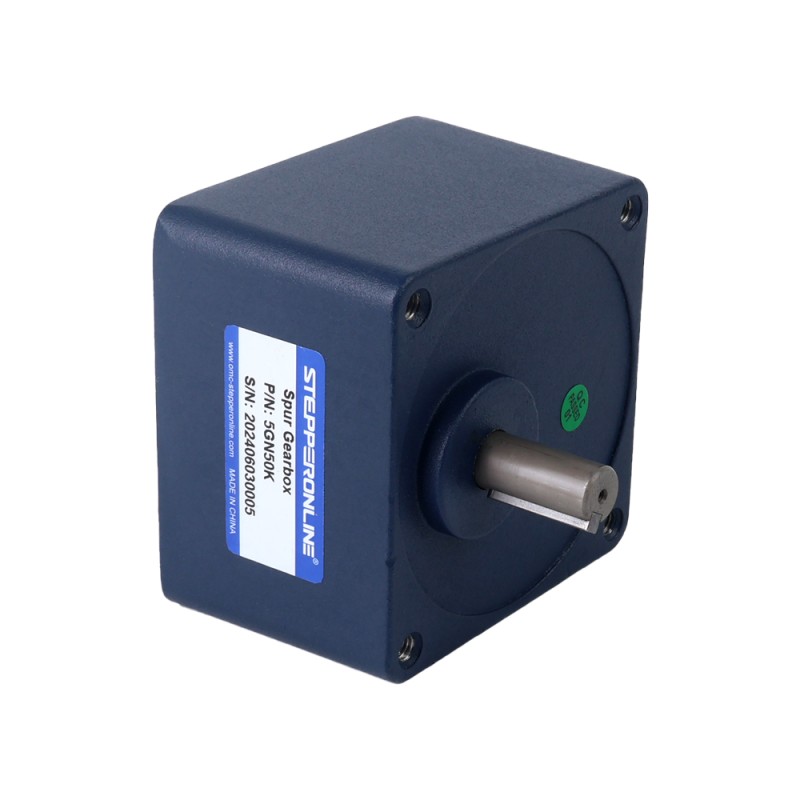

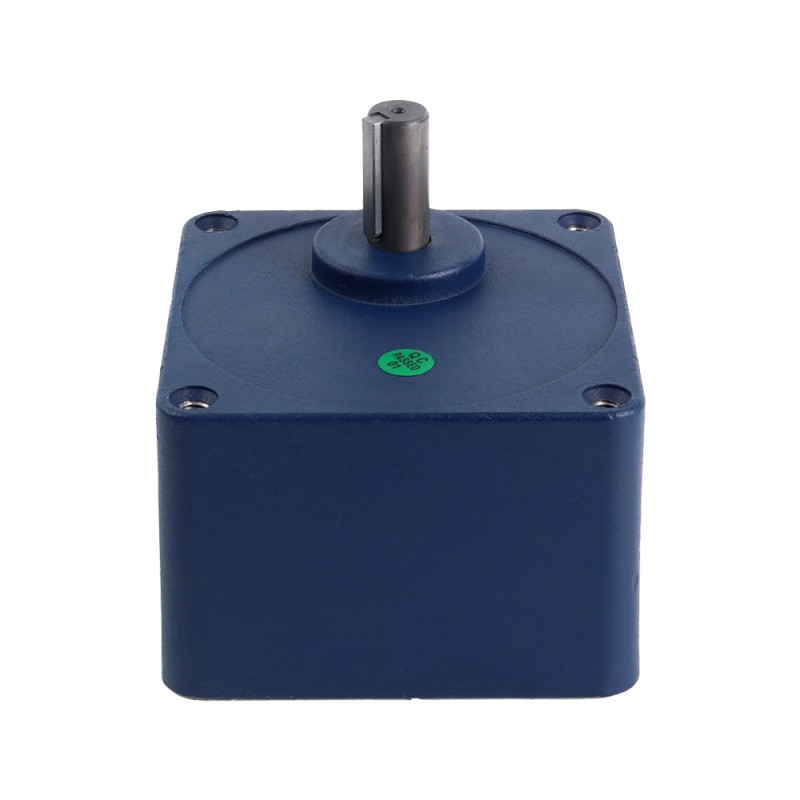

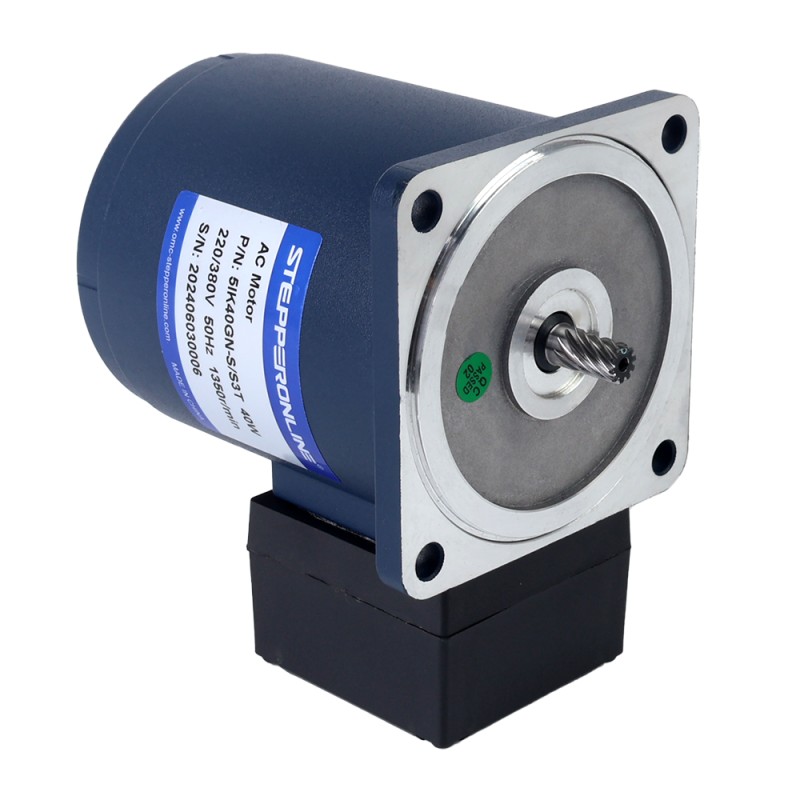

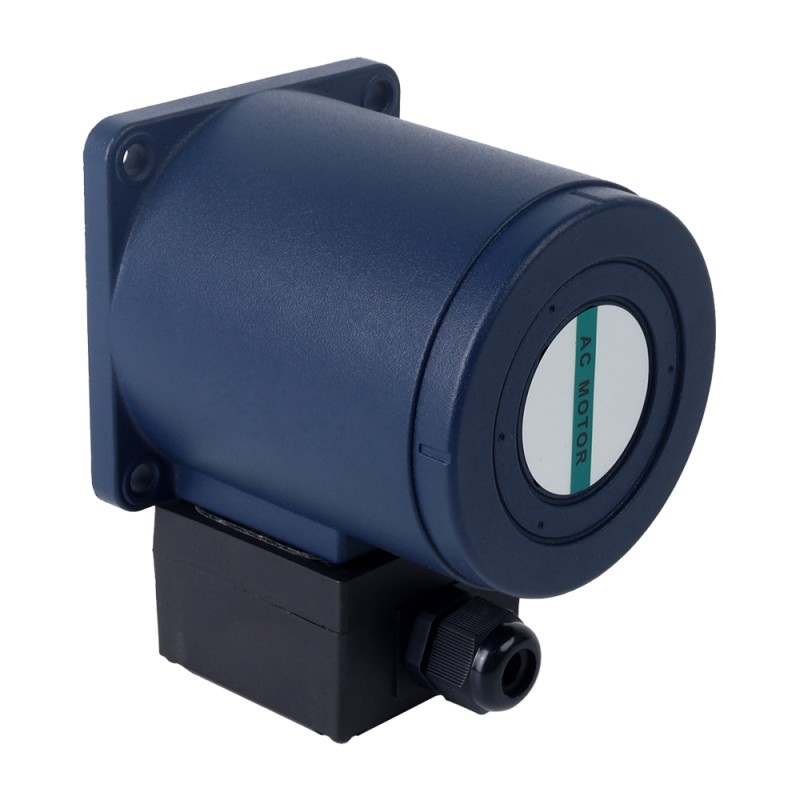

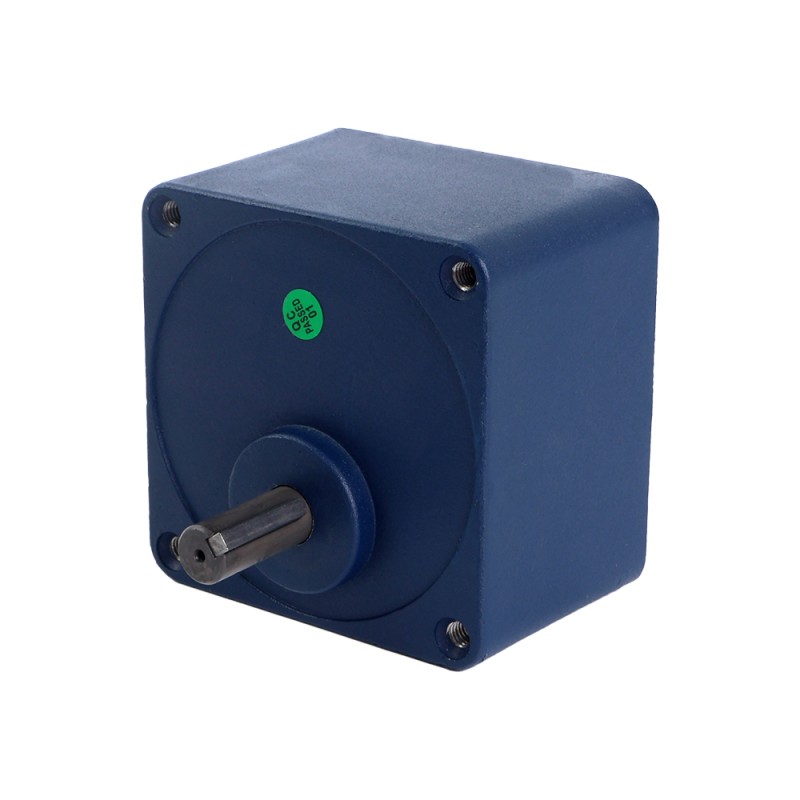

40W 220/380VAC 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor

40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
40W 220VAC/380VAC 50/60Hz 27/31RPM 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor - 5IK40GN-S/S3T/5GN50K | StepperOnline UK
5IK40GN-S/S3T/5GN50K
Output Shaft TypeKeyway
Input Voltage(V)3PH 220VAC/380VAC
Frame Size(mm)90 x 90
Current(A)0.32,0.28,0.18,0.16
Question

Downloads

5IK40GN-XXT_5GNXXK_manual.pdfPDF · 2.22MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK40GN-CT/5GN50KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40GN-CT/5GN5KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40GN-S/S3T/5GN100KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£36.13In stock
5IK40GN-S/S3T/5GN10KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.39In stock
5IK40GN-S/S3T/5GN10K-SALEKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.92In stock
5IK40GN-S/S3T/5GN15KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.39In stock
5IK40GN-S/S3T/5GN200KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£36.13In stock
5IK40GN-S/S3T/5GN20KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£34.69In stock
5IK40GN-S/S3T/5GN30KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£34.69In stock
5IK40GN-S/S3T/5GN3KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.39In stock
5IK40GN-S/S3T/5GN50KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£36.13In stock
5IK40GN-S/S3T/5GN5KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.39In stock
5IK60GN-AFT/5GN100KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60GN-AFT/5GN10KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60GN-AFT/5GN15KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60GN-AFT/5GN200KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60GN-AFT/5GN20KKeyway1PH 110VAC90 x 901.01£36.27In stock
5IK60GN-AFT/5GN30KKeyway1PH 110VAC90 x 901.01£36.27In stock
5IK60GN-AFT/5GN3KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60GN-AFT/5GN50KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60GN-AFT/5GN5KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60GN-CFT/5GN100KKeyway1PH 220VAC90 x 900.5£37.71In stock
5IK60GN-CFT/5GN10KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK60GN-CFT/5GN15KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK60GN-CFT/5GN200KKeyway1PH 220VAC90 x 900.5£37.71In stock
5IK60GN-CFT/5GN20KKeyway1PH 220VAC90 x 900.5£36.27In stock
5IK60GN-CFT/5GN30KKeyway1PH 220VAC90 x 900.5£36.27In stock
5IK60GN-CFT/5GN3KKeyway1PH 220VAC90 x 900.5£34.97In stock
5IK60GN-CFT/5GN50KKeyway1PH 220VAC90 x 900.5£37.71In stock
5IK60GN-CFT/5GN5KKeyway1PH 220VAC90 x 900.5£34.97In stock
View all in category
40W 220/380VAC 9.64Nm(1365.14oz.in)/7.61Nm(1077.66oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor
This 40W 90x90mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and h... Read More
0 reviews • Write a review
from
£36.13
5 + £35.16
10 + £34.24
50 + £33.36
100 + £32.53

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.
This 40W 90x90mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 50. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK40GN-S/S3T/5GN50K
  • Gearbox Type: Spur Gearbox
  • Output Power: 40W
  • Voltage: 3PH 220VAC/3PH 380VAC
  • Frequency: 50/60Hz
  • Current(220VAC): 0.32A(50Hz)/0.28A(60Hz)
  • Current(380VAC): 0.18A(50Hz)/0.16A(60Hz)
  • Gear Ratio: 50:1
  • Speed(50Hz): 27rpm
  • Speed(60Hz): 31rpm
  • Torque(50Hz): 9.64Nm(1365.14oz.in)
  • Torque(60Hz): 7.61Nm(1077.66oz.in)

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 165mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.9kg

Wiring

Electrical Specification
Current(A) 0.32,0.28,0.18,0.16
Frequency(Hz) 50,60
Input Voltage(V) 3PH 220VAC/380VAC
Output Power(W) 40
Speed(rpm) 27,31
Torque(Nm) 9.64,7.61
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 50
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
25W 110VAC 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Keyway Shaft Single-phase AC Induction Motor
25W 110VAC 67.5RPM 2.60Nm(368.19oz.in) Flange 80mm Right Angle Gearbox Keyway Shaft Single-phase AC Induction Motor
This 80x80mm keyway shaft single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 20, a torque of 2.60Nm(368.19oz.in) and a ..
from
£42.45
Add to Cart
Add to Wish List Compare this Product
Quickview
40W 220/380VAC 90/103RPM 3.57Nm(505.55oz.in)/2.82Nm(399.34oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor
40W 220/380VAC 90/103RPM 3.57Nm(505.55oz.in)/2.82Nm(399.34oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor
This 40W 90x90mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 15. The simple brushless struct..
from
£33.39
Add to Cart
Add to Wish List Compare this Product
Quickview
40W 220VAC/380VAC 50/60Hz 6.75/7.75RPM 10Nm(1416.12oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor
40W 220VAC/380VAC 50/60Hz 6.75/7.75RPM 10Nm(1416.12oz.in) Flange 90mm Spur Gearbox Three-phase AC Induction Motor
This 40W 90x90mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 200. The simple brushless struc..
from
£36.13
Add to Cart
Add to Wish List Compare this Product
Quickview

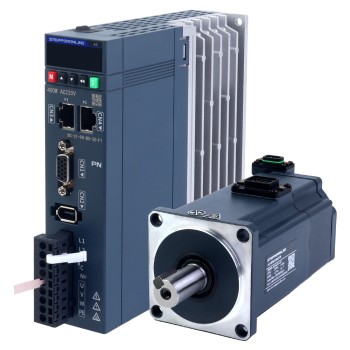

A6 Series 400W PROFINET AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
A6 Series 400W PROFINET AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 400W motor with the built-in 17-bit multiturn absolute encoder and a 24V 7.3..
from
£173.37
Add to Cart
Add to Wish List Compare this Product
Quickview

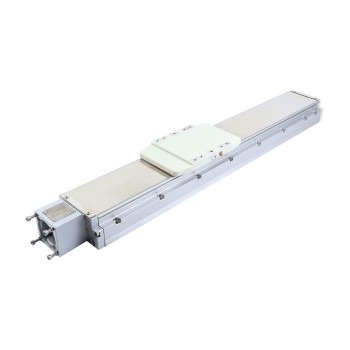

LG12 Series Ball Screw Driven Max. Horizontal/Vertical Payload 88kg/22kg Stroke 500mm
