5IK40RGN-A/5GN20K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)0.66
Question

Downloads

5IK40RGN-A_5GNXXK_manual.pdfPDF · 1.21MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120RGU-CF/5GU30RTKeyway1PH 220VAC90 x 900.87£60.88In stock
5IK120RGU-CF/5GU3KBKeyway1PH 220VAC90 x 900.87£41.74In stock
5IK120RGU-CF/5GU50KBKeyway1PH 220VAC90 x 900.87£45.62In stock
5IK120RGU-CF/5GU50RCHollow1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU50RTKeyway1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU5KBKeyway1PH 220VAC90 x 900.87£41.74In stock
5IK40RGN-A/5GN100KKeyway1PH 110VAC90 x 900.66£36.13In stock
5IK40RGN-A/5GN10KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40RGN-A/5GN15KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40RGN-A/5GN200KKeyway1PH 110VAC90 x 900.66£36.13In stock
5IK40RGN-A/5GN20KKeyway1PH 110VAC90 x 900.66£34.69In stock
5IK40RGN-A/5GN30KKeyway1PH 110VAC90 x 900.66£34.69In stock
5IK40RGN-A/5GN3KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40RGN-A/5GN50KKeyway1PH 110VAC90 x 900.66£36.13In stock
5IK40RGN-A/5GN5KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40RGN-C/5GN100KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40RGN-C/5GN10KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40RGN-C/5GN15KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40RGN-C/5GN200KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40RGN-C/5GN20KKeyway1PH 220VAC90 x 900.35£34.69In stock
5IK40RGN-C/5GN30KKeyway1PH 220VAC90 x 900.35£34.69In stock
5IK40RGN-C/5GN3KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40RGN-C/5GN50KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40RGN-C/5GN5KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK60RA-AFD1PH 110VAC90 x 901.01£22.17In stock
5IK60RA-CFD1PH 220VAC90 x 900.5£22.17In stock
5IK60RGN-AF/5GN100KKeyway1PH 110VAC90 x 901.01£37.71In stock
5IK60RGN-AF/5GN10KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60RGN-AF/5GN15KKeyway1PH 110VAC90 x 901.01£34.97In stock
5IK60RGN-AF/5GN200KKeyway1PH 110VAC90 x 901.01£37.71In stock
View all in category
40W 110VAC 60Hz 4.5-77.5RPM 3.38Nm(478.65oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor
This 40W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has... Read More
0 reviews • Write a review
from
£34.69
5 + £33.76
10 + £32.87
50 + £32.03
100 + £31.24

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

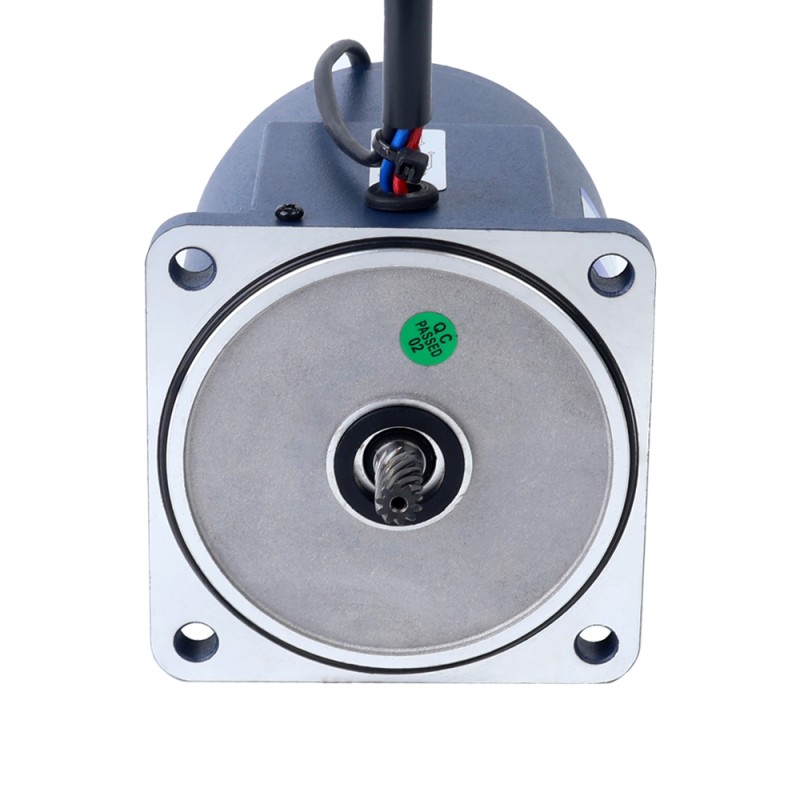

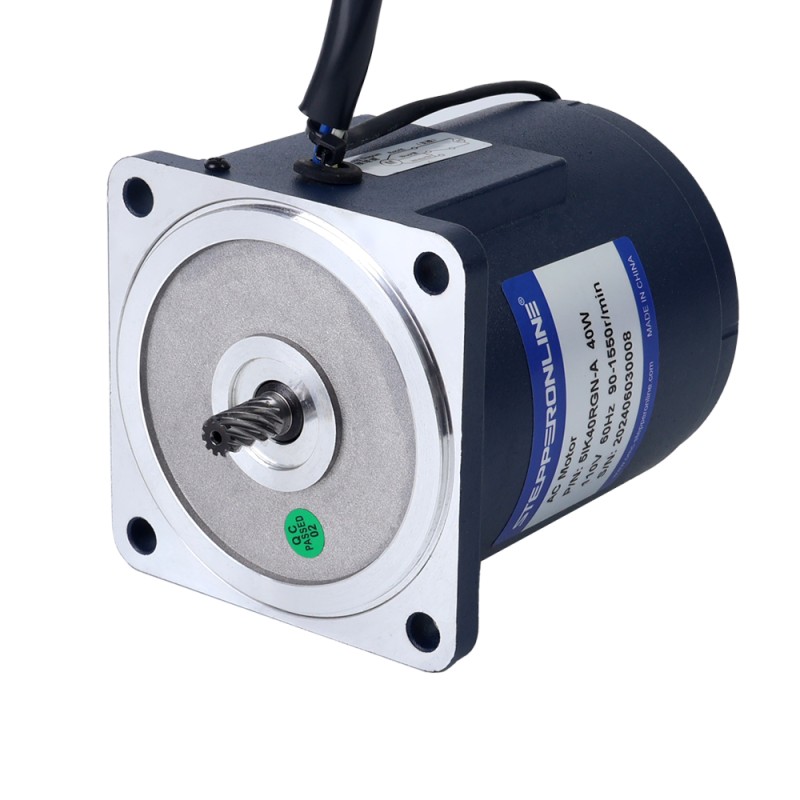

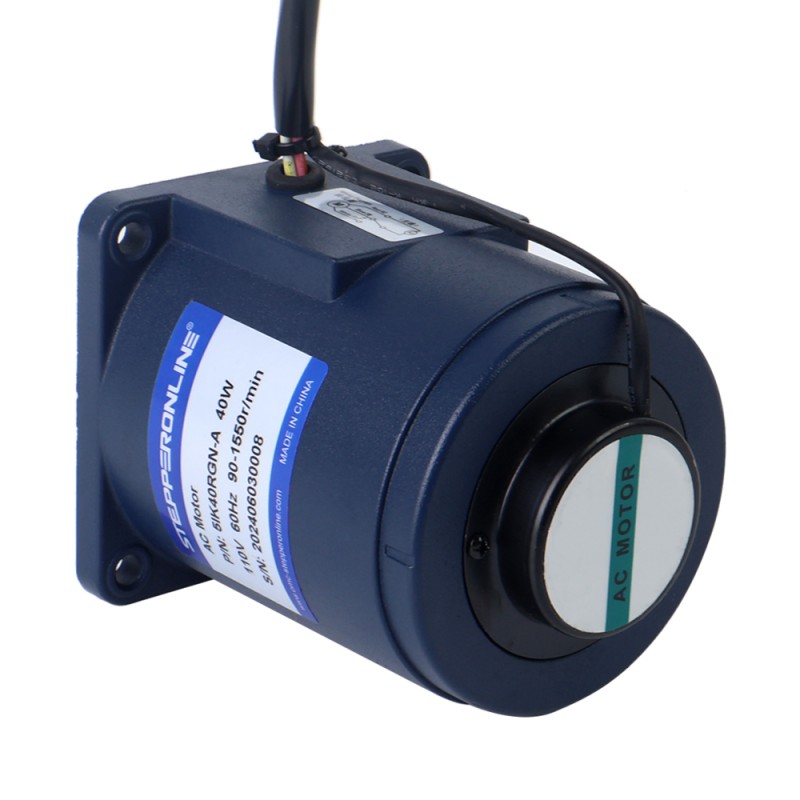

This 40W 90x90mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 4.5-77.5rpm and a gearbox with a gear ratio of 20. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK40RGN-A/5GN20K
  • Gearbox Type: Spur Gearbox
  • Output Power: 40W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.66A
  • Gear Ratio: 20:1
  • Speed Range: 4.5-77.5rpm
  • Maximum Torque: 3.38Nm(478.65oz.in)
  • Capacitor: 10.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 176mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 4.0kg

Wiring

Electrical Specification
Current(A) 0.66
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 3.38
Output Power(W) 40
Speed Range(rpm) 4.5-77.5
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 20
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
