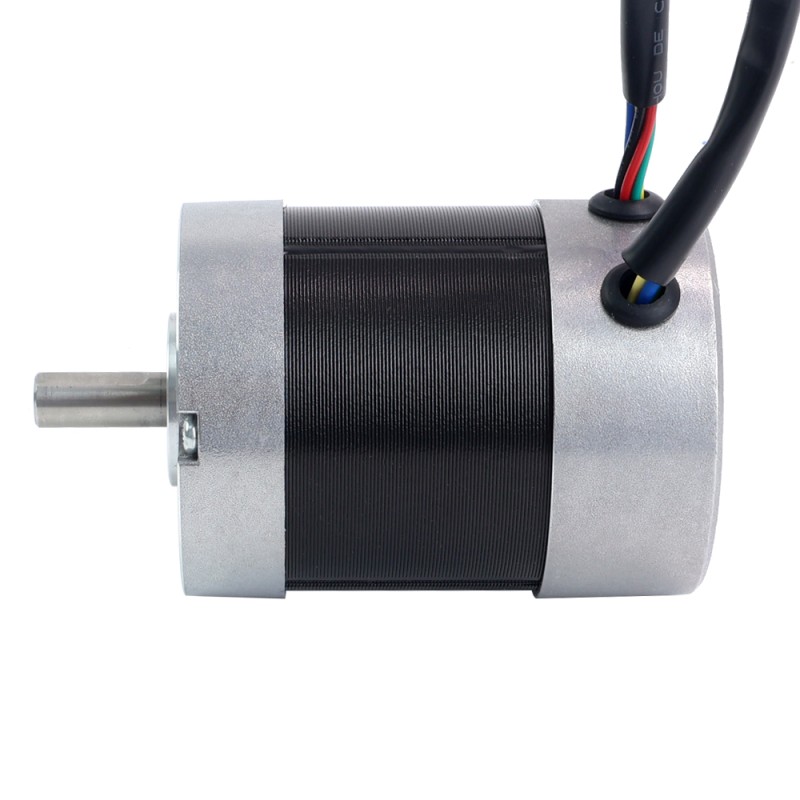

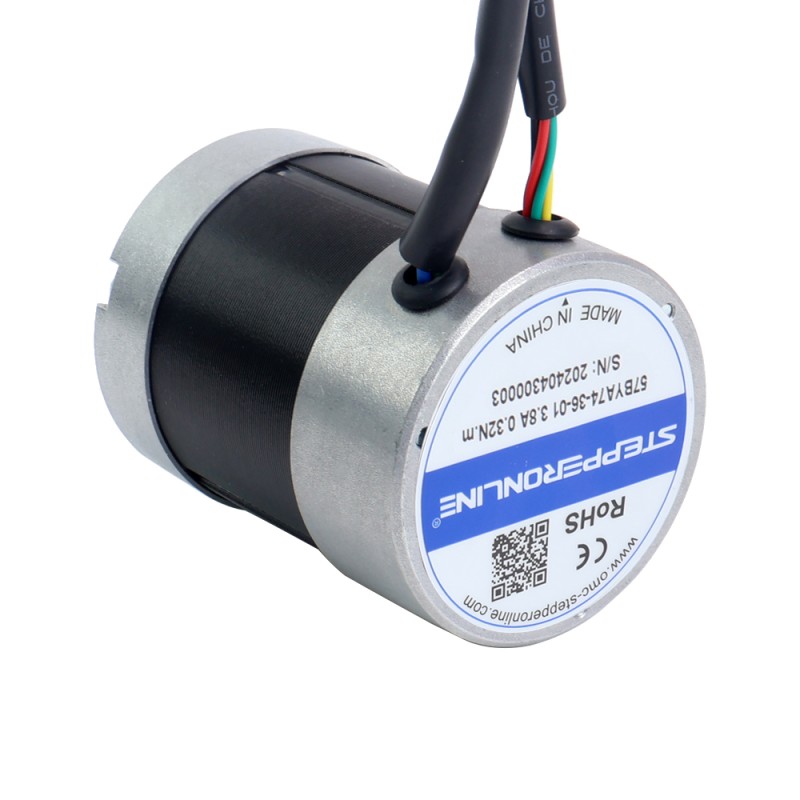

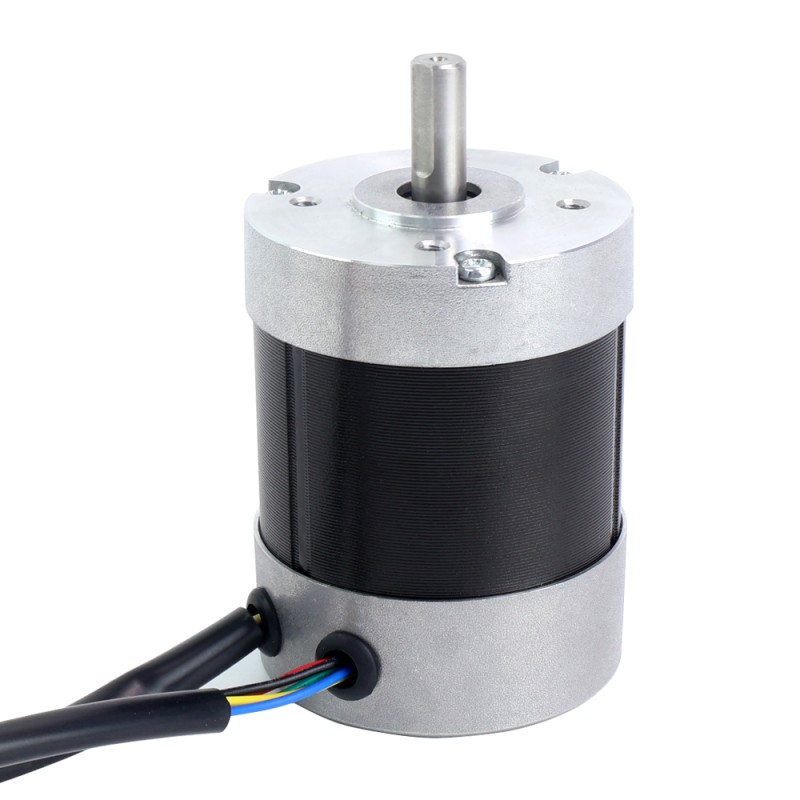

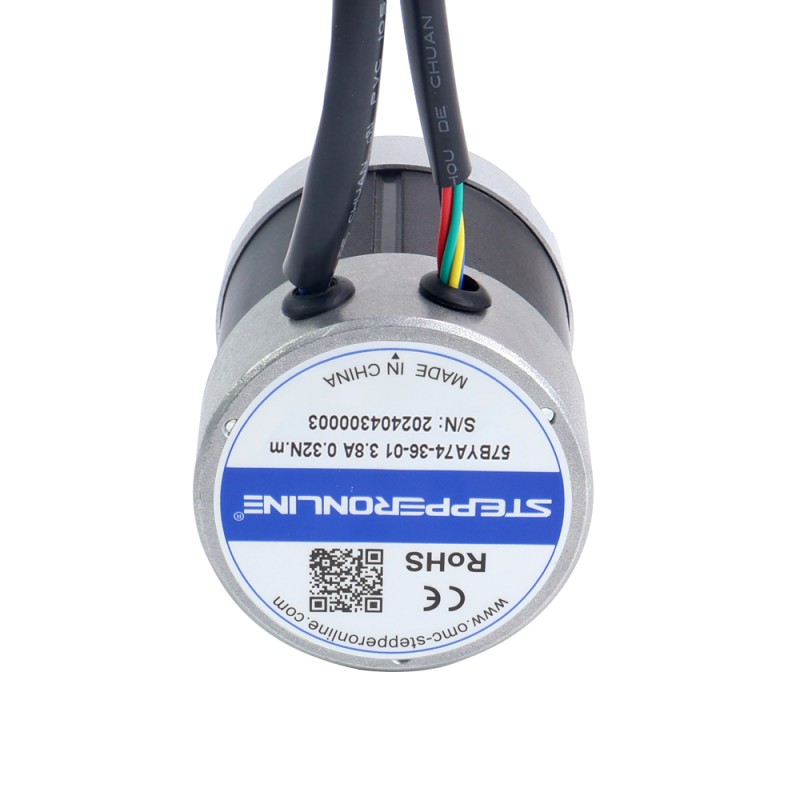

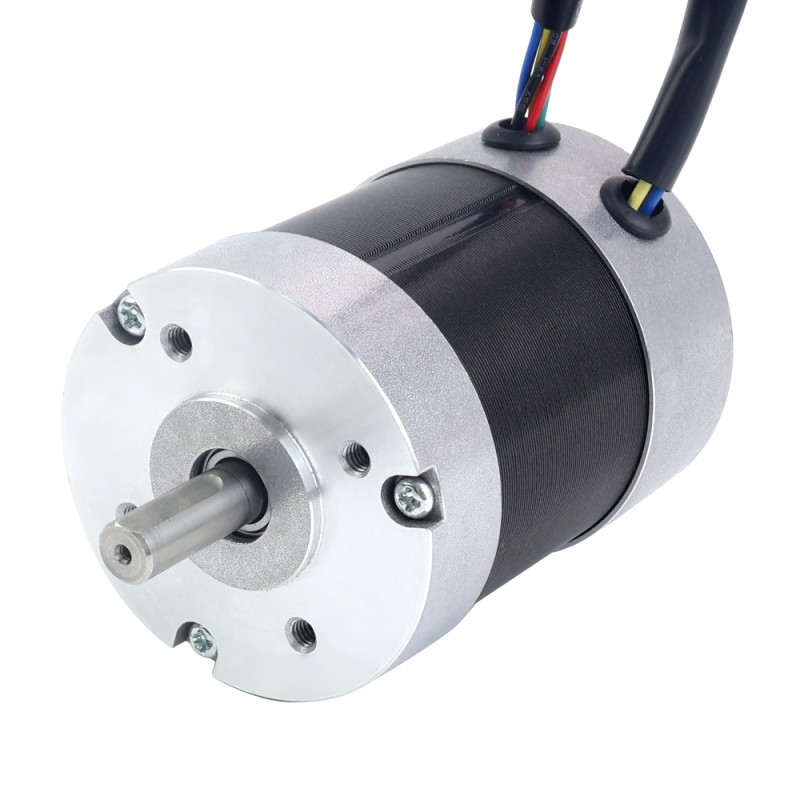

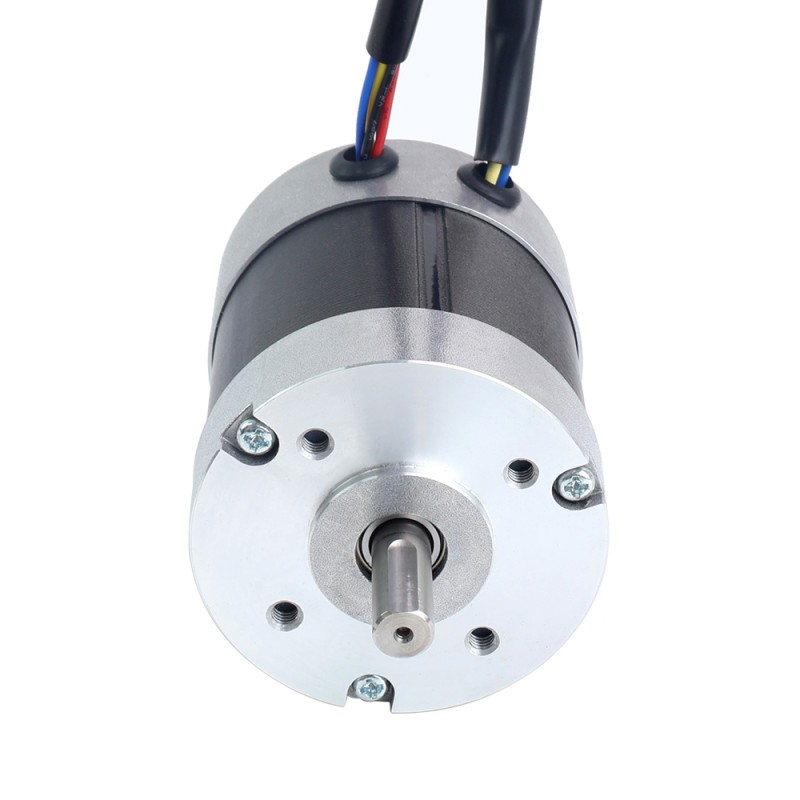

Name: 36V 3000RPM 0.32Nm 101W 3.80A Φ57x73.5mm Brushless DC Motor
Brand: STEPPERONLINE
SKU: 57BYA74-36-01
Price: 21.97 GBP
Availability: InStock

36V 3000RPM 0.32Nm 101W 3.80A Φ57x73.5mm Brushless DC Motor - 57BYA74-36-01 | StepperOnline UK

57BYA74-36-01

Output Shaft TypeD

Shaft Diameter(mm)8

Shaft Length(mm)21

Rated Voltage(V)36

Question

Downloads

57BYA74-36-01_Full_Datasheet.pdfPDF · 127.25KB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Rated Voltage(V)	Price	Stock
36BLR65-24-01 Discontinued	O	4	15	24		—
42BLR43-24-01	O	5	20	24	£15.70	Backorder
42BLS40-24-01	O	5	20	24	£13.56	In stock
42BLS60-24-01	O	5	20	24	£16.94	In stock
42BSA46-24-01	O	5	24	24	£12.55	In stock
42BSA62-24-01	O	5	24	24	£14.12	In stock
42BSA62-36-01	O	5	24	36	£14.12	In stock
42BSA78-24-01	O	5	24	24	£18.83	In stock
42BSA78-48-01	O	5	24	48	£18.83	In stock
42BSB101-24-01	O	5	20	24	£17.26	In stock
42BSB101-48-01	O	5	20	48	£17.26	In stock
42BSB41-24-01	O	5	20	24	£10.98	In stock
42BSB61-24-01	O	5	20	24	£12.55	In stock
42BSB61-48-01	O	5	20	48	£12.55	In stock
42BSB81-24-01	O	5	20	24	£15.69	In stock
42BSB81-48-01	O	5	20	48	£15.69	In stock
42BYA43-24-01	O	5	20	24	£11.77	In stock
42BYA51-24-01	O	5	20	24	£13.34	In stock
42BYA73-24-01	O	5	20	24	£18.83	In stock
57BLR110-36-01	O	8	25	36	£28.53	In stock
57BLR50-24-01	O	8	25	24	£17.54	In stock
57BLR50-36-01	D	8	25	36	£17.54	In stock
57BLR70-24-02	O	8	25	24	£24.93	In stock
57BLR70-36-01	O	8	25	36	£20.32	In stock
57BLY54-24-01	O	8	21	24	£14.77	In stock
57BSA100-36-01	D	8	21	36	£34.52	In stock
57BSA100-48-01	D	8	21	48	£34.52	In stock
57BSA58-24-01	D	8	21	24	£17.26	In stock
57BSA79-36-01	D	8	21	36	£25.11	In stock
57BSD116-36-01	D	8	21	36	£22.75	In stock

View all in category

36V 3000RPM 0.32Nm 101W 3.80A Φ57x73.5mm Brushless DC Motor

This is a 36V brushless DC motor with 3 phases and 4 poles. It offers a rated speed of 3000rpm and t... Read More

0 reviews • Write a review

from

£21.97

5 + £21.33

10 + £20.72

50 + £20.15

100 + £19.61

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This is a 36V brushless DC motor with 3 phases and 4 poles. It offers a rated speed of 3000rpm and torque of 0.32Nm(45.32oz.in).
57BYA series brushless motors are high-performance motors with round body and larger torque that are suitable for textile machines, robotics, autobikes and other industrial applications.

Electrical Specification

Manufacturer Part Number: 57BYA74-36-01
Phase: 3
Poles: 4
Rated Voltage: 36V
Rated Torque: 0.32Nm(45.32oz.in)
Rated Power: 101W
Rated Speed: 3000±10%RPM
Rated Current: 3.80A
No-load Speed: 3600±10%RPM
Resistance/phase: 0.93±10%Ohms
Inductance/phase: 2.76±20%mH
BACK EMF: 7.17±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: Φ57mm
Body Length: 73.5mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
Shaft Type: D-cut
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 0.76kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	3.8
Rated Power(W)	101
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.32
Rated Voltage(V)	36
Physical Specification
Body Length(mm)	73.5
Frame Size(mm)	⌀57
IP Rating	20
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21
With Gearbox	No
