4IK25GN-CT/4GN20K
Output Shaft TypeKeyway
Input Voltage(V)1PH 220VAC
Frame Size(mm)80 x 80
Current(A)0.24
Question

Downloads

4IK25GN-XXT_4GNXXK_manual.pdfPDF · 2.21MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
4IK25GN-AT/4GN100KKeyway1PH 110VAC80 x 800.5£28.93In stock
4IK25GN-AT/4GN10KKeyway1PH 110VAC80 x 800.5£26.20In stock
4IK25GN-AT/4GN15KKeyway1PH 110VAC80 x 800.5£26.20In stock
4IK25GN-AT/4GN200KKeyway1PH 110VAC80 x 800.5£28.93In stock
4IK25GN-AT/4GN20KKeyway1PH 110VAC80 x 800.5£26.20In stock
4IK25GN-AT/4GN30KKeyway1PH 110VAC80 x 800.5£27.63In stock
4IK25GN-AT/4GN3KKeyway1PH 110VAC80 x 800.5£26.20In stock
4IK25GN-AT/4GN50KKeyway1PH 110VAC80 x 800.5£27.63In stock
4IK25GN-AT/4GN5KKeyway1PH 110VAC80 x 800.5£26.20In stock
4IK25GN-CT/4GN100KKeyway1PH 220VAC80 x 800.24£28.93In stock
4IK25GN-CT/4GN10KKeyway1PH 220VAC80 x 800.24£26.20In stock
4IK25GN-CT/4GN15KKeyway1PH 220VAC80 x 800.24£26.20In stock
4IK25GN-CT/4GN15K-SALEKeyway1PH 220VAC80 x 800.24£26.61In stock
4IK25GN-CT/4GN200KKeyway1PH 220VAC80 x 800.24£28.93In stock
4IK25GN-CT/4GN20KKeyway1PH 220VAC80 x 800.24£26.20In stock
4IK25GN-CT/4GN30KKeyway1PH 220VAC80 x 800.24£27.63In stock
4IK25GN-CT/4GN30K-SALEKeyway1PH 220VAC80 x 800.24£28.07In stock
4IK25GN-CT/4GN3KKeyway1PH 220VAC80 x 800.24£26.20In stock
4IK25GN-CT/4GN50KKeyway1PH 220VAC80 x 800.24£27.63In stock
4IK25GN-CT/4GN5KKeyway1PH 220VAC80 x 800.24£26.20In stock
4IK25GN-S/S3T/4GN100KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12£28.93In stock
4IK25GN-S/S3T/4GN10KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12£26.20In stock
4IK25GN-S/S3T/4GN15KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12£26.20In stock
4IK25GN-S/S3T/4GN200KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12£28.93In stock
4IK25GN-S/S3T/4GN20KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12£26.20In stock
4IK25GN-S/S3T/4GN30KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12£27.63In stock
4IK25GN-S/S3T/4GN3KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12£26.20In stock
4IK25GN-S/S3T/4GN50KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12£27.63In stock
4IK25GN-S/S3T/4GN5KKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12£26.20In stock
25W 220VAC 50Hz 67.5RPM 2.99Nm(423.42oz.in) Flange 80mm Spur Gearbox Single-phase AC Induction Motor
This 80x80mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 20, a... Read More
0 reviews • Write a review
from
£26.20
5 + £25.49
10 + £24.82
50 + £24.19
100 + £23.59

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

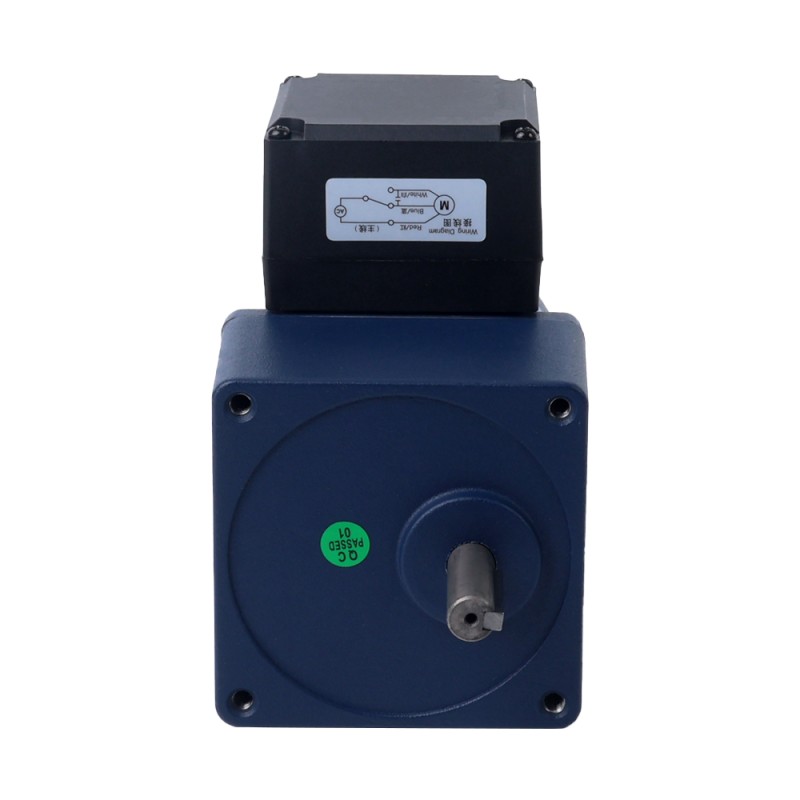

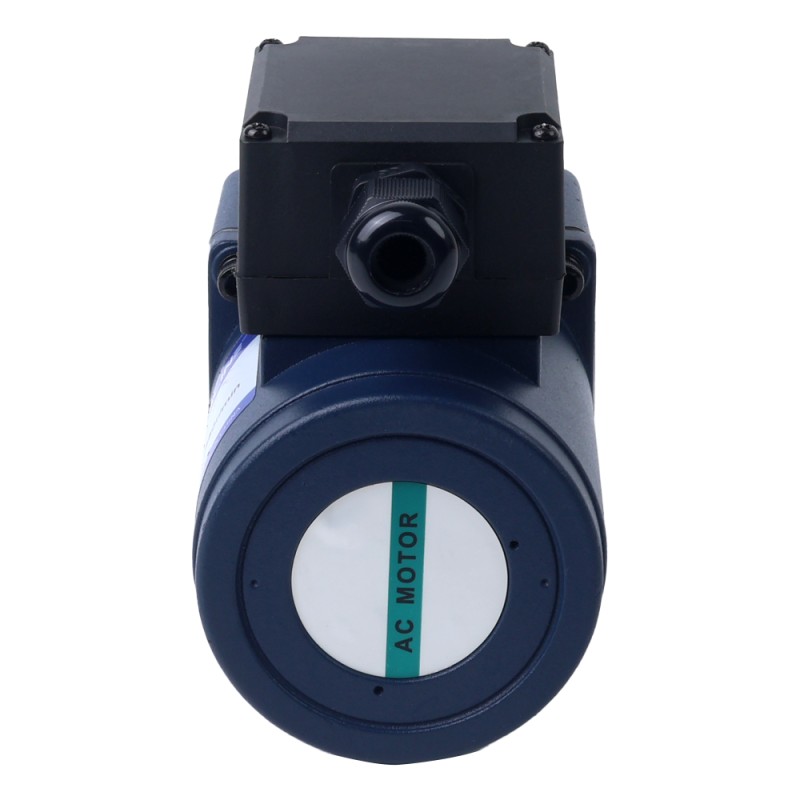

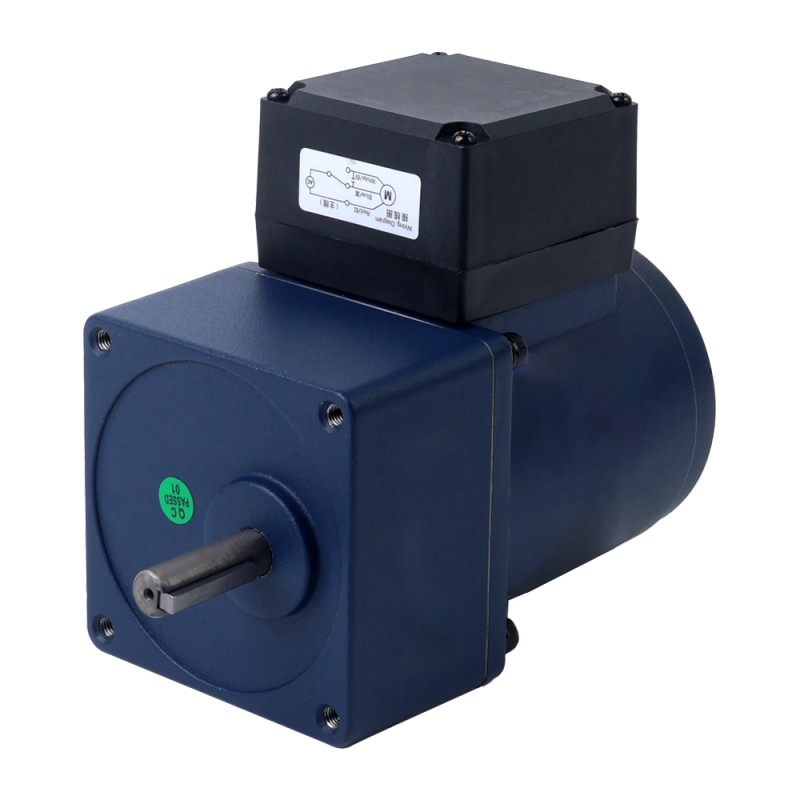

This 80x80mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 20, a torque of 2.99Nm(423.42oz.in) and a speed of 67.5rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 4IK25GN-CT/4GN20K
  • Gearbox Type: Spur Gearbox
  • Output Power: 25W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.24A
  • Gear Ratio: 20:1
  • Speed: 67.5rpm
  • Torque: 2.99Nm(423.42oz.in)

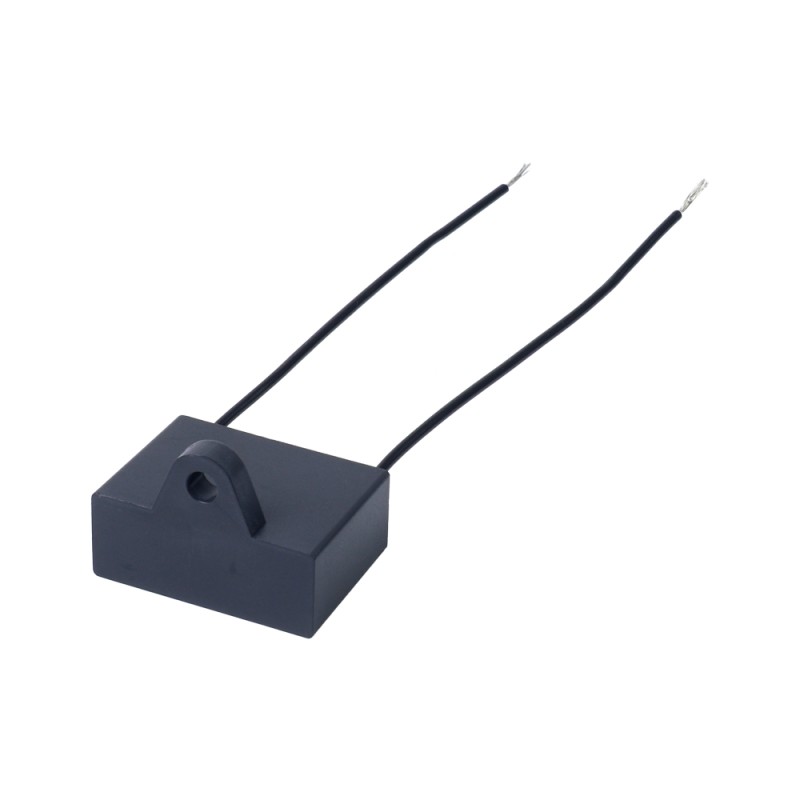

  • Capacitor: 1.8μF/450VAC

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 129.5mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 2.55kg

Wiring

Electrical Specification
Current(A) 0.24
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Output Power(W) 25
Speed(rpm) 67.5
Torque(Nm) 2.99
Physical Specification
Frame Size(mm) 80 x 80
Gear Ratio(xx:1) 20
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
25W 220VAC 50Hz 27RPM 6.74Nm(954.46oz.in) Flange 80mm Spur Gearbox Single-phase AC Induction Motor
25W 220VAC 50Hz 27RPM 6.74Nm(954.46oz.in) Flange 80mm Spur Gearbox Single-phase AC Induction Motor
This 80x80mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 50, a torque of 6.74Nm(954.46oz.in) and a speed of 27rp..
from
£27.63
Add to Cart
Add to Wish List Compare this Product
Quickview

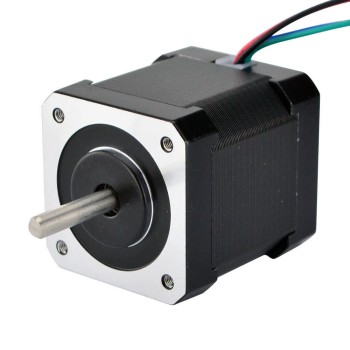

Dual Shaft Nema 17 Bipolar 1.8deg 44Ncm(62.3oz.in) 1.68A 42x42x48mm 4 Wires
