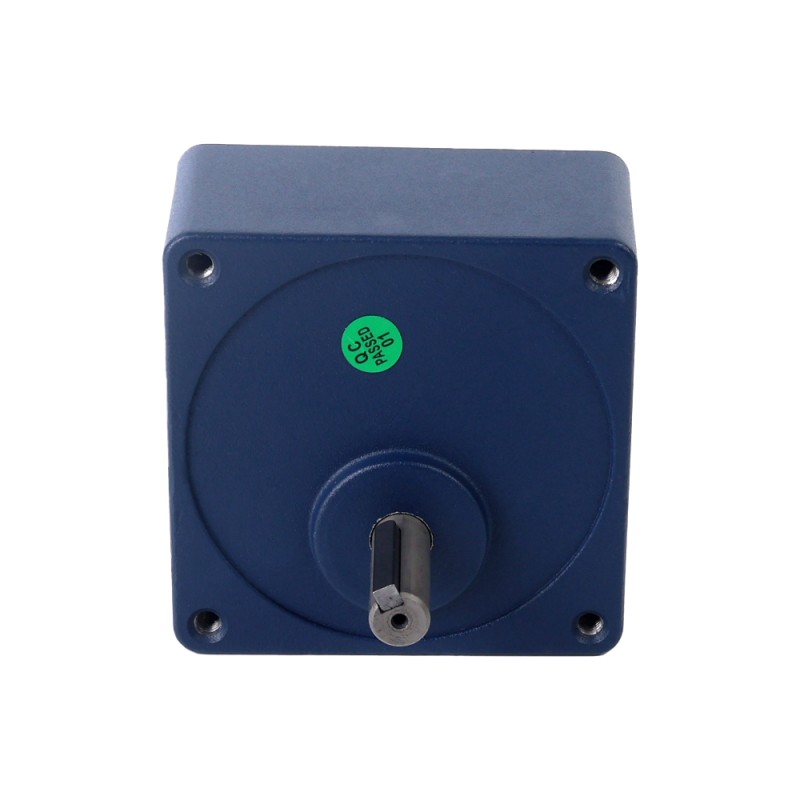

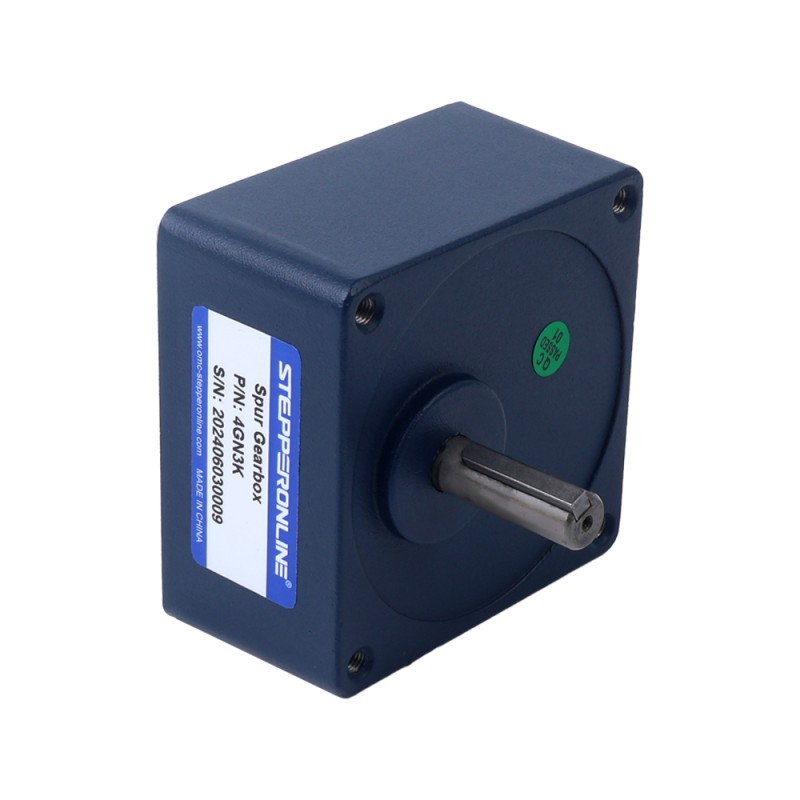

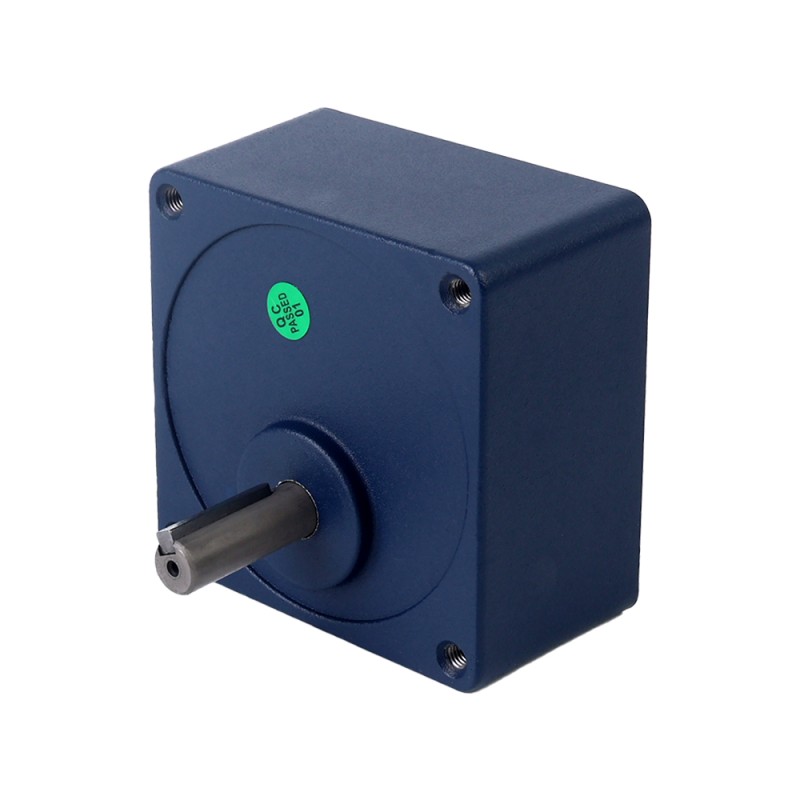

25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor

25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor - 4IK25RGN-A/4GN3K | StepperOnline UK
4IK25RGN-A/4GN3K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)80 x 80
Current(A)0.5
Question

Downloads

4IK25RGN-A_4GNXXK_manual.pdfPDF · 1.22MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
4IK25RGN-A/4GN15RTKeyway1PH 110VAC80 x 800.5£42.45In stock
4IK25RGN-A/4GN180RCHollow1PH 110VAC80 x 800.5£43.61In stock
4IK25RGN-A/4GN180RTKeyway1PH 110VAC80 x 800.5£43.61In stock
4IK25RGN-A/4GN200KKeyway1PH 110VAC80 x 800.5£28.93In stock
4IK25RGN-A/4GN20KKeyway1PH 110VAC80 x 800.5£26.20In stock
4IK25RGN-A/4GN20RCHollow1PH 110VAC80 x 800.5£42.45In stock
4IK25RGN-A/4GN20RTKeyway1PH 110VAC80 x 800.5£42.45In stock
4IK25RGN-A/4GN30KKeyway1PH 110VAC80 x 800.5£27.63In stock
4IK25RGN-A/4GN30RCHollow1PH 110VAC80 x 800.5£42.45In stock
4IK25RGN-A/4GN30RTKeyway1PH 110VAC80 x 800.5£42.45In stock
4IK25RGN-A/4GN3KKeyway1PH 110VAC80 x 800.5£26.20In stock
4IK25RGN-A/4GN50KKeyway1PH 110VAC80 x 800.5£27.63In stock
4IK25RGN-A/4GN50RCHollow1PH 110VAC80 x 800.5£42.45In stock
4IK25RGN-A/4GN50RTKeyway1PH 110VAC80 x 800.5£42.45In stock
4IK25RGN-A/4GN5KKeyway1PH 110VAC80 x 800.5£26.20In stock
4IK25RGN-C/4GN100KKeyway1PH 220VAC80 x 800.24£28.93In stock
4IK25RGN-C/4GN100RCHollow1PH 220VAC80 x 800.24£43.61In stock
4IK25RGN-C/4GN100RTKeyway1PH 220VAC80 x 800.24£43.61In stock
4IK25RGN-C/4GN100RT-SALEKeyway1PH 220VAC80 x 800.24£44.30In stock
4IK25RGN-C/4GN10KKeyway1PH 220VAC80 x 800.24£26.20In stock
4IK25RGN-C/4GN10RCHollow1PH 220VAC80 x 800.24£42.45In stock
4IK25RGN-C/4GN10RTKeyway1PH 220VAC80 x 800.24£42.45In stock
4IK25RGN-C/4GN15KKeyway1PH 220VAC80 x 800.24£26.20In stock
4IK25RGN-C/4GN15RCHollow1PH 220VAC80 x 800.24£42.45In stock
4IK25RGN-C/4GN15RTKeyway1PH 220VAC80 x 800.24£42.45In stock
4IK25RGN-C/4GN180RCHollow1PH 220VAC80 x 800.24£43.61In stock
4IK25RGN-C/4GN180RTKeyway1PH 220VAC80 x 800.24£43.61In stock
4IK25RGN-C/4GN200KKeyway1PH 220VAC80 x 800.24£28.93In stock
4IK25RGN-C/4GN200K-SALEKeyway1PH 220VAC80 x 800.24£29.39In stock
4IK25RGN-C/4GN20KKeyway1PH 220VAC80 x 800.24£26.20In stock
View all in category
25W 110VAC 60Hz 30-516.67RPM 0.36Nm(50.98oz.in) Flange 80mm Spur Gearbox Single-phase AC Variable Speed Motor
This 80x80mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a s... Read More
0 reviews • Write a review
from
£26.20
5 + £25.49
10 + £24.82
50 + £24.19
100 + £23.59

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This 80x80mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 30-516.67rpm and a gearbox with a gear ratio of 3. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 4IK25RGN-A/4GN3K
  • Gearbox Type: Spur Gearbox
  • Output Power: 25W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.5A
  • Gear Ratio: 3:1
  • Speed Range: 30-516.67rpm
  • Maximum Torque: 0.36Nm(50.98oz.in)
  • Capacitor: 7.0μF/250VAC

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 140.5mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 2.34kg

Wiring

Electrical Specification
Current(A) 0.5
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 0.36
Output Power(W) 25
Speed Range(rpm) 30-516.67
Physical Specification
Frame Size(mm) 80 x 80
Gear Ratio(xx:1) 3
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
