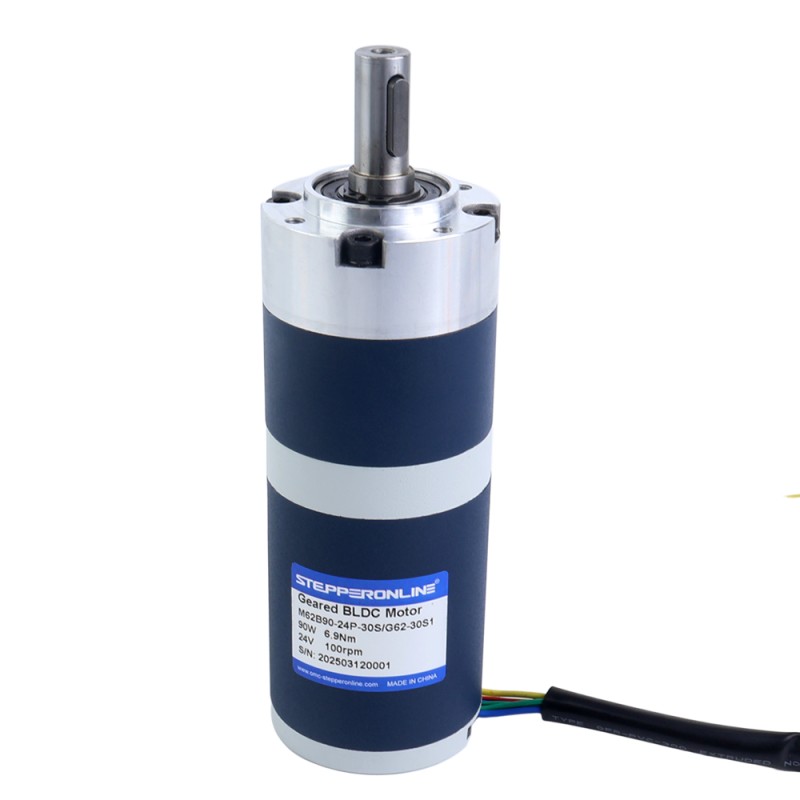

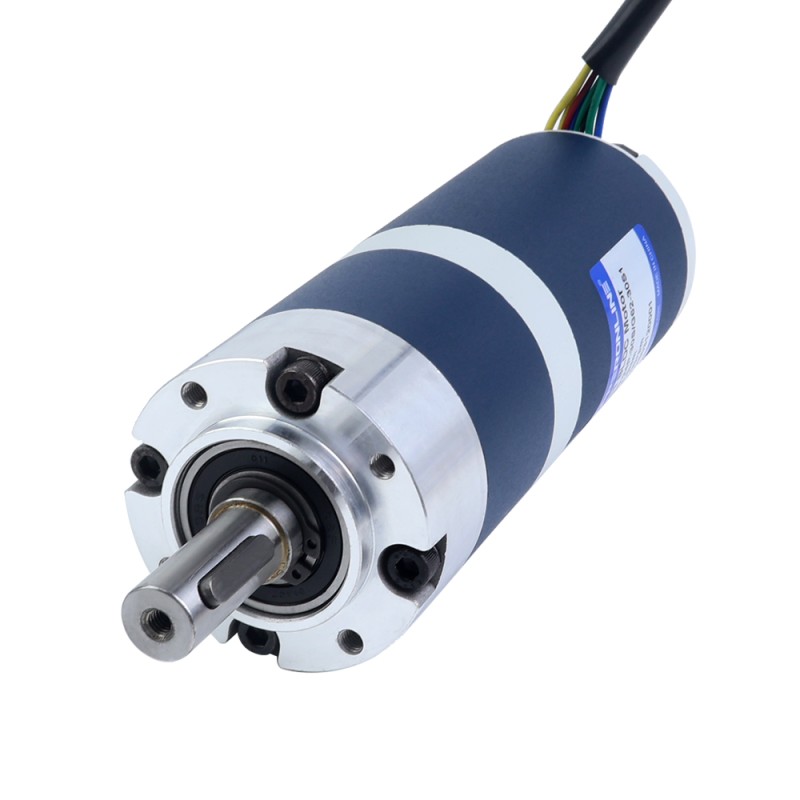

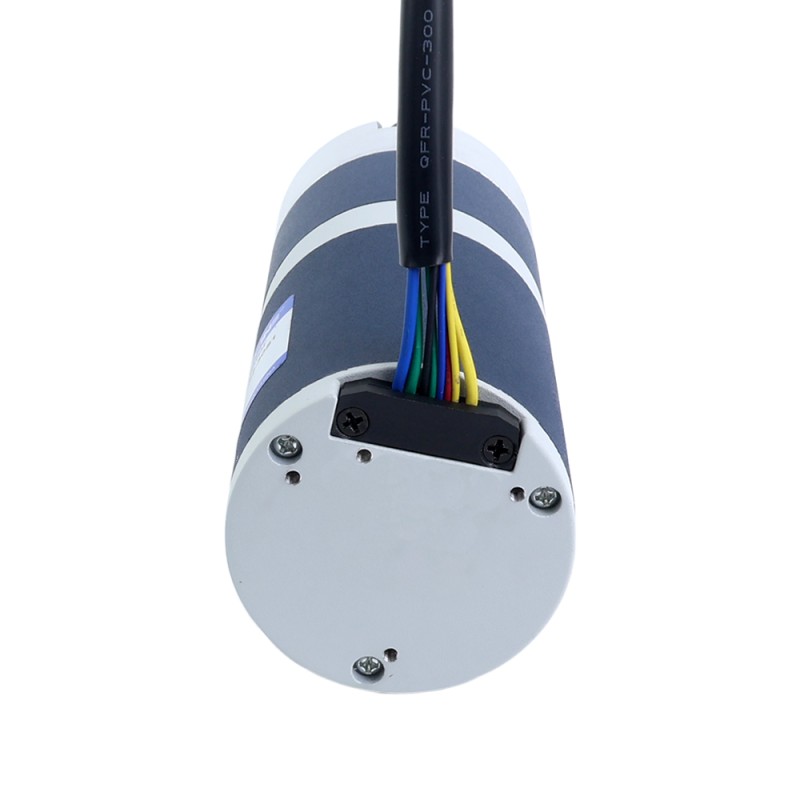

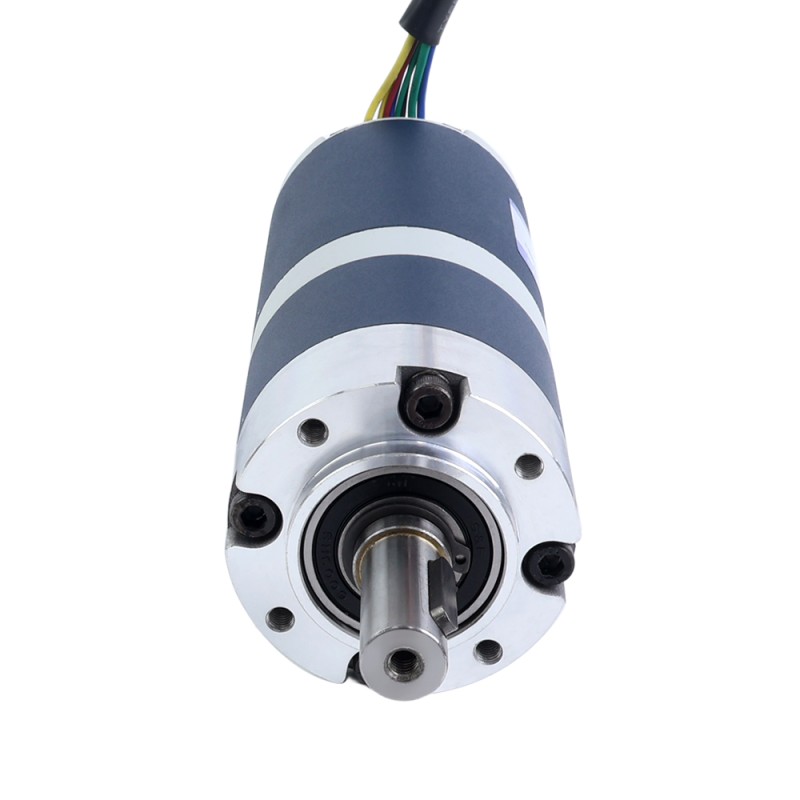

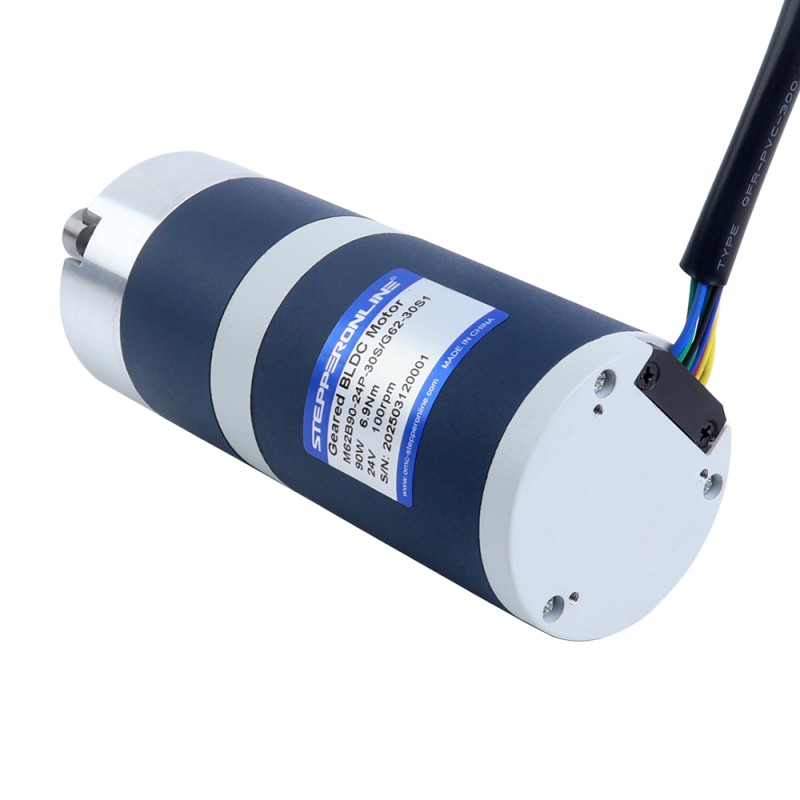

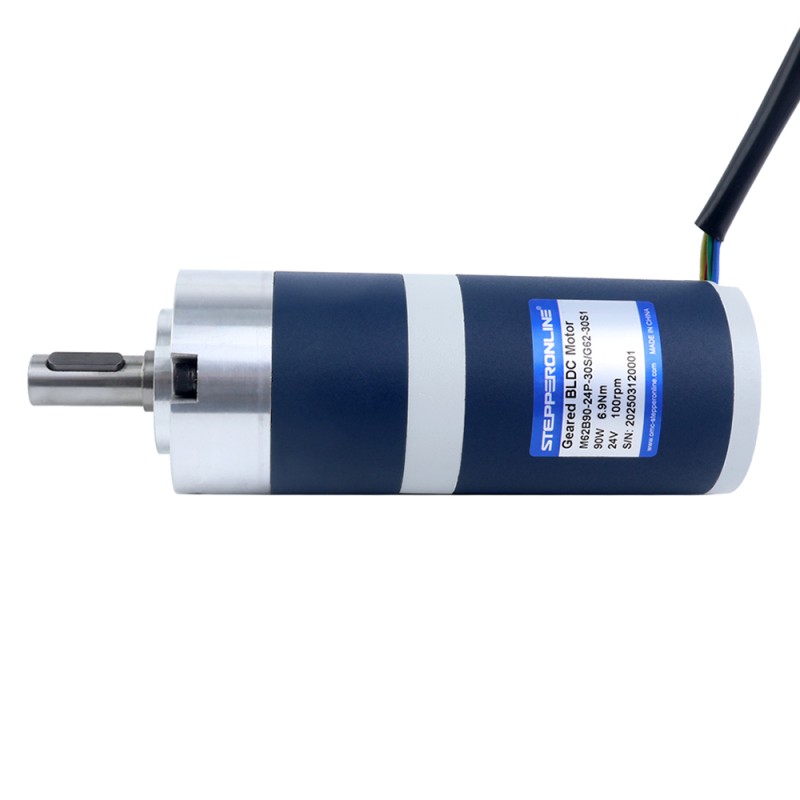

24V 90W 100RPM Geared Brushless DC Motor 6.90Nm(977.12oz.in) 30:1 Planetary Gearbox

This is a 24V 90W brushless DC motor with a Φ62mm flange diameter, a rated torque of 6.90Nm(977.12oz... Read More

0 reviews • Write a review

from

£35.83

5 + £34.88

10 + £33.96

50 + £33.10

100 + £32.28

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This is a 24V 90W brushless DC motor with a Φ62mm flange diameter, a rated torque of 6.90Nm(977.12oz.in) and a rated speed of 100rpm. It is equipped with a planetary gearbox with a gear ratio of 30:1, which delivers high torque for precision applications. The compact cylindrical design facilitates integration into systems with limited space.
Due to its compact structure, high precision, stability, low noise, long service life and low maintenance costs, this motor is widely used in robotics, industrial automation, medical devices, security and surveillance systems and other demanding applications.

Electrical Specifications

P/N: M62B90-24P-30S/G62-30S1
Phase: 3
Poles: 10
Rated Voltage: 24V
Rated Power: 90W
Rated Current: 5.0A
Rated Torque: 6.90Nm(977.12oz.in)
Rated Speed: 100rpm
Speed without Gearbox: 3800rpm±10%
Sensor: Hall Sensor
Insulation Class: B 130°C[266°F]

Physical Specifications

Gearbox Type: Planetary Gearbox
Gearbox Ratio: 30:1
Frame Size: Φ62mm
Body Length: 156.5mm
Shaft Type: Keyway
Shaft Diameter: Φ14mm
Shaft Length: 39mm
Radial Load: 360N
Axial Load: 100N
Weight: 2.18kg

Connection

Motor Wires			Hall Wires
U	V	W	+	-	Ha	Hb	Hc
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue
20AWG			26AWG

Gear Ratio Options

For optional ratios and their corresponding rated speeds/torques, please refer to the table.

Stage	1-Stage				2-Stage
Ratio	3.65	5.36	6.55	8.63	13.3	19.6	24.6	30	35.1	46.2	56.5
Speed(rpm)	822	560	458	348	226	153	122	100	85	65	53
Torque(Nm)	0.63	0.92	1.13	1.48	2.10	3.00	3.80	4.60	5.40	7.10	8.70

Stage	3-Stage
Ratio	71.5	89.8	104.8	112.8	128	144.5	160.9	181.6	196.5	229.5	302.5	398.5
Speed(rpm)	42	33	29	27	23	21	19	17	15	13	9.9	7.5
Torque(Nm)	10.00	13.00	15.00	16.00	18.00	20.00	22.00	25.00	27.00	32.00	40.00	35.00

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	5.00
Rated Power(W)	90
Rated Speed(rpm)	100
Rated Torque(Nm)	6.9
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	156.5
Frame Size(mm)	⌀62
Gear Ratio(xx:1)	30
Gearbox Type	Planetary Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	39
With Gearbox	Yes
