F5B60-24GN-30S/5GN100K
Output Shaft TypeKeyway
Rated Voltage(V)24
Rated Current(A)3.50
Frame Size(mm)90 x 90
Question

Downloads

F5B60-24GN-30S_5GNXXK_Manual.pdfPDF · 1.3MBF5B60-24GN-30S_5GN100K_Full_Datasheet.pdfPDF · 60.17KB
Same series
ModelOutput Shaft TypeRated Voltage(V)Rated Current(A)Frame Size(mm)PriceStock
57BLR50-24-01-HG10Keyway245.00Nema 23 (57 x 57)£0.00In stock
57BLR70-24-02-HG100Keyway2410.40Nema 23 (57 x 57)£51.71In stock
57BLR90-24-01-HG100Keyway2414.00Nema 23 (57 x 57)£55.40In stock
57BYA74-24-01-PG100Keyway245.70⌀57£54.94In stock
57BYA74-24-01-PG27Keyway245.70⌀57£51.01In stock
F2B15-24GN-30S/2GN100KD241.1060 x 60£22.24In stock
F2B15-24GN-30S/2GN10KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN15KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN200KD241.1060 x 60£22.24In stock
F2B15-24GN-30S/2GN20KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN30KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN3KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN3K-SALED241.1060 x 60£19.92In stock
F2B15-24GN-30S/2GN50KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN50K-SALED241.1060 x 60£20.98In stock
F2B15-24GN-30S/2GN5KD241.1060 x 60£20.11In stock
F2B15-48GN-30S/2GN100KD480.6060 x 60£22.24In stock
F2B15-48GN-30S/2GN10KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN15KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN200KD480.6060 x 60£22.24In stock
F2B15-48GN-30S/2GN20KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN30KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN3KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN50KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN5KD480.6060 x 60£20.11In stock
F2B40-24GL-30S/2GL150RCHollow242.5060 x 60£32.90In stock
F2B40-24GL-30S/2GL30RCHollow242.5060 x 60£32.90In stock
F3B40-24GN-30S/3GN100KKeyway242.5070 x 70£26.65In stock
F3B40-24GN-30S/3GN10KKeyway242.5070 x 70£24.22In stock
F3B40-24GN-30S/3GN15KKeyway242.5070 x 70£24.22In stock
View all in category

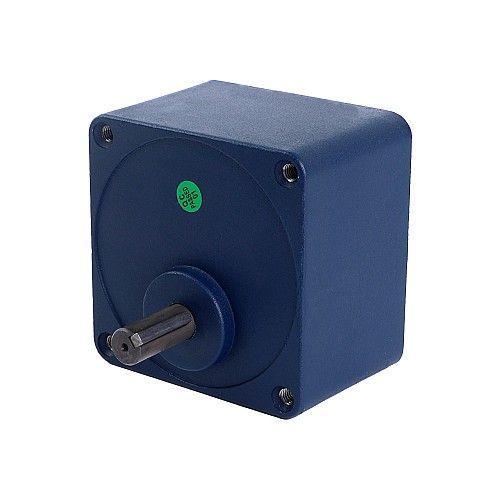

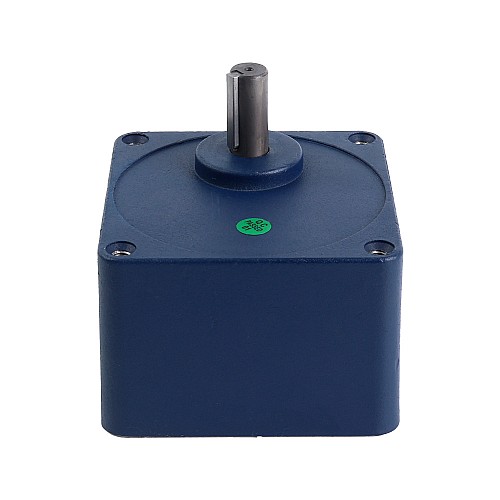

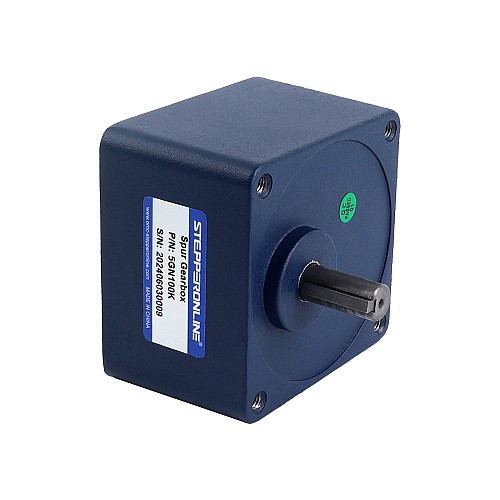

24V 60W 30RPM Geared Brushless DC Motor 10.00Nm(1416.12oz.in) 100:1 Spur Gearbox
This is a 24V 60W brushless DC gear Motor with a flange of 90x90mm. The built-in 100:1 spur gearbox ... Read More
0 reviews • Write a review
from
£36.56
5 + £35.52
10 + £34.54
50 + £33.61
100 + £32.74

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This is a 24V 60W brushless DC gear Motor with a flange of 90x90mm. The built-in 100:1 spur gearbox brings speed and torque to 30rpm and 10.00Nm(1416.12oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-305S.

Electrical Specifications

  • P/N: F5B60-24GN-30S/5GN100K
  • Phase: 3
  • Poles: 10
  • Rated Current: 3.50A
  • Rated Voltage: 24V
  • Rated Speed: 30rpm
  • Rated Torque: 10.00Nm(1416.12oz.in)
  • No-load Current: 0.80A
  • Rated Power: 60W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 118mm
  • Gearbox Type: Spur Gearbox
  • Gearbox Ratio: 100:1
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Keyway Length: 25mm
  • Bearing: Deep Groove Ball
  • Weight: 2.5kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No-load Current(A) 0.8
No. of Phase 3
Rated Current(A) 3.50
Rated Power(W) 60
Rated Speed(rpm) 30
Rated Torque(Nm) 10.00
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 118
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 100
Gearbox Type Square Spur Gearbox
Output Shaft Type Keyway
Shaft Diameter(mm) 12
Shaft Length(mm) 32
With Gearbox Yes
