Name: 24V 60W 120RPM Geared Brushless DC Motor 3.80Nm(538.12oz.in) 25:1 Planetary Gearbox
Brand: STEPPERONLINE
SKU: M52B60-24P-30S/G52-25S1
Price: 32.82 GBP
Availability: InStock

24V 60W 120RPM Geared Brushless DC Motor 3.80Nm(538.12oz.in) 25:1 Planetary Gearbox - M52B60-24P-30S/G52-25S1 | StepperOnline UK

M52B60-24P-30S/G52-25S1

Output Shaft TypeKeyway

Rated Voltage(V)24

Rated Current(A)3.33

Frame Size(mm)⌀52

Question

Downloads

M52B60-24P-30S_G52-25S1.STEPSTEP · 2.45MBLog in to download M52B60-24P-30S_G52-25S1_Full_Datasheet.pdfPDF · 53.88KB

Same series

Model	Output Shaft Type	Rated Voltage(V)	Rated Current(A)	Frame Size(mm)	Price	Stock
57BLR50-24-01-HG10	Keyway	24	5.00	Nema 23 (57 x 57)	£0.00	In stock
57BLR70-24-02-HG100	Keyway	24	10.40	Nema 23 (57 x 57)	£51.71	In stock
57BLR90-24-01-HG100	Keyway	24	14.00	Nema 23 (57 x 57)	£55.40	In stock
57BYA74-24-01-PG100	Keyway	24	5.70	⌀57	£54.94	In stock
57BYA74-24-01-PG27	Keyway	24	5.70	⌀57	£51.01	In stock
F2B15-24GN-30S/2GN100K	D	24	1.10	60 x 60	£22.24	In stock
F2B15-24GN-30S/2GN10K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-24GN-30S/2GN15K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-24GN-30S/2GN200K	D	24	1.10	60 x 60	£22.24	In stock
F2B15-24GN-30S/2GN20K	D	24	1.10	60 x 60	£21.17	In stock
F2B15-24GN-30S/2GN30K	D	24	1.10	60 x 60	£21.17	In stock
F2B15-24GN-30S/2GN3K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-24GN-30S/2GN3K-SALE	D	24	1.10	60 x 60	£19.92	In stock
F2B15-24GN-30S/2GN50K	D	24	1.10	60 x 60	£21.17	In stock
F2B15-24GN-30S/2GN50K-SALE	D	24	1.10	60 x 60	£20.98	In stock
F2B15-24GN-30S/2GN5K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN100K	D	48	0.60	60 x 60	£22.24	In stock
F2B15-48GN-30S/2GN10K	D	48	0.60	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN15K	D	48	0.60	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN200K	D	48	0.60	60 x 60	£22.24	In stock
F2B15-48GN-30S/2GN20K	D	48	0.60	60 x 60	£21.17	In stock
F2B15-48GN-30S/2GN30K	D	48	0.60	60 x 60	£21.17	In stock
F2B15-48GN-30S/2GN3K	D	48	0.60	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN50K	D	48	0.60	60 x 60	£21.17	In stock
F2B15-48GN-30S/2GN5K	D	48	0.60	60 x 60	£20.11	In stock
F2B40-24GL-30S/2GL150RC	Hollow	24	2.50	60 x 60	£32.90	In stock
F2B40-24GL-30S/2GL30RC	Hollow	24	2.50	60 x 60	£32.90	In stock
F3B40-24GN-30S/3GN100K	Keyway	24	2.50	70 x 70	£26.65	In stock
F3B40-24GN-30S/3GN10K	Keyway	24	2.50	70 x 70	£24.22	In stock
F3B40-24GN-30S/3GN15K	Keyway	24	2.50	70 x 70	£24.22	In stock

View all in category

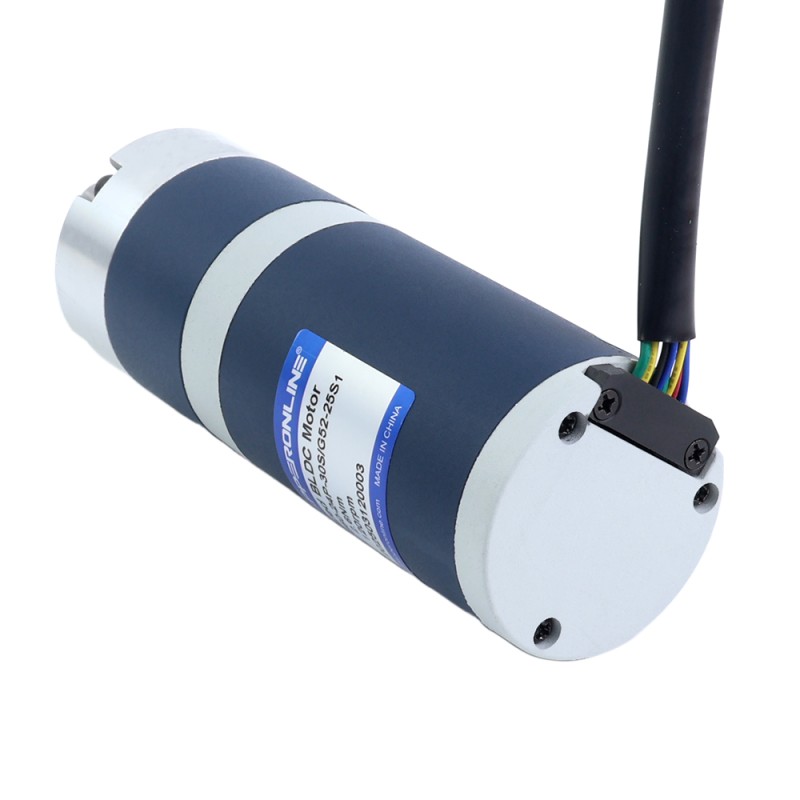

24V 60W 120RPM Geared Brushless DC Motor 3.80Nm(538.12oz.in) 25:1 Planetary Gearbox

This is a 24V 60W brushless DC motor with a Φ52mm flange diameter, a rated torque of 3.80Nm(538.12oz... Read More

0 reviews • Write a review

from

£32.82

5 + £31.93

10 + £31.10

50 + £30.30

100 + £29.55

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

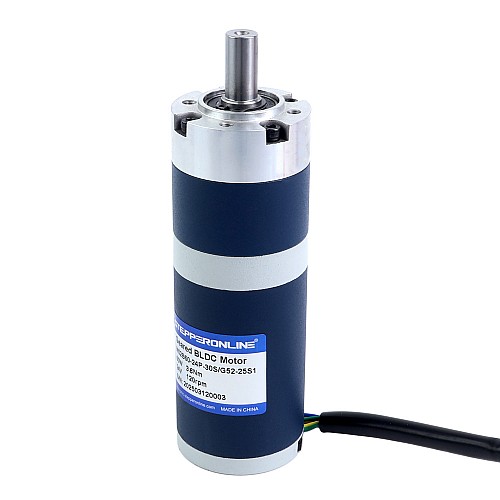

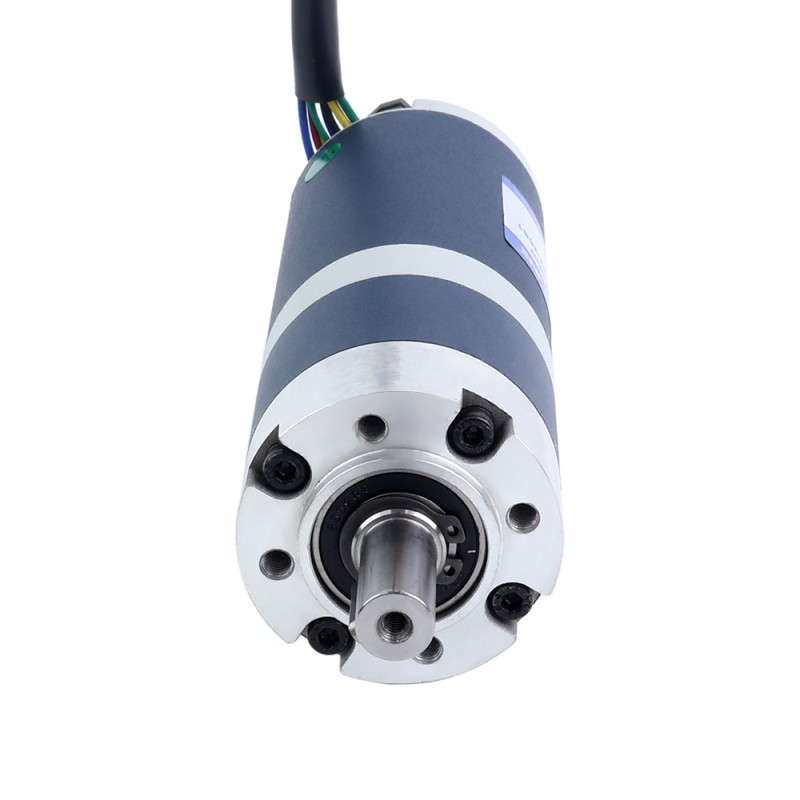

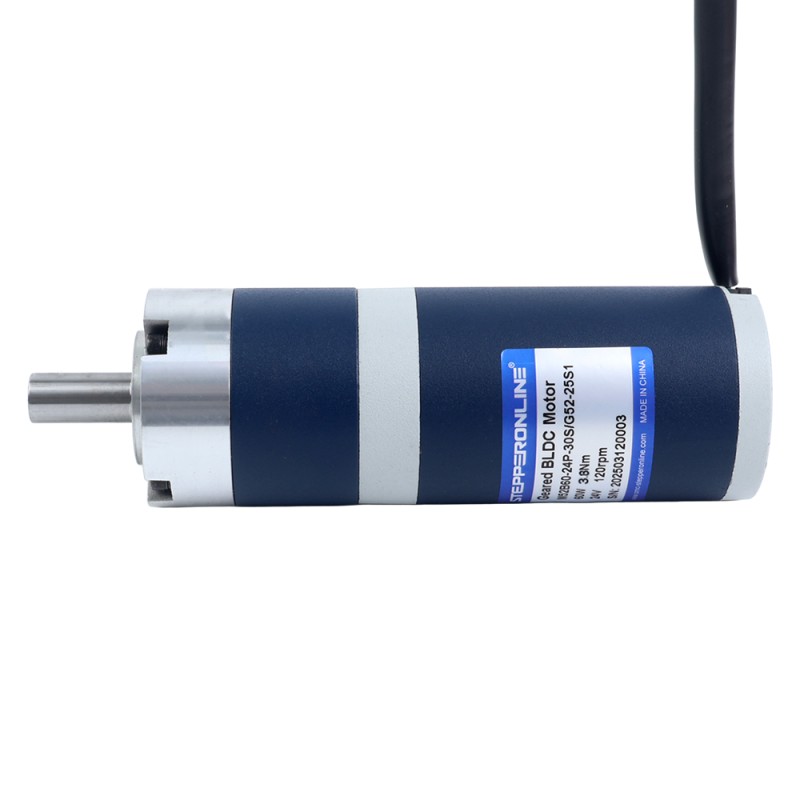

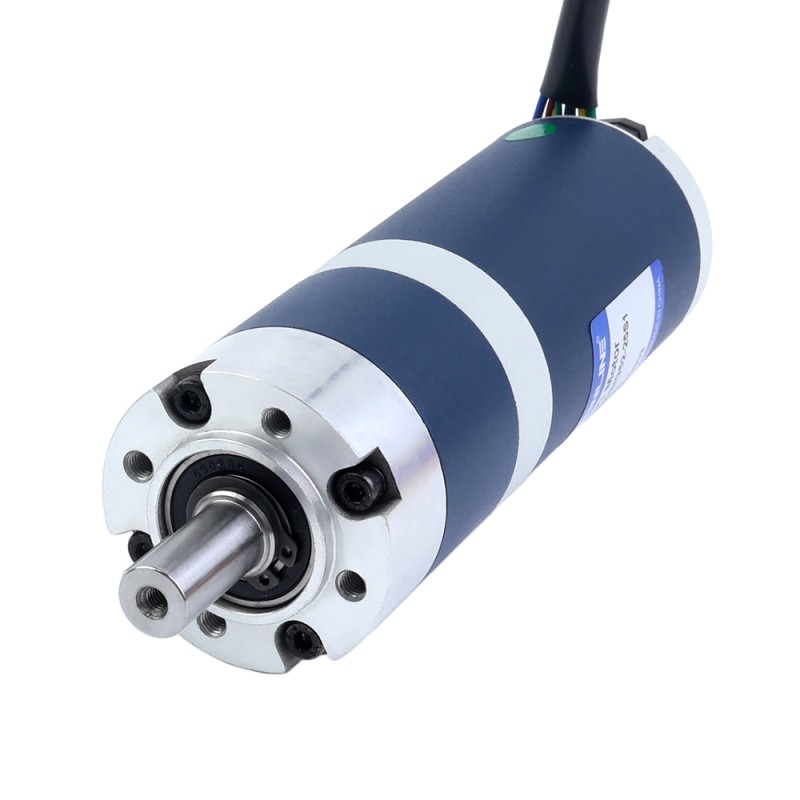

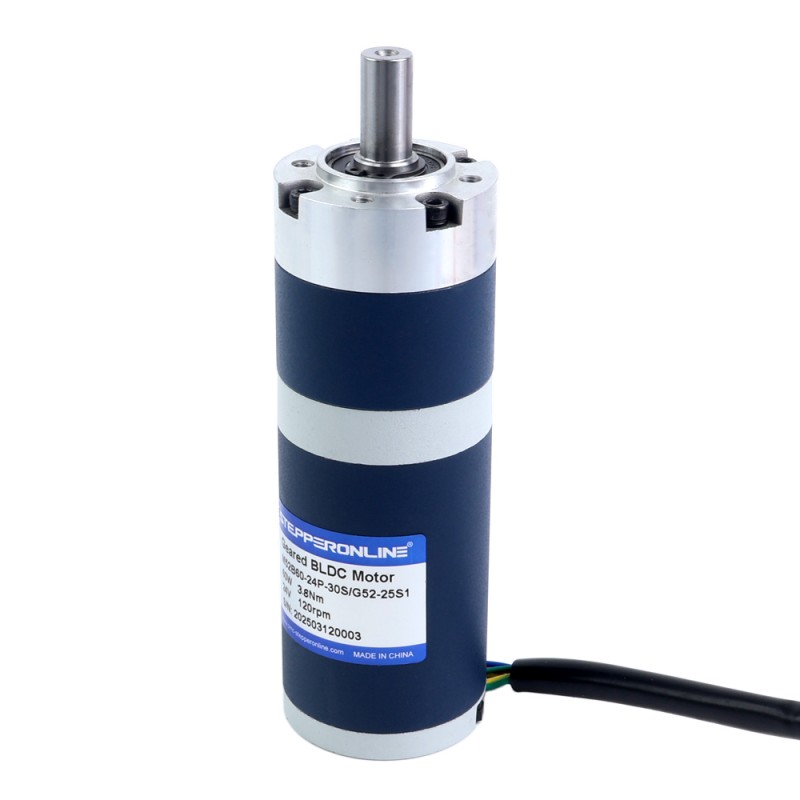

This is a 24V 60W brushless DC motor with a Φ52mm flange diameter, a rated torque of 3.80Nm(538.12oz.in) and a rated speed of 120rpm. It is equipped with a planetary gearbox with a gear ratio of 25:1, which delivers high torque for precision applications. The compact cylindrical design facilitates integration into systems with limited space.
Due to its compact structure, high precision, stability, low noise, long service life and low maintenance costs, this motor is widely used in robotics, industrial automation, medical devices, security and surveillance systems and other demanding applications.

Electrical Specifications

P/N: M52B60-24P-30S/G52-25S1
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Power: 60W
Rated Current: 3.33A
Rated Torque: 3.80Nm(538.12oz.in)
Rated Speed: 120rpm
Speed without Gearbox: 3600rpm±10%
Sensor: Hall Sensor
Insulation Class: B 130°C[266°F]

Physical Specifications

Gearbox Type: Planetary Gearbox
Gearbox Ratio: 25:1
Frame Size: Φ52mm
Body Length: 144mm
Shaft Type: Keyway
Shaft Diameter: Φ12mm
Shaft Length: 28mm
Radial Load: 320N
Axial Load: 30N
Weight: 1.33kg

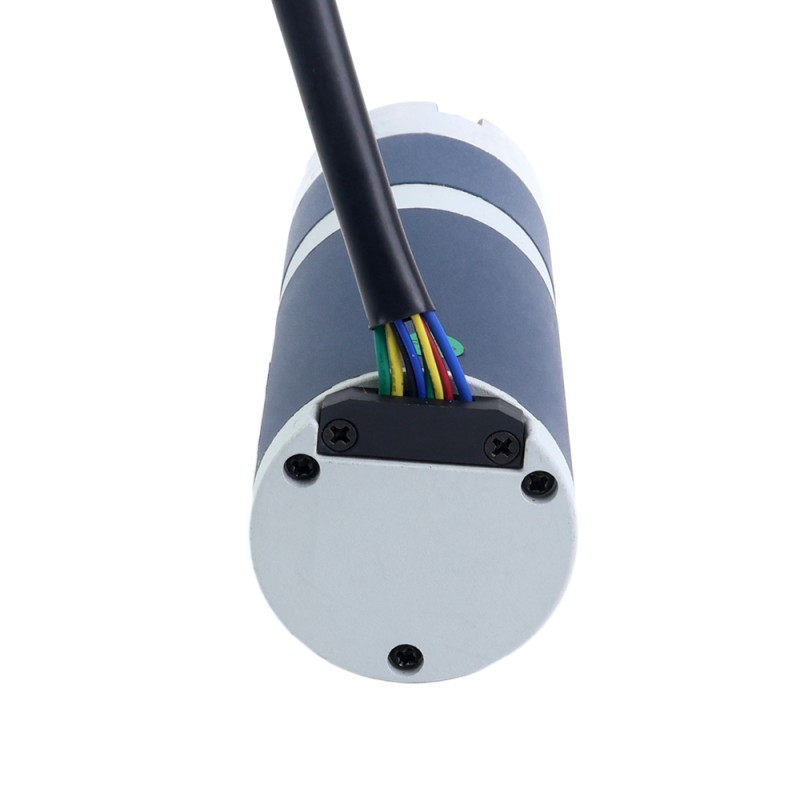

Connection

Motor Wires			Hall Wires
U	V	W	+	-	Ha	Hb	Hc
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue
20AWG			26AWG

Gear Ratio Options

For optional ratios and their corresponding rated speeds/torques, please refer to the table.

Stage	1-Stage			2-Stage
Ratio	3.71	5.18	6.75	13.7	19.2	25	28.9	35	45.6
Speed(rpm)	809	579	444	219	156	120	104	86	66
Torque(Nm)	0.43	0.59	0.77	1.40	2.00	2.60	3.00	3.60	4.70

Stage	3-Stage
Ratio	50.9	58.9	71.2	82.3	92.7	99.5	115.1	124	149.9	181.3	236.1	307.5
Speed(rpm)	59	51	42	36	32	30	26	24	20	17	13	9.8
Torque(Nm)	4.70	6.10	7.30	8.50	9.60	10.30	11.90	12.80	15.50	18.70	17.00	16.50

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	3.33
Rated Power(W)	60
Rated Speed(rpm)	120
Rated Torque(Nm)	3.8
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	144.0
Frame Size(mm)	⌀52
Gear Ratio(xx:1)	25
Gearbox Type	Planetary Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	12
Shaft Length(mm)	28
With Gearbox	Yes
