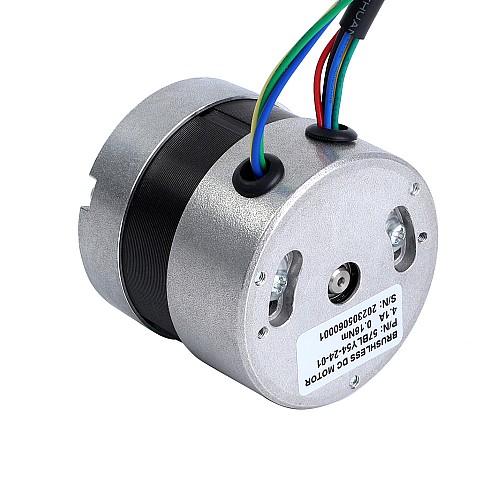

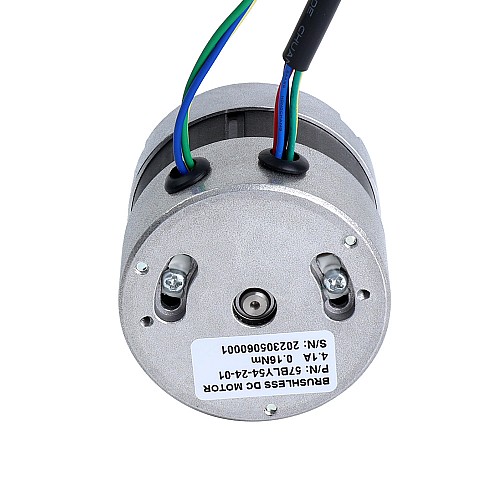

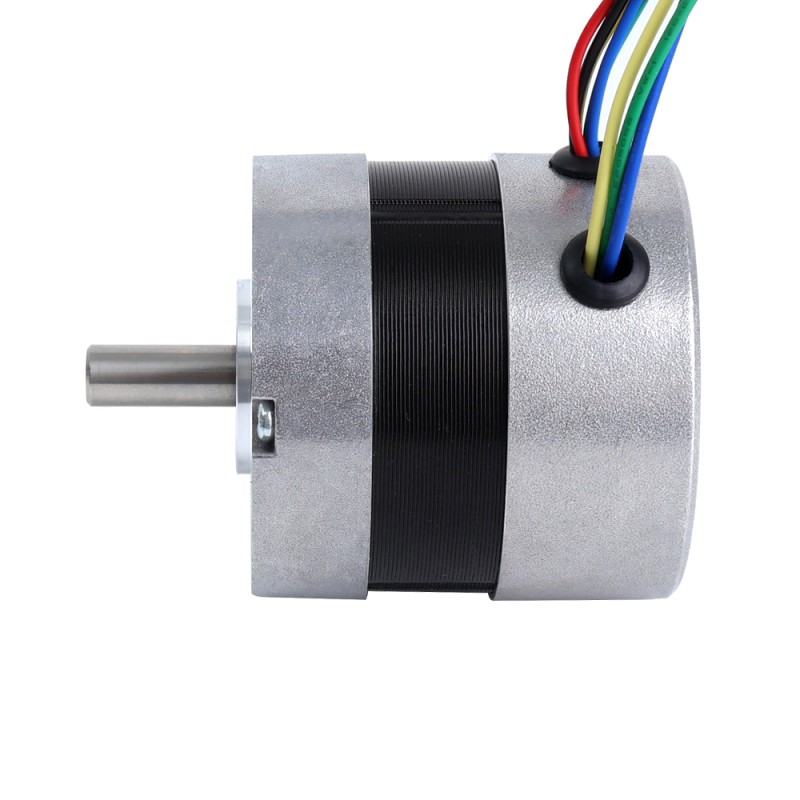

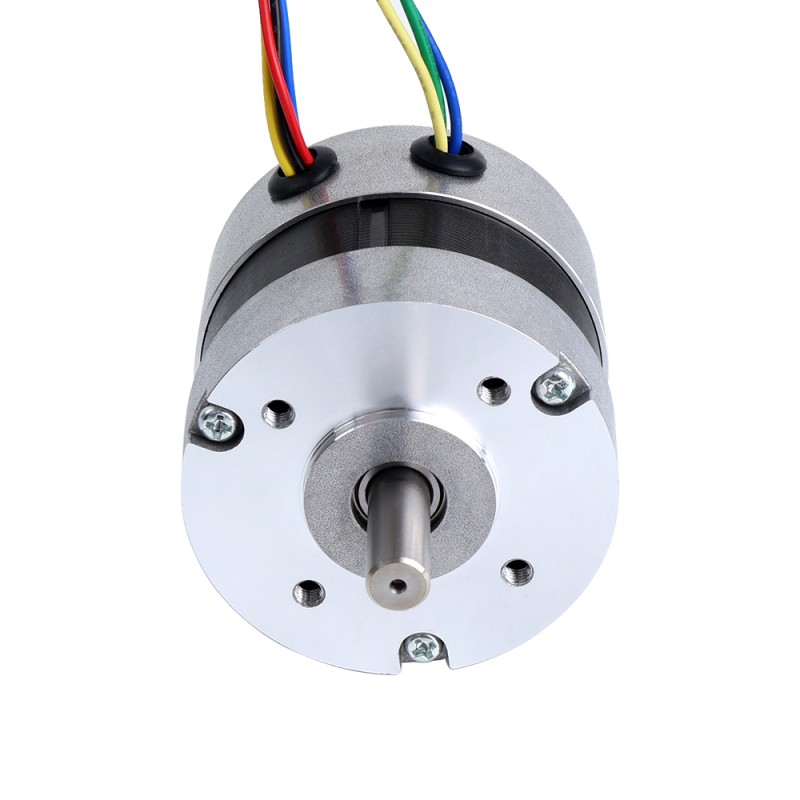

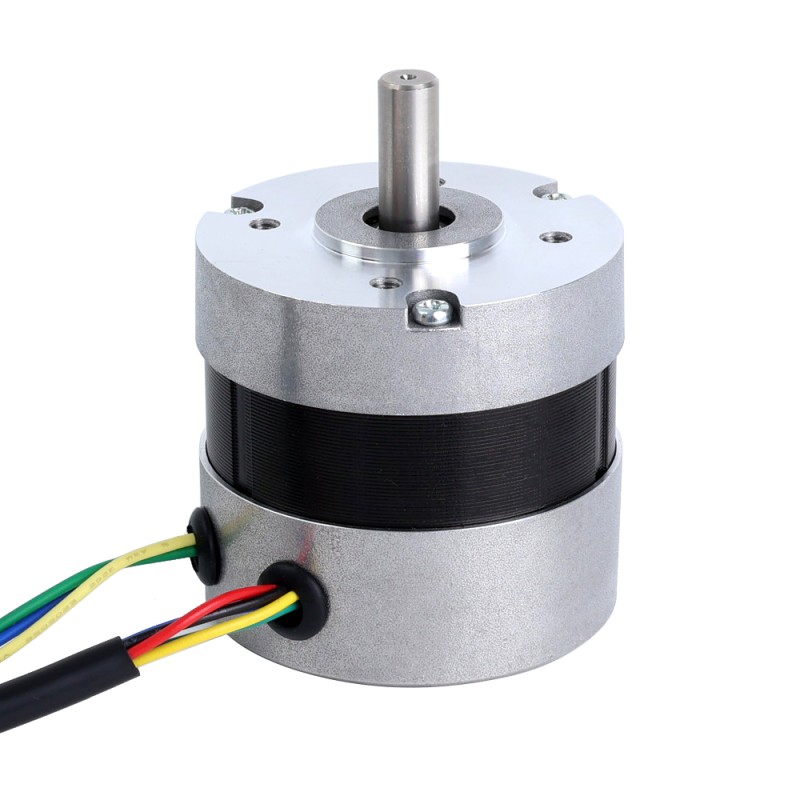

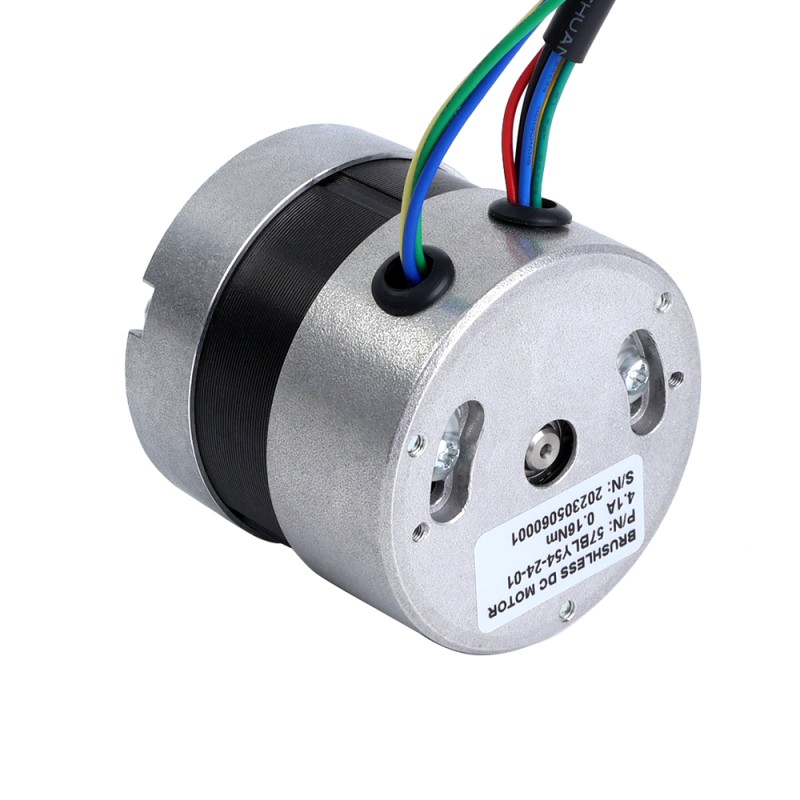

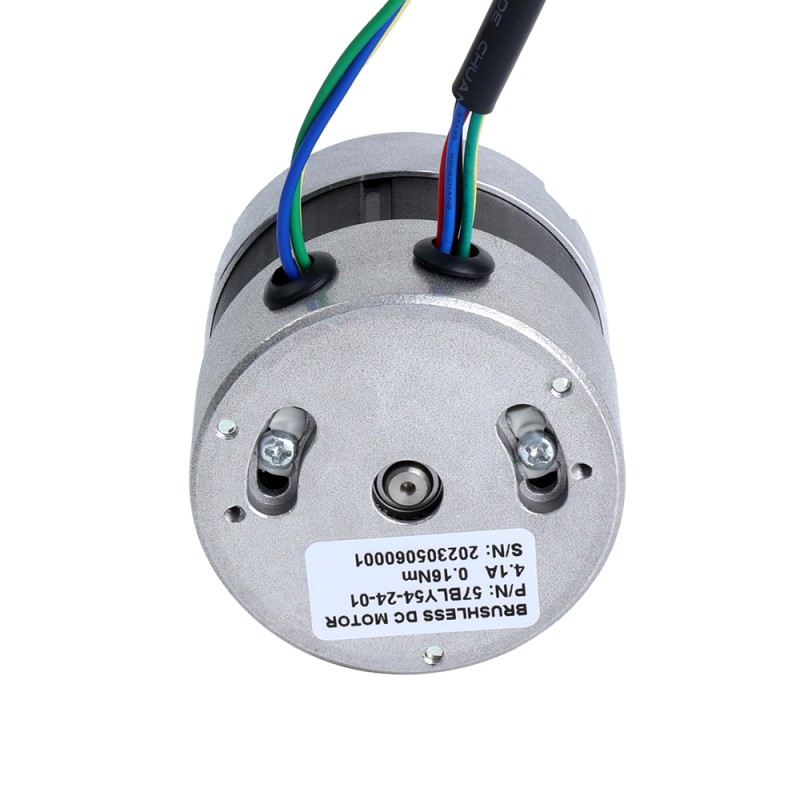

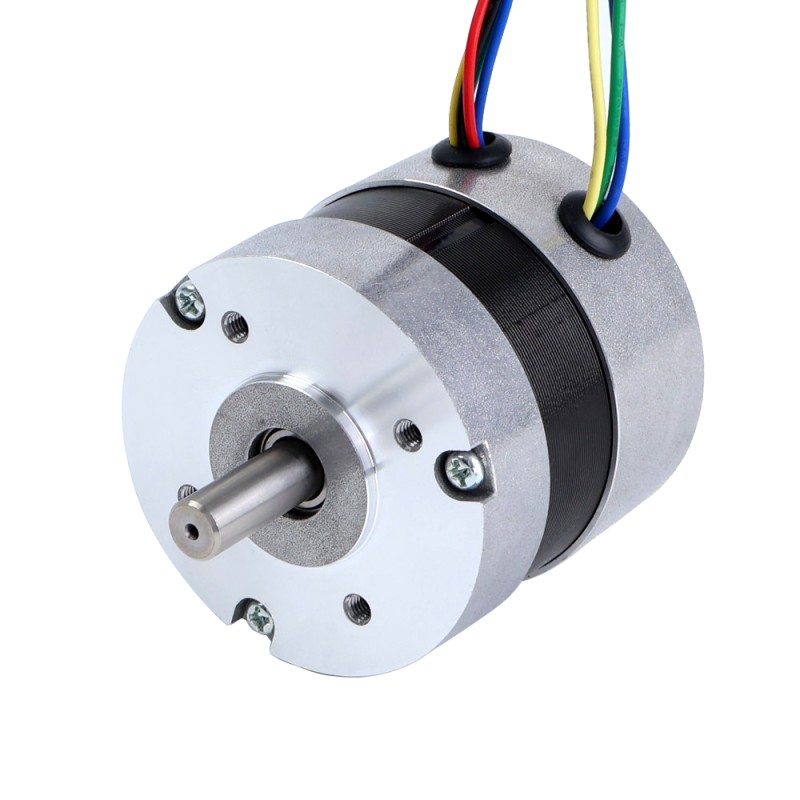

24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor

24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor - 57BLY54-24-01 | StepperOnline UK
57BLY54-24-01
Output Shaft TypeO
Shaft Diameter(mm)8
Shaft Length(mm)21
Rated Voltage(V)24
Question

Downloads

57BLY54-24-01.STEPSTEP · 206.97KBLog in to download57BLY54-24-01_Full_Datasheet.pdfPDF · 133.63KB
Same series
ModelOutput Shaft TypeShaft Diameter(mm)Shaft Length(mm)Rated Voltage(V)PriceStock
42BLR43-24-01O52024£15.70Backorder
42BLS40-24-01O52024£13.56In stock
42BLS60-24-01O52024£16.94In stock
42BSA46-24-01O52424£12.55In stock
42BSA62-24-01O52424£14.12In stock
42BSA62-36-01O52436£14.12In stock
42BSA78-24-01O52424£18.83In stock
42BSA78-48-01O52448£18.83In stock
42BSB101-24-01O52024£17.26In stock
42BSB101-48-01O52048£17.26In stock
42BSB41-24-01O52024£10.98In stock
42BSB61-24-01O52024£12.55In stock
42BSB61-48-01O52048£12.55In stock
42BSB81-24-01O52024£15.69In stock
42BSB81-48-01O52048£15.69In stock
42BYA43-24-01O52024£11.77In stock
42BYA51-24-01O52024£13.34In stock
42BYA73-24-01O52024£18.83In stock
57BLR110-36-01O82536£28.53In stock
57BLR50-24-01O82524£17.54In stock

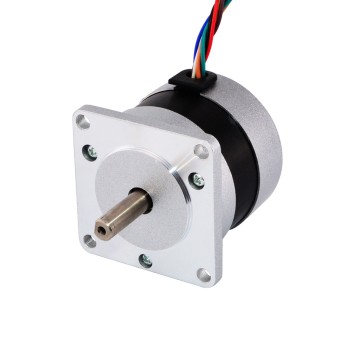

57BLR50-36-01D82536£17.54In stock
57BLR70-24-02O82524£24.93In stock
57BLR70-36-01O82536£20.32In stock
57BLY54-24-01O82124£14.77In stock
57BSA100-36-01D82136£34.52In stock
57BSA100-48-01D82148£34.52In stock
57BSA58-24-01D82124£17.26In stock
57BSA79-36-01D82136£25.11In stock
57BSD116-36-01D82136£22.75In stock
57BSD116-48-01D82148£22.75In stock
View all in category
24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor
The DC motors are made of high-quality materials and have a robust structure that provides efficient... Read More
0 reviews • Write a review
from
£14.77
5 + £14.27
10 + £13.80
50 + £13.36
100 + £12.94

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

The DC motors are made of high-quality materials and have a robust structure that provides efficient performance and consistent torque output. Because they are brushless, they use Hall-effect sensors to monitor rotor position and control speed, ensuring greater reliability and efficiency. STEPPERONLINE BLDC Motors are ideal for a wide range of applications.

Electrical Specification

  • Manufacturer Part Number: 57BLY54-24-01
  • Phase: 3
  • Poles: 4
  • Resistance/Line: 0.6ohms ± 10%
  • Inductance/Line: 1.4mH@1kHz ± 20%
  • Rated Voltage: 24VDC
  • No Load Speed: 5100RPM ± 10%
  • Rated Torque: 0.16Nm(22.66oz.in)
  • Rated Speed: 4000RPM ± 10%
  • Rated Current: 4.1A
  • Rated Power: 67W
  • Back EMF Constant: 3.4Vrms/krpm ± 5%
  • Insulation Class: B 130°C[266°F]
  • Insulation Resistance: >50MΩ MIN@600VDC

Physical Specification

  • Frame Size: Φ57mm
  • Body Length: 53.5mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • Number of Phase Leads: 3
  • Number of Hall Leads: 3
  • Lead Length: 300mm
  • Sensor: Hall Sensor
  • Weight: 450g

Connection

U
V
W
+5V
GND
A
B
C
Yellow
Green
Blue
Red
Black
Yellow
Grey
Blue
Product Type
Product Type BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 4.1
Rated Power(W) 67
Rated Speed(rpm) 4000
Rated Torque(Nm) 0.16
Rated Voltage(V) 24
Physical Specification
Frame Size(mm) ⌀57
Output Shaft Type O
Shaft Diameter(mm) 8
Shaft Length(mm) 21
