57BLR90-24-01 Discontinued

This product has been discontinued and is no longer available for purchase. Please contact us for a replacement.

Downloads

Same series
ModelPriceStock
1-CL57Y-S12 Discontinued—————
1-CL57Y-S20 Discontinued—————
1-CL57Y-S30A Discontinued—————
1-CLYS20 Discontinued—————
1-CLYS30 Discontinued—————
1-CLYS30-1M5 Discontinued—————
1-CLYS30S-V20 Discontinued—————
1-CLYS40 Discontinued—————
1-DM542T-24HS34 Discontinued—————
1-DM542T-24HS39 Discontinued—————
1-DM556S-24HS39 Discontinued—————
11C13S0754ED3-013RS Discontinued—————
11E13S0754ED2-100RS Discontinued—————
11E18S0754ED2-101RS Discontinued—————
11E18S0754FD3-250RS Discontinued—————
11E18S0754GD3-250RS Discontinued—————
11E20S0674AA2-100RS Discontinued—————
11E20S0674ED2-100RS Discontinued—————
11HS12-0674D2-PG27 Discontinued—26.85Economy Planetary——
11HS12-0674S-PG100 Discontinued—99.548Economy Planetary——
11HS20-0674D-PG14-AR3 Discontinued—13.73Economy Planetary——
11HS20-0714S-PG100 Discontinued—99.05Economy Planetary——
11N13S0754AA2-100RS Discontinued—————
11N13S0754QE2-150RS Discontinued—————
11N18S0754ED3-250RS Discontinued—————
11N20S0674AA2-100RS Discontinued—————
14E13S0574JE3-150RS Discontinued—————
14E13S0574QE3-150RS Discontinued—————
14E17S0914JE3-250RS Discontinued—————
14E17S0914QE3-250RS Discontinued—————
View all in category

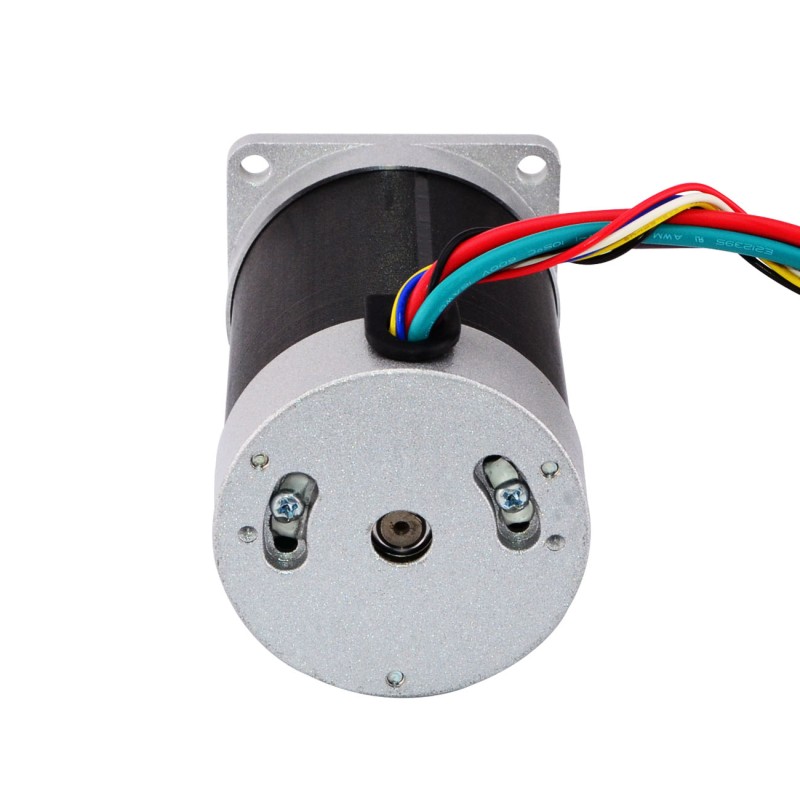

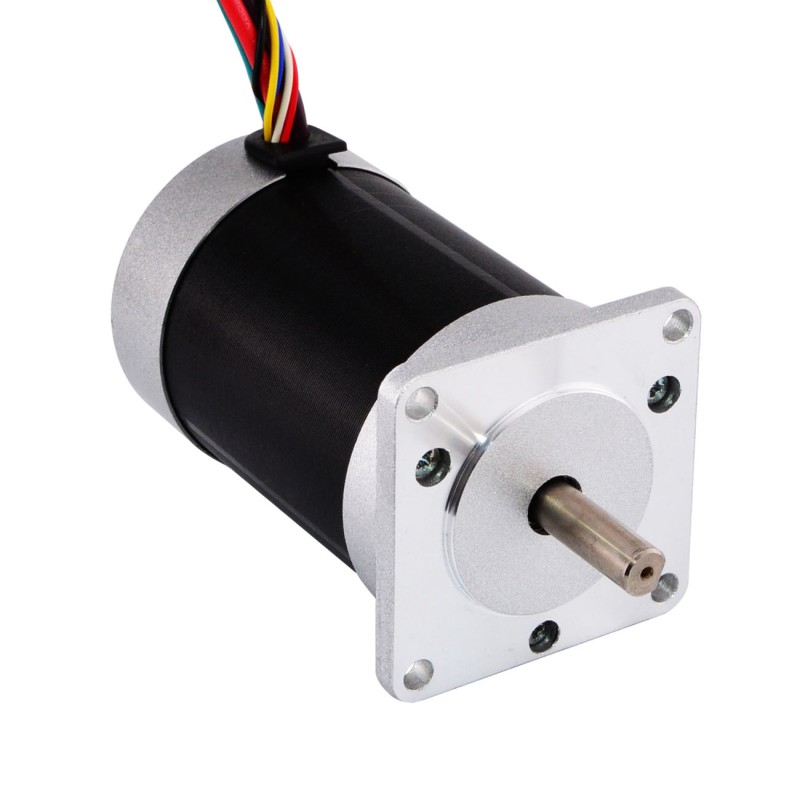

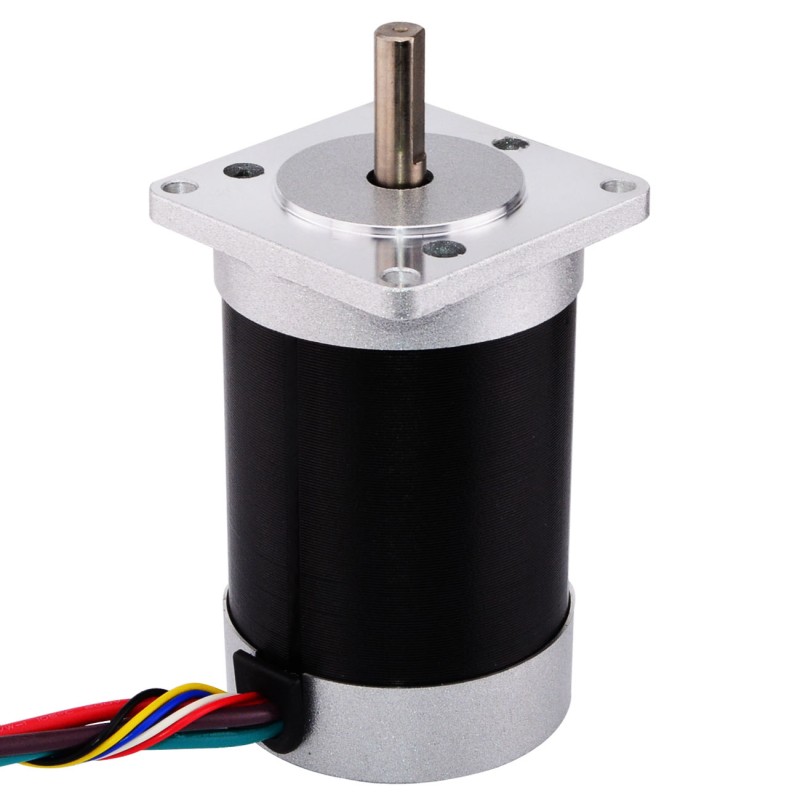

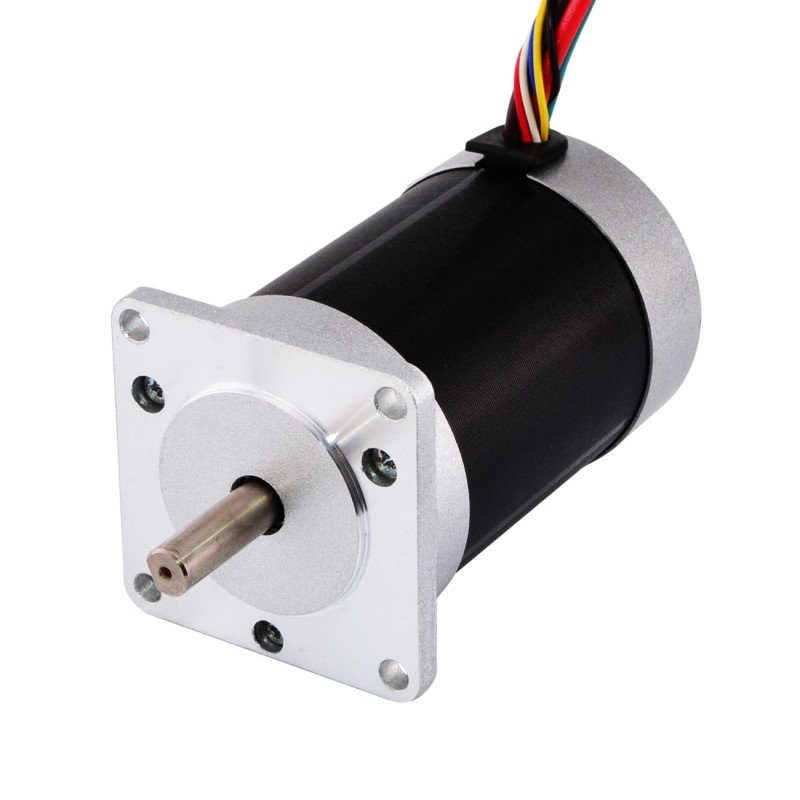

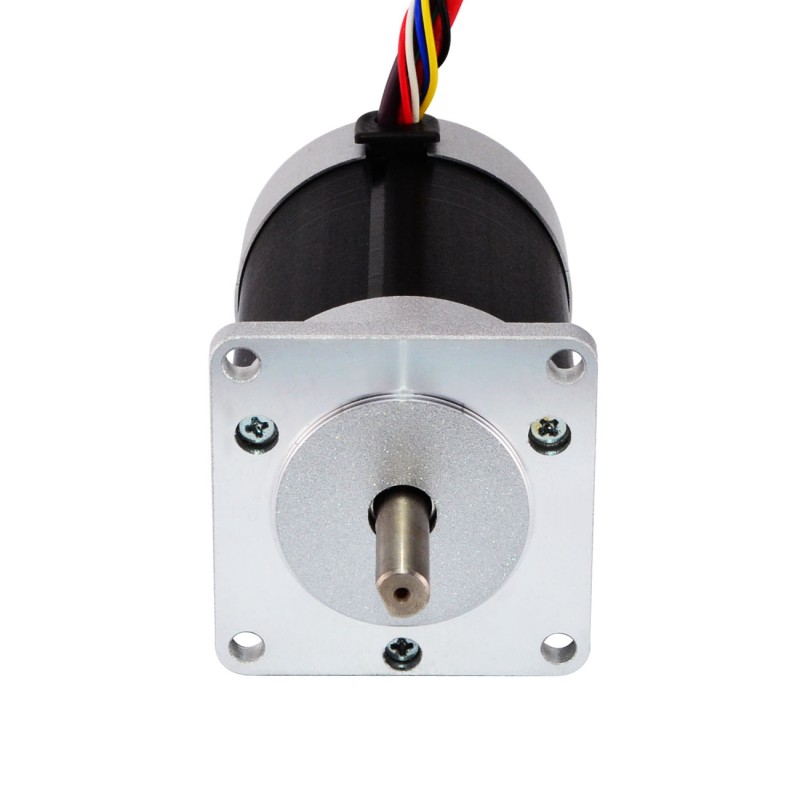

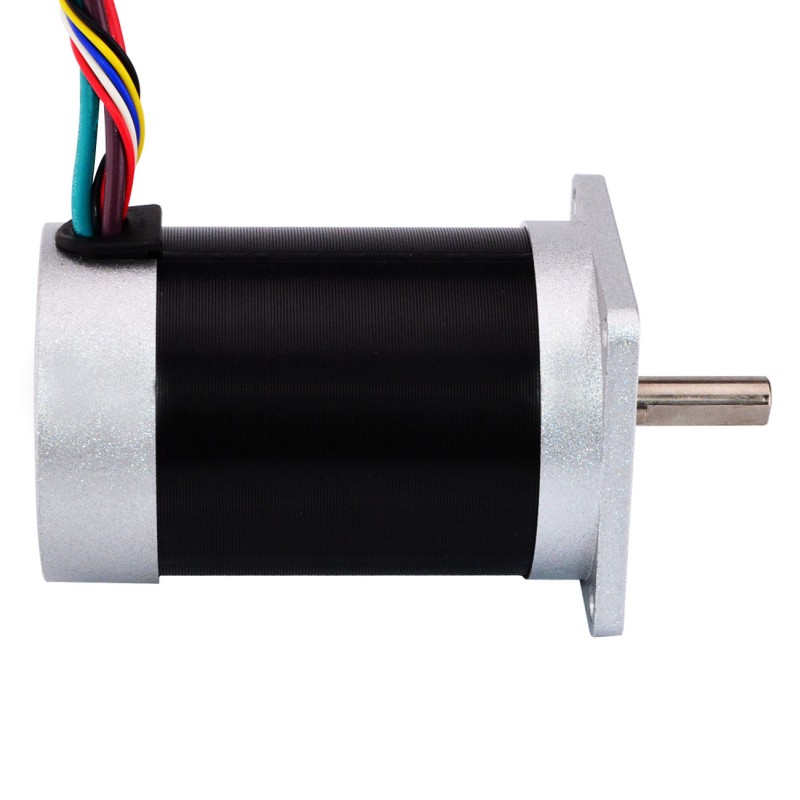

24V 3500RPM 0.6Nm 220W 14.0A Ф57x89mm Brushless DC Motor
Electrical Specification Manufacturer Part Number: 57BLR90-24-01 Phase: 3 Poles: 4 Rated Vo... Read More
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

Electrical Specification

  • Manufacturer Part Number: 57BLR90-24-01
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 24V
  • Rated Speed: 3500±10%RPM
  • Rated Torque: 0.6Nm(84.97oz.in)
  • Rated Current: 14±10%A
  • Rated Power: 220W
  • Insulation Class: B 130°C[266°F]
  • Insulation Resistance: 100MΩ Min @500VDC
  • Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

  • Frame Size: Φ57mm
  • Body Length: 89.1mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 25mm
  • Shaft Type: D-cut
  • D-cut Length: 20mm
  • Number of Leads: 8
  • Lead Length: 300mm
  • Bearing Type: NMB Ball Bearing, C3
  • Weight: 1kg

Connection

U
V
W
+5V
GND
A
B
C
Orange
Green
Brown
Red
Black
Yellow
White
Blue
Product Type
Product Type BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 14
Rated Power(W) 220
Rated Speed(rpm) 3500
Rated Torque(Nm) 0.6
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 89.1
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 20
Output Shaft Type O
Shaft Diameter(mm) 8
Shaft Length(mm) 25
With Gearbox No

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
This is the strongest Nema 23 stepper cnc motors, it with step angle 1.8deg and size 57x57x113mm. It has 4 wires, each phase draws 4.2A, with holding ..
from
£22.67
Add to Cart
This Nema 8 stepper motor with 38mm body and 0.6A rated current, integrated a planetary gearbox of 64:1 gear ratio. It's a good solution to applicatio..
from
£33.83
Add to Cart

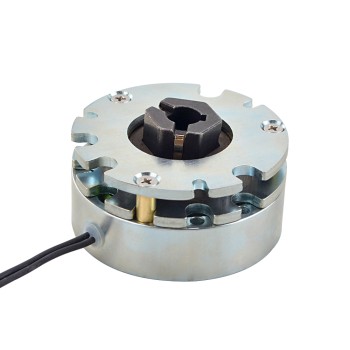

This brake is Non-excited brake and operate with 24VDC, it can create Max 4Nm(566.4oz.in) static friction torque. It's a good choice for Nema 34 size ..
from
£30.74
Add to Cart

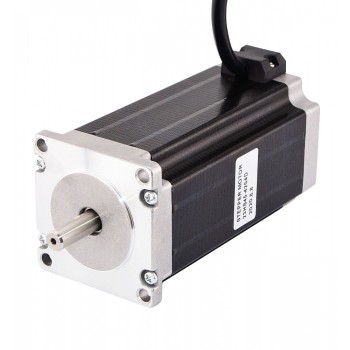

This is a dual-shaft motor with a 13.5mm long rear shaft and holding torque of 2.8Nm(396.51oz.in) , and the shaft diameter is 8mm. Threaded holes are ..
from
£29.92
Add to Cart

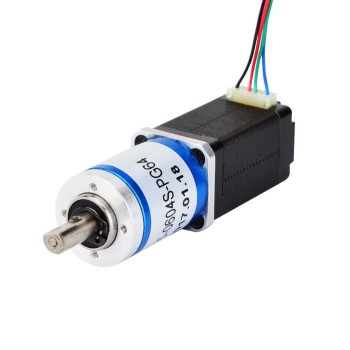

This Nema 8 stepper motor with 38mm body and 0.6A rated current, integrated a planetary gearbox of 19:1 gear ratio. It's a good solution to applicatio..
from
£33.83
Add to Cart
This CNC kit included: 1 x DM542T: Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor 1 x 23HS45-4204S: Nema 23 Bipol..
from
£27.93
Add to Cart

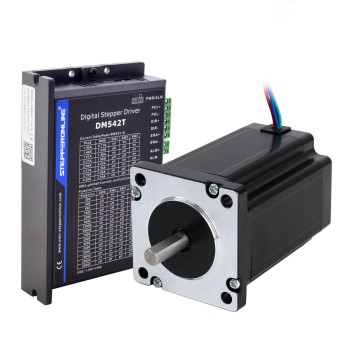

This CNC kit included: 1 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor 1 x Dual Shaft Nema 24 Bipolar 3.1Nm(439oz.in..
from
£0.00
Add to Cart

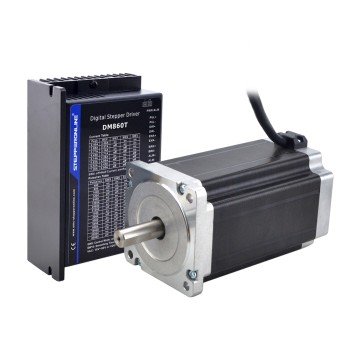

1 Axis Stepper CNC Kit 13.0Nm(1841oz.in) Nema 34 Stepper Motor & Driver
