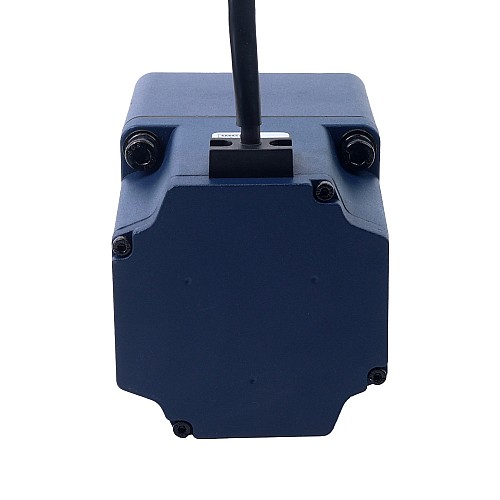

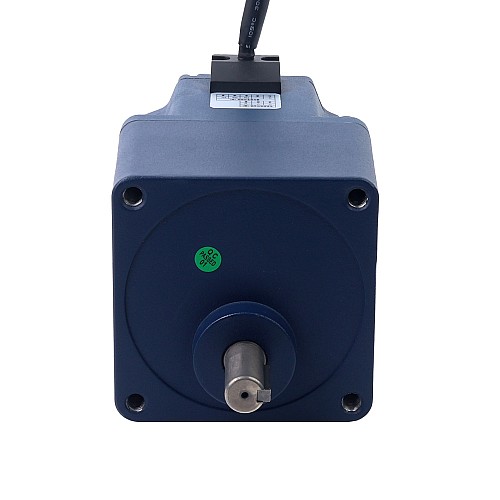

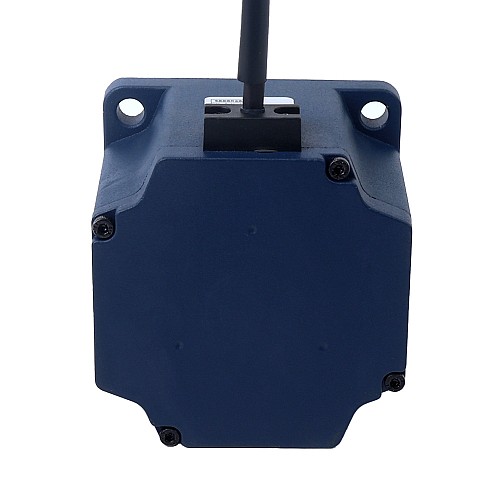

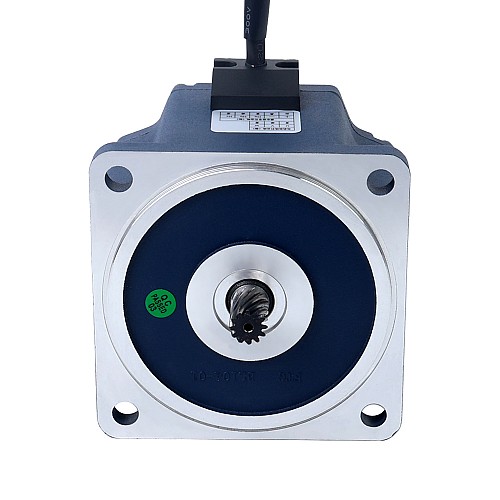

Name: 24V 250W 60RPM Geared Brushless DC Motor 26.10Nm(3696.07oz.in) 50:1 Spur Gearbox
Brand: STEPPERONLINE
SKU: F6B250-24GU-30S/6GU50K
Price: 65.20 GBP
Availability: InStock

24V 250W 60RPM Geared Brushless DC Motor 26.10Nm(3696.07oz.in) 50:1 Spur Gearbox - F6B250-24GU-30S/6GU50K | StepperOnline UK

F6B250-24GU-30S/6GU50K

Output Shaft TypeKeyway

Rated Voltage(V)24

Rated Current(A)13.00

Frame Size(mm)104 x 104

Question

Downloads

F6B250-24GU-30S_6GU50K_Full_Datasheet.pdfPDF · 59.86KB

Same series

Model	Output Shaft Type	Rated Voltage(V)	Rated Current(A)	Frame Size(mm)	Price	Stock
57BLR50-24-01-HG10	Keyway	24	5.00	Nema 23 (57 x 57)	£0.00	In stock
57BLR70-24-02-HG100	Keyway	24	10.40	Nema 23 (57 x 57)	£51.71	In stock
57BLR90-24-01-HG100	Keyway	24	14.00	Nema 23 (57 x 57)	£55.40	In stock
57BYA74-24-01-PG100	Keyway	24	5.70	⌀57	£54.94	In stock
57BYA74-24-01-PG27	Keyway	24	5.70	⌀57	£51.01	In stock
F2B15-24GN-30S/2GN100K	D	24	1.10	60 x 60	£22.24	In stock
F2B15-24GN-30S/2GN10K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-24GN-30S/2GN15K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-24GN-30S/2GN200K	D	24	1.10	60 x 60	£22.24	In stock
F2B15-24GN-30S/2GN20K	D	24	1.10	60 x 60	£21.17	In stock
F2B15-24GN-30S/2GN30K	D	24	1.10	60 x 60	£21.17	In stock
F2B15-24GN-30S/2GN3K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-24GN-30S/2GN3K-SALE	D	24	1.10	60 x 60	£19.92	In stock
F2B15-24GN-30S/2GN50K	D	24	1.10	60 x 60	£21.17	In stock
F2B15-24GN-30S/2GN50K-SALE	D	24	1.10	60 x 60	£20.98	In stock
F2B15-24GN-30S/2GN5K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN100K	D	48	0.60	60 x 60	£22.24	In stock
F2B15-48GN-30S/2GN10K	D	48	0.60	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN15K	D	48	0.60	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN200K	D	48	0.60	60 x 60	£22.24	In stock
F2B15-48GN-30S/2GN20K	D	48	0.60	60 x 60	£21.17	In stock
F2B15-48GN-30S/2GN30K	D	48	0.60	60 x 60	£21.17	In stock
F2B15-48GN-30S/2GN3K	D	48	0.60	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN50K	D	48	0.60	60 x 60	£21.17	In stock
F2B15-48GN-30S/2GN5K	D	48	0.60	60 x 60	£20.11	In stock
F2B40-24GL-30S/2GL150RC	Hollow	24	2.50	60 x 60	£32.90	In stock
F2B40-24GL-30S/2GL30RC	Hollow	24	2.50	60 x 60	£32.90	In stock
F3B40-24GN-30S/3GN100K	Keyway	24	2.50	70 x 70	£26.65	In stock
F3B40-24GN-30S/3GN10K	Keyway	24	2.50	70 x 70	£24.22	In stock
F3B40-24GN-30S/3GN15K	Keyway	24	2.50	70 x 70	£24.22	In stock

View all in category

24V 250W 60RPM Geared Brushless DC Motor 26.10Nm(3696.07oz.in) 50:1 Spur Gearbox

This is a 24V 250W brushless DC gear Motor with a flange of 104x104mm. The built-in 50:1 spur gearbo... Read More

0 reviews • Write a review

from

£65.20

5 + £63.35

10 + £61.60

50 + £59.95

100 + £58.38

Click country for live stock

Dispatches from

China

United States (+£17.34)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

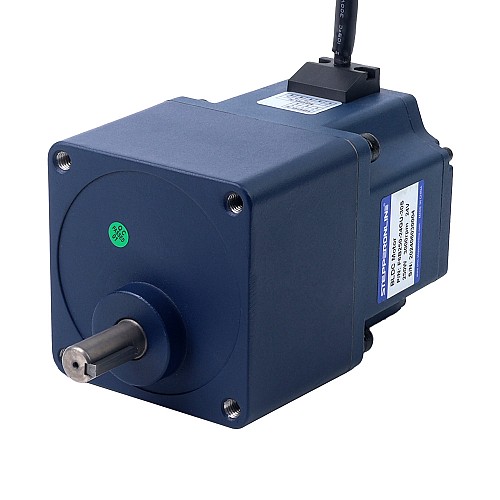

This is a 24V 250W brushless DC gear Motor with a flange of 104x104mm. The built-in 50:1 spur gearbox brings speed and torque to 60rpm and 26.10Nm(3696.07oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-515C.

Electrical Specifications

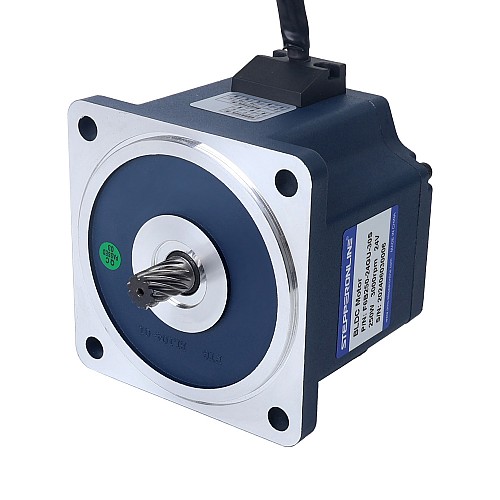

P/N: F6B250-24GU-30S/6GU50K
Phase: 3
Poles: 10
Rated Current: 13.00A
Rated Voltage: 24V
Rated Speed: 60rpm
Rated Torque: 26.10Nm(3696.07oz.in)
No-load Current: 2.20A
Rated Power: 250W
Insulation Class: E 120°C[248°F]
Insulation Resistance: 50MΩ Min @500V
Sensor: Hall Sensor
Life: More than 5000 hours

Physical Specifications

Frame Size: 104x104mm
Body Length: 152mm

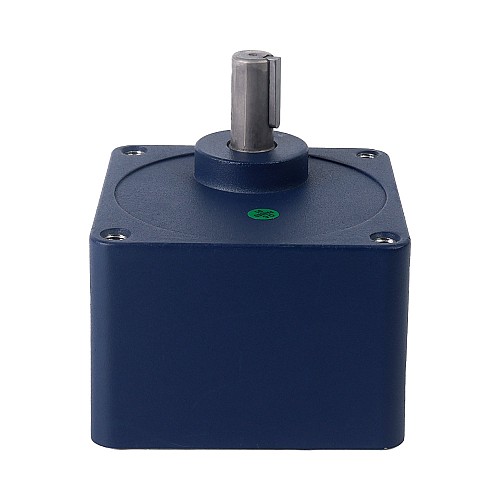

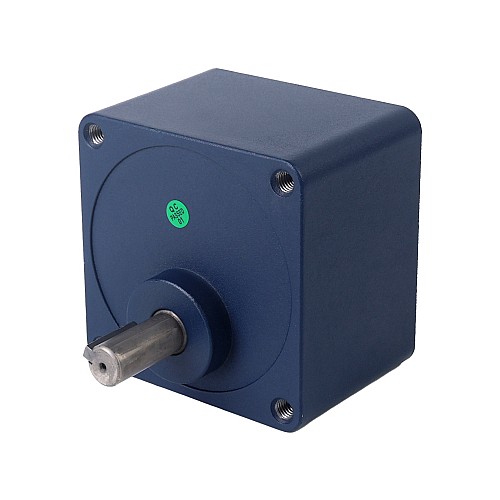

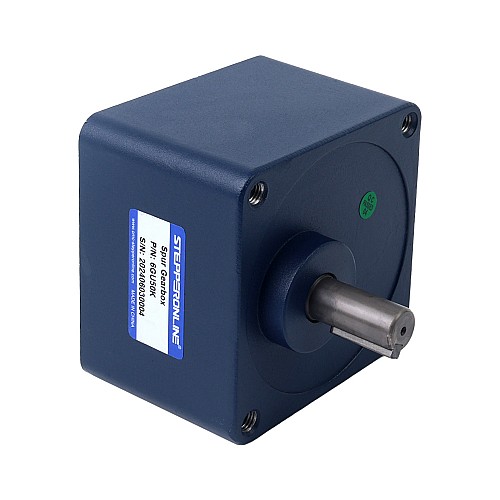

Gearbox Type: Spur Gearbox
Gearbox Ratio: 50:1
Shaft Type: Keyway
Shaft Diameter: Φ15mm
Shaft Length: 42mm
Keyway Length: 25mm
Bearing: Deep Groove Ball
Weight: 4.78kg

Connection

1	2	3	4	5	6	7	8
U	W	Hb	Ha	V	-	Hc	+
Yellow(Thick)	Blue(Thick)	Green	Yellow	Green(Thick)	Black	Blue	Red

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No-load Current(A)	2.2
No. of Phase	3
Rated Current(A)	13.00
Rated Power(W)	250
Rated Speed(rpm)	60
Rated Torque(Nm)	26.10
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	152
Frame Size(mm)	104 x 104
Gear Ratio(xx:1)	50
Gearbox Type	Square Spur Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	42
With Gearbox	Yes
