Name: 24V 150W 100RPM 10.50Nm(1486.92oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox
Brand: STEPPERONLINE
SKU: F55B150-24GL-30S/5GL30RC
Price: 49.51 GBP
Availability: InStock

24V 150W 100RPM 10.50Nm(1486.92oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F55B150-24GL-30S/5GL30RC | StepperOnline UK

F55B150-24GL-30S/5GL30RC

Output Shaft TypeHollow

Rated Voltage(V)24

Rated Current(A)8.00

Frame Size(mm)90 x 90

Question

Downloads

F55B150-24GL-30S-5GL30RC.STEPSTEP · 3.2MBLog in to download F55B150-24GL-30S_5GL30RC_Full_Datasheet.pdfPDF · 60.82KB

Same series

Model	Output Shaft Type	Rated Voltage(V)	Rated Current(A)	Frame Size(mm)	Price	Stock
57BLR50-24-01-HG10	Keyway	24	5.00	Nema 23 (57 x 57)	£0.00	In stock
57BLR70-24-02-HG100	Keyway	24	10.40	Nema 23 (57 x 57)	£51.71	In stock
57BLR90-24-01-HG100	Keyway	24	14.00	Nema 23 (57 x 57)	£55.40	In stock
57BYA74-24-01-PG100	Keyway	24	5.70	⌀57	£54.94	In stock
57BYA74-24-01-PG27	Keyway	24	5.70	⌀57	£51.01	In stock
F2B15-24GN-30S/2GN100K	D	24	1.10	60 x 60	£22.24	In stock
F2B15-24GN-30S/2GN10K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-24GN-30S/2GN15K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-24GN-30S/2GN200K	D	24	1.10	60 x 60	£22.24	In stock
F2B15-24GN-30S/2GN20K	D	24	1.10	60 x 60	£21.17	In stock
F2B15-24GN-30S/2GN30K	D	24	1.10	60 x 60	£21.17	In stock
F2B15-24GN-30S/2GN3K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-24GN-30S/2GN3K-SALE	D	24	1.10	60 x 60	£19.92	In stock
F2B15-24GN-30S/2GN50K	D	24	1.10	60 x 60	£21.17	In stock
F2B15-24GN-30S/2GN50K-SALE	D	24	1.10	60 x 60	£20.98	In stock
F2B15-24GN-30S/2GN5K	D	24	1.10	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN100K	D	48	0.60	60 x 60	£22.24	In stock
F2B15-48GN-30S/2GN10K	D	48	0.60	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN15K	D	48	0.60	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN200K	D	48	0.60	60 x 60	£22.24	In stock
F2B15-48GN-30S/2GN20K	D	48	0.60	60 x 60	£21.17	In stock
F2B15-48GN-30S/2GN30K	D	48	0.60	60 x 60	£21.17	In stock
F2B15-48GN-30S/2GN3K	D	48	0.60	60 x 60	£20.11	In stock
F2B15-48GN-30S/2GN50K	D	48	0.60	60 x 60	£21.17	In stock
F2B15-48GN-30S/2GN5K	D	48	0.60	60 x 60	£20.11	In stock
F2B40-24GL-30S/2GL150RC	Hollow	24	2.50	60 x 60	£32.90	In stock
F2B40-24GL-30S/2GL30RC	Hollow	24	2.50	60 x 60	£32.90	In stock
F3B40-24GN-30S/3GN100K	Keyway	24	2.50	70 x 70	£26.65	In stock
F3B40-24GN-30S/3GN10K	Keyway	24	2.50	70 x 70	£24.22	In stock
F3B40-24GN-30S/3GN15K	Keyway	24	2.50	70 x 70	£24.22	In stock

View all in category

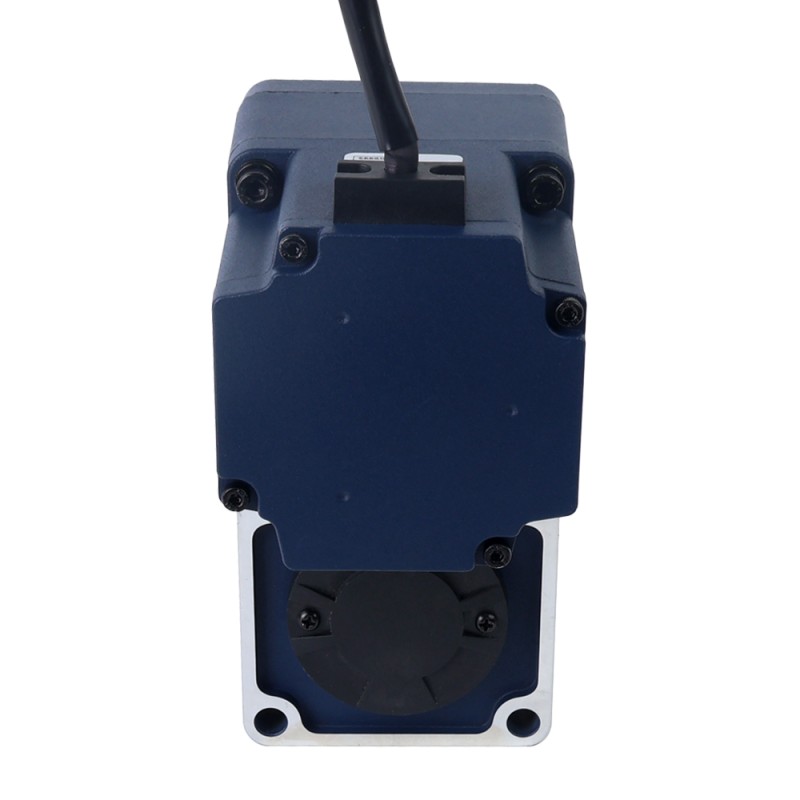

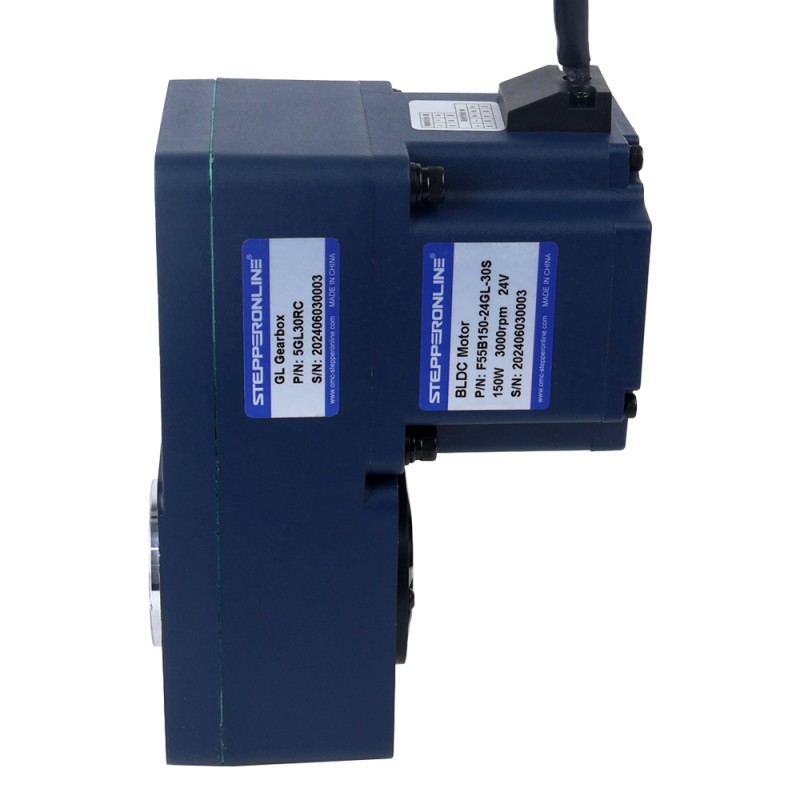

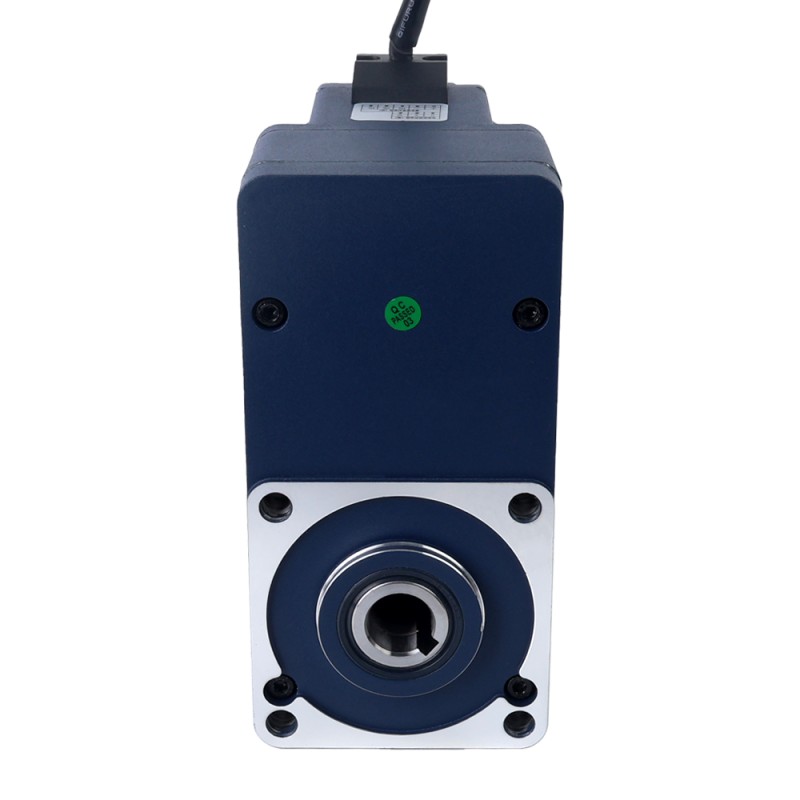

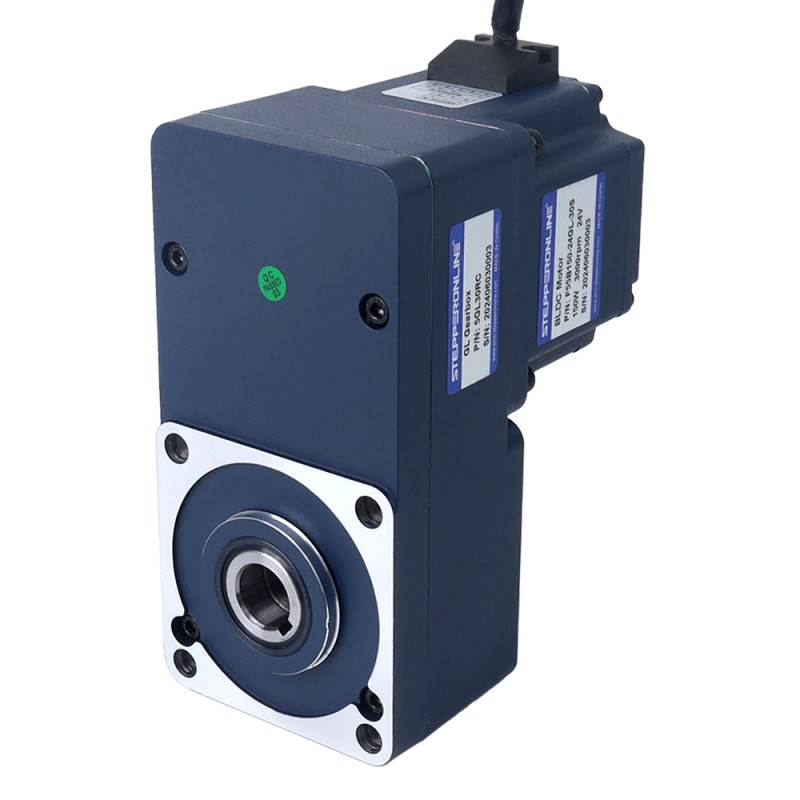

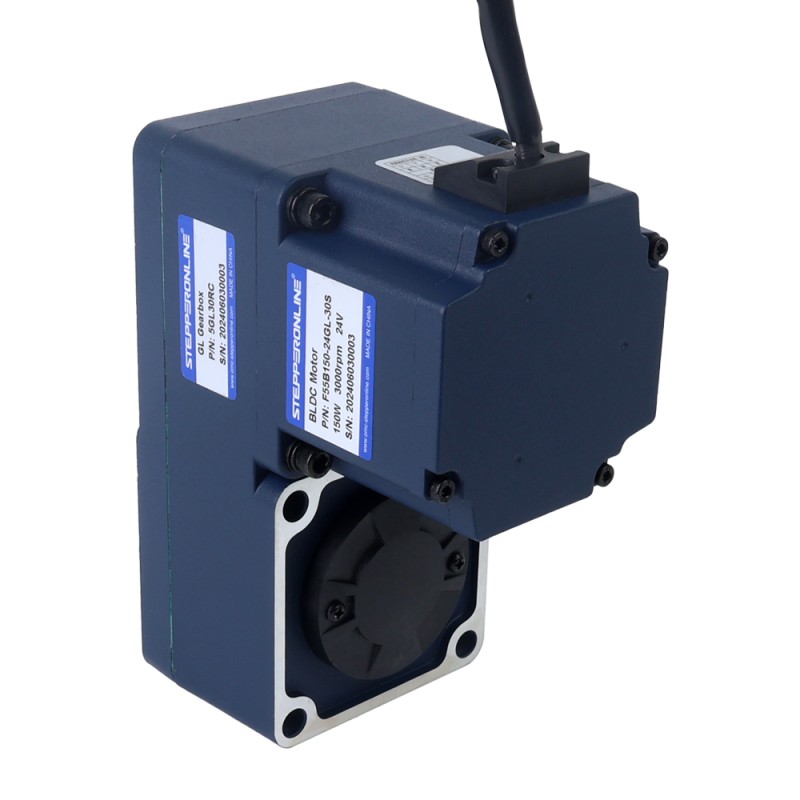

24V 150W 100RPM 10.50Nm(1486.92oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox

This is a 24V 150W BLDC gear motor with a flange of 90x90mm. The built-in 30:1 parallel hollow shaft... Read More

0 reviews • Write a review

from

£49.51

5 + £48.10

10 + £46.78

50 + £45.52

100 + £44.33

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This is a 24V 150W BLDC gear motor with a flange of 90x90mm. The built-in 30:1 parallel hollow shaft gearbox brings speed and torque to 100rpm and 10.50Nm(1486.92oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

P/N: F55B150-24GL-30S/5GL30RC
Phase: 3
Poles: 10
Rated Current: 8.00A
Rated Voltage: 24V
Rated Speed: 100rpm
Rated Torque: 10.50Nm(1486.92oz.in)
No-load Current: 1.40A
Rated Power: 150W
Insulation Class: E 120°C[248°F]
Insulation Resistance: 50MΩ Min @500V
Sensor: Hall Sensor
Life: More than 5000 hours

Physical Specifications

Frame Size: 90x90mm
Gearbox Type: Parallel Hollow Shaft Gearbox
Gearbox Ratio: 30:1
Shaft Type: Hollow
Bore Diameter: Φ20mm
Bore Length: 69.5mm
Bearing: Deep Groove Ball
Weight: 3.98kg

Connection

1	2	3	4	5	6	7	8
U	W	Hb	Ha	V	-	Hc	+
Yellow(Thick)	Blue(Thick)	Green	Yellow	Green(Thick)	Black	Blue	Red

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No-load Current(A)	1.4
No. of Phase	3
Rated Current(A)	8.00
Rated Power(W)	150
Rated Speed(rpm)	100
Rated Torque(Nm)	10.50
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	181
Frame Size(mm)	90 x 90
Gear Ratio(xx:1)	30
Gearbox Type	Parallel Gearbox
Output Shaft Type	Hollow
With Gearbox	Yes
