6IK200RGU-AF/6GU10K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)104 x 104
Current(A)2.7
Question

Downloads

6IK200RGU-XF_6GUXXK_Manual.pdfPDF · 1.18MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
6IK200RA-AFD1PH 110VAC104 x 1042.7£40.16In stock
6IK200RA-CFD1PH 220VAC104 x 1041.3£40.16In stock
6IK200RGU-AF/6GU100KKeyway1PH 110VAC104 x 1042.7£66.06In stock
6IK200RGU-AF/6GU100RCHollow1PH 110VAC104 x 1042.7£84.34In stock
6IK200RGU-AF/6GU100RTKeyway1PH 110VAC104 x 1042.7£84.34In stock
6IK200RGU-AF/6GU10KKeyway1PH 110VAC104 x 1042.7£62.61In stock
6IK200RGU-AF/6GU10RCHollow1PH 110VAC104 x 1042.7£82.76In stock
6IK200RGU-AF/6GU10RTKeyway1PH 110VAC104 x 1042.7£82.76In stock
6IK200RGU-AF/6GU15KKeyway1PH 110VAC104 x 1042.7£62.61In stock
6IK200RGU-AF/6GU15RCHollow1PH 110VAC104 x 1042.7£82.76In stock
6IK200RGU-AF/6GU15RTKeyway1PH 110VAC104 x 1042.7£82.76In stock
6IK200RGU-AF/6GU180RCHollow1PH 110VAC104 x 1042.7£84.34In stock
6IK200RGU-AF/6GU180RTKeyway1PH 110VAC104 x 1042.7£84.34In stock
6IK200RGU-AF/6GU200KKeyway1PH 110VAC104 x 1042.7£66.06In stock
6IK200RGU-AF/6GU20KKeyway1PH 110VAC104 x 1042.7£66.06In stock
6IK200RGU-AF/6GU20RCHollow1PH 110VAC104 x 1042.7£82.76In stock
6IK200RGU-AF/6GU20RTKeyway1PH 110VAC104 x 1042.7£82.76In stock
6IK200RGU-AF/6GU30KKeyway1PH 110VAC104 x 1042.7£66.06In stock
6IK200RGU-AF/6GU30RCHollow1PH 110VAC104 x 1042.7£82.76In stock
6IK200RGU-AF/6GU30RTKeyway1PH 110VAC104 x 1042.7£82.76In stock
6IK200RGU-AF/6GU3KKeyway1PH 110VAC104 x 1042.7£59.16In stock
6IK200RGU-AF/6GU50KKeyway1PH 110VAC104 x 1042.7£66.06In stock
6IK200RGU-AF/6GU50RCHollow1PH 110VAC104 x 1042.7£84.34In stock
6IK200RGU-AF/6GU50RTKeyway1PH 110VAC104 x 1042.7£84.34In stock
6IK200RGU-AF/6GU5KKeyway1PH 110VAC104 x 1042.7£59.16In stock
6IK200RGU-CF/6GU100KKeyway1PH 220VAC104 x 1041.3£66.06In stock
6IK200RGU-CF/6GU100RCHollow1PH 220VAC104 x 1041.3£84.34In stock
6IK200RGU-CF/6GU100RTKeyway1PH 220VAC104 x 1041.3£84.34In stock
6IK200RGU-CF/6GU10KKeyway1PH 220VAC104 x 1041.3£62.61In stock
6IK200RGU-CF/6GU10RCHollow1PH 220VAC104 x 1041.3£82.76In stock
View all in category
200W 110VAC 60Hz 9-155RPM 9.72Nm(1376.47oz.in) Flange 104mm Spur Gearbox Single-phase AC Variable Speed Motor
This 104x104mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a... Read More
0 reviews • Write a review
from
£62.61
5 + £60.92
10 + £59.34
50 + £57.82
100 + £56.38

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

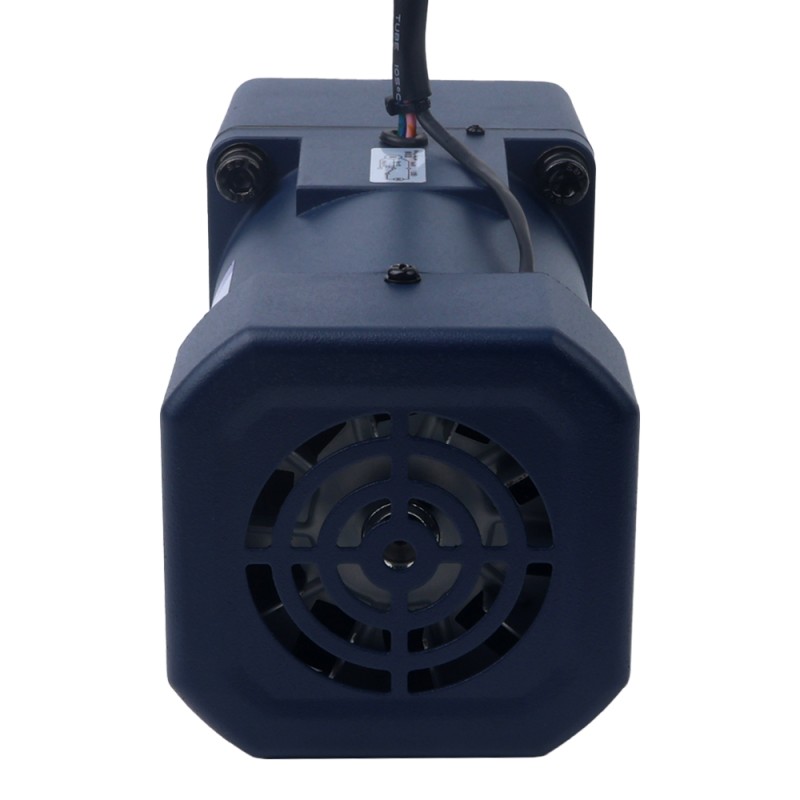

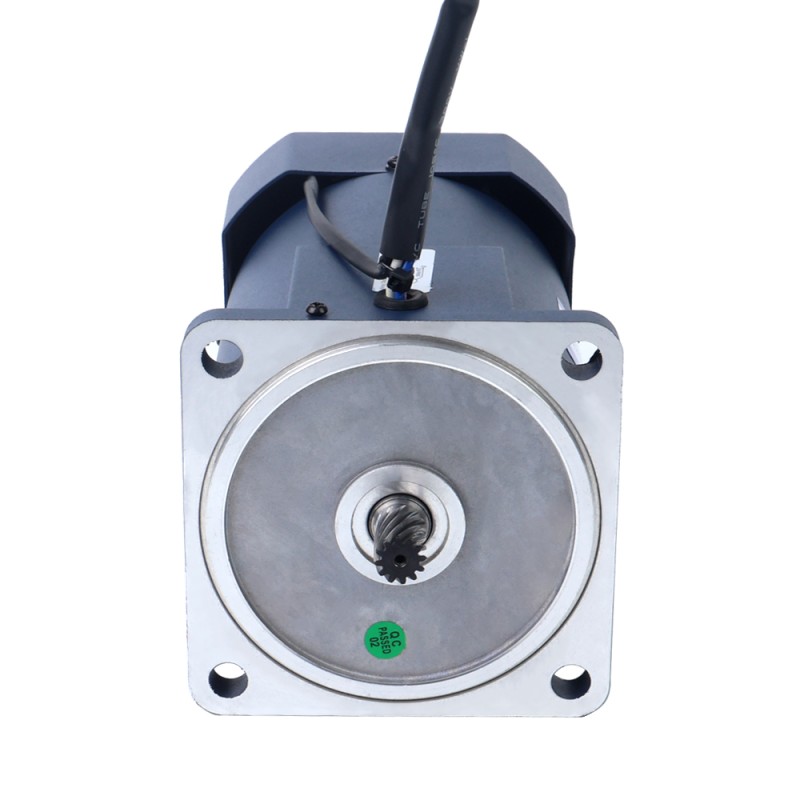

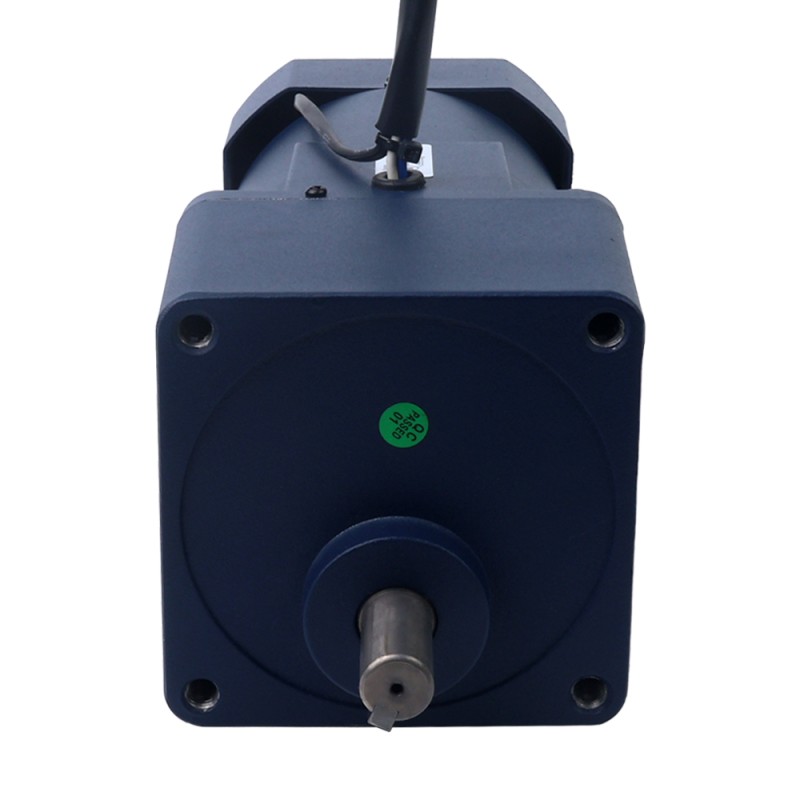

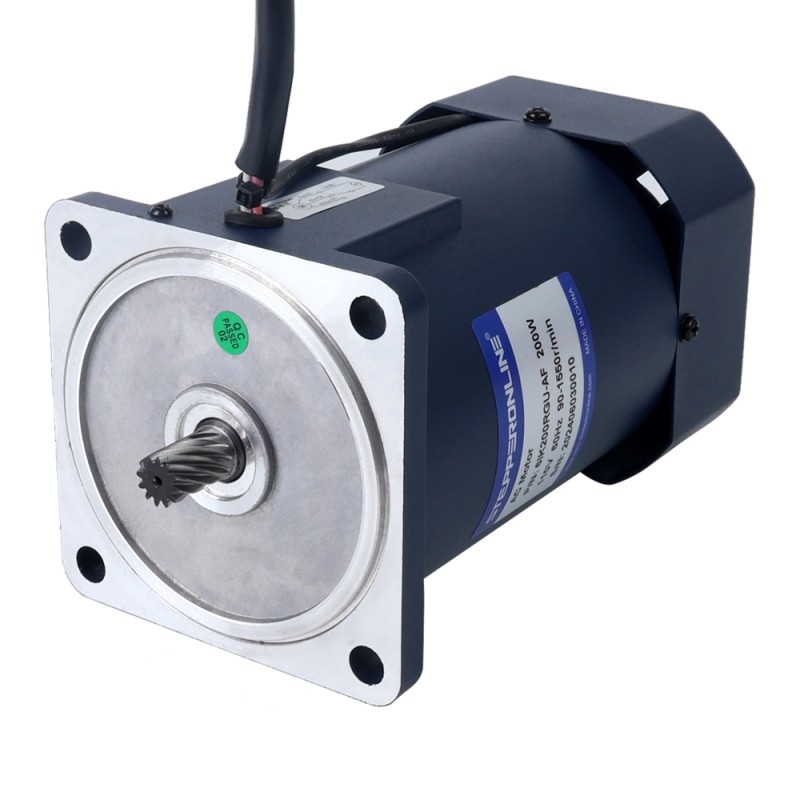

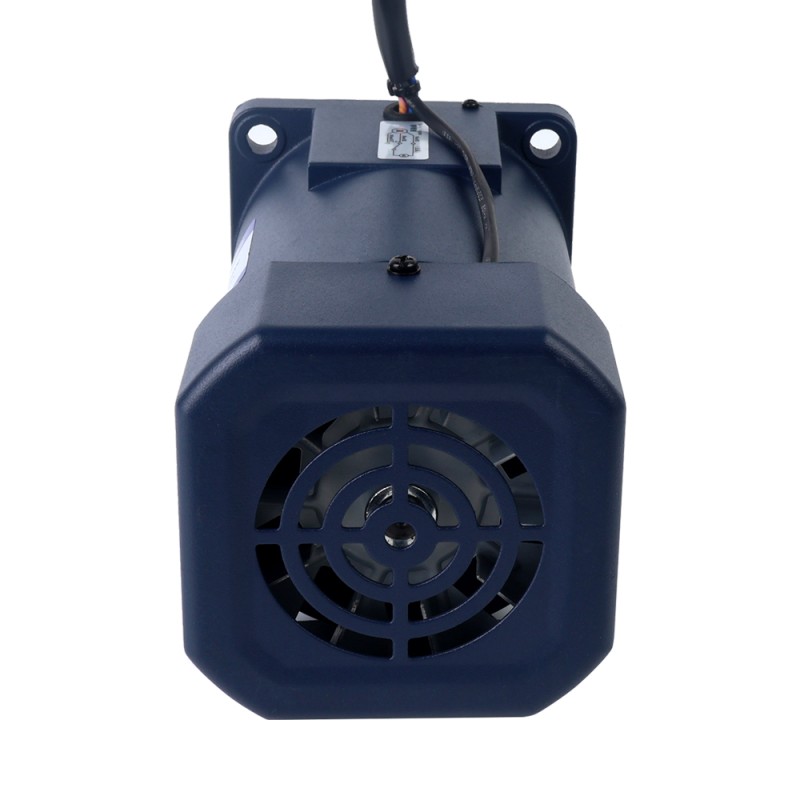

This 104x104mm single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 9-155rpm and a gearbox with a gear ratio of 10. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 6IK200RGU-AF/6GU10K
  • Gearbox Type: Spur Gearbox
  • Output Power: 200W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 2.70A
  • Gear Ratio: 10:1
  • Speed Range: 9-155rpm
  • Maximum Torque: 9.72Nm(1376.47oz.in)
  • Capacitor: 35.0μF/250VAC

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length: 246mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 42mm
  • Weight: 7.35kg

Wiring

Electrical Specification
Current(A) 2.7
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 9.72
Output Power(W) 200
Speed Range(rpm) 9-155
Physical Specification
Frame Size(mm) 104 x 104
Gear Ratio(xx:1) 10
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
