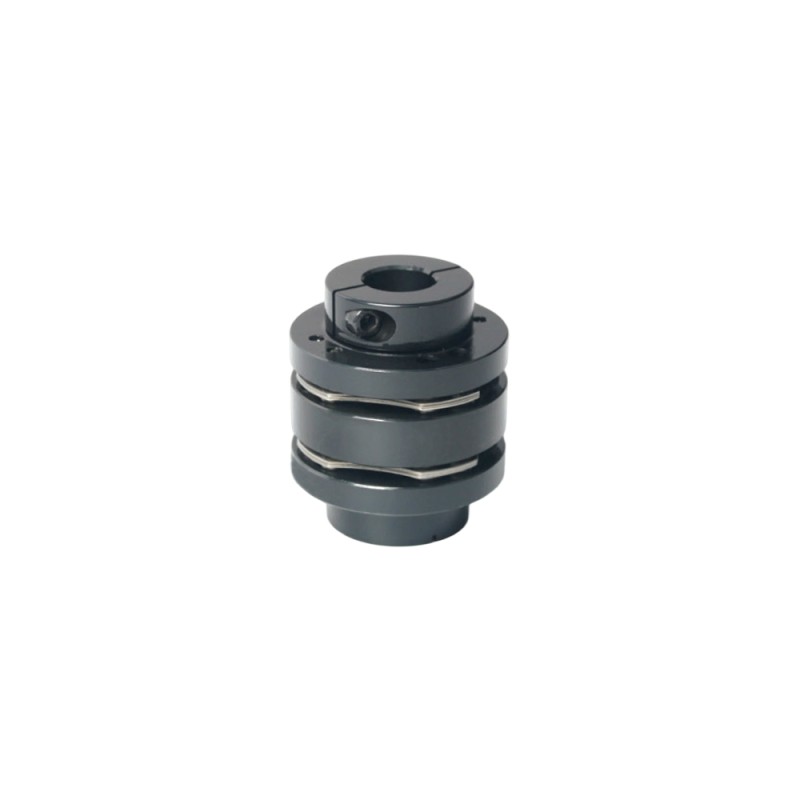

19mm - 45mm Optional Bore Flexible Double Disc Coupling 92x98mm Shaft Coupler

19mm - 45mm Optional Bore Flexible Double Disc Coupling 92x98mm Shaft Coupler - MP9298-XX-XX | StepperOnline UK
New Pre-order
MP9298-XX-XX
Body Length(mm)98
Matching Shaft Diameter(mm)19-45 optional
Diameter(mm)92
Question
Same series
ModelBody Length(mm)Matching Shaft Diameter(mm)Diameter(mm)PriceStock
MP10298-XX-XX9820-55 optional102£97.57Backorder
MP1919-5-5195 - 519£4.20In stock
MP1919-8-8198 - 819£4.20In stock
MP1926-5-5265 - 519£6.37In stock
MP1926-5-8265 - 819£7.01In stock
MP1926-8-8268 - 819£6.37In stock
MP2534-XX-XX34.55-12 optional25£9.76Backorder
MP2626-5-5265 - 526£3.93In stock
MP2626-5-6265 - 626£3.93In stock
MP2626-5-6.35265 - 6.3526£3.93In stock
MP2626-5-8265 - 826£3.93In stock
MP2626-6-10266 - 1026£3.93Backorder
MP2626-6.35-10266.35 - 1026£3.93Backorder
MP2626-6.35-6.35266.35 - 6.3526£3.93In stock
MP2626-6.35-8266.35 - 826£3.93In stock
MP2626-8-10268 - 1026£3.93In stock
MP2626-8-8268 - 826£3.93In stock
MP2635-5-5355 - 526£5.83In stock
MP2635-5-6355 - 626£5.83Backorder
MP2635-5-6.35-SALE355 - 6.3526£4.01In stock
MP2635-5-8355 - 826£5.83In stock
MP2635-6.35-10356.35 - 1026£5.83In stock
MP2635-8-10358 - 1026£5.83In stock
MP2635-8-8358 - 826£5.83In stock
MP2635-XX-XX35.15-14 optional26.5£9.76Backorder
MP2735-XX-XX35.16-14 optional27£9.76Backorder
MP3229-10-142910 - 1432£4.47In stock
MP3229-14-142914 - 1432£4.47In stock
MP3229-14-152914 - 1532£4.47In stock
MP3229-14-162914 - 1632£4.47In stock
View all in category
19mm - 45mm Optional Bore Flexible Double Disc Coupling 92x98mm Shaft Coupler
Specification Part Number: MP9298-XX-XX Type: Double Disc Rated Torque: 195Nm(27614.32oz.in) M... Read More
0 reviews • Write a review
from
£74.53
5 + £70.86
10 + £67.52
50 + £64.48
100 + £61.71

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

Specification

  • Part Number: MP9298-XX-XX
  • Type: Double Disc
  • Rated Torque: 195Nm(27614.32oz.in)
  • Max. Speed: 4000rpm
  • Static Torsional Spring Constant: 44500Nm/rad
  • Screw Tightening Torque: 28Nm
  • Moment of Inertia: 4.0×10⁻³kg·m²
  • Bore Diameter(d1-d2): 19mm - 45mm
  • Body Outside Diameter(D): 92mm
  • Body Length(L): 98mm
  • Max. Radial Misalignment: 0.2mm
  • Max. Angular Misalignment: 1°
  • Max. Axial Misalignment: ±0.6mm
  • Material Type: Steel
  • Weight: 3111g
  • Available Standard Bore: 19/20/22/24/25/28/30/32/35/38/40/42/45mm
Coupling Specification
Coupling Type Disc Shaft Coupling
Body Length(mm) 98
Diameter(mm) 92
Matching Shaft Diameter(mm) 19-45 optional

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
5mm - 5mm Flexible Shaft Coupling 18x25mm CNC Stepper Motor Shaft Coupler
5mm - 5mm Flexible Shaft Coupling 18x25mm CNC Stepper Motor Shaft Coupler
Shaft: 5mm - 5mm Diameter: 18mm Length: 25mm Body Material: Aluminum Alloy..
from
£0.86
Add to Cart
Add to Wish List Compare this Product
Quickview
5mm - 5mm Flexible Double Disc Coupling 19x26mm CNC Stepper Motor Shaft Coupler
5mm - 5mm Flexible Double Disc Coupling 19x26mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP1926-5-5 Type: Double Disc Rated Torque: 1Nm(141.58oz.in) Max. Torque: 2Nm(283.16oz.in) Max. S..
from
£6.37
Add to Cart
Add to Wish List Compare this Product
Quickview

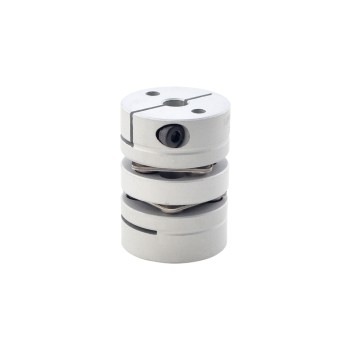

5mm - 6mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler
Pre-order
5mm - 6mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP2635-5-6 Type: Double Disc Rated Torque: 1.4Nm(198.21oz.in) Max. Torque: 2.8Nm(396.42oz.in) Ma..
from
£5.83
Add to Cart
Add to Wish List Compare this Product
Quickview

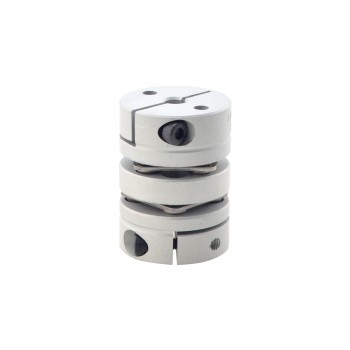

CN On Sale - 5mm - 6.35mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler
CN On Sale - 5mm - 6.35mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP2635-5-6.35 Type: Double Disc Rated Torque: 1.4Nm(198.21oz.in) Max. Torque: 2.8Nm(396.42oz.in) ..
from Save -31%
£4.01 £5.83
Add to Cart
Add to Wish List Compare this Product
Quickview

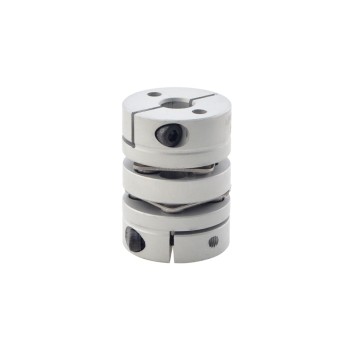

5mm - 8mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler
5mm - 8mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP2635-5-8 Type: Double Disc Rated Torque: 1.4Nm(198.21oz.in) Max. Torque: 2.8Nm(396.42oz.in) Ma..
from
£5.83
Add to Cart
Add to Wish List Compare this Product
Quickview

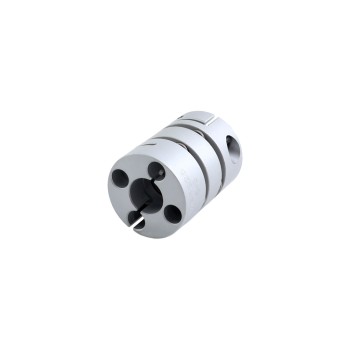

5mm - 8mm Flexible Double Disc Coupling 19x26mm CNC Stepper Motor Shaft Coupler
