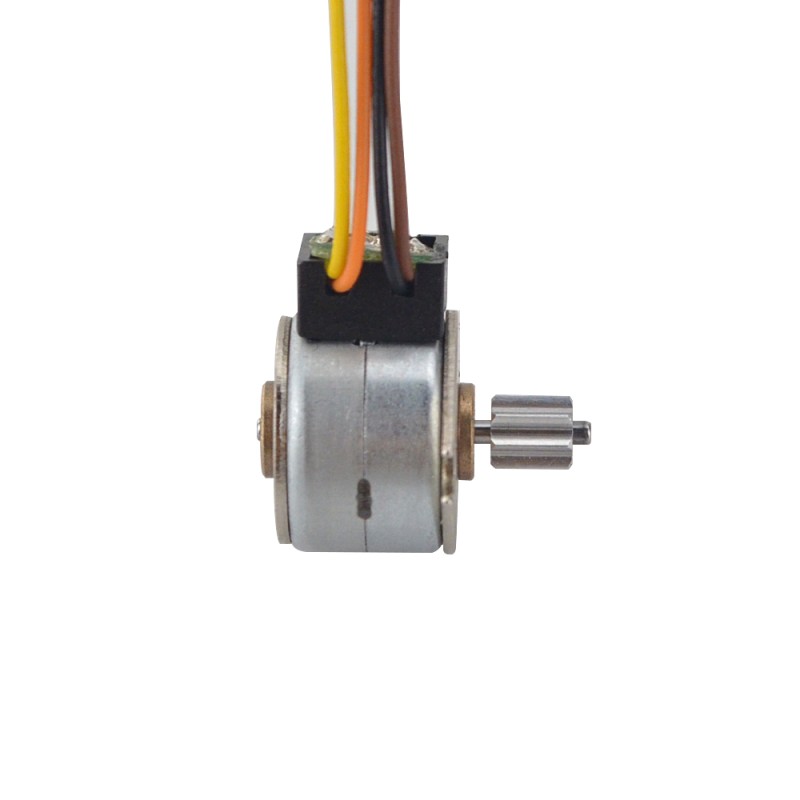

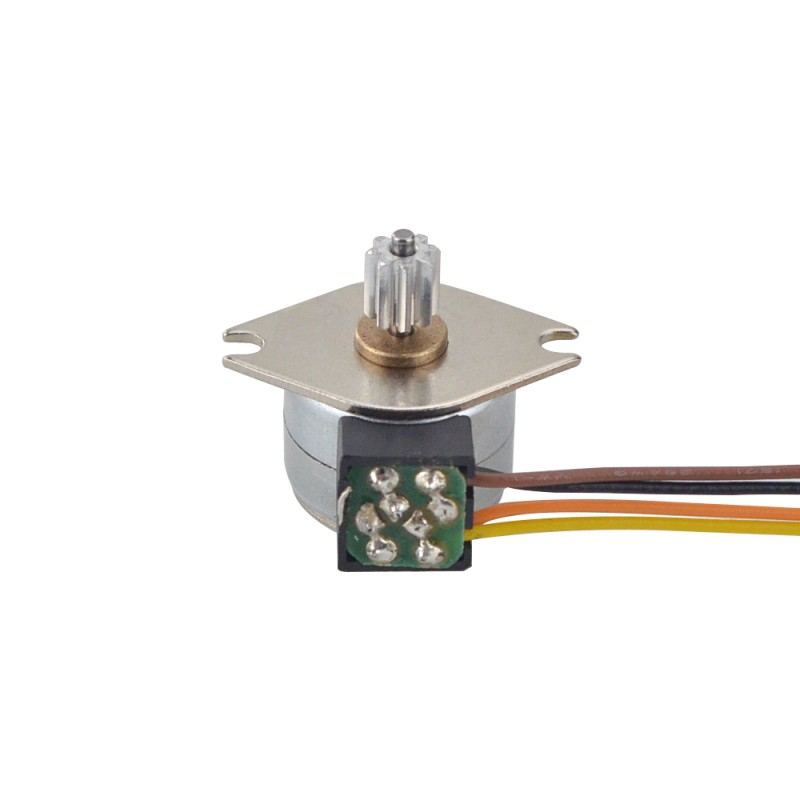

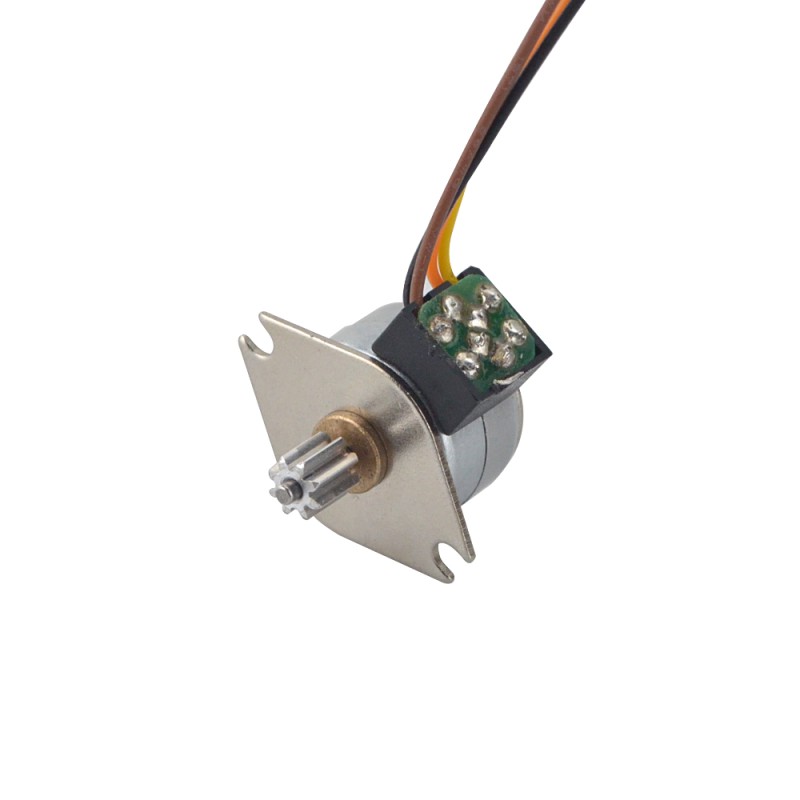

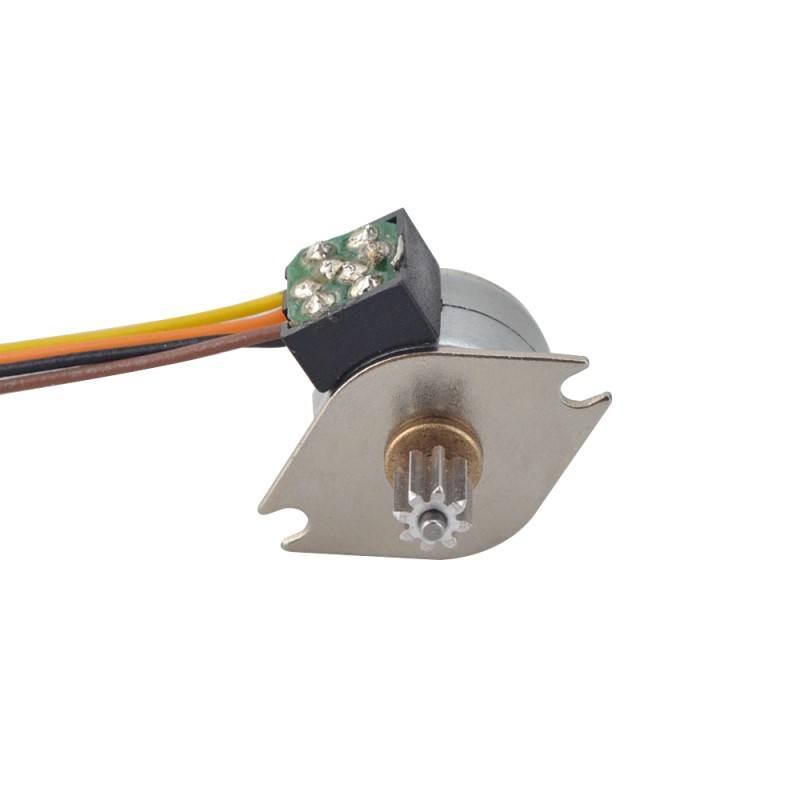

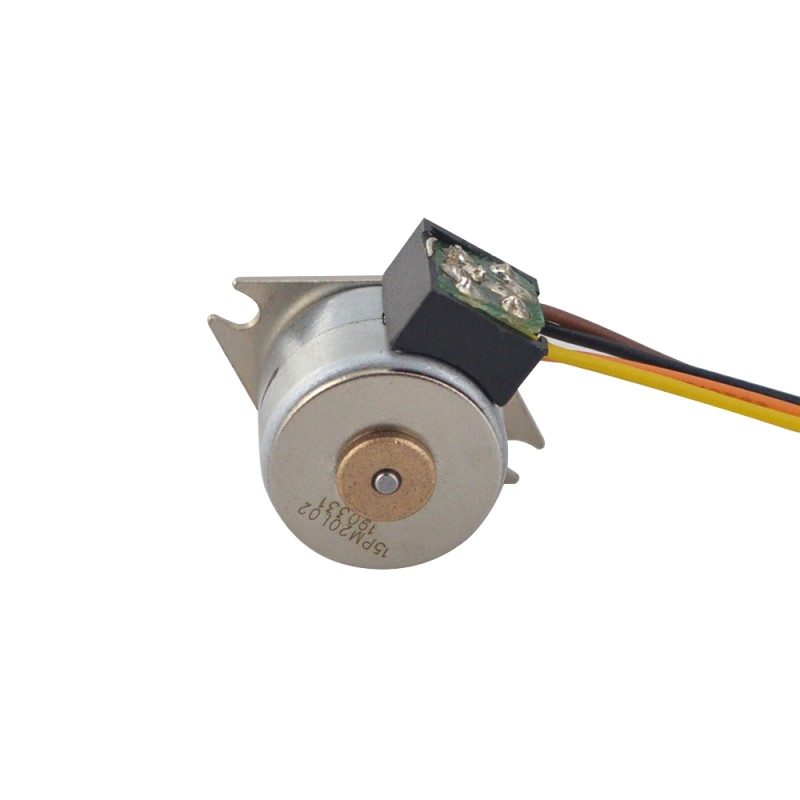

Name: Φ15x12mm PM Stepper motor 18deg 3.43mN.m(0.486oz.in) 0.4A 4 Wires
Brand: STEPPERONLINE
SKU: 15PM20L02

Φ15x12mm PM Stepper motor 18deg 3.43mN.m(0.486oz.in) 0.4A 4 Wires

15PM20L02 Discontinued

This product has been discontinued and is no longer available for purchase. Please contact us for a replacement.

Question

Downloads

15PM20L02.pdfPDF · 158.97KB

Same series

Model					Price	Stock
15PM20L02 Discontinued	—	—	—	—		—

Φ15x12mm PM Stepper motor 18deg 3.43mN.m(0.486oz.in) 0.4A 4 Wires

Electrical Specification Manufacturer Part Number: 15PM20L02 Motor Type: PM Stepper Phase: 2 S... Read More

0 reviews • Write a review

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

Electrical Specification

Manufacturer Part Number: 15PM20L02
Motor Type: PM Stepper
Phase: 2
Step Angle: 18deg
Rated Current/phase: 0.4A
Holding Torque: 3.43mN.m(0.486oz.in)
Detent Torque: 0.98mN.m(0.139oz.in)
Phase Resistance: 30.5±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 6mH±20%(1KHz)
Rotor Inertia: Less than 1.0g.cm²
Life: 3000h MIN(20℃,500 pps)

Physical Specification

Frame Size: Φ15mm
Body Length: 12mm
Shaft Diameter: Φ1.5mm
Shaft Length: 8mm

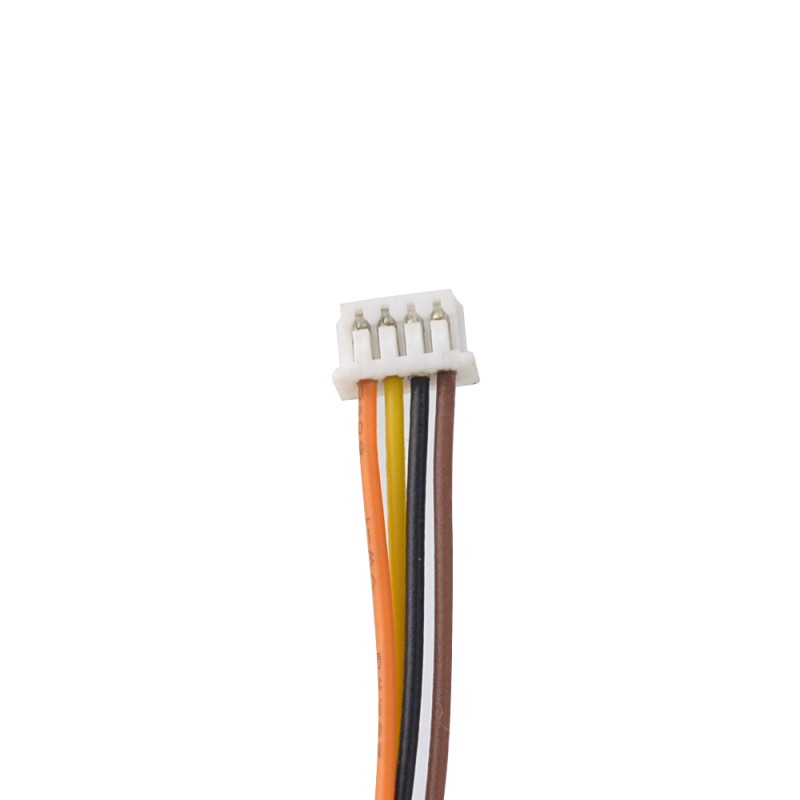

Number of Leads: 4 with connector Molex 51021 1.25
Lead Length: 90mm
Weight: 10.3g

Connection

A+	A-	B+	B-
Black	Brown	Orange	Yellow

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	0.98
Detent Torque(oz.in)	0.139
Holding Torque(oz.in)	0.486
Inductance(mH)	6
No. of Phase	2
Phase Resistance(ohms)	30.5
Rated Current(A)	0.4
Step Angle(deg.)	18
Physical Specification
Frame Size(mm)	Φ15
IP Rating	30
Lead Length(mm)	90
No. of Lead	4
Shaft Diameter(mm)	1.5
Shaft Length(mm)	8

Also Bought

Quickview

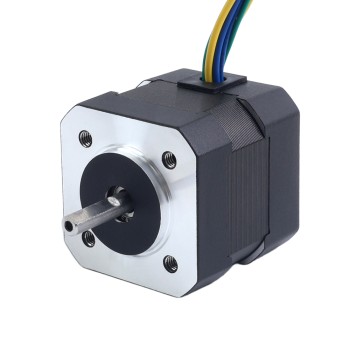

24V 4000RPM 0.0625Nm 26W 1.8A 42x42x39mm Brushless DC Motor

Electrical Specification Manufacturer Part Number: 42BLS40-24-01 Phase: 3 Poles: 8 Rated Voltage: 24V Rated Speed: 4000±10%RPM Noload Speed: ..

from

£13.56

Add to Cart

Add to Wish List Compare this Product

Quickview

Dual Shaft Nema 11 Bipolar 1.8deg 7Ncm(9.91oz.in) 0.67A 28x28x31.5mm 4 Wires

This model is dual shaft Nema 11 Bipolar stepper motor,it with step angle 1.8deg and size 28x28x31.5mm. It has 4 wires, each phase draws 0.67A, with h..

from

£8.25

Add to Cart

Add to Wish List Compare this Product

Quickview

Pre-order

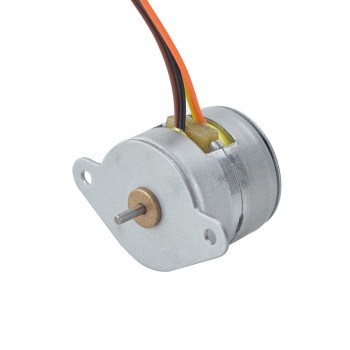

Φ20x18.5mm PM Stepper motor 18deg 12.25mN.m(1.735oz.in) 0.69A 4 Wires
