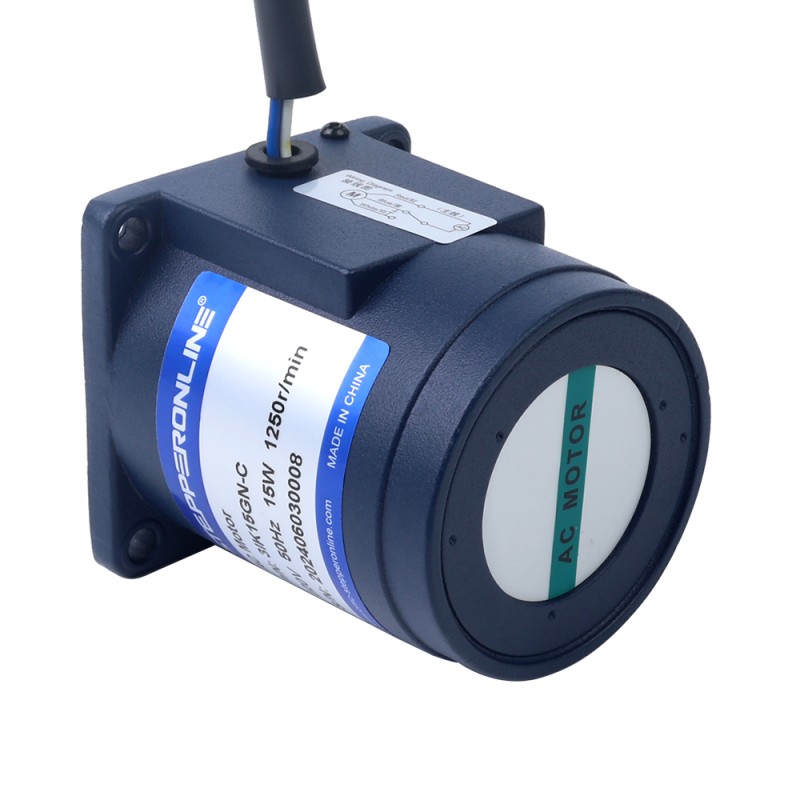

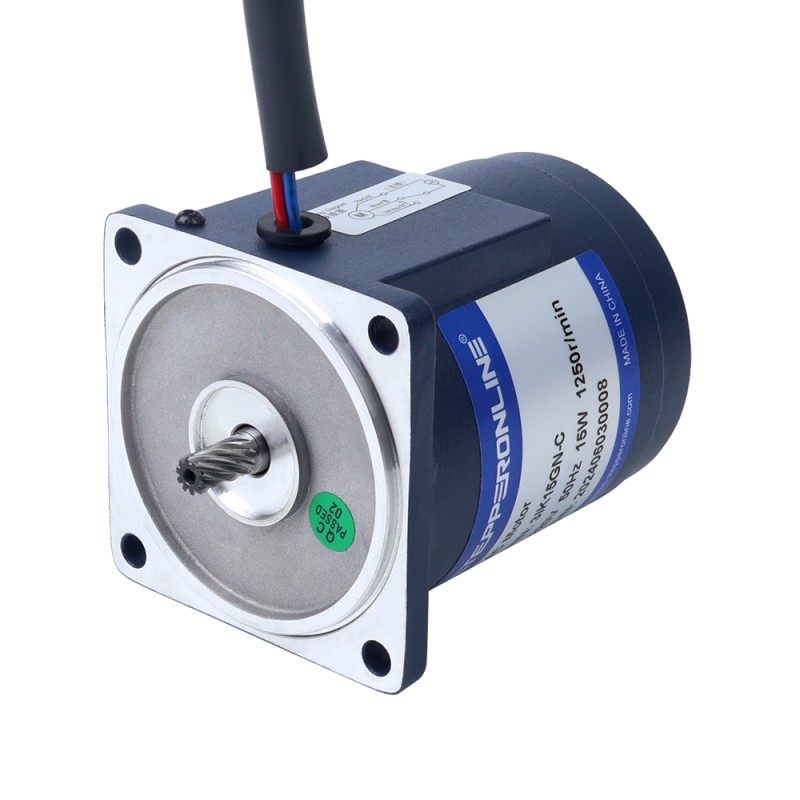

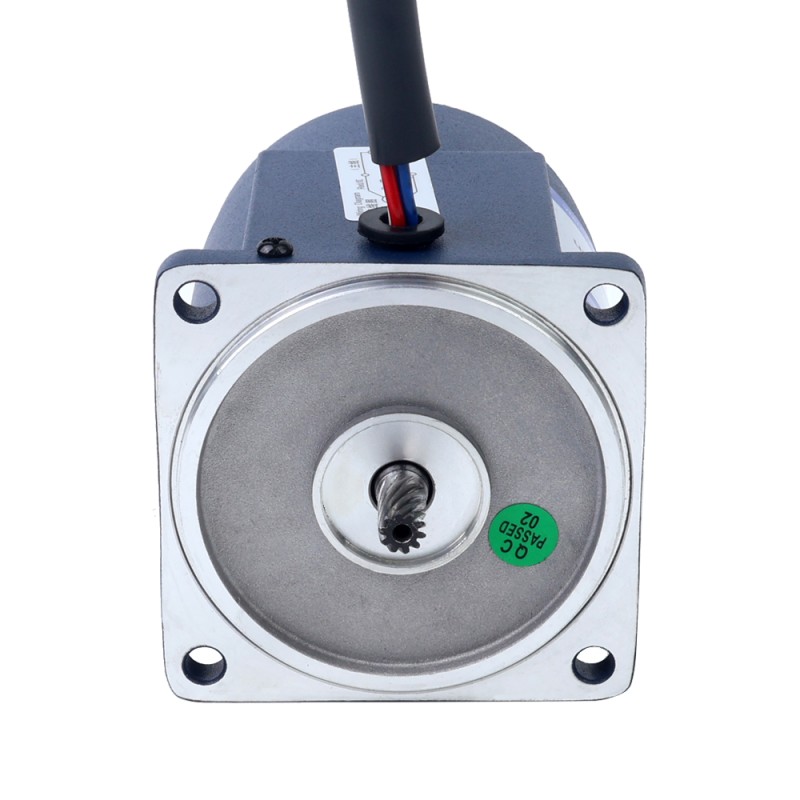

15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor

15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-C/3GN5K | StepperOnline UK
3IK15GN-C/3GN5K
Output Shaft TypeKeyway
Input Voltage(V)1PH 220VAC
Frame Size(mm)70 x 70
Current(A)0.17
Question

Downloads

3IK15GN-C_3GNXXK_manual.pdfPDF · 2.16MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
3IK15GN-A/3GN100KKeyway1PH 110VAC70 x 700.35£22.45In stock
3IK15GN-A/3GN10KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-A/3GN15KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-A/3GN200KKeyway1PH 110VAC70 x 700.35£22.45In stock
3IK15GN-A/3GN20KKeyway1PH 110VAC70 x 700.35£21.30In stock
3IK15GN-A/3GN30KKeyway1PH 110VAC70 x 700.35£21.30In stock
3IK15GN-A/3GN3KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-A/3GN50KKeyway1PH 110VAC70 x 700.35£21.30In stock
3IK15GN-A/3GN5KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-C/3GN100KKeyway1PH 220VAC70 x 700.17£22.45In stock
3IK15GN-C/3GN10KKeyway1PH 220VAC70 x 700.17£20.15In stock
3IK15GN-C/3GN10K-SALEKeyway1PH 220VAC70 x 700.17£20.47In stock
3IK15GN-C/3GN15KKeyway1PH 220VAC70 x 700.17£20.15In stock
3IK15GN-C/3GN200KKeyway1PH 220VAC70 x 700.17£22.45In stock
3IK15GN-C/3GN20KKeyway1PH 220VAC70 x 700.17£21.30In stock
3IK15GN-C/3GN30KKeyway1PH 220VAC70 x 700.17£21.30In stock
3IK15GN-C/3GN3KKeyway1PH 220VAC70 x 700.17£20.15In stock
3IK15GN-C/3GN50KKeyway1PH 220VAC70 x 700.17£21.30In stock
3IK15GN-C/3GN5KKeyway1PH 220VAC70 x 700.17£20.15In stock
15W 220VAC 50Hz 270RPM 0.50Nm(70.81oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor
This 70x70mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 5, a ... Read More
0 reviews • Write a review
from
£20.15
5 + £19.61
10 + £19.09
50 + £18.61
100 + £18.15

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This 70x70mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 5, a torque of 0.50Nm(70.81oz.in) and a speed of 270rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 3IK15GN-C/3GN5K
  • Gearbox Type: Spur Gearbox
  • Output Power: 15W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.17A
  • Gear Ratio: 5:1
  • Speed: 270rpm
  • Torque: 0.50Nm(70.81oz.in)
  • Capacitor: 1.2μF/450VAC

Physical Specifications

  • Frame Size: 70x70mm
  • Body Length: 124mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 1.6kg

Wiring

Electrical Specification
Current(A) 0.17
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Output Power(W) 15
Speed(rpm) 270
Torque(Nm) 0.5
Physical Specification
Frame Size(mm) 70 x 70
Gear Ratio(xx:1) 5
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

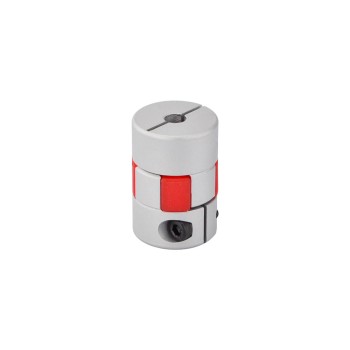

8mm - 10mm Flexible Jaw Coupling 30x40mm CNC Stepper Motor Shaft Coupler
8mm - 10mm Flexible Jaw Coupling 30x40mm CNC Stepper Motor Shaft Coupler
Shaft: 8.0mm - 10.0mm P/N: ST-JC15 Diameter: 30mm Length: 40mm Sleeve Material: Polyurethane Body Material: Aluminum Alloy..
from
£0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

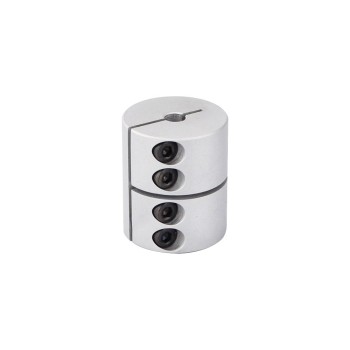

8mm - 10mm Rigid Coupling 25x30mm CNC Stepper Motor Shaft Coupler
8mm - 10mm Rigid Coupling 25x30mm CNC Stepper Motor Shaft Coupler
Shaft: 8mm - 10mm P/N: ST-RC08 Diameter: 25mm Length: 30mm Body Material: Aluminum Alloy..
from
£2.46
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Drive 1.0-3.2A 10-30VDC for Nema 17, 23 Stepper Motor
🔥 Bestseller
Digital Stepper Drive 1.0-3.2A 10-30VDC for Nema 17, 23 Stepper Motor
This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phas..
from
£12.68
Add to Cart
Add to Wish List Compare this Product
Quickview

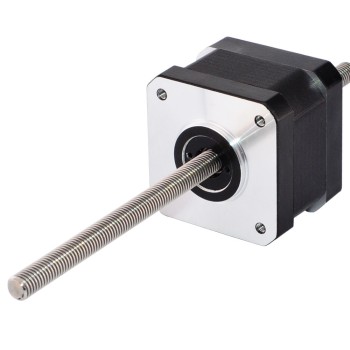

Nema 17 Non-captive 34mm Stack 0.4A Lead 2mm(0.07874") Length 100mm
Nema 17 Non-captive 34mm Stack 0.4A Lead 2mm(0.07874") Length 100mm
This model is economy linear stepper motor which named Nema 17 non captive linear actuator, it was composed of 34mm 1.8 degree 0.4A Nema 17 stepper mo..
from
£0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

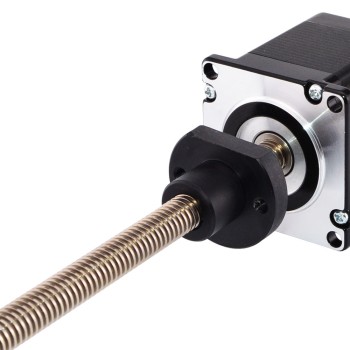

CN On Sale - Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 150mm
CN On Sale - Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 150mm
This model is economy linear stepper motor which named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 2A Nema 23 stepper motor. I..
from Save -32%
£25.88 £38.34
Add to Cart
Add to Wish List Compare this Product
Quickview

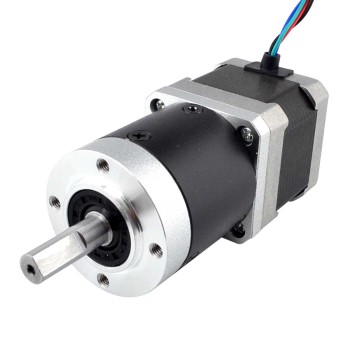

Nema 17 Stepper Motor L=39mm Gear Ratio 20:1 High Precision Planetary Gearbox
