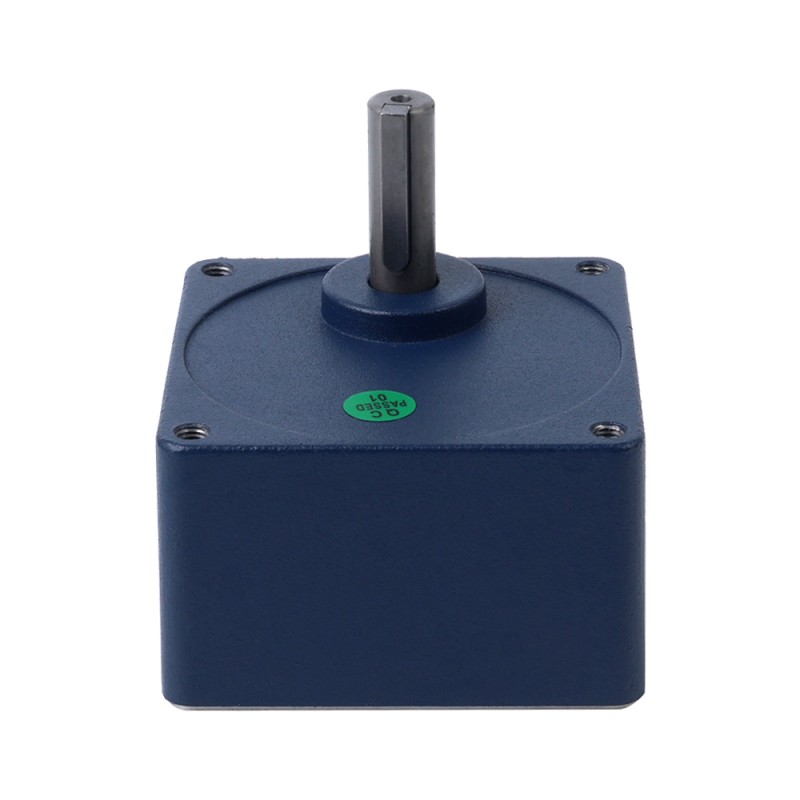

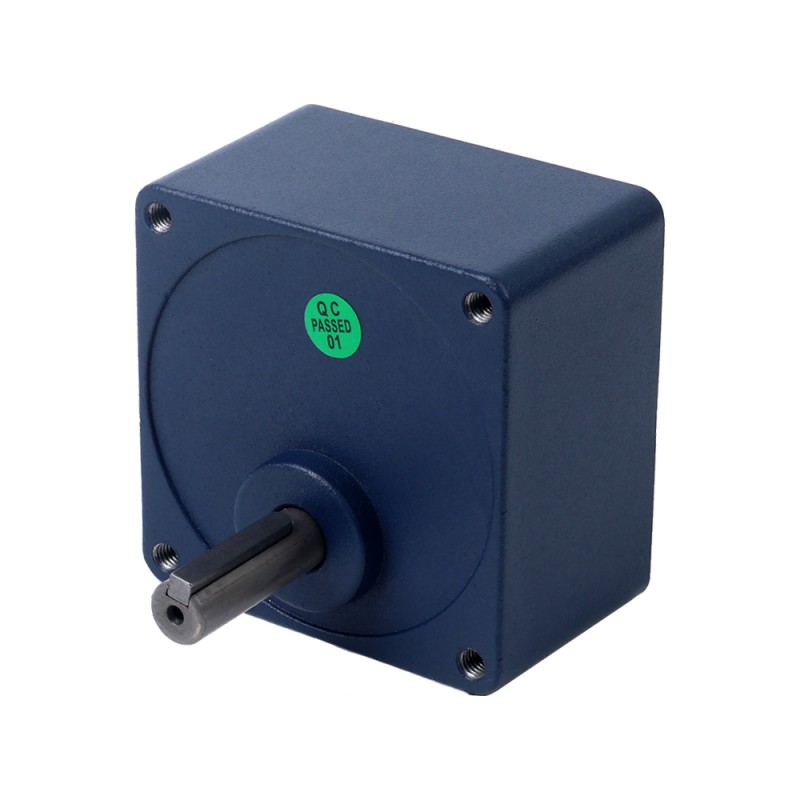

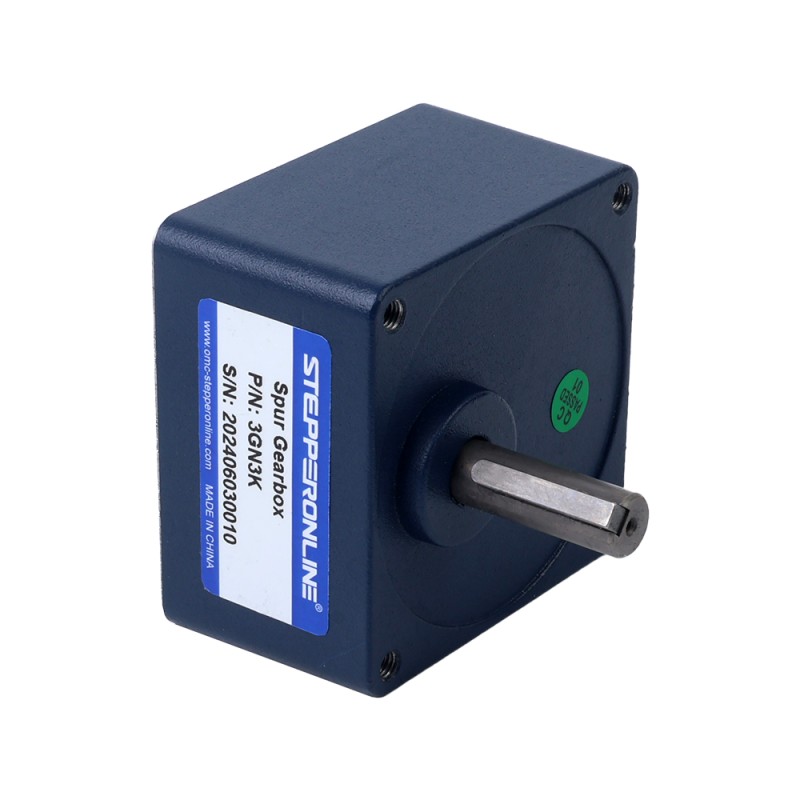

15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor

15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor - 3IK15GN-A/3GN3K | StepperOnline UK
3IK15GN-A/3GN3K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)70 x 70
Current(A)0.35
Question

Downloads

3IK15GN-A_3GNXXK_manual.pdfPDF · 2.16MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
3IK15GN-A/3GN100KKeyway1PH 110VAC70 x 700.35£22.45In stock
3IK15GN-A/3GN10KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-A/3GN15KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-A/3GN200KKeyway1PH 110VAC70 x 700.35£22.45In stock
3IK15GN-A/3GN20KKeyway1PH 110VAC70 x 700.35£21.30In stock
3IK15GN-A/3GN30KKeyway1PH 110VAC70 x 700.35£21.30In stock
3IK15GN-A/3GN3KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-A/3GN50KKeyway1PH 110VAC70 x 700.35£21.30In stock
3IK15GN-A/3GN5KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-C/3GN100KKeyway1PH 220VAC70 x 700.17£22.45In stock
3IK15GN-C/3GN10KKeyway1PH 220VAC70 x 700.17£20.15In stock
3IK15GN-C/3GN10K-SALEKeyway1PH 220VAC70 x 700.17£20.47In stock
3IK15GN-C/3GN15KKeyway1PH 220VAC70 x 700.17£20.15In stock
3IK15GN-C/3GN200KKeyway1PH 220VAC70 x 700.17£22.45In stock
3IK15GN-C/3GN20KKeyway1PH 220VAC70 x 700.17£21.30In stock
3IK15GN-C/3GN30KKeyway1PH 220VAC70 x 700.17£21.30In stock
3IK15GN-C/3GN3KKeyway1PH 220VAC70 x 700.17£20.15In stock
3IK15GN-C/3GN50KKeyway1PH 220VAC70 x 700.17£21.30In stock
3IK15GN-C/3GN5KKeyway1PH 220VAC70 x 700.17£20.15In stock
15W 110VAC 60Hz 516RPM 0.22Nm(31.15oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor
This 70x70mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 3, a ... Read More
0 reviews • Write a review
from
£20.15
5 + £19.61
10 + £19.09
50 + £18.61
100 + £18.15

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This 70x70mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 3, a torque of 0.22Nm(31.15oz.in) and a speed of 516rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 3IK15GN-A/3GN3K
  • Gearbox Type: Spur Gearbox
  • Output Power: 15W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.35A
  • Gear Ratio: 3:1
  • Speed: 516rpm
  • Torque: 0.22Nm(31.15oz.in)
  • Capacitor: 5.0μF/250VAC

Physical Specifications

  • Frame Size: 70x70mm
  • Body Length: 124mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 1.6kg

Wiring

Electrical Specification
Current(A) 0.35
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 15
Speed(rpm) 516
Torque(Nm) 0.22
Physical Specification
Frame Size(mm) 70 x 70
Gear Ratio(xx:1) 3
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Nema 17 Bipolar Stepper Motor 1.8deg 16Ncm(22.66oz.in) 1A Extruder Motor 42x42x21.5mm 4 Wires
🔥 Bestseller
Nema 17 Bipolar Stepper Motor 1.8deg 16Ncm(22.66oz.in) 1A Extruder Motor 42x42x21.5mm 4 Wires
This is the shortest bipolar Nema 17 stepper motor we have, with a step angle of 1.8deg, a shaft diameter of Φ5mm and size 42x42x21.5mm. It has 4 wire..
from
£6.31
Add to Cart
Add to Wish List Compare this Product
Quickview

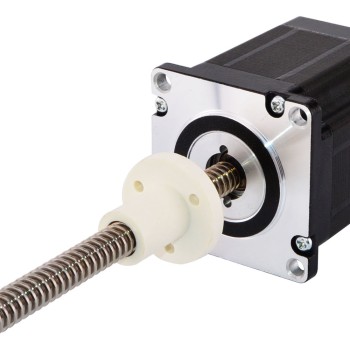

CN On Sale - Nema 23 External 66mm Stack 2.5A Lead 5.08mm(0.2") Length 150mm
CN On Sale - Nema 23 External 66mm Stack 2.5A Lead 5.08mm(0.2") Length 150mm
The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it has integrated with a 9.53mm(0.3752") diameter 150mm(5.9055") length lead sc..
from Save -31%
£70.14 £101.66
Add to Cart
Add to Wish List Compare this Product
Quickview
6W 110VAC 60Hz 51.6RPM 0.82Nm(116.12oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor
6W 110VAC 60Hz 51.6RPM 0.82Nm(116.12oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor
This 60x60mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 30, a torque of 0.82Nm(116.12oz.in) and a speed of 51.6..
from
£17.13
Add to Cart
Add to Wish List Compare this Product
Quickview

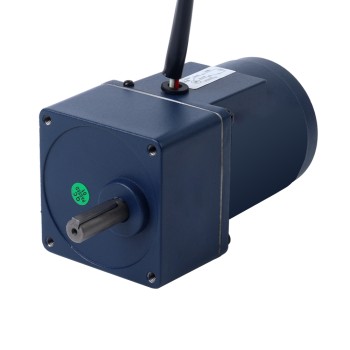

15W 220VAC 50Hz 135RPM 1.01Nm(143.03oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor
15W 220VAC 50Hz 135RPM 1.01Nm(143.03oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor
This 70x70mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 10, a torque of 1.01Nm(143.03oz.in) and a speed of 135r..
from
£20.15
Add to Cart
Add to Wish List Compare this Product
Quickview

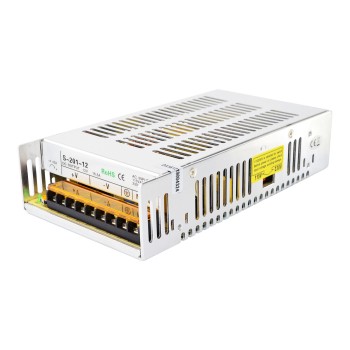

201W 12V 16.5A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
Pre-order
201W 12V 16.5A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This professional 201W 12V 16.5A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System. 115V and 230V ..
from
£13.82
Add to Cart
Add to Wish List Compare this Product
Quickview
400W 24V 16.7A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
400W 24V 16.7A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This professional 400W 24V 16.7A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Machines. 115V and 230V can be chose..
from
£21.33
Add to Cart
Add to Wish List Compare this Product
Quickview

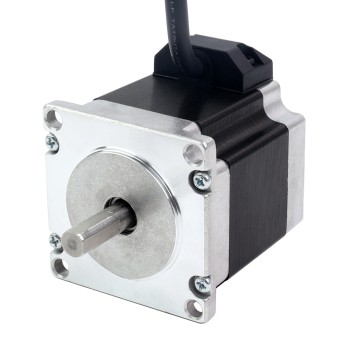

Dual Shaft Nema 23 Bipolar 1.2Nm(169.9oz.in) 2.8A 57x57x56mm 4 Wires
