3IK15GN-A/3GN15K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)70 x 70
Current(A)0.35
Question

Downloads

3IK15GN-A_3GNXXK_manual.pdfPDF · 2.16MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
3IK15GN-A/3GN100KKeyway1PH 110VAC70 x 700.35£22.45In stock
3IK15GN-A/3GN10KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-A/3GN15KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-A/3GN200KKeyway1PH 110VAC70 x 700.35£22.45In stock
3IK15GN-A/3GN20KKeyway1PH 110VAC70 x 700.35£21.30In stock
3IK15GN-A/3GN30KKeyway1PH 110VAC70 x 700.35£21.30In stock
3IK15GN-A/3GN3KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-A/3GN50KKeyway1PH 110VAC70 x 700.35£21.30In stock
3IK15GN-A/3GN5KKeyway1PH 110VAC70 x 700.35£20.15In stock
3IK15GN-C/3GN100KKeyway1PH 220VAC70 x 700.17£22.45In stock
3IK15GN-C/3GN10KKeyway1PH 220VAC70 x 700.17£20.15In stock
3IK15GN-C/3GN10K-SALEKeyway1PH 220VAC70 x 700.17£20.47In stock
3IK15GN-C/3GN15KKeyway1PH 220VAC70 x 700.17£20.15In stock
3IK15GN-C/3GN200KKeyway1PH 220VAC70 x 700.17£22.45In stock
3IK15GN-C/3GN20KKeyway1PH 220VAC70 x 700.17£21.30In stock
3IK15GN-C/3GN30KKeyway1PH 220VAC70 x 700.17£21.30In stock
3IK15GN-C/3GN3KKeyway1PH 220VAC70 x 700.17£20.15In stock
3IK15GN-C/3GN50KKeyway1PH 220VAC70 x 700.17£21.30In stock
3IK15GN-C/3GN5KKeyway1PH 220VAC70 x 700.17£20.15In stock
15W 110VAC 60Hz 103RPM 1.11Nm(157.19oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor
This 70x70mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 15, a... Read More
0 reviews • Write a review
from
£20.15
5 + £19.61
10 + £19.09
50 + £18.61
100 + £18.15

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This 70x70mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 15, a torque of 1.11Nm(157.19oz.in) and a speed of 103rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 3IK15GN-A/3GN15K
  • Gearbox Type: Spur Gearbox
  • Output Power: 15W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.35A
  • Gear Ratio: 15:1
  • Speed: 103rpm
  • Torque: 1.11Nm(157.19oz.in)
  • Capacitor: 5.0μF/250VAC

Physical Specifications

  • Frame Size: 70x70mm
  • Body Length: 124mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 1.6kg

Wiring

Electrical Specification
Current(A) 0.35
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 15
Speed(rpm) 103
Torque(Nm) 1.11
Physical Specification
Frame Size(mm) 70 x 70
Gear Ratio(xx:1) 15
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Nema 17 Bipolar 1.8deg 40Ncm(56.64oz.in) 0.4A 42x42x39mm 4 Wires
Nema 17 Bipolar 1.8deg 40Ncm(56.64oz.in) 0.4A 42x42x39mm 4 Wires
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 4 wires, each phase draws current 0.4A, with holding torque 40Nc..
from
£7.74
Add to Cart
Add to Wish List Compare this Product
Quickview
6W 110VAC 60Hz 15.5RPM 2.45Nm(346.95oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor
6W 110VAC 60Hz 15.5RPM 2.45Nm(346.95oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor
This 60x60mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 100, a torque of 2.45Nm(346.95oz.in) and a speed of 15...
from
£18.14
Add to Cart
Add to Wish List Compare this Product
Quickview
5pcs Nema 17 Bipolar 59Ncm(83.55oz.in) 2A 42x42x48mm 4 Wires w/ 1m Cable & Connector
5pcs Nema 17 Bipolar 59Ncm(83.55oz.in) 2A 42x42x48mm 4 Wires w/ 1m Cable & Connector
This 5-pack is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.55oz.in). Based on old verstion, we have lengthened motor..
from
£33.10
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 5:1 Planetary Gearbox
This Nema 17 stepper motor with 48mm body, 500mm cable and 1.68A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solut..
from
£22.80
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket
🔥 Bestseller
Nema 17 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket
Manufacturer P/N: ST-M1 The new designed NEMA 17 Stepper Motor Alloy Steel Mounting Bracket can match standard Nema 17 stepper motor, and also includ..
from
£1.45
Add to Cart
Add to Wish List Compare this Product
Quickview

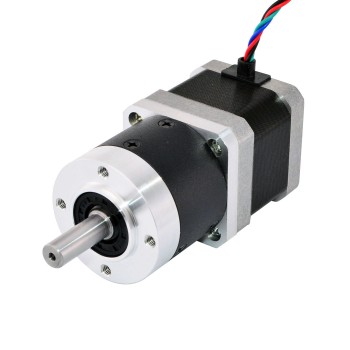

Nema 17 Stepper Motor L=39mm 1.68A Gear Ratio 10:1 High Precision Planetary Gearbox
