5IK120RGU-CF/5GU10KB
Output Shaft TypeKeyway
Input Voltage(V)1PH 220VAC
Frame Size(mm)90 x 90
Current(A)0.87
Question

Downloads

5IK120RGU-XF_5GUXXKB_Manual.pdfPDF · 1.25MB5IK120RGU-CF-5GU10KB.STEPSTEP · 2.33MBLog in to download
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120RGU-AF/5GU30RCHollow1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU30RTKeyway1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU3KBKeyway1PH 110VAC90 x 901.65£41.74In stock
5IK120RGU-AF/5GU50KBKeyway1PH 110VAC90 x 901.65£45.62In stock
5IK120RGU-AF/5GU50RCHollow1PH 110VAC90 x 901.65£62.47In stock
5IK120RGU-AF/5GU50RTKeyway1PH 110VAC90 x 901.65£62.47In stock
5IK120RGU-AF/5GU5KBKeyway1PH 110VAC90 x 901.65£41.74In stock
5IK120RGU-CF/5GU100KBKeyway1PH 220VAC90 x 900.87£47.64In stock
5IK120RGU-CF/5GU100RCHollow1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU100RTKeyway1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU10KBKeyway1PH 220VAC90 x 900.87£43.90In stock
5IK120RGU-CF/5GU10RCHollow1PH 220VAC90 x 900.87£60.88In stock
5IK120RGU-CF/5GU10RTKeyway1PH 220VAC90 x 900.87£60.88In stock
5IK120RGU-CF/5GU15KBKeyway1PH 220VAC90 x 900.87£43.90In stock
5IK120RGU-CF/5GU15RCHollow1PH 220VAC90 x 900.87£60.88In stock
5IK120RGU-CF/5GU15RTKeyway1PH 220VAC90 x 900.87£60.88In stock
5IK120RGU-CF/5GU180RCHollow1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU180RTKeyway1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU200KBKeyway1PH 220VAC90 x 900.87£47.64In stock
5IK120RGU-CF/5GU20KBKeyway1PH 220VAC90 x 900.87£45.62In stock
5IK120RGU-CF/5GU20RCHollow1PH 220VAC90 x 900.87£60.88In stock
5IK120RGU-CF/5GU20RTKeyway1PH 220VAC90 x 900.87£60.88In stock
5IK120RGU-CF/5GU30KBKeyway1PH 220VAC90 x 900.87£45.62In stock
5IK120RGU-CF/5GU30RCHollow1PH 220VAC90 x 900.87£60.88In stock
5IK120RGU-CF/5GU30RTKeyway1PH 220VAC90 x 900.87£60.88In stock
5IK120RGU-CF/5GU3KBKeyway1PH 220VAC90 x 900.87£41.74In stock
5IK120RGU-CF/5GU50KBKeyway1PH 220VAC90 x 900.87£45.62In stock
5IK120RGU-CF/5GU50RCHollow1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU50RTKeyway1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU5KBKeyway1PH 220VAC90 x 900.87£41.74In stock
View all in category

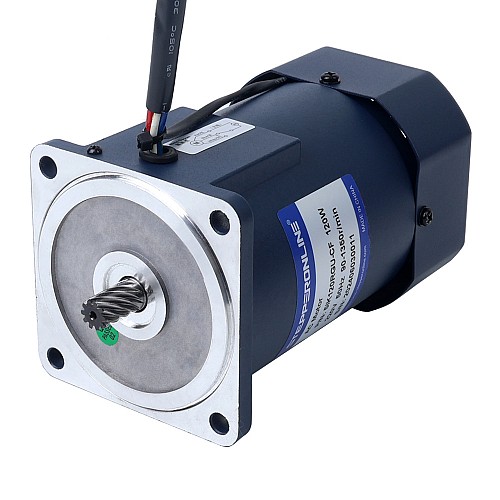

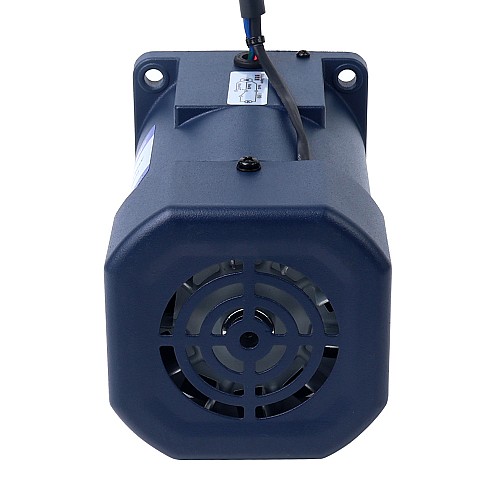

120W 220VAC 50Hz 9-135RPM 7.29Nm(1032.35oz.in) Flange 90mm Spur Gearbox Single-phase AC Variable Speed Motor
This 120W 90x90mm single-phase AC motor with adjustable speed control is operated with 220VAC. It ha... Read More
0 reviews • Write a review
from
£43.90
5 + £42.72
10 + £41.60
50 + £40.54
100 + £39.53

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.
This 120W 90x90mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has a speed range of 9-135rpm and a gearbox with a gear ratio of 10. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK120RGU-CF/5GU10KB
  • Gearbox Type: Spur Gearbox
  • Output Power: 120W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.87A
  • Gear Ratio: 10:1
  • Speed Range: 9-135rpm
  • Maximum Torque: 7.29Nm(1032.35oz.in)
  • Capacitor: 6.0μF/450VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 216mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 38mm
  • Weight: 5.15kg

Wiring

Electrical Specification
Current(A) 0.87
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Max. Torque(Nm) 7.29
Output Power(W) 120
Speed Range(rpm) 9-135
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 10
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
