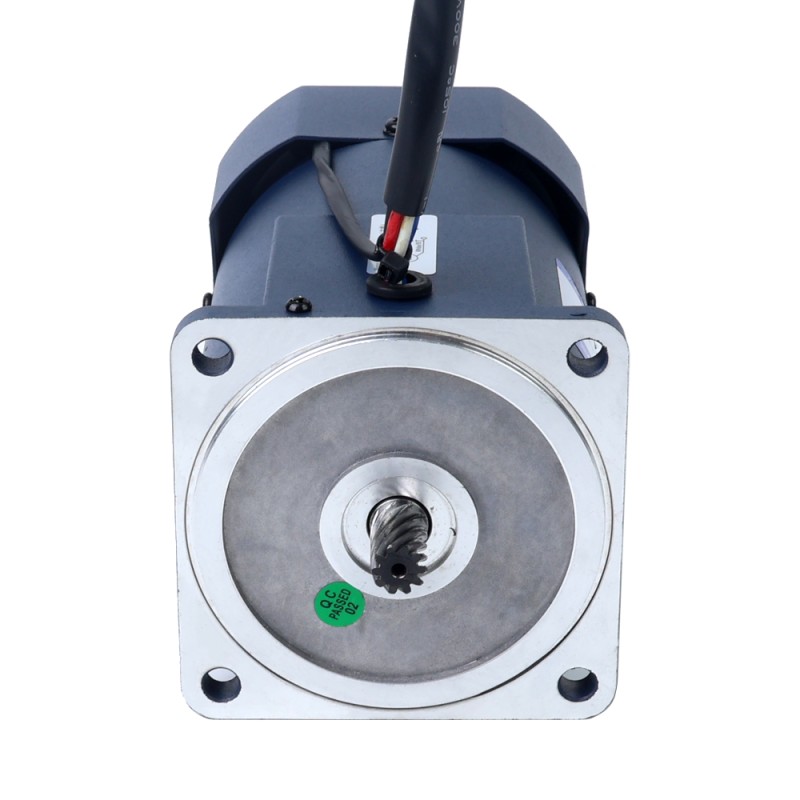

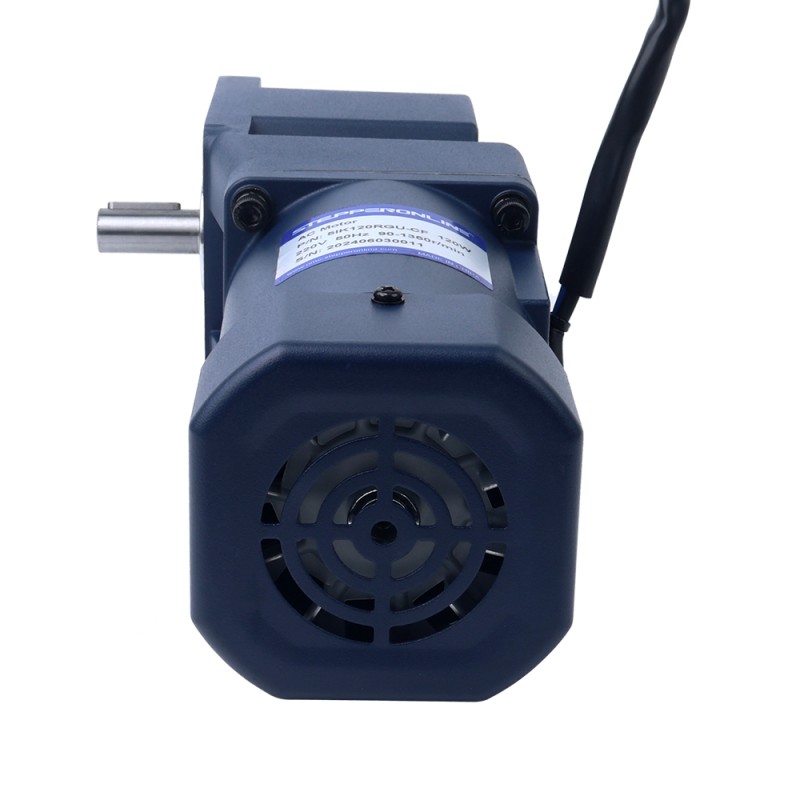

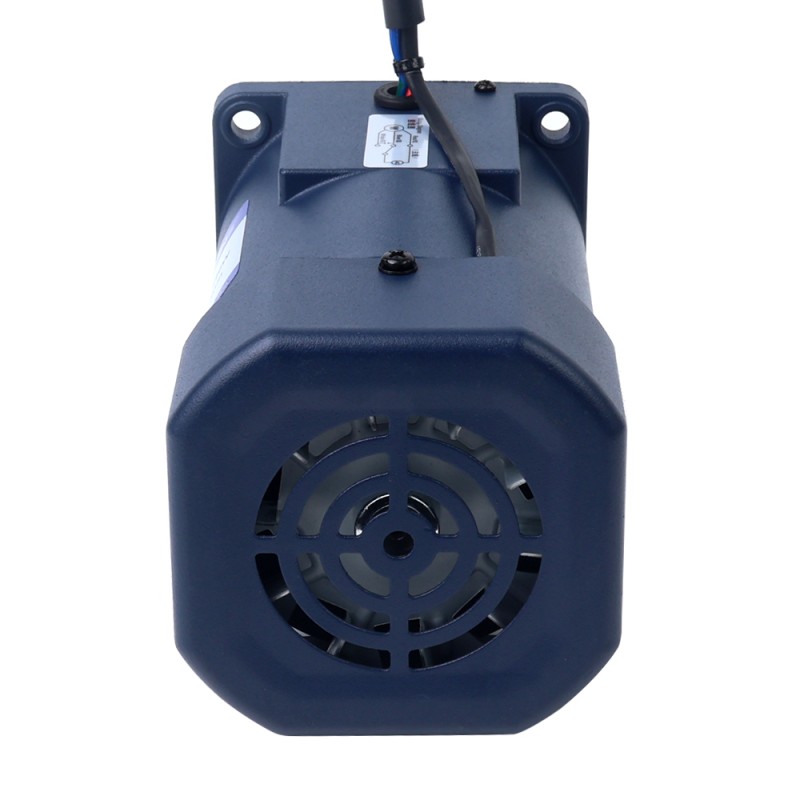

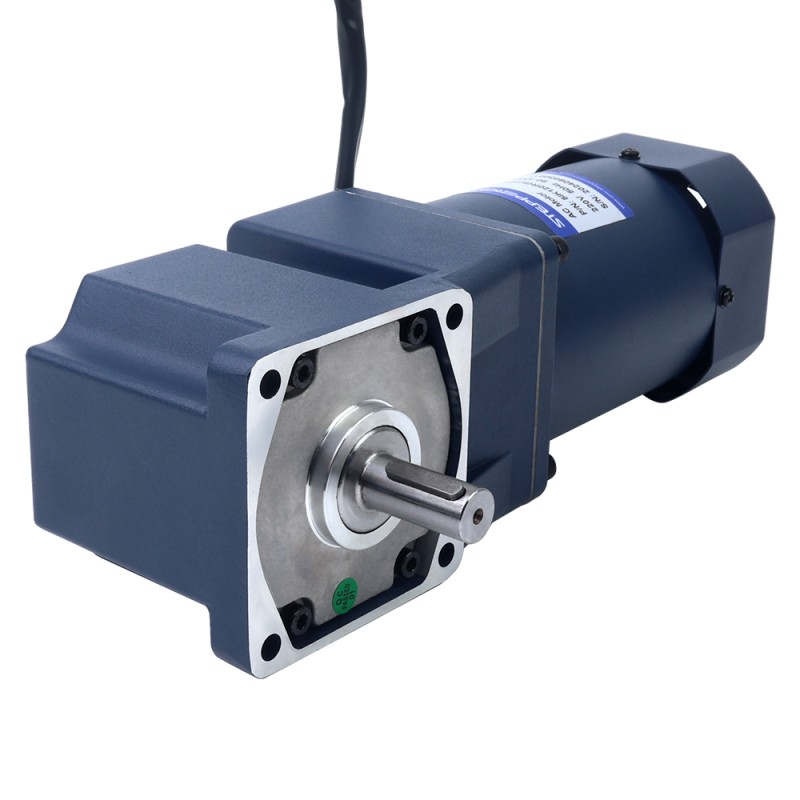

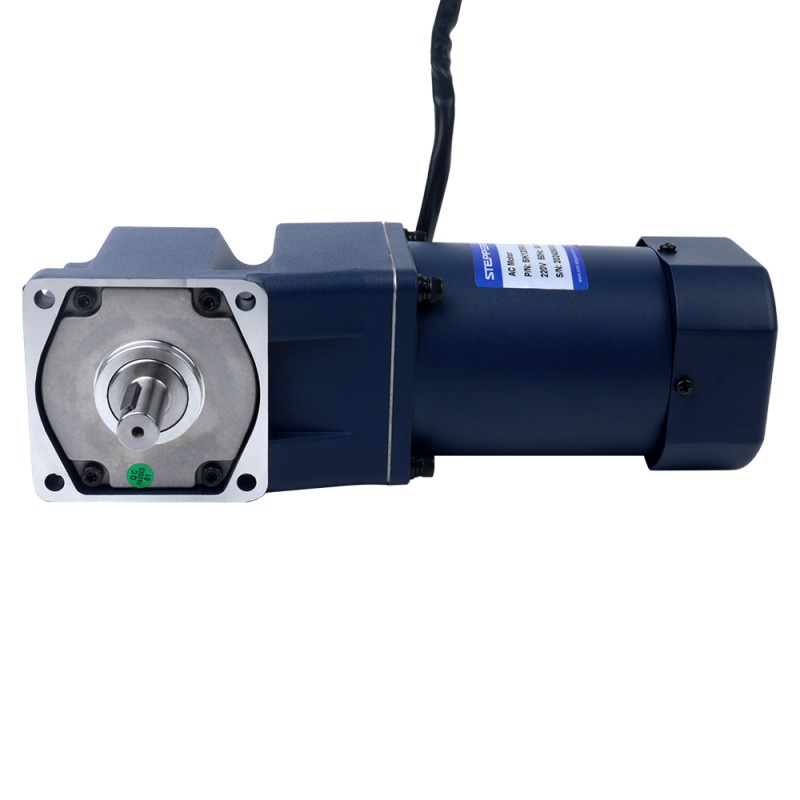

120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor

120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor - 5IK120RGU-AF/5GU100RT | StepperOnline UK
5IK120RGU-AF/5GU100RT
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)1.65
Question

Downloads

5IK120RGU-XF_5GUXXRX_Manual.pdfPDF · 1.7MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120RA-AFD1PH 110VAC90 x 901.65£27.63In stock
5IK120RA-CFD1PH 220VAC90 x 900.87£27.63In stock
5IK120RGU-AF/5GU100KBKeyway1PH 110VAC90 x 901.65£47.64In stock
5IK120RGU-AF/5GU100RCHollow1PH 110VAC90 x 901.65£62.47In stock
5IK120RGU-AF/5GU100RTKeyway1PH 110VAC90 x 901.65£62.47In stock
5IK120RGU-AF/5GU10KBKeyway1PH 110VAC90 x 901.65£43.90In stock
5IK120RGU-AF/5GU10RCHollow1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU10RTKeyway1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU15KBKeyway1PH 110VAC90 x 901.65£43.90In stock
5IK120RGU-AF/5GU15RCHollow1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU15RTKeyway1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU180RCHollow1PH 110VAC90 x 901.65£62.47In stock
5IK120RGU-AF/5GU180RTKeyway1PH 110VAC90 x 901.65£62.47In stock
5IK120RGU-AF/5GU200KBKeyway1PH 110VAC90 x 901.65£47.64In stock
5IK120RGU-AF/5GU20KBKeyway1PH 110VAC90 x 901.65£45.62In stock
5IK120RGU-AF/5GU20RCHollow1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU20RTKeyway1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU30KBKeyway1PH 110VAC90 x 901.65£45.62In stock
5IK120RGU-AF/5GU30RCHollow1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU30RTKeyway1PH 110VAC90 x 901.65£60.88In stock
5IK120RGU-AF/5GU3KBKeyway1PH 110VAC90 x 901.65£41.74In stock
5IK120RGU-AF/5GU50KBKeyway1PH 110VAC90 x 901.65£45.62In stock
5IK120RGU-AF/5GU50RCHollow1PH 110VAC90 x 901.65£62.47In stock
5IK120RGU-AF/5GU50RTKeyway1PH 110VAC90 x 901.65£62.47In stock
5IK120RGU-AF/5GU5KBKeyway1PH 110VAC90 x 901.65£41.74In stock
5IK120RGU-CF/5GU100KBKeyway1PH 220VAC90 x 900.87£47.64In stock
5IK120RGU-CF/5GU100RCHollow1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU100RTKeyway1PH 220VAC90 x 900.87£62.47In stock
5IK120RGU-CF/5GU10KBKeyway1PH 220VAC90 x 900.87£43.90In stock
5IK120RGU-CF/5GU10RCHollow1PH 220VAC90 x 900.87£60.88In stock
View all in category
120W 110VAC 60Hz 0.9-15.5RPM 40.00Nm(5664.4oz.in) Flange 90mm Right Angle Gearbox Single-phase AC Variable Speed Motor
This 90x90mm keyway shaft single-phase AC motor with adjustable speed control is operated with 110VA... Read More
0 reviews • Write a review
from
£62.47
5 + £60.78
10 + £59.19
50 + £57.69
100 + £56.26

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This 90x90mm keyway shaft single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 0.9-15.5rpm and a right angle gearbox with a gear ratio of 100. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK120RGU-AF/5GU100RT
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 120W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 1.65A
  • Gear Ratio: 100:1
  • Speed Range: 0.9-15.5rpm
  • Maximum Torque: 40.00Nm(5664.4oz.in)
  • Capacitor: 25.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 289mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 38mm
  • Weight: 6.7kg

Wiring

Electrical Specification
Current(A) 1.65
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Max. Torque(Nm) 40.00
Output Power(W) 120
Speed Range(rpm) 0.9-15.5
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 100
Gearbox Type Right Angle Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
120W Single Phase 110VAC Motor Speed Controller for Variable Speed Motor
120W Single Phase 110VAC Motor Speed Controller for Variable Speed Motor
This motor speed controller comes with a voltage of single-phase 110VAC and is suitable for 120W variable speed motors. It features advanced PID contr..
from
£8.03
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Brushless DC Motor Driver 24-48VDC Max 15.0A 400W
Digital Brushless DC Motor Driver 24-48VDC Max 15.0A 400W
This 24-48VDC 400W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial automa..
from
£44.33
Add to Cart
Add to Wish List Compare this Product
Quickview

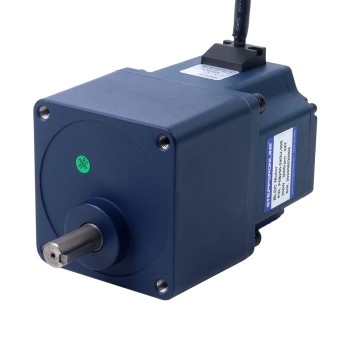

24V 250W 15RPM Geared Brushless DC Motor 40.00Nm(5664.48oz.in) 200:1 Spur Gearbox
